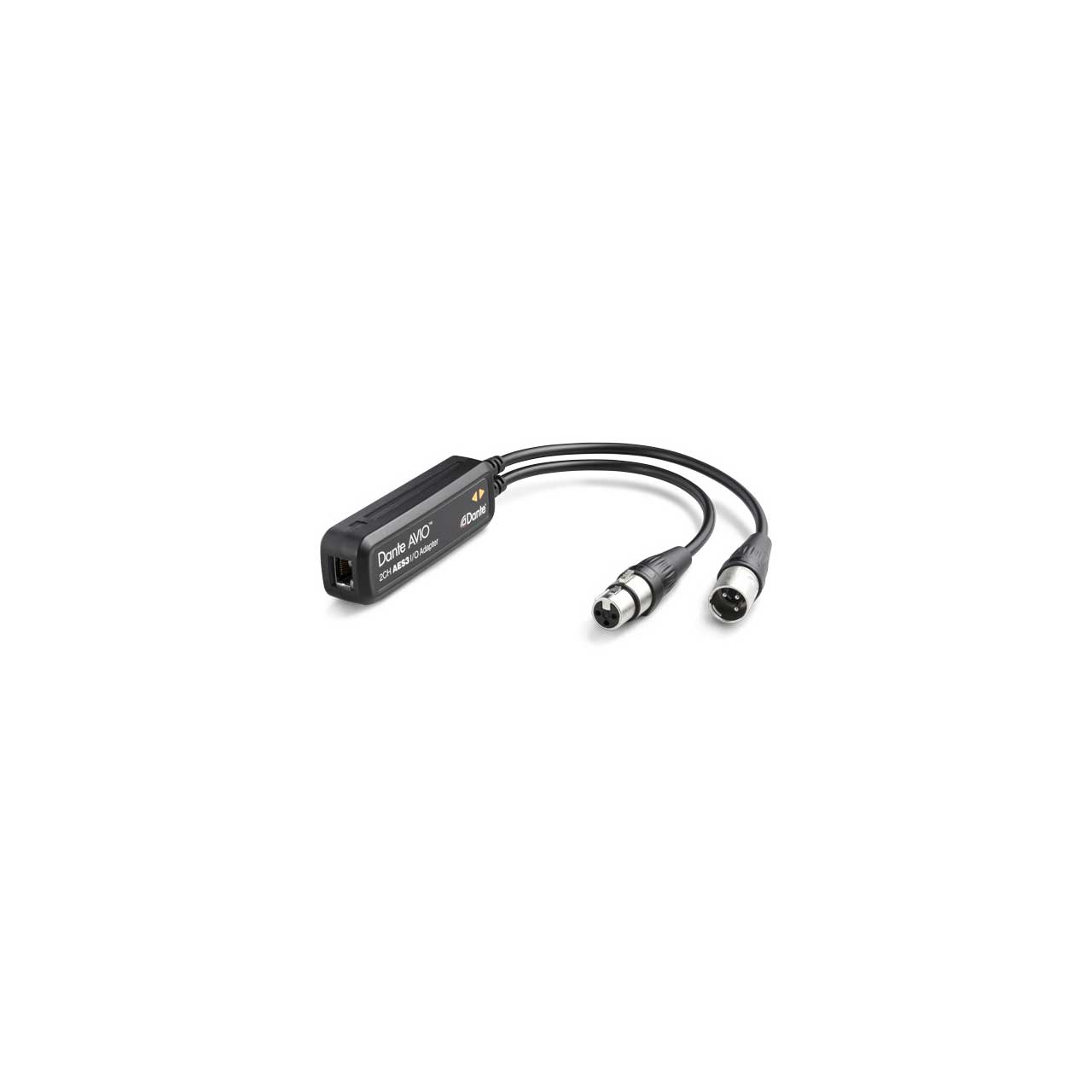

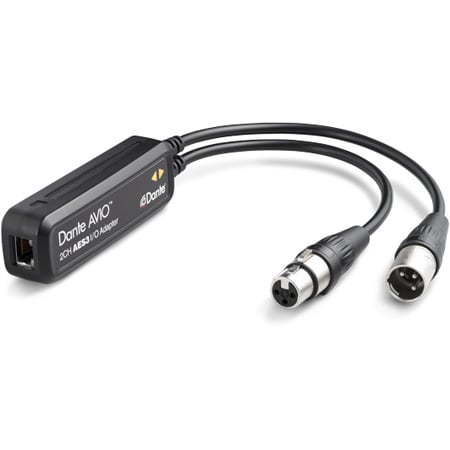

Audinate ADP-AES3-AU-2X2 Dante AVIO AES3 In/out 2x2 Adapter with RJ45 and XLR Male and Female


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    ADP-AES3-AU-2X2 - Overview

    The Audinate ADP-AES3-AU-2X2 with RJ45 and XLR male and female connectors. Dante AVIO AES3/EBU Adapters let you use your favorite digital audio gear on a Dante audio network. Don't abandon great AES3-connected amplifiers, DSPs and mic preamps - adapt them to the world of audio networking with Dante AVIO.

    The Dante AVIO AES3/EBU adapter supports 2x2 channels, with high-quality XLR input and output connectors and built-in aynchronous sample rate conversion. Use the AES3 Dante AVIO Adapters to add Dante networking to amplifiers, speaker processors, mixing consoles, video systems and more

    • Features:

      • Send audio to analog power amplifiers and powered speakers over a Dante audio network.
      • Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters.
      • Create easy drop-points for connecting cry rooms and overflow areas to a Dante network.
      • Plug & play operation.
      • Built for the road.
      • Sample rates up to 96 kHz (48 kHz for USB).
      • Excellent dynamic range, SNR and THD performance.
      • Configurable gain / attenuation (analog input and output models only).
      • Asynchronous Sample Rate Conversion (AES3 model only).
      • Dante Audio over IP and AES67 RTP transport formats.
      • Power over Ethernet (PoE) support.
      • Dante Domain Manager ready.
    • Specifications:

      • Channels: 2 in 2 out
      • Impedance: 110 Ohm balanced
      • Signal to Noise Ratio: > 135dB
      • Connectors: RJ45, 1 XLR-M, 1 XLR-F
      • Power: Class 1 802.3af PoE
      • Asyn-chronous Sample Rate Conversion: Yes
      • Sample Rates: 44.1, 48, 96 kHz
      • Bit Depth: 24
      • Network Transport: Dante Audio over IP AES67 RTP
      • USB: Class Compliant
    • GTIN:
