    MX44KVM - Overview

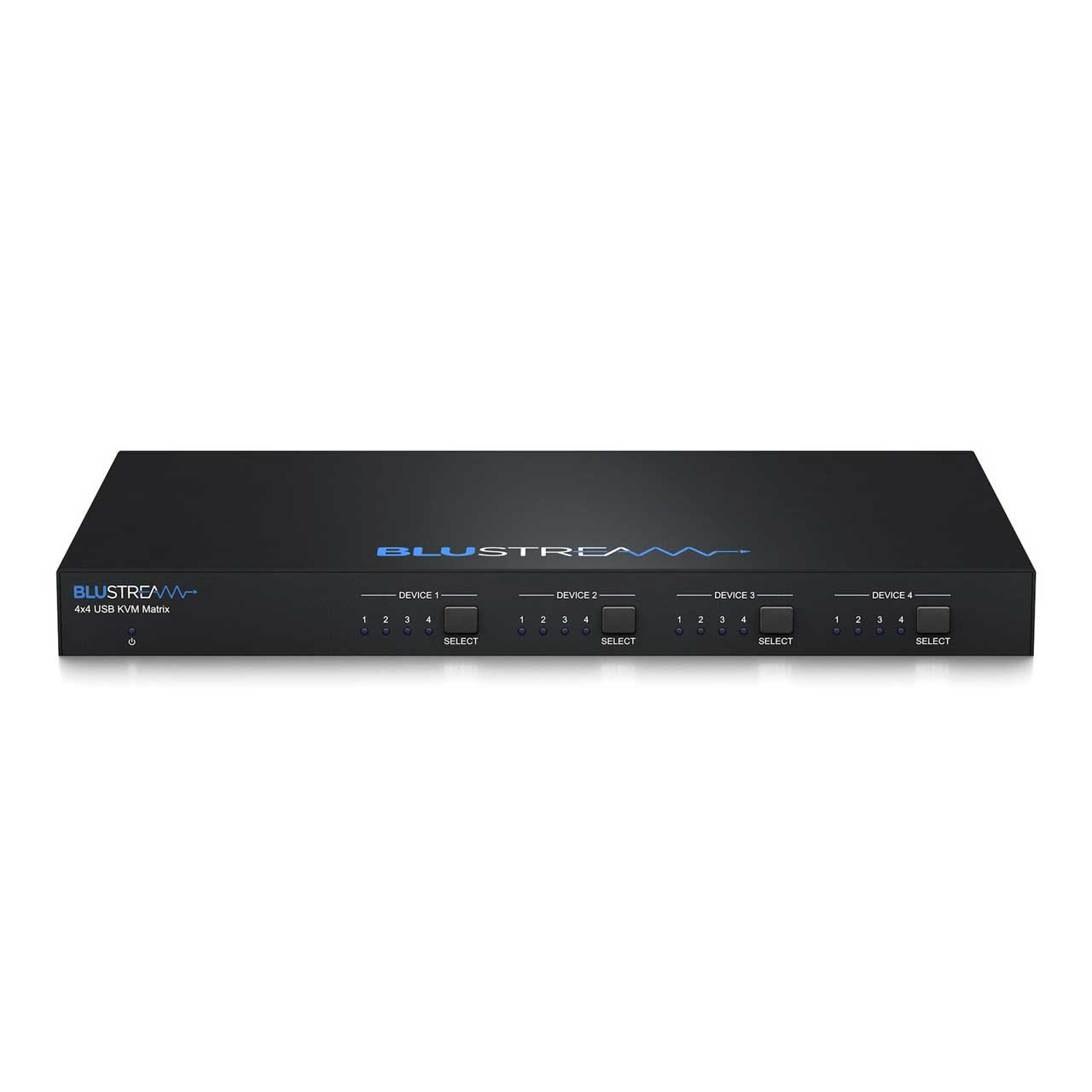

    Blustream MX44KVM 4x4 USB 3.0 KVM Matrix offers unprecedented performance and value for the custom and commercial installation market.

    The MX44KVM is a USB 3.0 Matrix package allowing 4x USB peripheral devices to be shared between 4x host devices, supporting plug-and-play capabilities, and USB data transfer rates up to 5Gbps.

    The Matrix provides advanced features including cascading of multiple MX44KVM units, GPIO functionality for 3rd party product triggers, an in-built web browser interface module for control and configuration of the Matrix, along with RS-232 for seamless control integration.

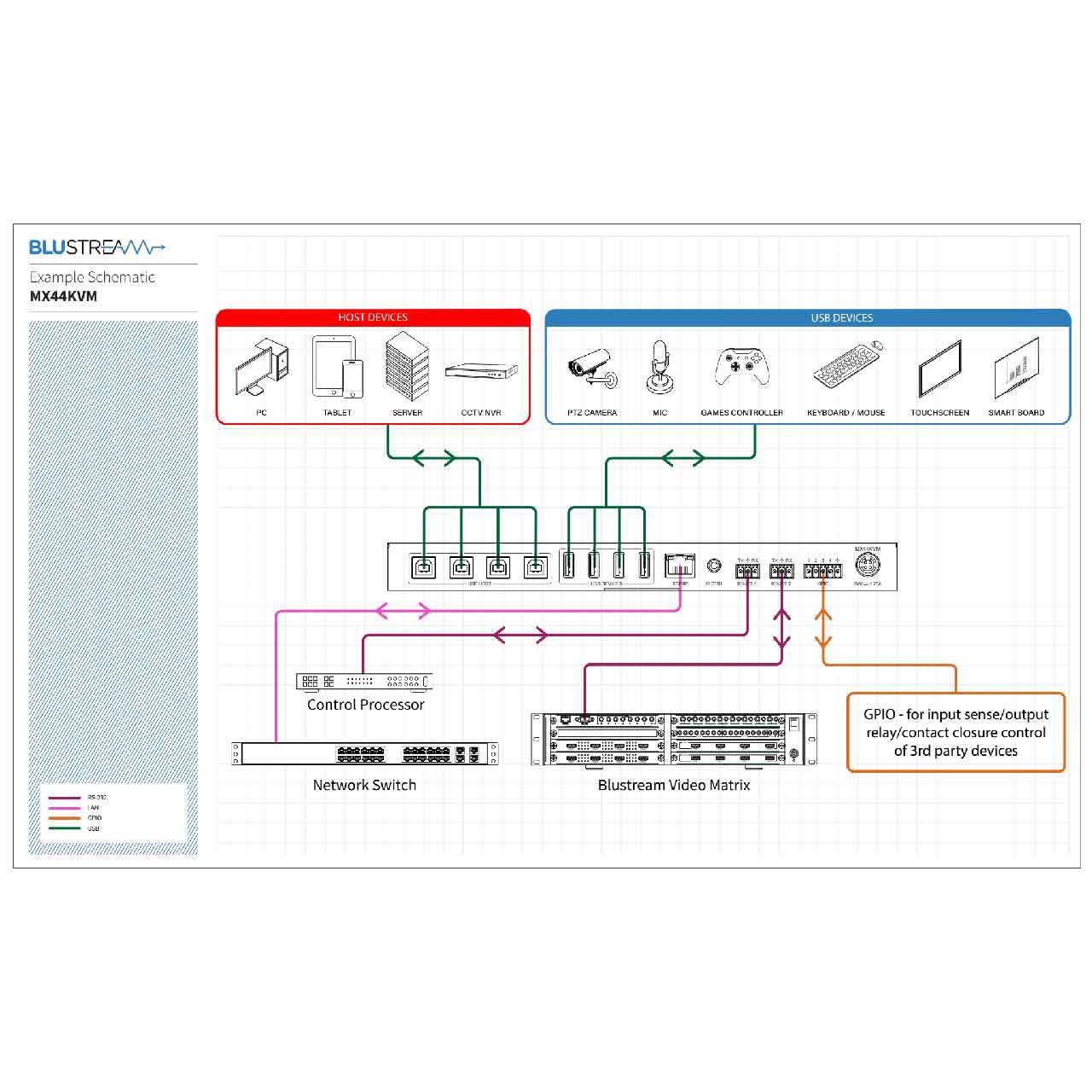

    An RS-232 loop-through connection allows for the MX44KVM to be intrinsically linked to any Blustream video matrix product for the addition of KVM support to our video-only switching products.

    • Features:

      • 4x4 USB KVM Matrix allowing up to 4 x USB peripheral devices to be shared between 4 x host devices
      • USB 3.0 connectivity with data transfer rates up to 5Gbps
      • Backwards compatible with USB 2.0 and 1.1
      • Plug-and-play with no drivers, downloads, or software required
      • USB-A connections provide 5V / 900mA
      • Features 4 x configurable GPIO ports for integration with 3rd party products
      • Features RS-232 loop-through for repetition of incoming RS-232 commands to additional Blustream products
      • Assignable inputs and outputs allowing automated switching when used with existing Blustream Matrix products
      • Web interface module for control and configuration of the MX44KVM
      • Control via front panel, IR, RS-232, and TCP/IP
    • Specifications:

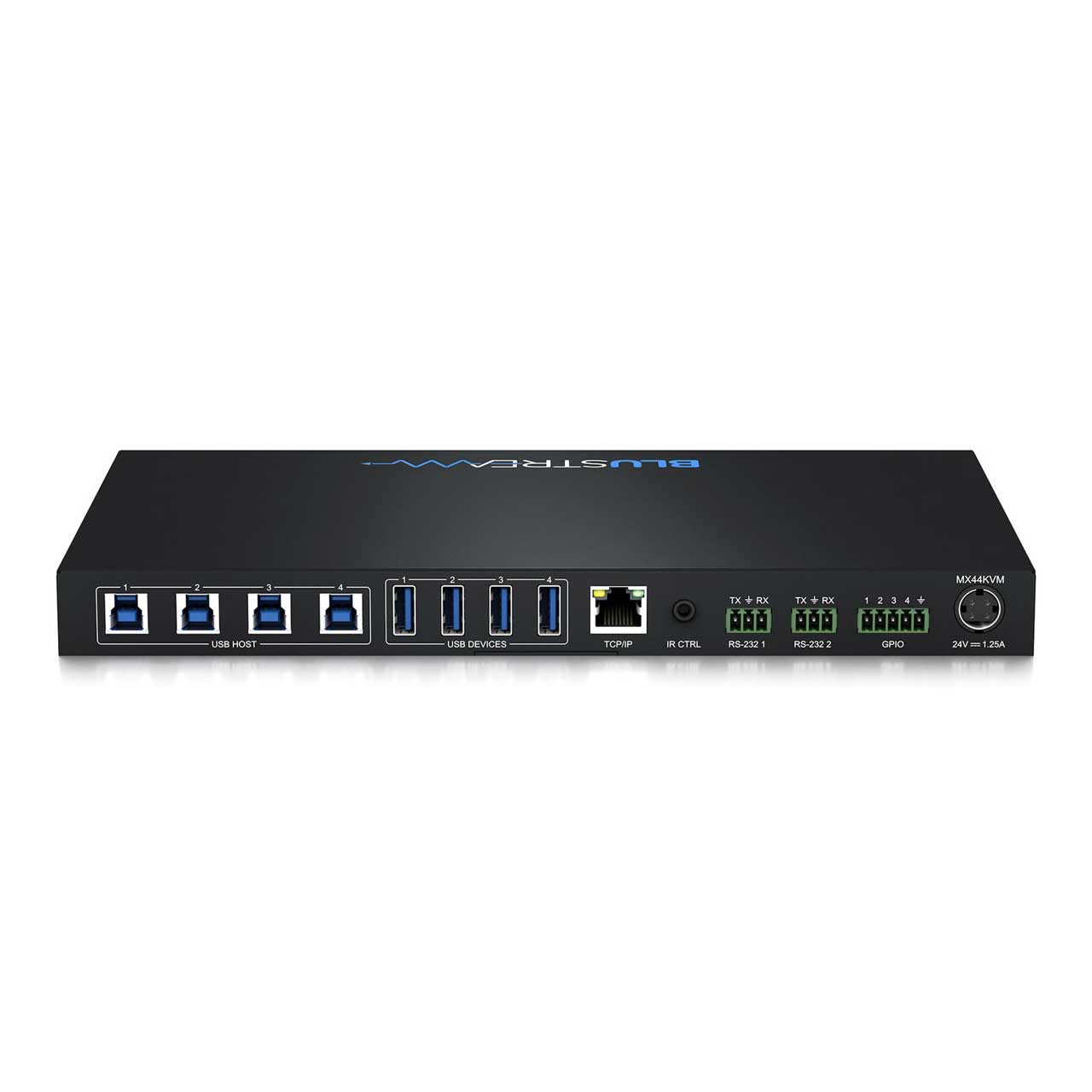

      • USB Device: 4 x USB Type A, female
      • USB Host: 4 x USB Type B, female
      • RS-232 serial port: 2 x 3-pin Phoenix connector
      • IR Input port: 1 x 3.5mm stereo jack
      • TCP/IP Control: 1 x RJ45, female
      • GPIO Control: 1 x 5-pin Phoenix connector
      • Dimensions (W x D x H): 273mm x 168mm x 25mm
      • Shipping Weight: 2.65kg
      • Operating Temperature: 32°F to 104°F
      • Storage Temperature: -4°F to 140°F
      • Power Supply: 24V/1.25A DC, 4-pin DIN connector
    • Item Includes:

      • 1x MX44KVM
      • 1x Mounting kit
      • 1x USB-A to USB-B cable (1m)
      • 1x IRR receiver
      • 1x IRCAB control cable (3.5mm - 3.5mm cable)
      • 2x 3-pin Phoenix connector
      • 1x 5-pin Phoenix connector
      • 4x Isolation feet
      • 1x 24V/1.25A DC power supply
      • 1x Quick Reference Guide
