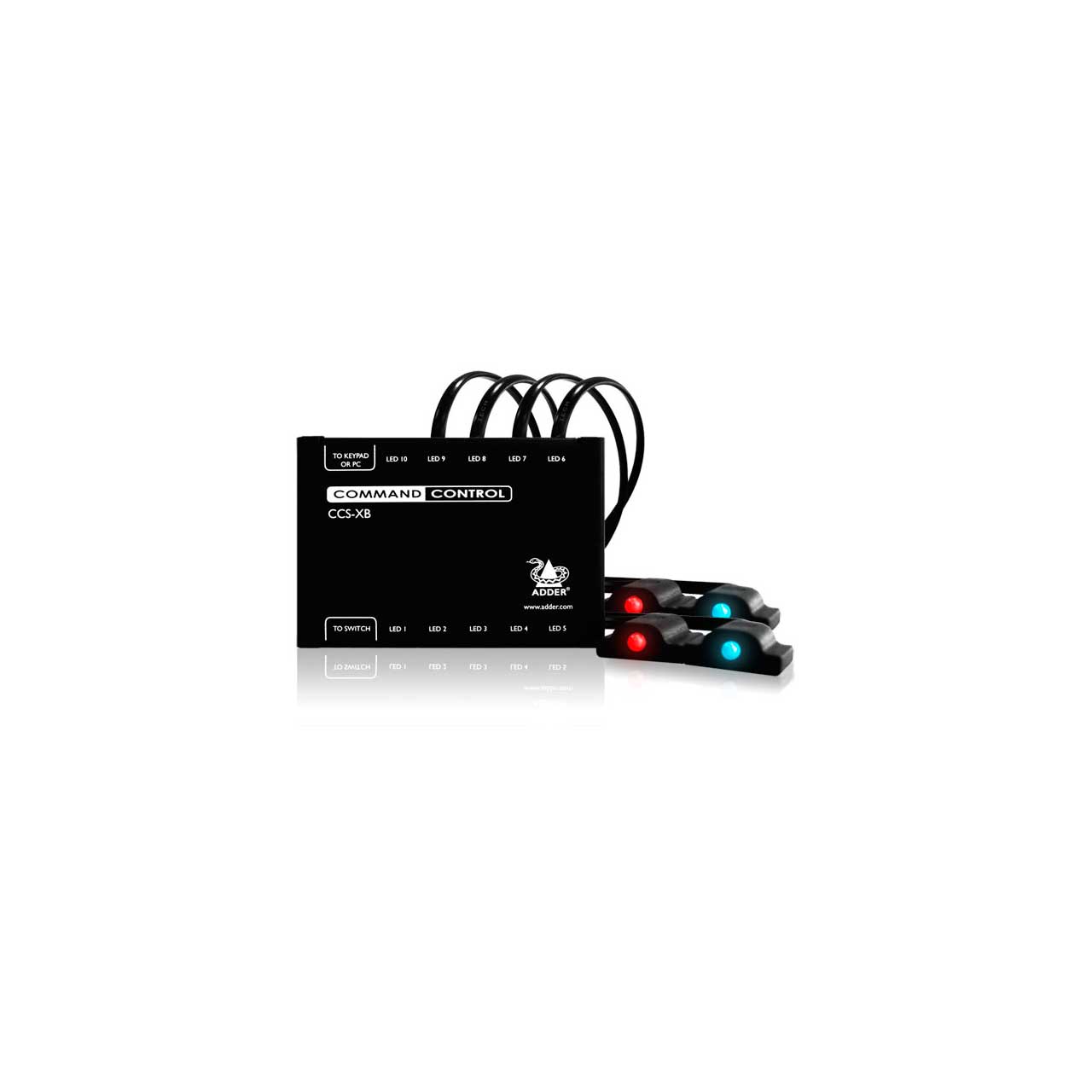

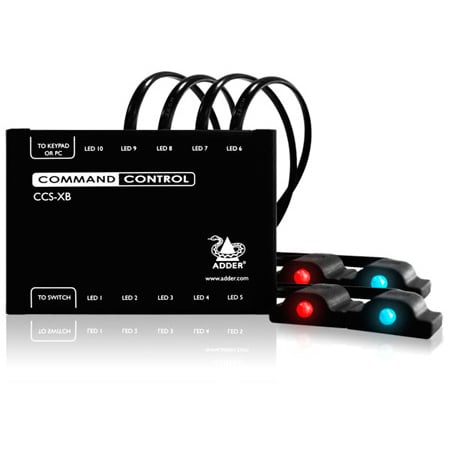

ADDER CCS-XB Command Control LED Light Module Kit for CCS-PRO4 with 4 LED Modules


Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    CCS-XB - Overview

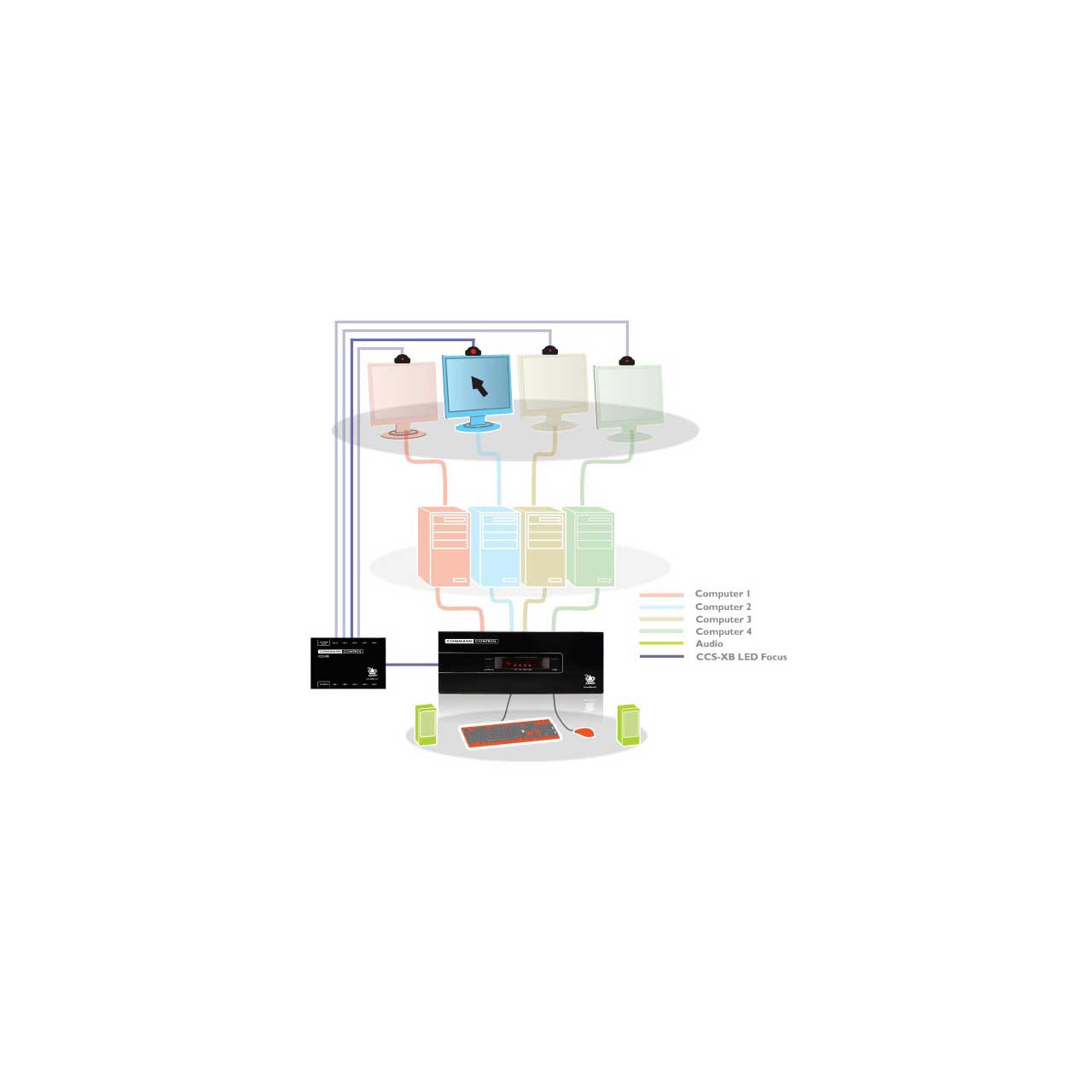

    The Adder CCS-XB illumination module is an accessory which connects to the CCS-PRO4 (sold separately) to communicate via CCS-LED Indicator Lamp cables (4 included). It gives the users the option to have a CCS-LED LED indicator lamp positioned on each screen to identify which screen you are currently controlling. The color and intensity can be adjusted for each screen. A maximum of 10 CCS-LED illumination indicators can be supported.

    • Features:

      • Add-on module for use with CCS4USB and Free-Flow (sold separately).
      • This module controls a set of CCS-LED lights which mount onto your screens.
      • The LED's are fully configurable allowing the user to assign a specified color and intensity via the setup application.
      • These units provide loop through support for additional accessories such as the RC4 or RC8 remote control modules for greater flexibility.
      • Each LED module is pre-wired with 9.84 feet/3 meters of cable allowing the user to route the module discreetly to the screen.
      • The flexible cable used is of oval profile making it easier to tuck into channeling, wall gaps or any similar room features.
      • Each LED is housed in a sturdy molded enclosure and provided with an adhesive pad allowing the module to be fixed onto a screen bezel or other surface as required.
      • The CCS-XB is interface powered making installation very simple.
      • Each CCS-XB ships with 4 LED modules. Additional modules can be ordered (to a maximum of 10 per unit) using order code: CCS-LED
    • Specifications:

      • Hardware compatibility
      • For use with CCS4-USB devices with firmware 2.0 or above

      • Connection to CCS4
      • 10p10c connector via cable VSC46

      • Connections to Desk

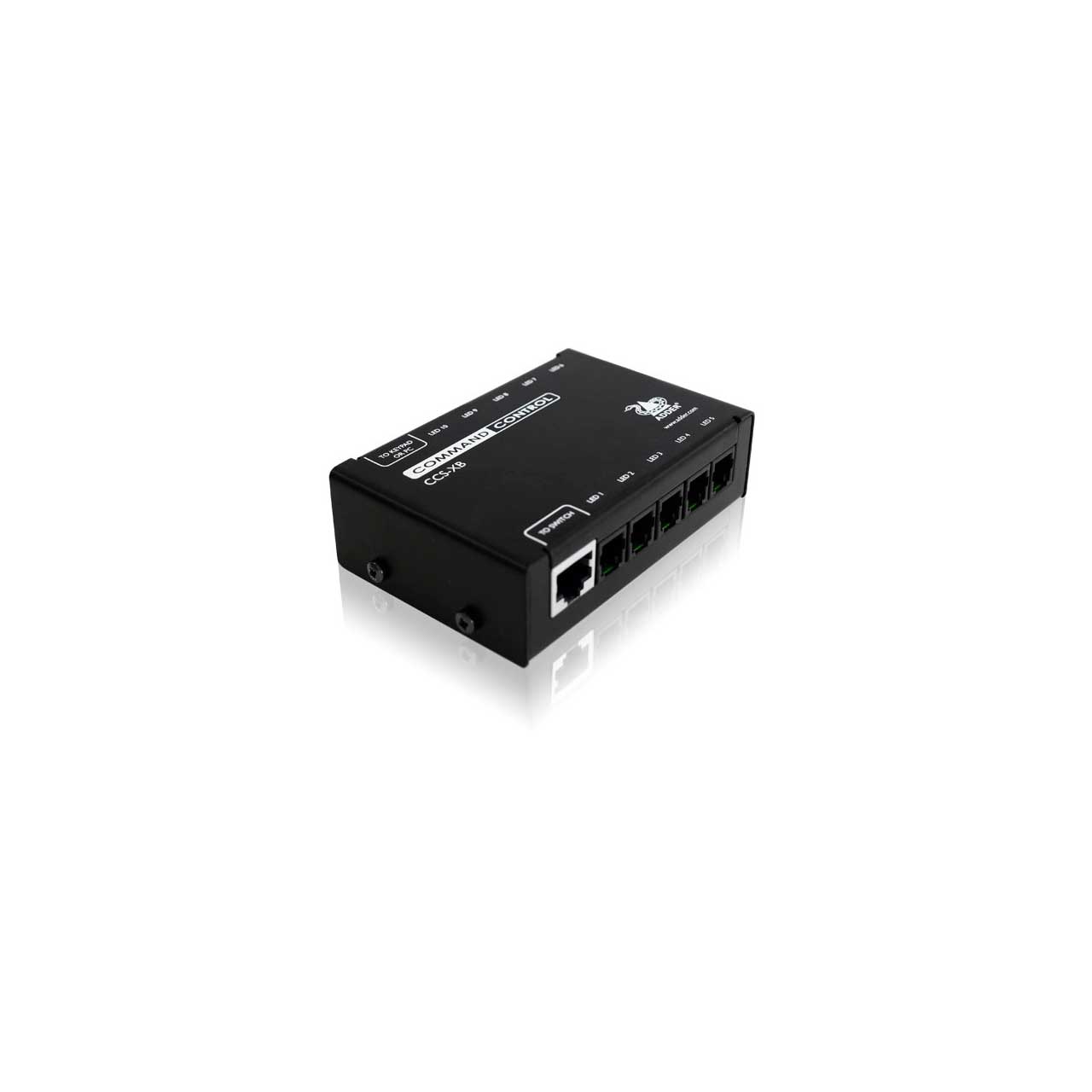

      • 10 x 6P6C Connectors for the CCS-LED modules; 1 x 10P10C connector for upgrade cable or remote control RC4 4-button switch

      • Physical design
      • Dimensions (WxHxD): 3.7 x 1.2 x 2.6" (95 x 30 x 65mm)
      • Weight: 0.22kg/1.65 lbs
      • Case: 1U Case
      • Material: Robust Metal Construction

      • Operating temperature:
      • 0° to 40°C / 32° to 104°F

      • Approvals
      • CE, FCC
    • Item Includes:

      • 1x CCS-XB Controller
      • 4x CCS-LED LED monitor indicator cables
      • 1x CATx link cable
    • Warranty:

      • 2 Year Limited
    • GTIN:
