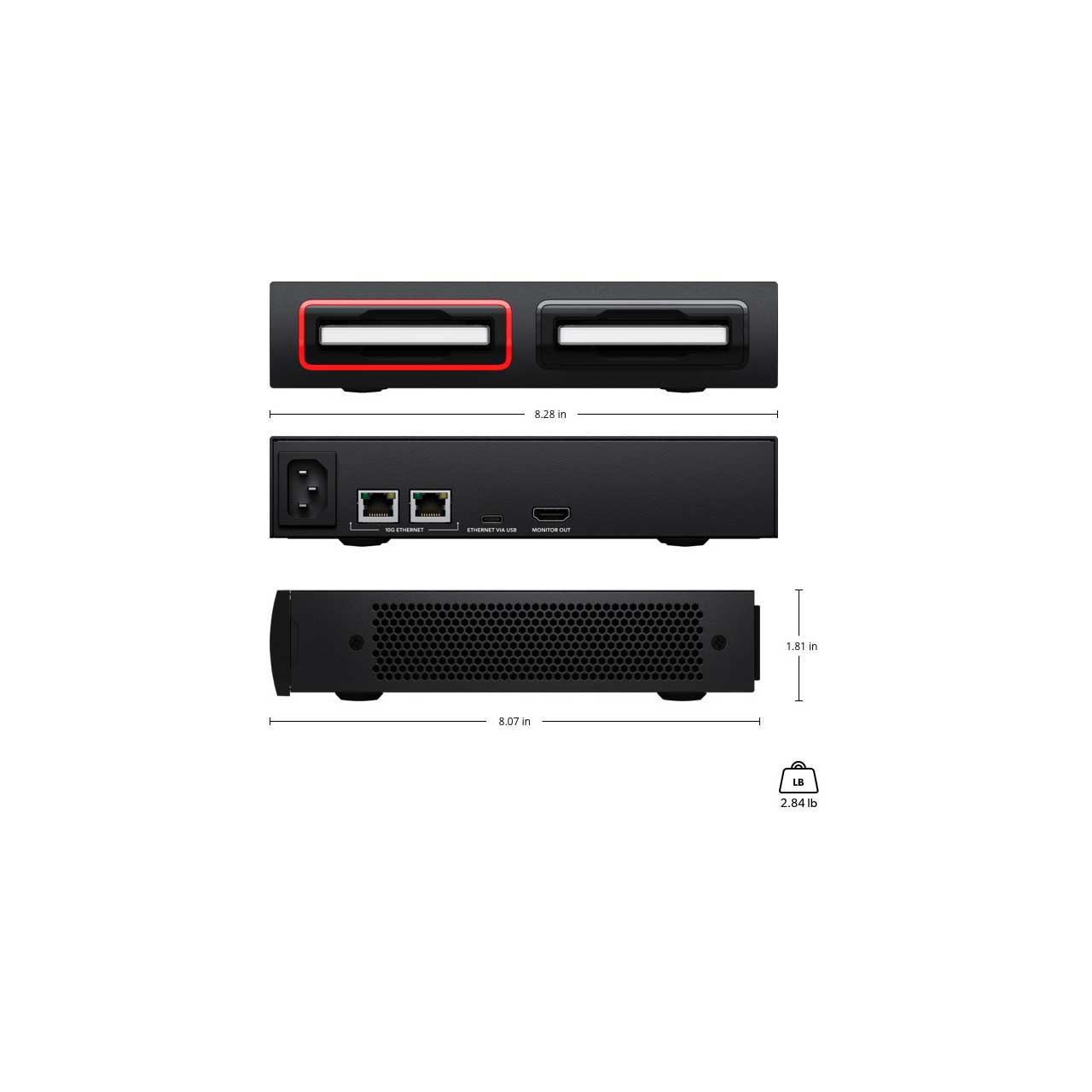

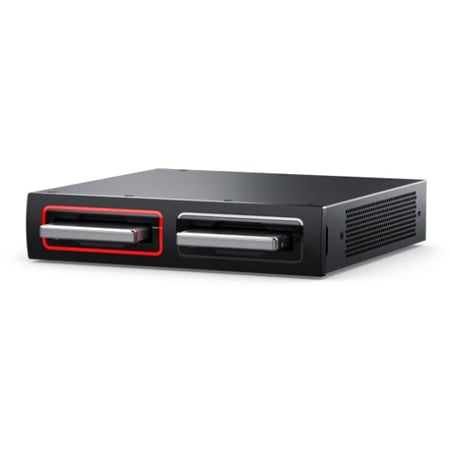

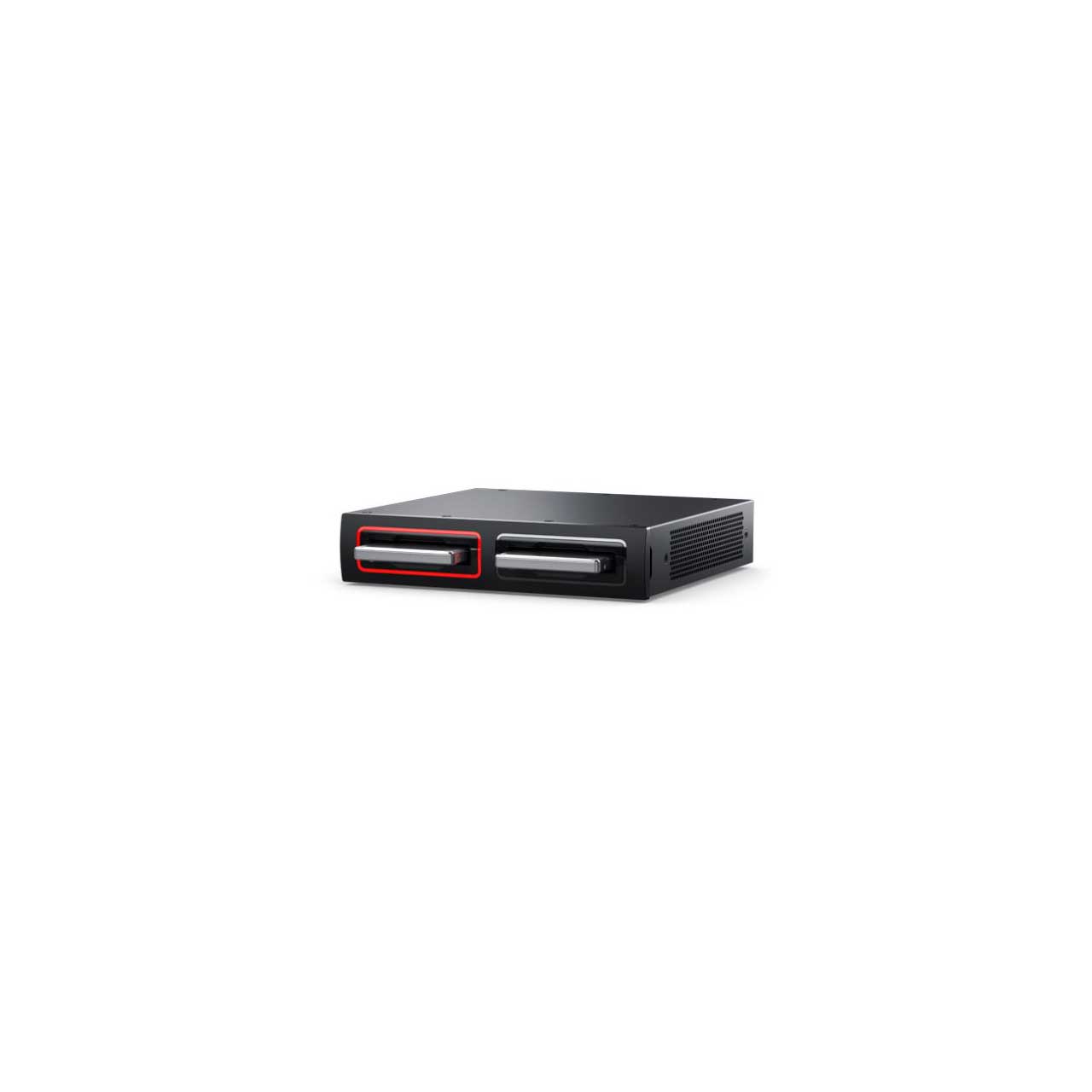

Blackmagic Design DWCLDB/DOCK02 Cloud Dock 2 - Share up to 2 Independent 2.5 Inch Disks over High Speed 10G Ethernet

DWCLDB/DOCK02 - Overview

• Specifications:

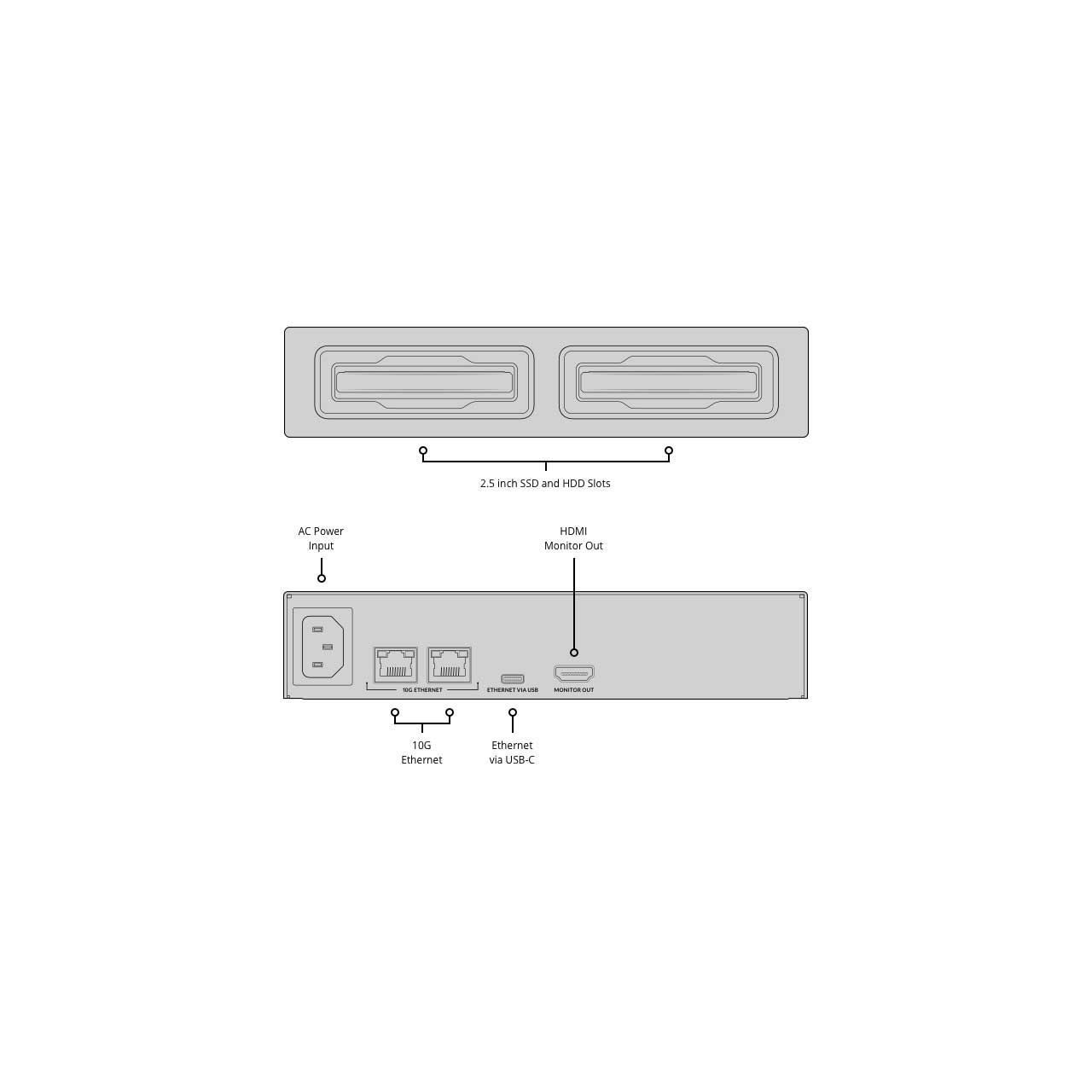

  • Connections
  • SSD Interface: 2 x removable and hot-swappable 2.5 inch U.2 SSD or SATA.
  • 10G Ethernet Ports: 2 x 10G BASE-T
  • USB-C Port: 1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB
  • HDMI Monitor Outputs: 1
  • Computer Interface: USB-C or Ethernet for shared file access, configuration and software updates.

    File Sharing Protocol
  • Protocol: SMB
  • Computer Connections: 50 max

    Cloud Synchronization
  • Compatible Services
  • Dropbox, Google Drive

    Storage
  • Storage Type: Bring your own drive.
  • External Storage Format: ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

    Displays
  • HDMI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
  • Monitor Out Displays: Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.
  • Status Indicator: LED bezel indicator lights around SSD media slots

    Device Control
  • External Control: USB-C or Ethernet for configuration and software updates

    Operating Systems
  • Mac 12.0 Monterey, Mac 13.0 Ventura or later
  • Windows 10, 64-bit. Windows 11

    Power Requirements
  • Power Supply: Internal 100 - 240V AC 50/60Hz with IEC C14 mains input
  • Power Usage: 25W without SSDs

    Environmental Specifications
  • Operating Temperature: 32°to 104° F
  • Storage Temperature: -4° to 140° F
  • Relative Humidity: 0% to 90% non-condensing


• Item Includes:

  • 1x Blackmagic Cloud Dock 2


• Warranty:

  • 12 Month Limited


• GTIN:

  9338716008401
