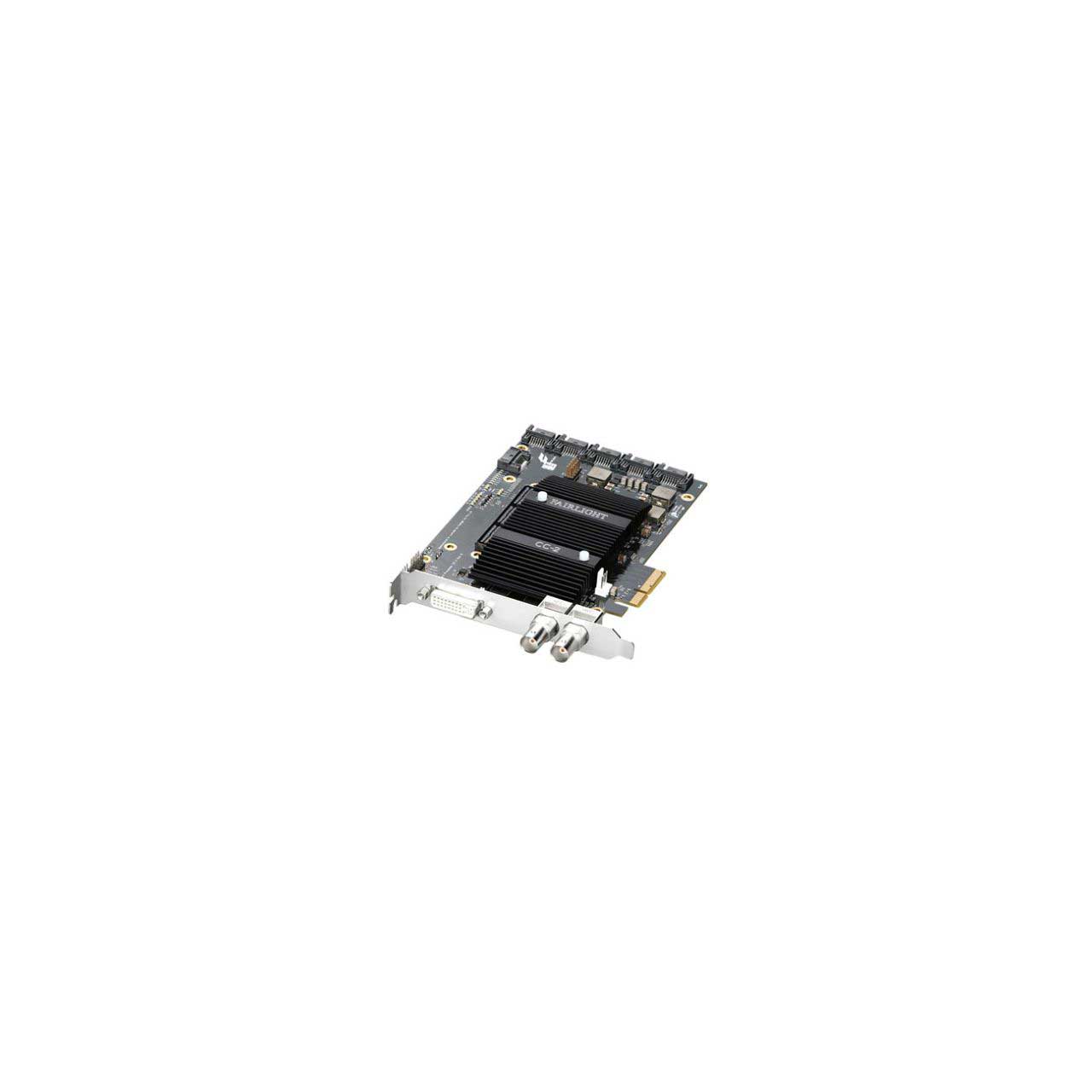

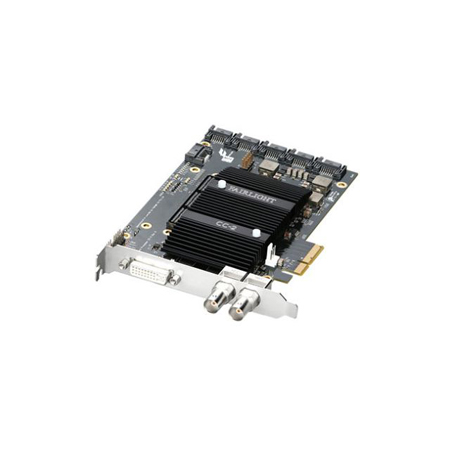

Blackmagic DV/RFL/AUDACC2 Fairlight PCIe Audio Accelerator MADI Card

Name: Blackmagic DV/RFL/AUDACC2 Fairlight PCIe Audio Accelerator MADI Card
Brand: Blackmagic Design
SKU: BMD-DVRFLAUDACC2
Price: 1135.00 USD
Availability: PreSale

ITEM #: BMD-DVRFLAUDACC2 MFG #: DV/RFL/AUDACC2

Blackmagic Design

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Typically Ships in 3-10 Business Days

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Required Accessories

Recommended Accessories

DV/RFL/AUDACC2 - Overview

Blackmagic Fairlight PCIe Audio Accelerator, DV/RFL/AUDACC2, is a professional-grade audio accessory for use with Blackmagic Design video switchers. This accessory is designed to enhance the audio capabilities of Blackmagic Design switchers, providing high-quality audio inputs and outputs, and advanced features such as real-time audio processing and mixing.

The AUDACC2 features two balanced XLR audio inputs, two stereo RCA audio inputs, and two balanced XLR audio outputs, providing ample connectivity options for a variety of audio sources. The unit is designed to be compact and easy to integrate into any workflow, making it a versatile solution for audio professionals who require high-quality audio processing and mixing in a compact, easy-to-use package.

Specifications:
- Connections
- MADI Inputs: 1 x MADI input via 75 ohm BNC
- MADI Outputs: 1 x MADI output via 75 ohm BNC
- MADI Expansion: Supports Fairlight Audio MADI Upgrade via SATA connectors 1, 2 and 3
- I/O Expansion: Supports Fairlight Audio Interface via multi-pin connector on shield
- PCI Form Factor: Single half length PCIe x4 board

  Product Specifics
- Sampling: 44.1, 48, 96 and 192 KHz with minimum 32 bit floating point processing
- Channel Structure: Verified using Mac Pro 7,1 with Intel CPU
- Core Audio
  Track count organized from mono to 26.0
  2000 Mono Audio Tracks at 48kHz
  1000 Mono Audio Tracks at 96kHz
  500 Mono Audio Tracks at 192kHz
- Total Busses
  256 Busses plus 512 Bus elements at 48kHz
  256 Busses plus 256 Bus elements at 96kHz
  256 Busses plus 128 Bus elements at 192kHz
- Record Channels
  128 at 48kHz
  64 at 96kHz
  32 at 192kHz
- Additional Record Channels
  When used with Core Audio plus Fairlight Accelerator
  256 at 48kHz
  128 at 96kHz
  64 at 192kHz

  Channel Facilities
- Elastic wave time warping and sample rate conversion
- Six band EQ
- Expander/gate, compressor and limiter
- Up to six Resolve, VST or AU plugins
- Direct out
- Four band clip based EQ
- Up to six Resolve, VST or AU clip based plugins
- Mono, stereo, 5.1, 7.1 up to 26.0 and other 3D channel formats
- In place solo
- Up to 16 VCA groups

  FlexBus Structure
- Up to 512 mono bus elements, organized in any format from mono to 26.0
- Mono, stereo, 5.1, 7.1 up to 26.0 and other 3D bus formats
- Up to 10 bus sends per channel and bus with independent level control
- Up to 10 post fader bus sends per channel and bus
- Automatic and flexible delay compensation

  Bus Facilities
- Four band EQ
- Compressor and limiter
- Up to six Resolve, VST or AU pre fader plugins
- Direct out

  Plug-ins
- Up to six Resolve, VST or AU plug-ins on any channel or bus
- Tactile control of plug-ins from the Fairlight audio editor
- Plug-ins are fully controllable with automation

  Monitoring
- Up to four simultaneous sources
- Source from internal buses or external inputs
- Up to 16 different speaker sets
- Customizable fold up and fold down when crossing formats
- Optional B-Chain processor for cinematic setups with up to 64 speakers

  Operating Systems
- Mac 10.15 Catalina or later, not including Apple silicon systems
- Windows 10, 64-bit

  Power
- Power Usage: 14W

  Environmental
- Operating Temperature: 0° to 40°C (32° to 104°F)
- Storage Temperature: -20° to 60°C (-4° to 140°F)
- Relative Humidity: 0% to 90% non-condensing
Item Includes:
- 1x Fairlight Audio Accelerator
Warranty:
- 1 Year Limited Manufacturer's Warranty
GTIN:
9338716004731
