Blackmagic Design BMD-OG/BPL/10BNC OpenGear Rear Panel with BNC Adapters for 10 Video Convertor Cards - No Main Frame

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Blackmagic Design BMD-OG/BPL/10BNC OpenGear Rear Panel with BNC Adapters for 10 Video Convertor Cards - No Main Frame

    Manufacturer: Blackmagic Design

    Item #: BMD-OG-BPL-10BNC   •   MFG #: BMD-OG/BPL/10BNC




    Our Price:$59.00

    free ship


    Availability: Extended Lead Time
    i
    This item is on backorder with an extended lead time from the manufacturer. We will contact you with expected availability.


    • Extended Lead Time; expected delivery in November.


    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Required Accessories

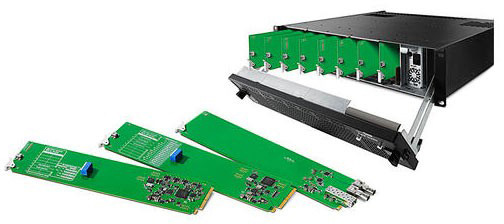

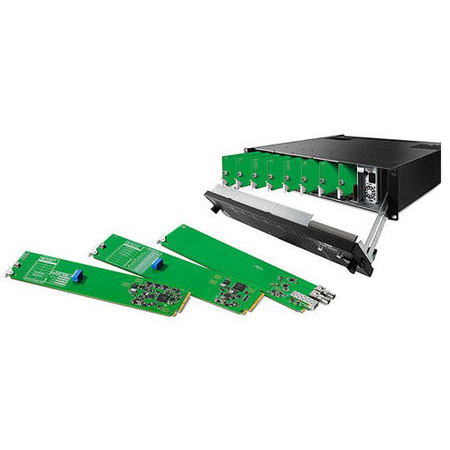

    The Blackmagic Design OG-BPL-10BNC OpenGear Rear Converter (10 Video) gives you a great range of conversion, all packed with the latest video technologies at an affordable price. It is fully compatible with the OpenGear standard. OpenGear is an open standard for rack mount converters and processing for television broadcasters. The Blackmagic Design OG/BPL/10BNC OpenGear Converter is compatible with 20-card models of the 2 RU (rack unit) OpenGear frames. Many manufacturers develop OpenGear cards and frames that can be mixed and matched. OpenGear cards are hot swappable and can be controlled by java based DashBoard network control and monitoring software on Windows, Mac OS X and Linux.


    • Features

      • Built to the highest quality standards with low SDI jitter. You get the longest SDI cable lengths combined with ultra low noise analog video and audio for a true broadcast quality solution
      • Latest 3 Gb/s SDI technology built into Blackmagic OG/BPL/10BNC OpenGear Converter and new standards can be uploaded via the USB port. 3 Gb/s SDI is also fully compatible with all your SD and HD equipment
      • Has ability to instantly switch between all SD and HD video formats the instant the video input changes. A huge range of standards are supported and new formats can be added via USB
      • SDI to Analog and SDI to Audio that feature a unique redundant SDI input for mission critical or live broadcast tasks
      • Automatically switch over in an instant. A loop-through SDI output is also provided for connecting to other devices. You can also loop to other Blackmagic OpenGear Converters when de-embedding more audio channels
      • Features a 24 bit analog and 24 bit digital audio. You can select either analog or AES/EBU digital audio via mini switches, or remotely via the DashBoard network control software. It will then switch to use either analog or AES/EBU digital audio. Support the standard 2 ch and 4 ch audio rear modules
      • SDI to Analog that includes an incredible quality HD down converter that automatically adapts to the SDI input video format and outputs standard definition analog video in letterbox, anamorphic 16:9 or center cut 4:3
      • With advanced 3 Gb/s SDI technology, every card is fully compatible with all your SD and HD equipment, plus you can update new formats via USB
      • It can be set up via mini switches, DashBoard, or via USB using Blackmagic OG/BPL/10BNC Design's Converter Utility

    • Specifications

      • Weight: 3 lbs

    • Item Includes

      • SDI Video Input: Switchable between SD, HD and 3 Gb/s SDI
      • SDI Video Output: Automatically matches the SD, HD and 3 Gb/s SDI video input; Automatically matches the SD and HD video input.
      • Analog Video: Component, NTSC, PAL and S-Video from SD-SDI input
      • Component HD from HD-SDI input: Component SD/HD
      • Analog Audio: 2 channels of professional balanced digital with openGear standard 3 pin connections
      • AES/EBU Digital Audio: 2 channels of professional balanced digital with openGear standard 3 pin connections
      • SDI Redundant Input: Automatically switches over if main SDI input is lost
      • Multi Rate Support: Auto detection of HD or standard definition SDI inputs
      • Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
      • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601
      • SDI Video Rates: SDI video connections are switchable between standard definition and high definition
      • SDI Video Sampling: 4:2:2
      • SDI Audio SamplingTelevision standard sample rate of 48 kHz and 24 bit
      • SDI Color Precision: 4:2:2
      • SDI Color Space: YUV
      • SDI Auto Switching: Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI
      • SDI Format Support: 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60
      • Analog Format Support: 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60
      • Analog Color Space: YUV
      • Analog Color Precision: 4:2:2
      • Software Control: Mac OS X and Windows software upgrade via USB

    • GTIN:

      9338716002430
