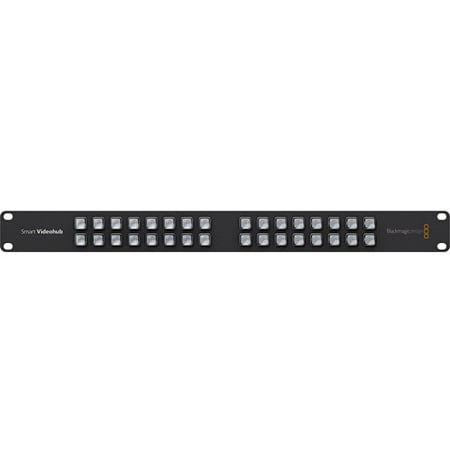

Blackmagic VHUB/VS Smart Videohub 16x16 3G/HD-SDI Router w/Control Panel

ITEM #: BMD-VHUB-VS MFG #: VHUB/VS

Primary Image

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BMD-VHUB-VS

VHUB/VS - Overview

Smart Videohub includes all the great features of Micro Videohub plus a built in control panel. Now you can change all routing with the push of a button! Smart Videohub includes 16 x 16 SDI, 3 Gb/s SDI, auto SD/HD/3 Gb/s SDI, re-clocking, ethernet, USB and serial router control interfaces. Great first router that's expandable with all Videohub control options!

Affordable family of broadcast quality routers and controls
Now you can eliminate complicated manual video patching forever! Videohub lets you connect all the equipment in your facility and easily change connections right from your computer's desktop! Videohub is a powerful broadcast grade routing switcher that features up to a massive 144 inputs, 288 outputs, 144 deck control ports, and auto switching SD, HD, and 3 Gb/s SDI, all in a compact rack mount chassis only a few inches thick.

World's Greatest Router Control
If you hate the high cost of router control panels, then you'll love Videohub because we include free software for Mac and Windows computers with incredible icon buttons! Videohub software looks fantastic, and when used on new touch screen all in one computers, you get a fantastic large screen XY control panel! We even have a new software control panel for Apple iPad computers, that lets you use your iPad as a fantastic low cost touch screen XY router panel.

  • Specifications:

    • Connections:
    • SDI Video Input: 16 x 10 bit SD-SDI, HD-SDI, 3Gb/s HD and 2K switchable.
    • SDI Video Output: 16 x 10 bit SD-SDI, HD-SDI, 3Gb/s HD and 2K switchable.
    • Reference Input: Blackburst and TriSync for SD, HD and 2K.
    • Multi Rate Support: Auto detection of SD, HD or 3 Gb/s SDI. Simultaneous routing of 2K, HD, SD video and DVB-ASI.
    • Updates: USB 2.0 high speed (480Mb/s) interface.
    • Router Control: 32 buttons for local control of Videohub or use either RJ45 Ethernet or USB 2.0 high speed interface shared over IP network.
    • Router Configuration: Use either RJ45 Ethernet or USB 2.0 high speed interface shared over IP network.
    • RS-422 Router Control: 1 x input for controlling router crosspoint switching.
    • Reclocking: On all SDI outputs, auto switching between standard definition, high definition or 3 Gb/s SDI video.
    • Standards:
    • SD Format Support: 625/25 PAL and 525/29.97 NTSC.
    • HD Format Support: 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60, 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60.
    • 2K Format Support: 2048 x 1556/23.98/24/25.
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601.
    • SDI Video Rates: SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI.
    • SDI Video Sampling: 4:2:2 and 4:4:4.
    • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
    • SDI Color Precision: 4:2:2 and 4:4:4 10 bit.
    • SDI Color Space: YUV or RGB.
    • SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI, 3 Gb/s SDI and DVB-ASI on each input so that each input can be running a different television standard.
    • SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.
    • Extras:
    • Software Control: Router control included free for WindowsT and Mac OS XT.
    • Internal Software Upgrade: Via included updater application.
    • Physical Installation: 1 rack unit size. Less than an inch deep.
    • Power Fail Protection: Router connections preserved and restored instantly at power on independently of host computer.
    • Power Supply: 1 x power supply included. IEC power cable required.
    • Product Warranty: 3 Year Limited Manufacturer's Warranty.

  • GTIN:

    9338716002669
