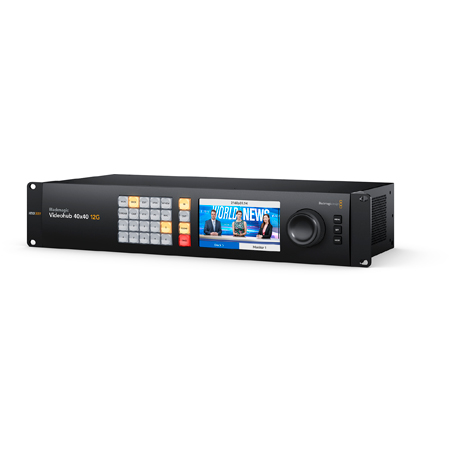

Blackmagic Design VHUBSMAS12G4040 Videohub 12G 2RU 40x40 Zero Latency Video Router for SD / HD and Ultra HD

VHUBSMAS12G4040 - Overview

• Features:

  • Zero latency 12G-SDI supports SD, HD and Ultra HD up to 2160p60.
  • Built in control panel with direct entry buttons and spin knob control.
  • LCD monitor with live video and labels for visual routing.
  • SDI re-clocking on all 12G-SDI inputs.
  • Works with Videohub Master Control Pro and Videohub Smart Control Pro control panels.
  • Supports Videohub Software Control for Mac, Windows and iPad.
  • Includes free SDK for integration into broadcast automation systems.
  • Ethernet for remote control from external hardware or software control panels.
  • Localized for 13 popular languages.


• Specifications:

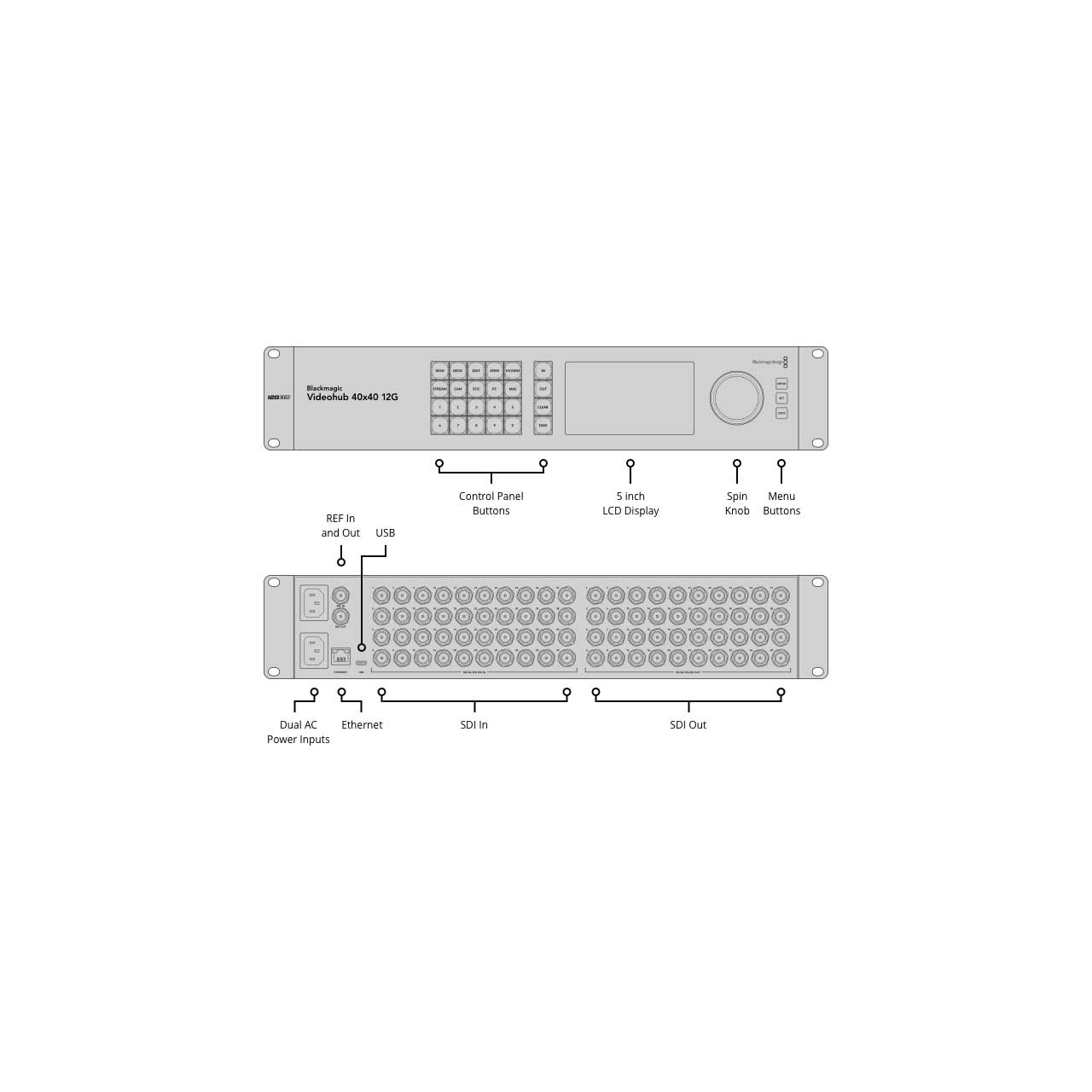

  • Connections
  • SDI Video Inputs: 40
  • SDI Video Outputs: 40
  • SDI Rates: DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G
  • Video Input Re-Sync: None
  • SDI Reclocking: On all SDI outputs
  • Reference Inputs: Tri-Sync or Black Burst
  • Reference Outputs: Reference terminating loop output
  • Ethernet: Supports 10/100/1000 BASE-T
  • Computer Interface: USB-C

    Standards
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23,98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  • 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
  • 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601
  • SDI Audio Sampling: Television standard sample rate of 48kHz and 24-bit.
  • SDI Video Sampling: YUV 4:2:2 and RGB 4:4:4
  • SDI Color Precision: 10, 12-bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
  • SDI Color Space: REC 601, REC 709, REC 2020
  • SDI Auto Switching: Automatically selects between 270Mb SD-SDI, 1.5G HD-SDI, 3G level A and level B HD-SDI, 6G HD-SDI, 12G-SDI and DVB-ASI on each input so that each input can be running a different television standard
  • SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M

    Control
  • Built in Control Panel: 24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 2.2 inch color display.
  • External Control Panel: Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
  • Control Panel Connection: Ethernet

    Software
  • Software Control: Router control included free for Windows and Mac
  • Internal Software Upgrade: Via included updater application

    Operating Systems
  • Mac 12.0 Monterey,, Mac 13.0 Ventura or later.
  • Windows 10, 64-bit, Windows 11

    Display
  • Displays: Built in 2.2 inch LCD for video and menu settings

    Power Requirements
  • Power Supply: 1 x Internal 100 - 240V AC 50/60Hz. IEC power cable required
  • Power Fail Protection: Crosspoint connections preserved and restored instantly at power on
  • Power Usage: 20.8 W max

    Environmental
  • Operating Temperature: 32° to 104° F
  • Storage Temperature: -4° to 140° F
  • Relative Humidity: 0% to 90% non-condensing


• Item Includes:

  • 1x Blackmagic Videohub 40x40 12G
  • 1x Welcome wallet with QR code for software download


• Warranty:

  • 3 Year Limited Manufacturer's
