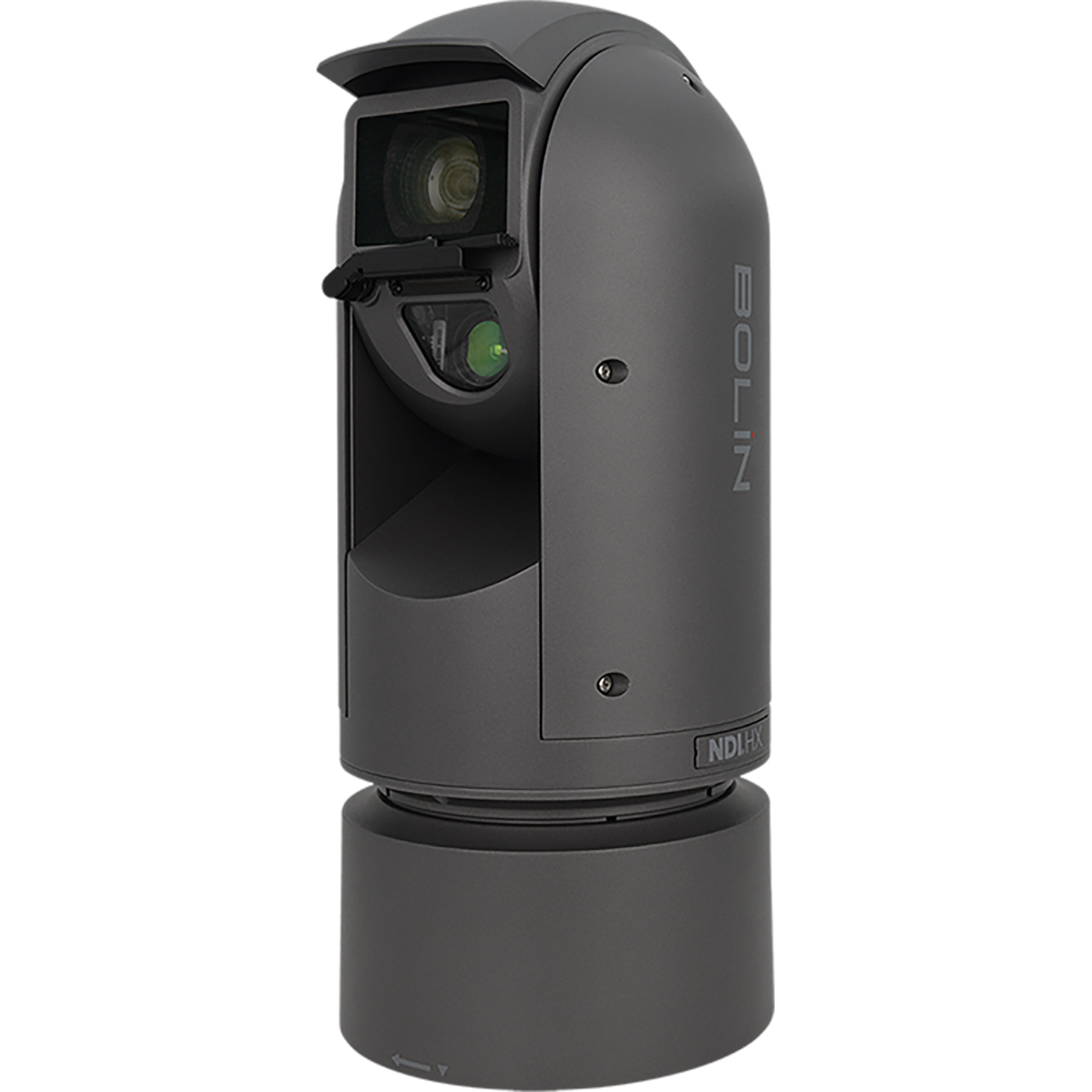

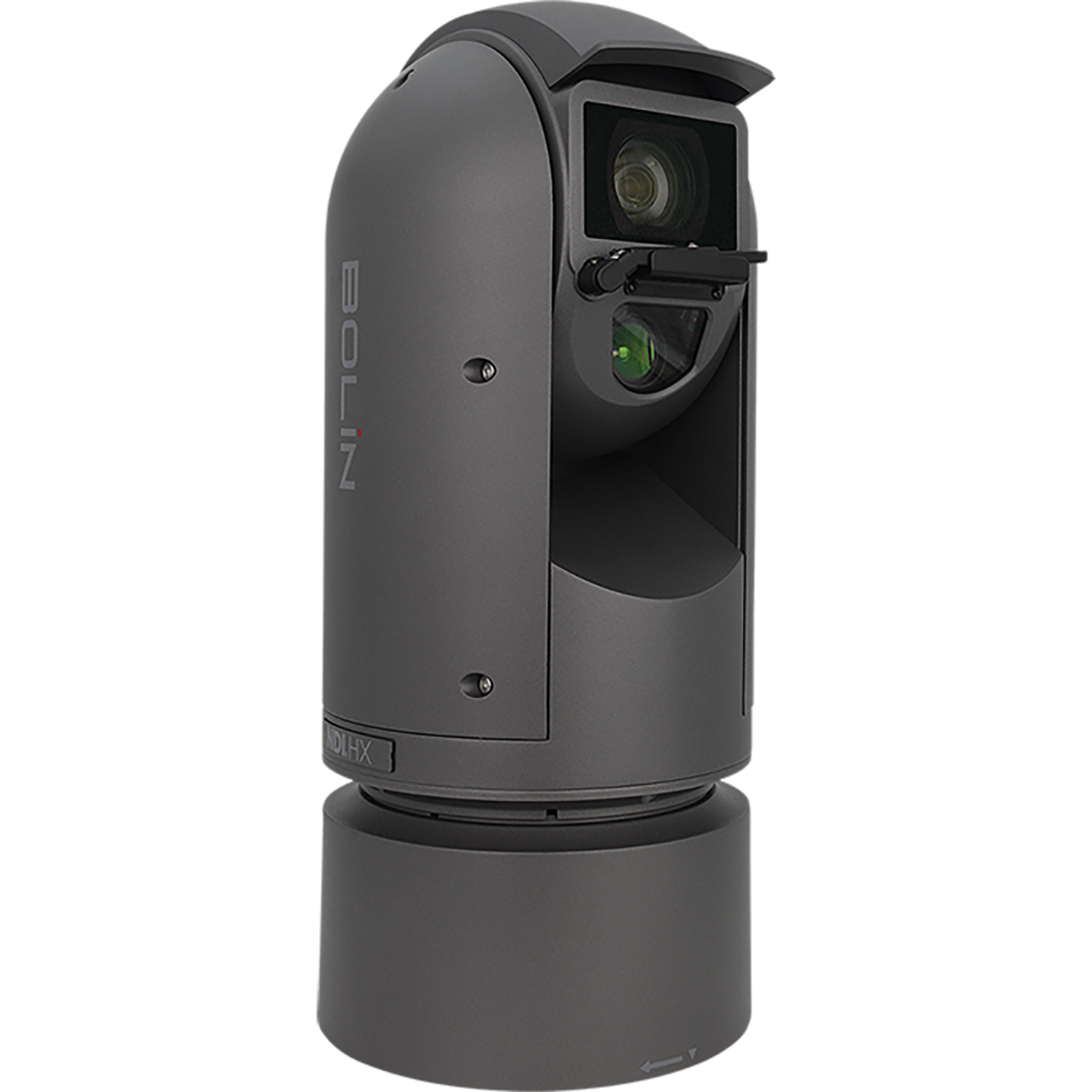

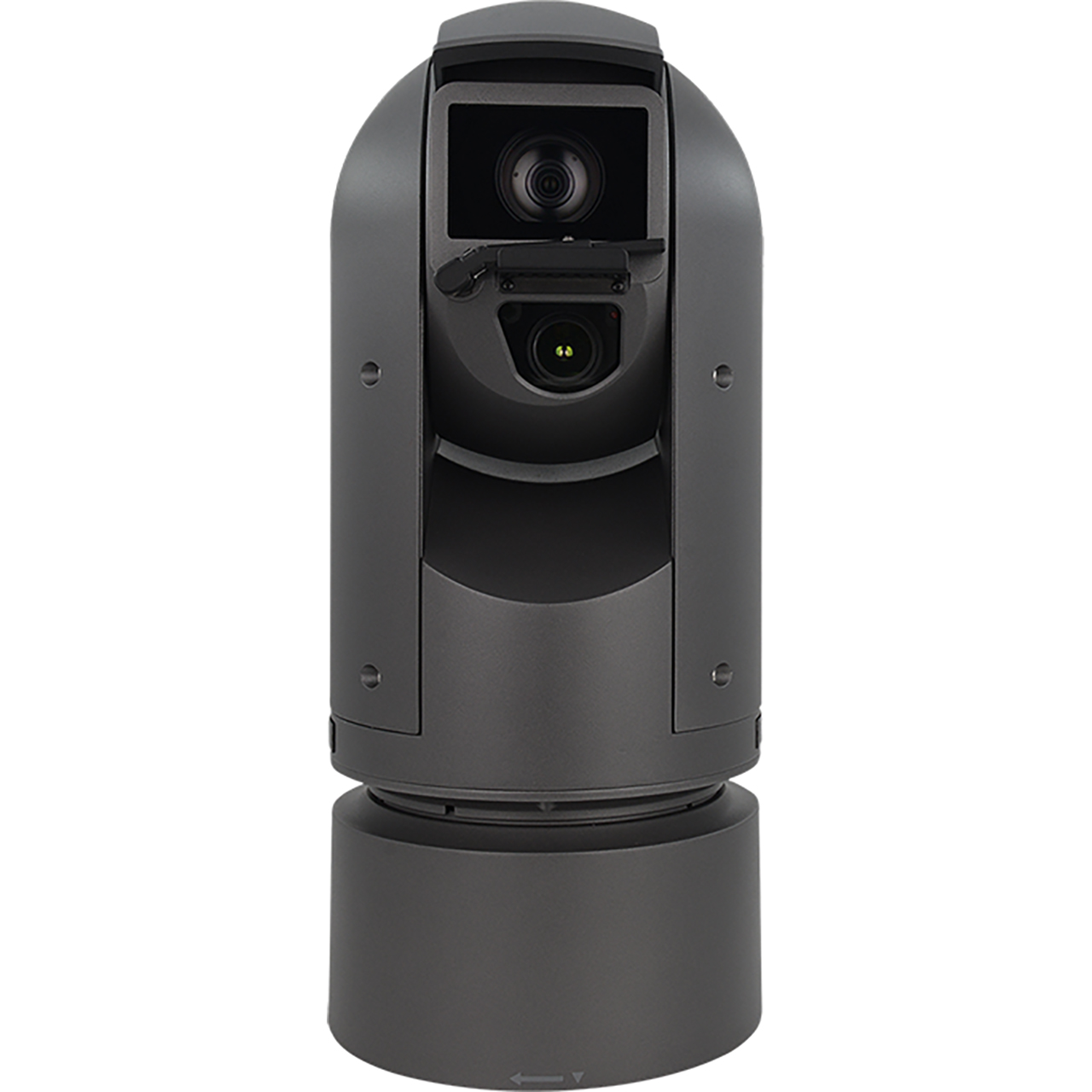

Bolin EX1030NX Outdoor 1080p NDI HX3 PTZ Camera with 15deg Roll Axis Horizon Correction and 30x Zoom - Dark Gray

ITEM #: BOL-EX1030NX MFG #: EX1030NX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$7,995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EX1030NX - Overview

The Bolin EX1030NX Outdoor NDI HX3 PTZ camera is designed for professional outdoor video production, delivering broadcast-quality Full HD video with superior low-light performance with exceptional clarity and stability and rapid, precise movement. With a 30x zoom, it captures detailed visuals from long distances, making it ideal for sports, outdoor events, and observation towers. Its IP67-rated weatherproof housing protects against dust, water, and extreme temperatures, while the nitrogen-filled enclosure prevents internal lens fogging, ensuring clear imaging in fluctuating conditions. With designed upright mounting capability to provide 360° upper skyview. A built-in rain wiper and heater keep the lens clean for uninterrupted performance.

Designed for stability in harsh environments, the EX1030NX features a wind-resistant form factor, minimizing movement caused by strong gusts-perfect for elevated installations and high-wind locations. Super Image Stabilization Plus reduces vibrations and motion blur, ensuring steady shots in turbulent conditions. Mechanical roll-axis adjustment up to 15° provides added flexibility for mounting and framing.

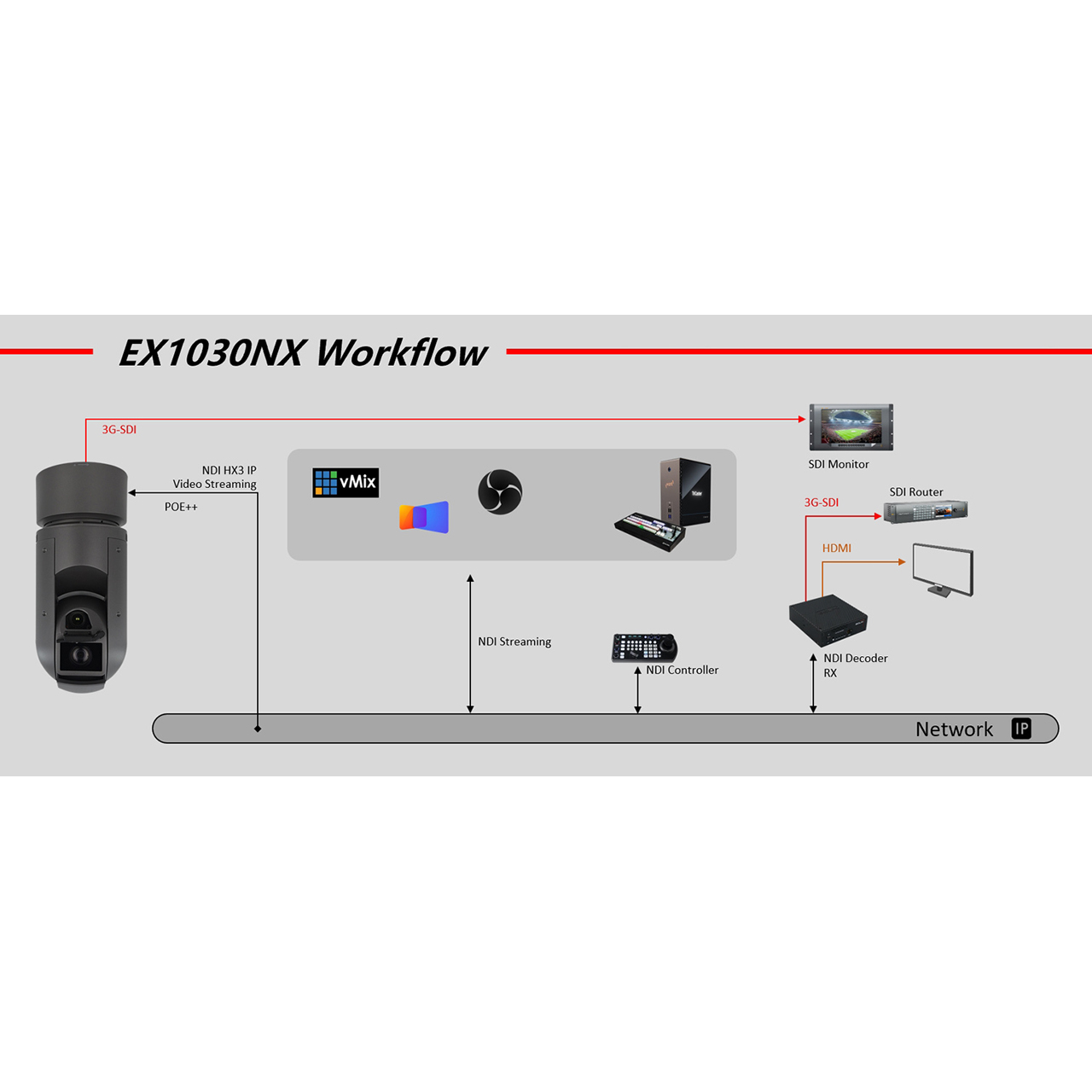

The EX1030NX supports Certified NDI HX3, 3G-SDI, and IP streaming, making it a strong choice for broadcast and AV-over-IP workflows. NDI Embedded Bridge enables low-latency remote video transmission, while FreeD protocol support allows for real-time AR/VR tracking.

EX1030NX Outdoor NDI HX3 PTZ camera is equipped with the latest Sony's 1/2.8-type Full HD color image sensor Full HD offers high sensitivity with a minimum illumination of 0.009 lx. The combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF/AE/AWB functions reproduce faithful images even in low-light environments.

  • Features:

    • New Sony Image Block
    • Expanded 255 VISCA Steps for finer PT Movement and Control Accuracy
    • New Adjustable Roll-Axis
    • FreeD Control Protocol Enabled
    • Image Character Generator
    • Added Rain Wiper
    • Environment Temperature Sensor
    • Quick Install and Release Mount
    • Waterproof Back Panel Connection
    • Salt Corrosion Resistant C5 Level Coated
    • NDAA Compliant
    • Full HD STARVIS II Sensor
    • Enhanced High Resolution Image Quality
    • 30X High Resolution Optical Zoom Lens
    • Advanced AF Performance
    • Wide Dynamic Range (Wide-D)
    • Visibility Enhancer (VE)
    • Super Low Light in Color Performance
    • Super and Super+ Image Stabilizer

  • Specifications:

    • Image Block: Sony
    • Image Sensor: Progressive scan CMOS image sensor 1/2.8 type, STARVISTM 2
    • Number of Effective Pixels: 2.13MP
    • Picture Elements: 1920x1080
    • Lens: Optical Zoom 30x
    • Digital Zoom: 12x
    • Horizontal Angle of View: 64° (W)~2.4° (T)
    • Focal Length: f= 4.3mm (WIDE) to 129mm (TELE)
    • Min. Object Distance: 10mm (Wide), 1200mm (Tele)
    • Aperture: F1.6 (Wide) to F14 (Tele)
    • Min. Illumination (50%, High Sensitivity Mode ON): ICR-OFF mode: 0.009 lx (Shutter Speed: 1/30 s), ICR-ON mode: 0.00008 lx (Shutter Speed: 1/30 s)
    • Min. Illumination (50%, High Sensitivity Mode OFF): ICR-OFF mode: 0.09 lx (Shutter Speed: 1/30 s), ICR-ON mode: 0.00063 lx (Shutter Speed: 1/30 s)
    • Shutter Speed: 1/1 sec to 1/10000 sec (22 steps)
    • Focusing System: Auto, Manual, One Push Trigger, Full Scan one push trigger, Near Limit, Spot Light Avoidance, Spot Focus
    • White Balance: Auto, ATW, Indoor, Outdoor, One Push WB, Manual, Outdoor Auto, Sodium Vapor Lamp Auto, Sodium Vapor Lamp, Sodium Vapor Lamp

      Mechanical
    • Pan Movement: PAN: 360° Continuous; Fully proportional 0.05°~100°/S
    • Tilt Movement: TILT: 180°; Fully proportional 0.05°~100°/S
    • Image Rolling Adjustment: ±15°
    • Preset Position: 255 positions, Speed 100°/s, 0~5 Level Adjustable, Accuracy: 0.05°
    • Preset Memory: Picture Profile Preset-Preset Memory for image parameters: Backlight Compensation, White Balance, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.
    • Motionless Preset: ON/OFF
    • PTZ Trace Memory: 4
    • Cruise: Yes, 12
    • Position Limit: Pan/Tilt, programmable
    • Home Position: Yes
    • FreeD: Yes, FreeD protocol for AR/VR camera tracking, via IP

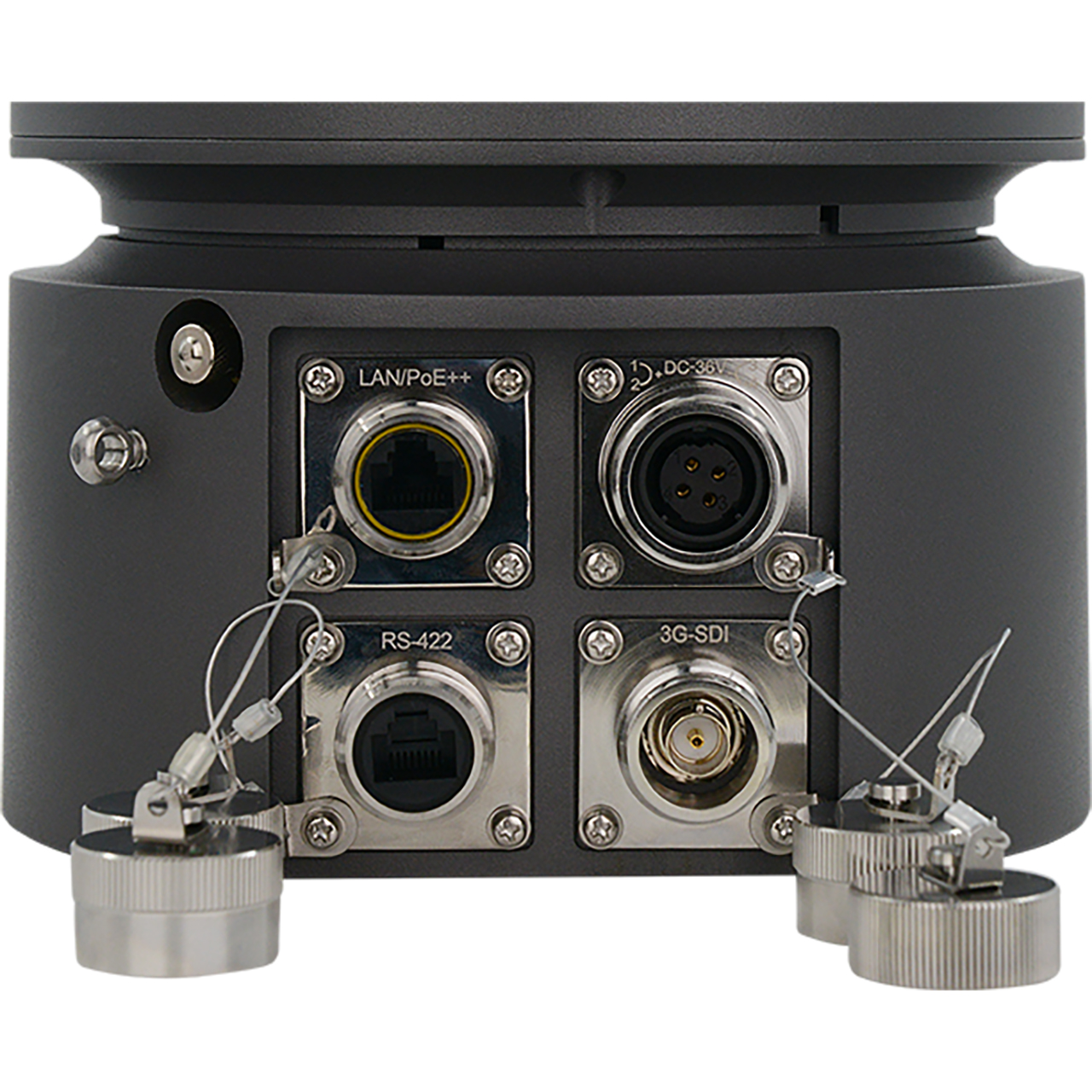

      Interface
    • SDI Video Output: 3G-SDI, Standard 75Ω (BNC x1)
    • Network LAN Port: RJ45 Standard 10M/100M/1000M Ethernet, LAN connector for IP control/video output/System FW Upgrade
    • System Firmware Upgrade: FW Upgrade via IP interface
    • Power Connector Type: AC24V/ DC 36V, PoE++ (IEEE802.3bt)
    • Control Interface: RS422, IP Control
    • Control Protocol: Serial: VISCA, PELCO P/D, IP: VISCA Over IP, ONVIF, NDI, FreeD

      SDI Signal Format
    • SDI Video Format: 1080p: 60/59.94/50/30/29.97/25; 1080i: 60/59.94/50; 720p: 60/59.94/50
    • Color Precision: 10bit(SDI), YCbCr, 4:2:2
    • Color Space: YUV
    • Standard: SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A (3Gb/s) standard/75 Ω, with SMPTE352 SDI Metadata Supported

      Network
    • Video Compression: NDI HX3, MJPEG,H.264/H.265 by SoC
    • IP Resolution/Frame Rate: NDI HX3: 1080P60/59.94/50/30/29.97/25; 720P60/59.94/50
    • True Dual Output: IP and SDI signal can be set to independent resolution formats
    • IP Protocols: TCP/IP, ICMP, ARP, RTP, UDP, HTTP, HTTPS, DNS, DHCP, FTP, NTP, NDI HX3
    • Application Protocols: RTP, RTSP, RTMP,RTMPS, SRT, ONVIF, NDI HX3, NDI 6
    • NDI Bridge: Yes, embedded
    • Multi-Stream: 2 Stream(Simultaneous up to 8 users)
    • OSD: Customized OSD
    • Compatible Integration: ONVIF2.4 (Profile S), VISCA Over IP
    • Bandwidth: 10-100Mbps, 1080p60
    • Latency: NDI HX3 certified, <120ms
    • Browser Support: HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari

      General
    • Operating Temp: -22°F - 140°F
    • Operating Humidity: 100% Suitable for Use
    • Power Input: AC 24V/DC 36V, PoE++
    • Power Consumption: Min: 30W; Max: 58W(Fully loaded operation with heater on)
    • Installation Method: Pendant Mount, Upright Mount
    • Mounting Bracket: Ceiling Mount, Wall Mount
    • Body Color: Dark Gray
    • Dimension: 16.7" x 7.1" x 7.1"
    • Weight: 23.1lbs (Net)

  • Item Includes:

    • 1x EX1030NX Outdoor NDI HX3 PTZ camera
    • 1x Power Adaptor
    • 1x Safety Chain Lock
    • 1x Power Connector
    • 4x Waterproof Connectors

  • Warranty:

    • 3 Year
