Bose 738453-0210 RMU Pan and Tilt Bracket - White

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Bose 738453-0210 RMU Pan and Tilt Bracket - White

    Manufacturer: Bose Corporation

    Item #: BOSE-738453-0210   •   MFG #: 738453-0210


    We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

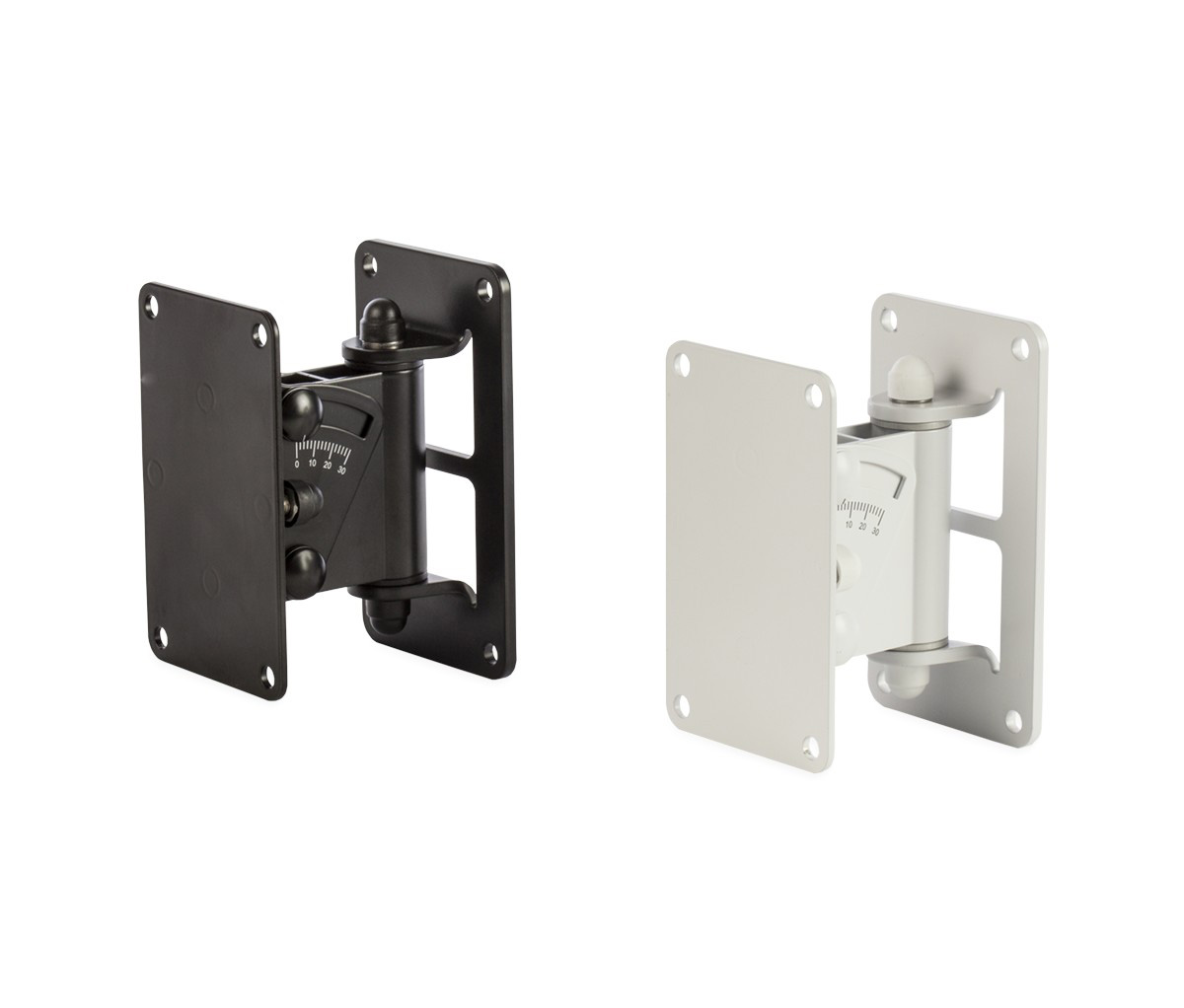

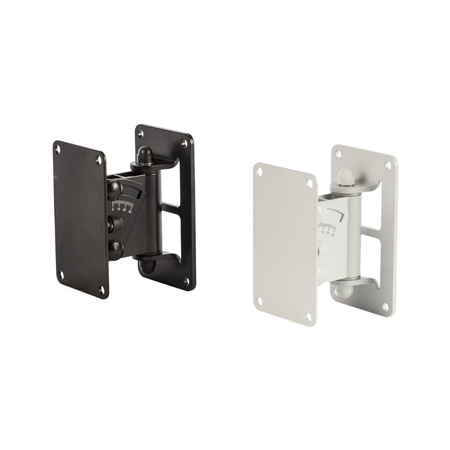

      The RMUBRKT1/WBPWR-50 are pan-and-tilt brackets that attach to the rear panel threaded inserts of all RoomMatch® Utility loudspeakers, F1 Model 812 Active and Passive loudspeakers as well as the Panaray 402 Series IV. These brackets allow both pitch and yaw adjustments to enable flexible mounting options. WBPWR-50 is outdoor rated for use with outdoor installations of the Panaray 402 Series IV loudspeaker only. Indoor installations of Panaray 402 Series IV can use either bracket.

      RMUBRKT1/WBPWR-50 fit the 4x M8 threaded inserts (127 x 70 mm) on the rear panel of the F1 Model 812, Panaray® 402® Series IV, RMU208, RMU206 and RMU108 models, as well as the 2x M8 threaded inserts (75 mm spacing) on the rear panel of the RMU105 model.


      • Features

        • Fits all RMU loudspeakers, F1 Loudspeakers, and Panaray 402 Series IV
        • Horizontal or vertical mounting (RMU105, vertical only)
        • Convenient hook-and-lock method for easy mounting
        • Available in indoor (RMUBRKT1) and outdoor models (WBPWR-50)

      • Specifications

        • Mechanical
        • Angle of inclination: 0° to 30°
        • Speaker plate: 15.0 cm x 8.8 cm (5.9” x 3.5”)
        • Wall plate: 16.0 cm x 9.0 cm (6.3” x 3.6”)
        • Material: Steel
        • Maximum load capacity: 22.7 kg (50.0 lb)
        • Swivel: 90° rotatable speaker plate
        • Wall clearance: 10.9 cm (4.3”)
        • Weight: 1.2 kg (2.6 lb)
        • Compatible with: RMU208, RMU206, RMU108, RMU105, F1 Model 812 (active and passive), Panaray 402 Series IV
