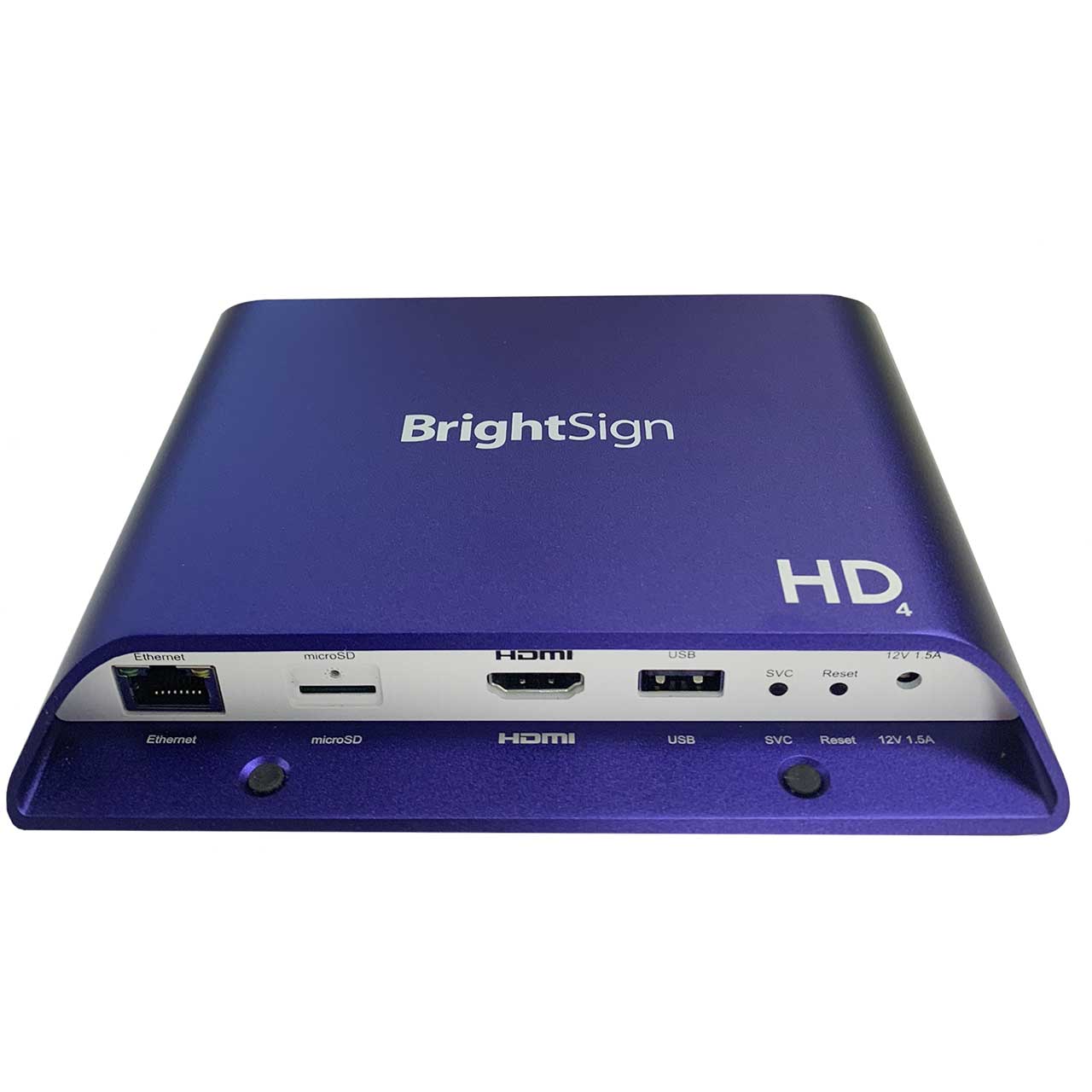

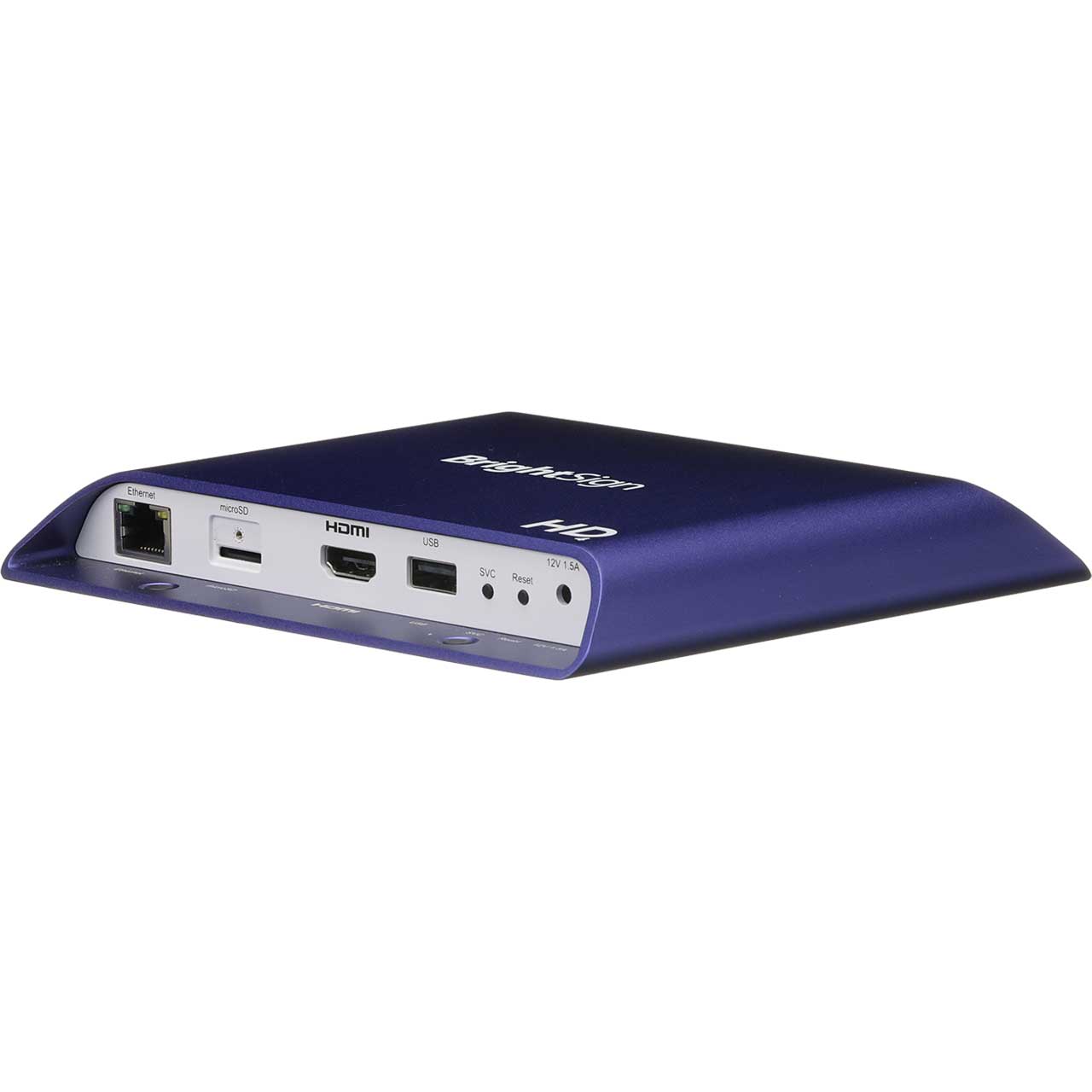

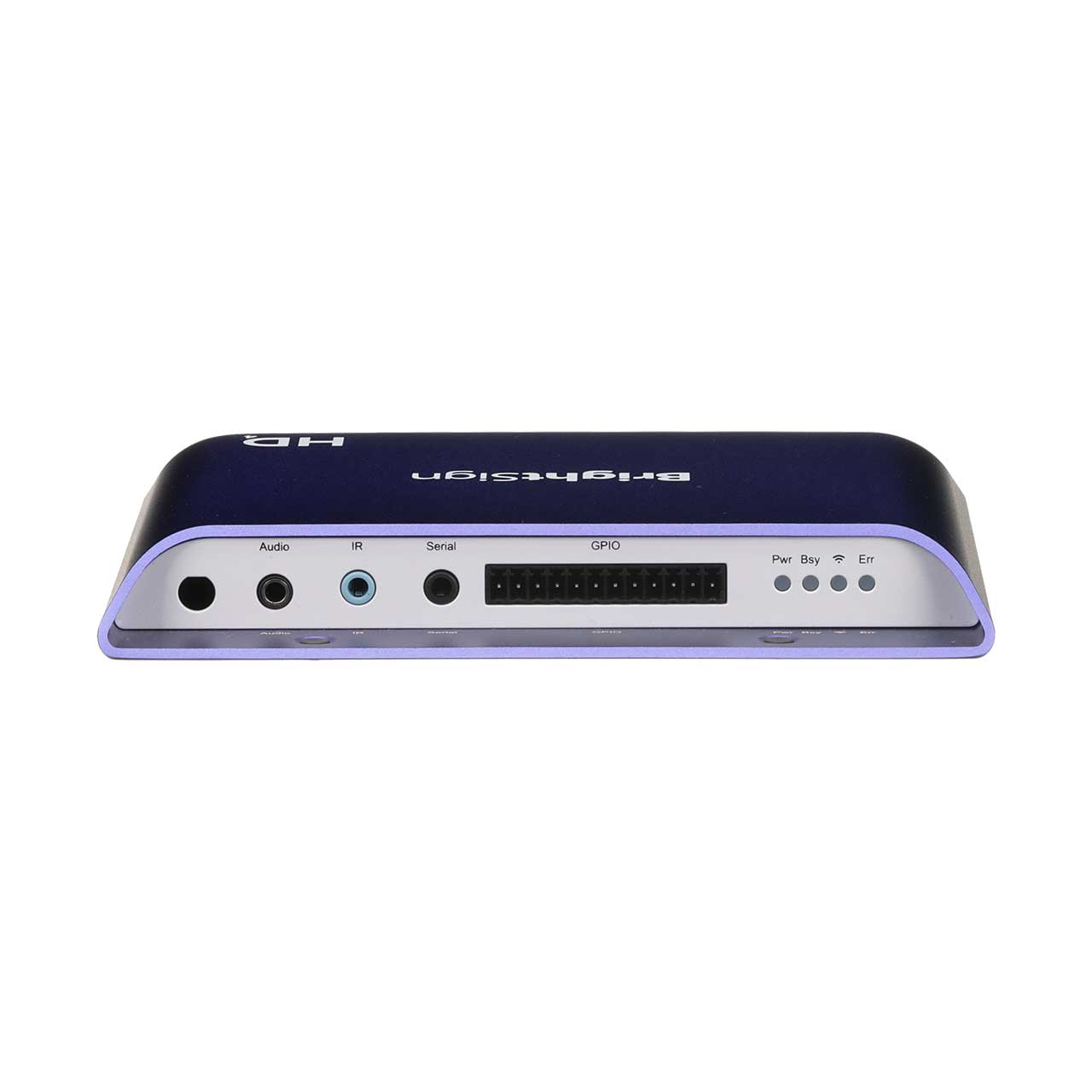

BrightSign HD1024 H.265/Full HD/Mainstream HTML5 Digital Signage Player with Expanded I/O Package

Name: BrightSign HD1024 H.265/Full HD/Mainstream HTML5 Digital Signage Player with Expanded I/O Package
Brand: BrightSign LLC
SKU: BRI-HD1024

ITEM #: BRI-HD1024 MFG #: HD1024

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BRI-HD1024

NEC M551 4K UHD Pro 55-Inch Large Format Display w/ Integrated Media Player for Digital Signage - SDM CompatibleOur Price: $1,709.67
BrightSign XT1144 H.265/True 4K/Dual Video Decode/Enterprise HTML5 Signage Player & Expanded I/O Package/PoE+/Live TVOur Price: $730.00
DataTronix DT-HDMP-1 Mini Digital Signage PlayerOur Price: $98.95
BrightSign LS425 Digital Signage Player - Full HD - HTML5 / Graphics & Digital Audio / Ideal for Looping VideoOur Price: $300.00

Overview

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

HD1024 - Overview

The BrightSign HD1024 shares all the features of the XD224 PLUS additional interactive options via USB 2.0 (type A), and serial ports to fully engage your audience.

BrightSign HD models are ideal for mainstream 4Kp60, Full HD and HTML5 applications that require high reliability and ease of use. All models offer H.265 decoding, HTML5 rendering and Gigabit Ethernet. Robust interactive controls, live content features, Video Walls and Mosaic Mode make this set of players a perfect fit for a wide range of applications.

4K Interactive Museum Exhibits
Advanced interactive exhibits engage all audiences using serial and USB for viewer interaction with buttons, touch screens, motion sensors, switches, light sensors and more.

Eye-Catching Videowalls
Capture attention with frame-accurate synchronization across a multitude of screens to set the stage for some serious retail therapy - now in true 4K resolution.

Features:
- Ideal for mainstream 4K or Full HD single video decoding
- Offers mainstream HTML5 performance
- Simultaneous playback from local, networked and streaming sources
- Gigabit Ethernet
- GPIO (GPIO connectors sold separately)
- Analog and digital audio
- Easier port access with power, HDMI and Ethernet on the front
- Improved power efficiency
- USB 2.0 (type A)
- Serial and IR control for expanded interactive options
Specifications:
- Video Engine Decoder
- True 4K@60p video decoding
- Single 4K or 1080p60 video decoding

  Media Formats
- Video Codecs for 4K content: H.265/H.264
- Video Containers for 4K H.265/H.264 content: .ts, .mov, .mp4
- Video Codecs for Full HD: H.265, H.264(MPEG-4, Part 10),
- MPEG-2, MPEG-1
- Video Containers for Full HD: .ts, .mpg, .vob, .mov, .mp4, .m2ts
- Images: BMP, JPEG, PNG
- Audio: MP2, MP3, AAC, and WAV (AC3 is passed through)
- HTML5: Mainstream

  Display Resolutions
- 4K resolutions: 4096x2160, 3840x2160, 3840x600
- Upscaling to: 3840x2160x24/25/29.97/30p
- 1920x1200, 1920x1080x24/25/29.97/30/50/59.94/60p,
- 1920x1080x50/59.94/60i, 1600x1200x60p, 1440x1050x60/75p,
- 1440x900x60/75p, 1360x768x60p, 1280x1024x60/75p,
- 1280x960x60p, 1280x800x60p/75p, 1280x768x60p,
- 1280x720x50/59.94/60p, 1024x768x60p, 800x600x60/75p,
- 720x576x50p/50i, 720x480x59.94/60p/60i, 640x480x60p

  Hardware Interfaces
- External micro SD Slot (SDHC and SDXC); SDHC storage up to
- 32GB SDXC storage up to 2TB
- USB High Speed Host Port (also supports content updates) (Type A) (HD1024 version only)
- 12-pin Phoenix GPIO port with 8 bi-directional GPIOs
- 3.5mm IR In/Out
- 3.5mm Audio Out (analog -or- SPDIF digital, non-simultaneous)
- HDMI 2.0a Out
- Ethernet: Gigabit
- M.2 (E) Keyed Wi-Fi/Bluetooth Connector
- Wi-Fi External Antenna Connector (optional)
- Status LEDs Power, Error, Busy, Update
- Reset and Service Buttons
- Real Time Clock
- Software
- Free BrightAuthor Software
- BrightSign Networking Options

  Accessories
- USB Button Pads (HD1024 version only)
- Wireless/Bluetooth Module
- MicroSD Class 10 Cards (various capacities)

  Miscellaneous
- Dimensions (WxHxD): 6.3 x 0.87 x 5.7" (159.9 x 22 x 144.2mm)
- Weight: 12oz
- Power: 12V / 1.5A (18 Watts)
- Multi-Country Power & Regulatory Approvals
- Built-in Wall Mounting Brackets
Item Includes:
- 1x HD1024 digital signage media player
- 1x International power supply with plugs for USA, UK, Australia and EU
- 1x MicroSD slot cover with screw
- 1x Getting Started flyer
Warranty:
- 1 year warranty, parts and labor
