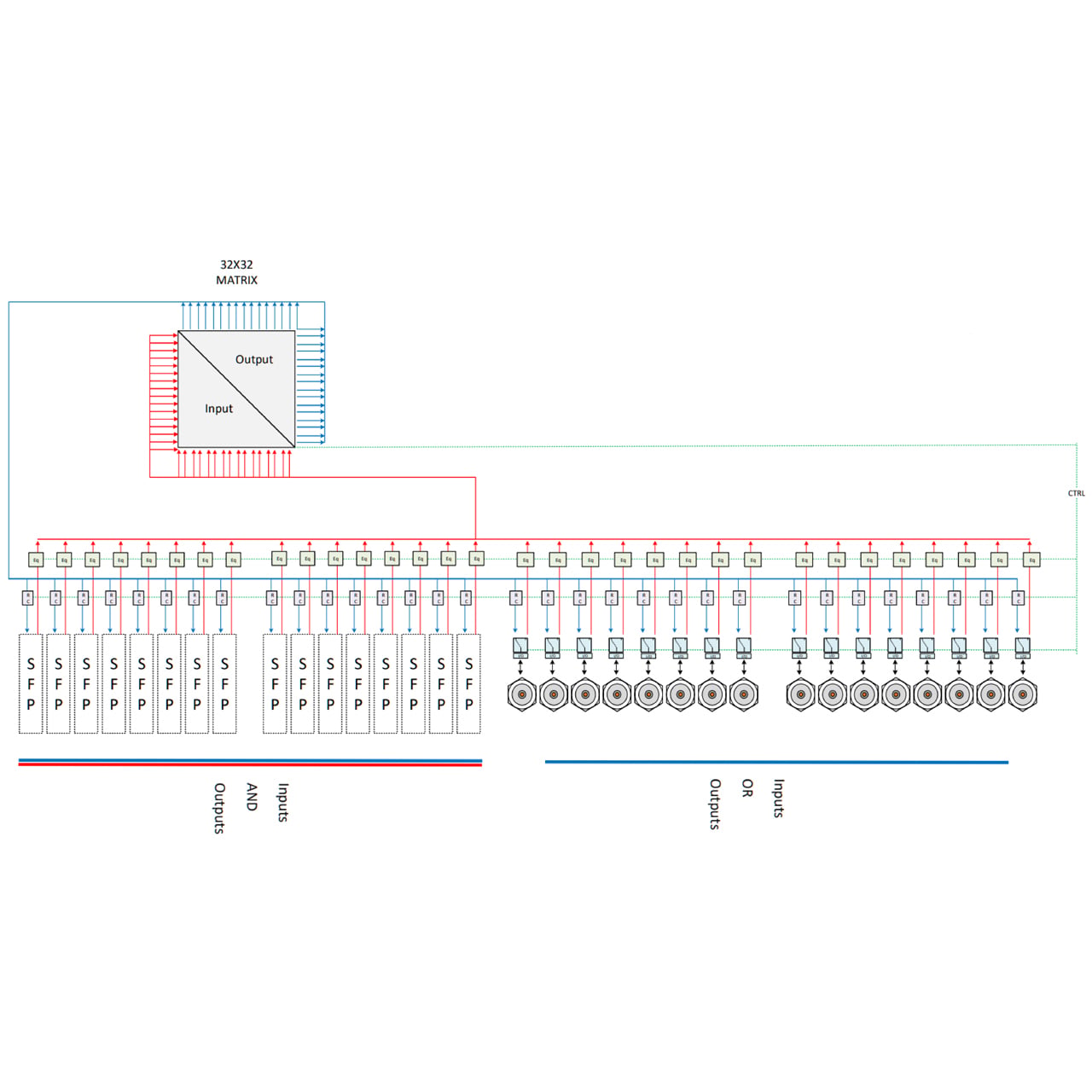

The Barnfind BarnOne series of routers can provide a 32 x 32 built-in routing system with a combination of BNC and SFP I/O ports to satisfy any application. Every SFP port is bi-directional and every BNC port (if equipped) can be set as an input or output and all outputs are re-clocked. Multiple reference switching can be set to different references depending on the signal being switched and the system works with most 3rd party control systems. Each BarnOne frame is contained within 1 RU space - the highest density yet that also offers the least power consumption in the industry.

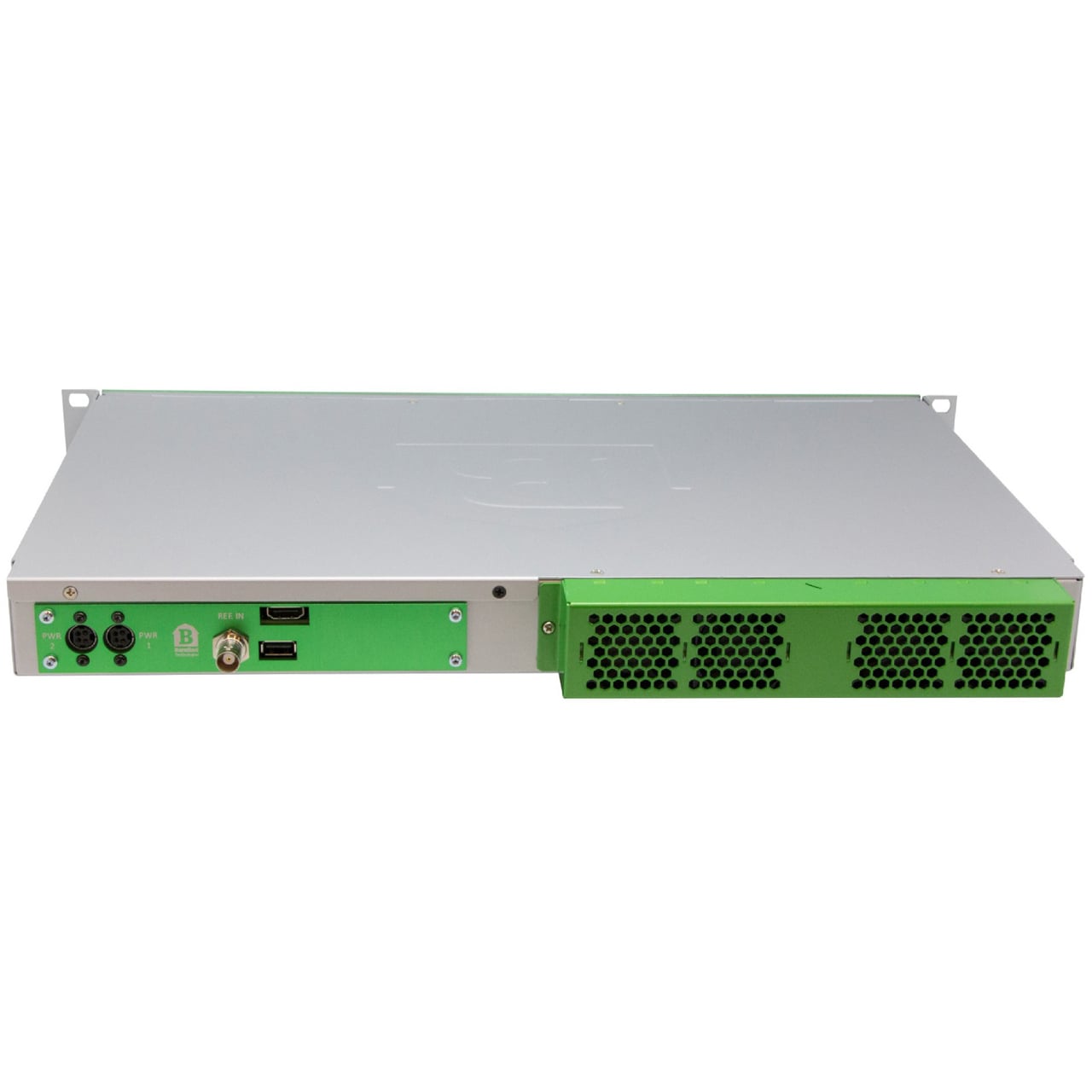

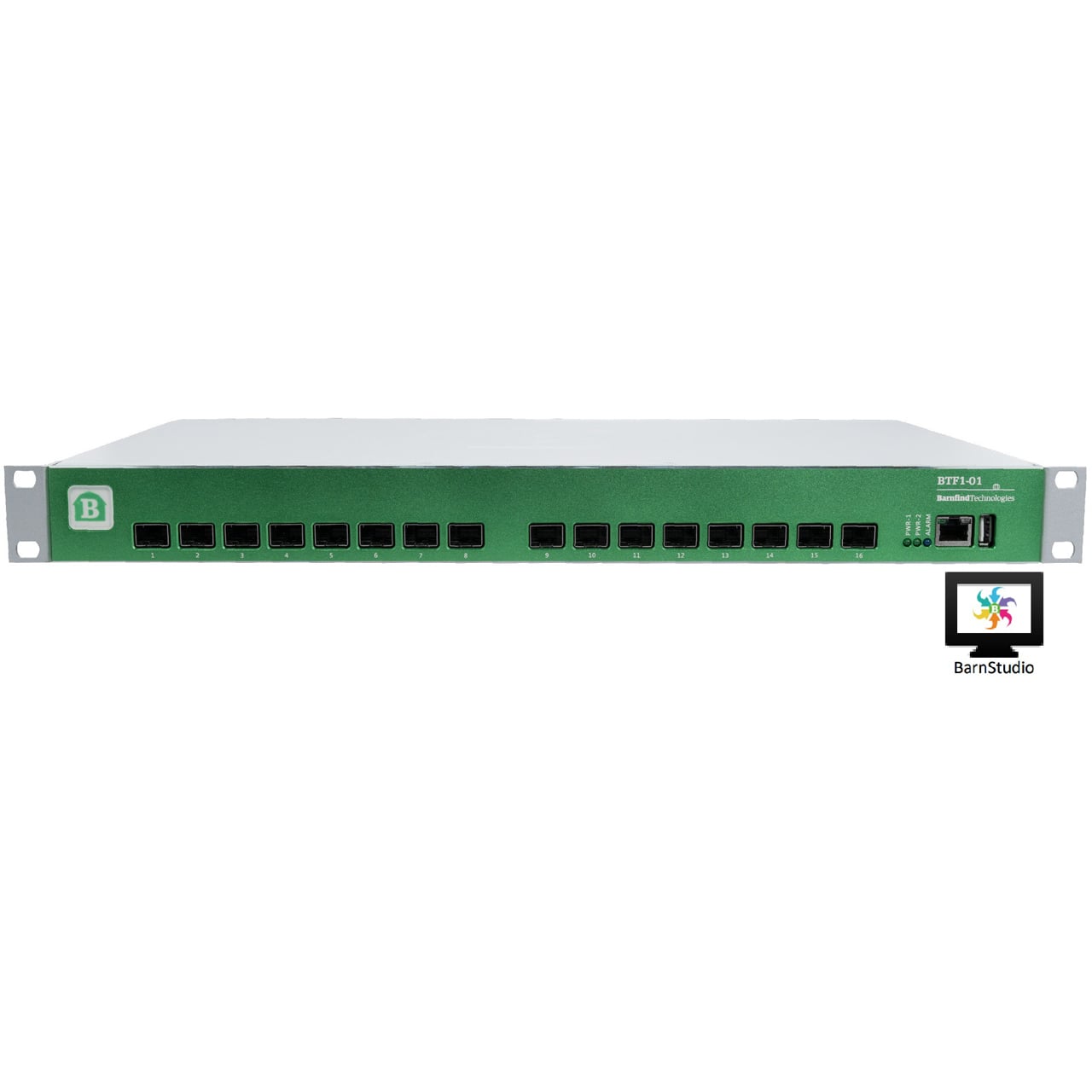

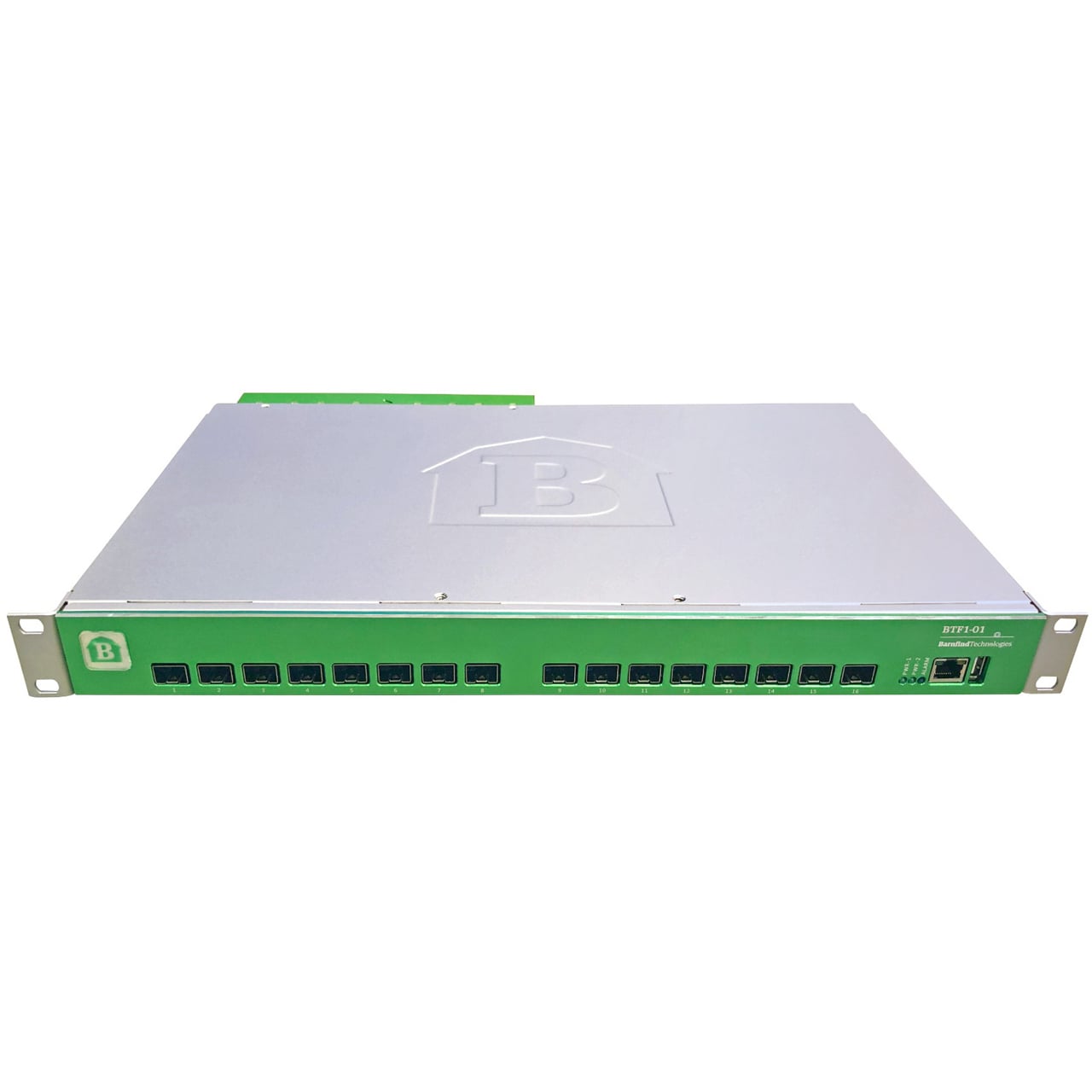

The BTF1-01 has 16 bi-directional Duplex transceiver cages with LC/PC connectors in a convenient and small 1RU design. These SFP ports are hot pluggable/swappable and can be programmed to singlemode and/or multimode. A 12V DC 120W power supply is included to power the unit wherever you need it with the option to add redundant power.
The included BarnStudio Software enables you to access all the great functionalities and configurations in BarnMini and frames in BarnOne family.
