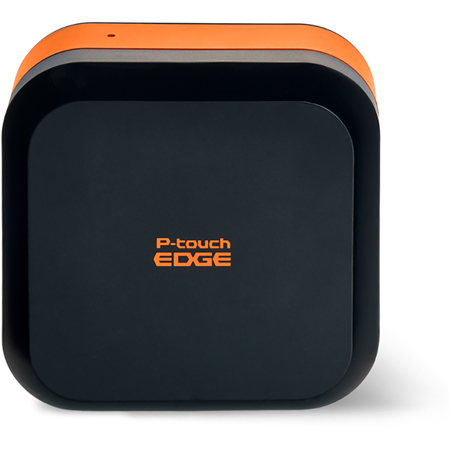

Brother PTE720BT P-Touch EDGE 720BT Portable Label Printer with Bluetooth & Auto-Cutter - 1/4-Inch to 1-Inch Labels

PTE720BT - Overview

• Features:

  • Label small to mid-size jobs and MAC industrial projects with durable laminated labels from ~1/4" to ~1"
  • Design labels from your mobile device on the Pro Label Tool app1 and print labels wirelessly with convenient Bluetooth connectivity
  • Free up your hands to work in tight spaces with optional accessories3 to wear the printer from a belt, mount to a steel shelf or rack, hook to a ladder and more
  • Use your Excel or database files2 to print quickly from existing work
  • Create industrial labels fast with templates for cable wrap, cable flag, patch panel, punch block and faceplate labels plus add QR codes & other linear barcodes
  • Build label files in P-touch Editor4 and share with field teams to print from the Pro Label Tool app1 for seamless workflow.
  • Charge the long-lasting Li-ion battery or connect to design and print from your PC with standard micro-USB
  • Kit includes TZe-S221, TZe-FX251, patch panel ruler, micro-USB cable


• Specifications:

  General
  • Dimensions: 5.0" x 2.6" x 5" (128mm x 67mm x 128mm)
  • Weight With Battery: 1.4lbs (0.6kg)
  • Memory: Available memory in mobile device or computer
  • Control Panel: Mobile device or computer
  • Operating Temperature/Humidity: 50°F - 95°F (10°C - 35°C), 20% - 80% non-condensing
  • Storage Temperature/Humidity: -4°F - 140°F (-20°C - 60°C), 20% - 80% non-condensing

    Power and Print Performance
  • Power: Compatible (not included) USB adapter (up to 100W)
  • Battery: Preinstalled rechargeable Li-ion battery (PA-BT-005)
  • Battery Yield: 5 tapes on one charge
  • Battery Charging Options: Compatible USB power source
  • Battery Charging Time: 3 hours
  • Print Technology: Laminating thermal transfer
  • Resolution: 180dpi
  • Max Print Speed: Up to 0.78ips via USB power source or battery
  • Max Print Width: 0.71" (18mm)
  • Max Print Length: 39.37" (1m)

    Connectivity and Compatibility
  • Communications Interfaces: USB v2.0 (micro-B), Bluetooth Classic (SPP) MFi (iAP)
  • OS Compatibility: Windows, Android, iOS
  • Print Driver Compatibility: Windows
  • SDK Support: Windows, Android, iOS
  • Support Software: Windows Printer Driver, P-touch Editor v6.x for Windows, P-touch Editor v5.x for Mac, Printer Setting Tool for Windows, Update Software for Windows, Firmware Update Tool for Windows & Mac
  • Mobile Apps: Pro Label Tool app for Android & iOS, Mobile SDK for Android & iOS

    Print Operations
  • Printer Languages: Raster, Mobile SDK
  • Linear Barcodes: Code39, Code128, EAN-13, GS1-128 (UCC/EAN-128)
  • 2D Barcodes: QR Code, Data Matrix
  • Fonts: Atlanta, Belgium, Bermuda Script, Brussels, Brussels Condensed, Connecticut, Germany, Helsinki, Helsinki Narrow, Istanbul, Letter Gothic, PT Utah Condensed, San Diego, US, Utah, Noto Sans, System font
  • Function Keys: Self-laminating, cable wrap, cable flag, patch panel, terminal block, faceplate, punch-down block, breaker box, safety signage, asset management, tool ID, barcodes
  • Keyboard: QWERTY layout (mobile device, computer)
  • Print Capabilities: Up to 20 alpha-numeric characters, up to 999 alpha-numeric character increments (individual or simultaneous), auto formats (self-laminating, cable wrap, cable flag, patch panel, terminal block, faceplate, punch-down block, breaker box, safety signage, asset management, tool ID, barcodes), 4412 P-touch Editor 6.x symbols, text insert, multi-block up to 50, 26 languages, downloadable templates (LBX, LBXS), databases (CSV, XLS, XLSX), import graphics (BMP, DIB, JPG/JPEG, TIFF, GIF, PNG, WMF, EMF, ICO) up to available mobile device memory size
  • Print Layout: Real Print preview, up to 7 lines per label, 10 type styles, 9 type sizes, 5 type widths, invert & vertical printing, repeat printing up to 99 copies

    Media
  • Cutter: Automatic cutter
  • Media Sensors: Smart Identification
  • Media Type: HGe, TZe, STe

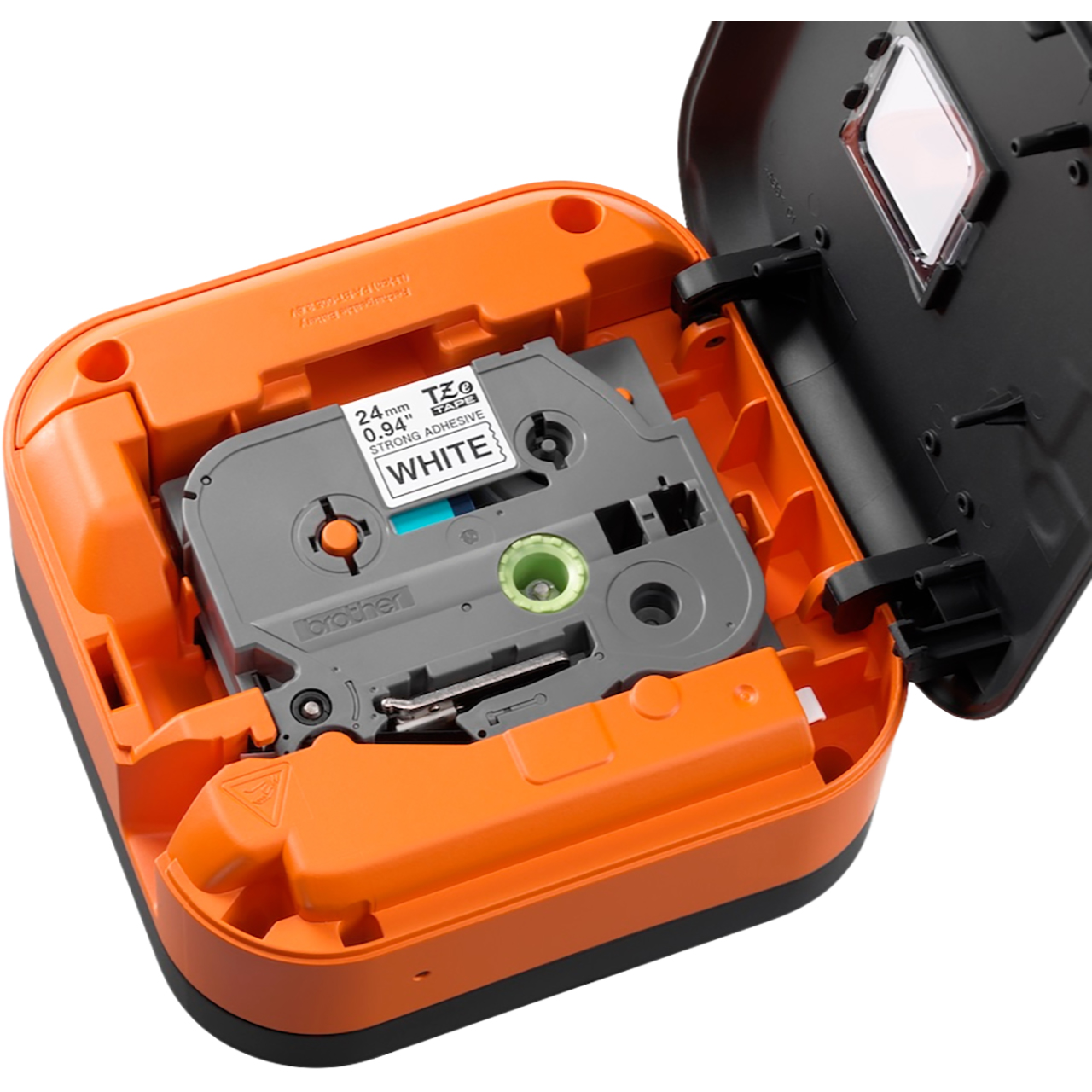

  • Media Loading: Cartridge
  • Media Sizes: 24mm, 18mm, 12mm, 9mm, 6mm, 3.5mm
  • Media Width: 24mm (0.94") max
  • Max Print Height: 18mm (0.71")


• Item Includes:

  • 1x TZe-S221 Adhesive Tape
  • 1x TZe-FX251 Label Tape
  • 1x Patch Panel Ruler
  • 1x Micro-USB Cable
  • 1x Li-Ion Battery Pack


• Warranty:

  • 2 Year Warranty
