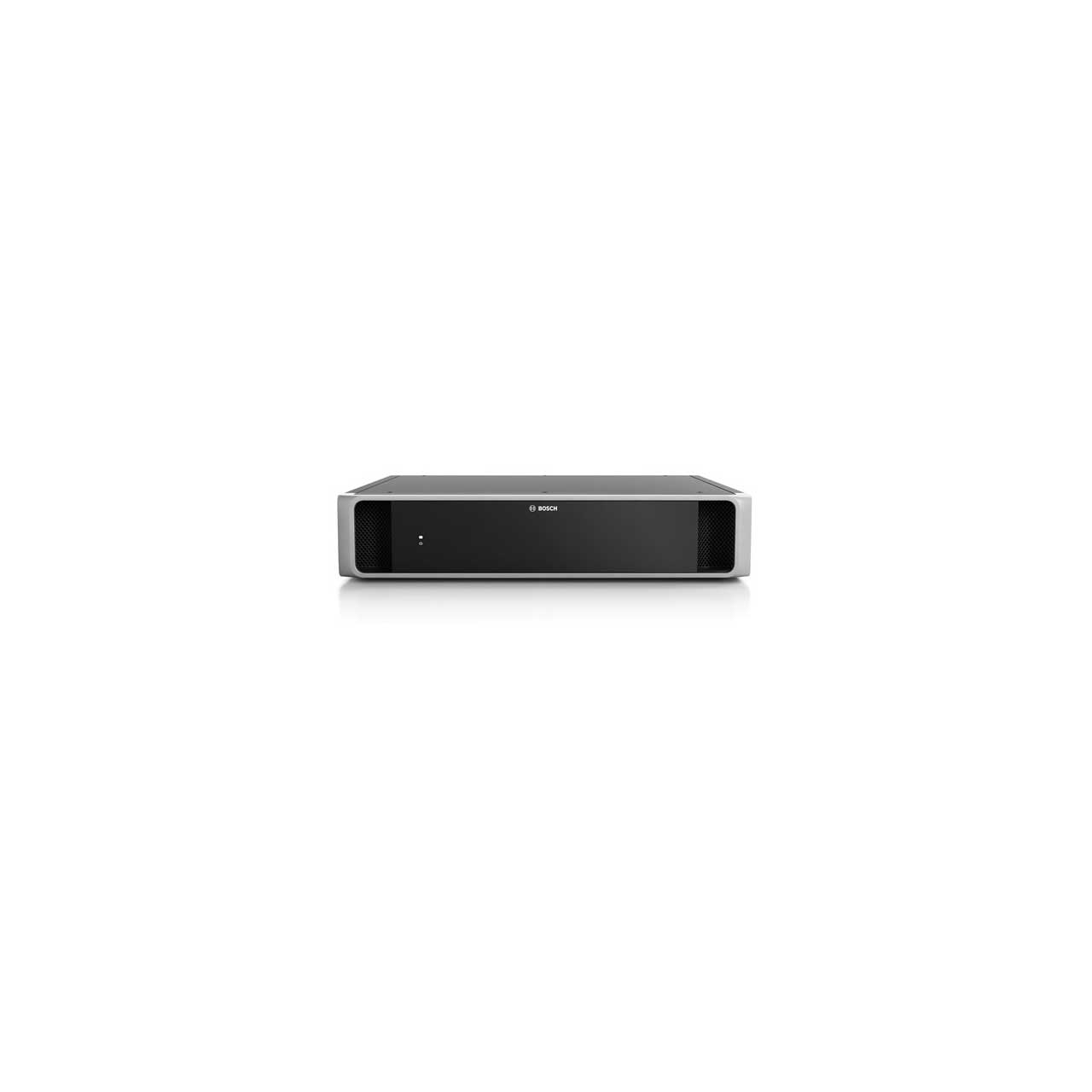

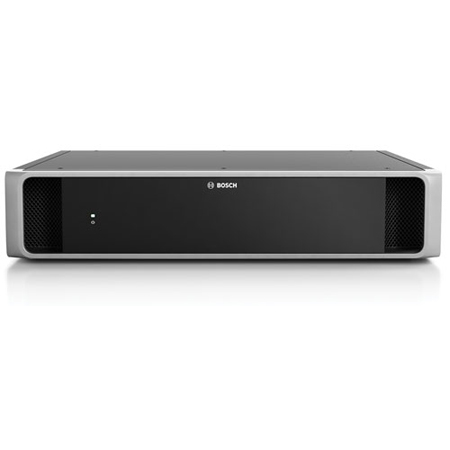

Bosch DICENTIS Conference System Audio Powering Switch - 2nd Gen for DICENTIS Conference System & DICENTIS Multimedia


Primary Image
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    DCNM-APS2 - Overview

    The Bosch DCNM-APS2 is an audio processor and powering switch that is responsible for routing, controlling and processing the audio. The DCNM-APS2 also supplies power to the discussion and multimedia devices.

    The device includes an intelligent adaptive acoustic feedback suppressor, echo cancellation and two 5-band parametric equalizers for optimal speech intelligibility. It has two audio inputs for inserting external analogue audio signals into the system and mix-minus is provided for connecting the DICENTIS Conference System to video conferencing equipment. The DCNM-APS2 also has two audio outputs used for mix-minus and to connect an external sound reinforcement system.

    The built-in Ethernet switch connects all devices in the system together in a network and supports loop-through connection. This makes it possible to connect a DICENTIS discussion device to another DICENTIS discussion device. Even the last DICENTIS discussion device in the loop can be connected to a DCNM-APS2 to create cable redundancy. The DCNM-APS2 has no user controls and can be fully controlled remotely.

    • Features:

      • Zero network configuration
      • Fully compatible to the Ethernet (IEEE802.3) and OMNEO standard
      • Supports loop-through connection with cable redundancy
      • Acoustic feedback suppression, echo cancellation and equalizer
      • Standby mode to be environment friendly
    • Specifications:

      • Color: Black
      • Dimension (HxWxD): 3.60 x 17.30 x 16.70" (9.20 x 44 x 40cm)
      • Weight: 16.79Lbs (7620g)
      • Input voltage: 100 – 240 VAC
      • Mounting type: Rack-mounted; Tabletop
      • Operating Relative Humidity: 5 to 96%, non-condensing
      • Operating Temperature: 32° to 113°F (0° to 40°C)
      • Storage Temperature: -4° to 158°F (-20° to 70°C)
      • Power consumption: 530 W
      • Power frequency: 50 Hz; 60 Hz
    • Item Includes:

      • 1x DCNM-APS2 Audio processor and powering switch
    • Warranty:

      • 3 years
