Bosch DICENTIS Conference System Powering Switch - 2nd Gen for DICENTIS Conference System Including DICENTIS Multimedia

ITEM #: BSH-DCNM-PS2 MFG #: DCNM-PS2

Primary Image
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    DCNM-PS2 - Overview

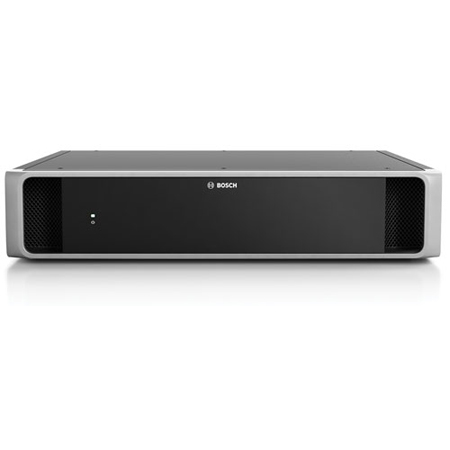

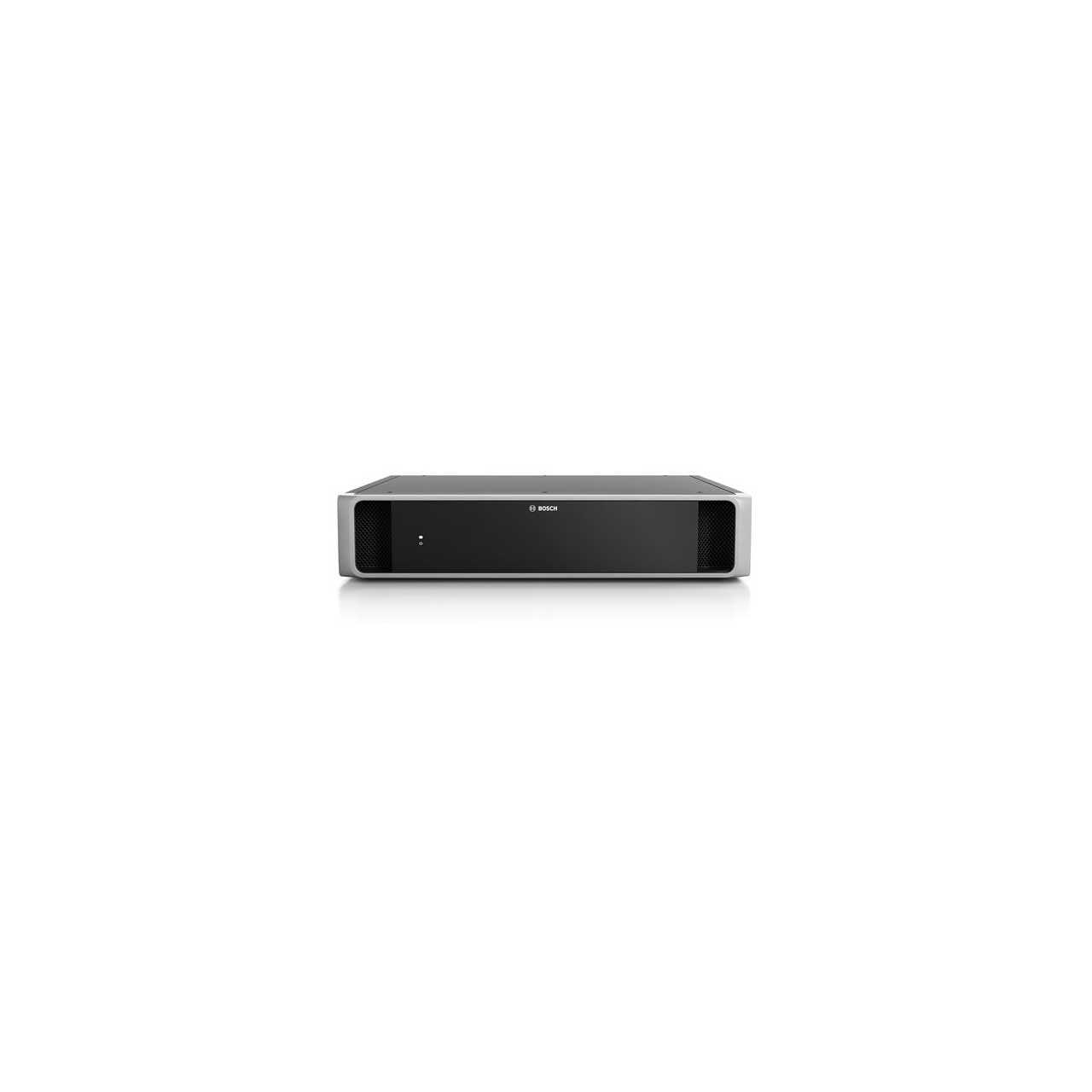

    The Bosch DCNM-PS2 Powering Switch is used in combination with an Audio Powering Switch to supply extra power to the DICENTIS network. The built-in Ethernet switch connects all devices in the system together in a network and supports loop-through connection, which makes it possible to connect the DICENTIS device to another DICENTIS device; even the last DICENTIS device in the loop can be connected to an (audio) powering switch to create cable redundancy. The powering switch has no user controls and can be fully controlled remotely.

    • Features:

      • Zero network configuration
      • Fully compatible to the Ethernet (IEEE802.3) and OMNEO standard
      • Supports loop-through connection with cable redundancy
      • Standby mode to be environment friendly

    • Specifications:

      • Color: Black
      • Dimension (HxWxD): 3.60 x 17.30 x 15.70" (9.20 x 44 x 40cm)
      • Weight: 16.31Lbs (7.40kg)
      • Input voltage: 100 – 240 VAC
      • Mounting type: Rack-mounted; Tabletop
      • Operating Relative Humidity: 5 to 96%, non-condensing
      • Operating Temperature: 32° to 113°F (0° to 40°C)
      • Storage Temperature: -4° to 158°F (-20° to 70°C)
      • Power consumption: 530 W
      • Power frequency: 50 Hz; 60 Hz

    • Item Includes:

      • 1x DCNM-PS2 DICENTIS Powering Switch

    • Warranty:

      • 3 years


    DCNM-PS2 - Required Accessories
