Bosch LBB4511/00-US INTEGRUS Radiator for Medium Size Area

ITEM #: BSH-LBB4511-00-U MFG #: F.01U.080.938

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$5,246.00

Our Price:

$3,949.95

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


F.01U.080.938 - Overview

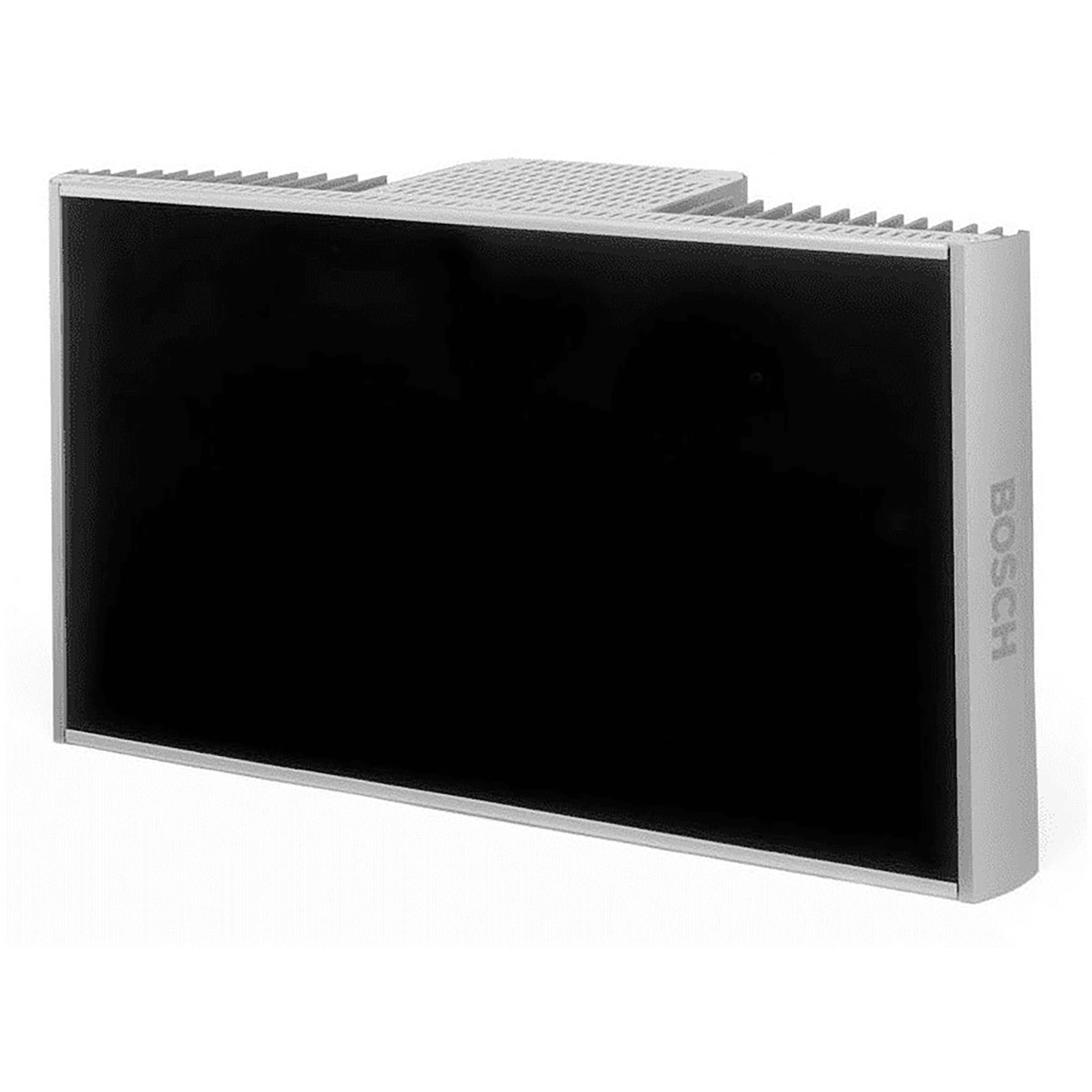

The Bosch LBB4511/00-US is an INTEGRUS radiator for medium sized areas. These radiators are used to distribute infrared signals throughout the conference venue, enabling delegates to listen to the proceedings by means of personal pocket receivers. The Bosch LBB 4511/00 covers up to 1300 m2 (one carrier, 4 standard quality channels). Automatic gain control ensures the IREDs (infrared emitting diodes) function with maximum efficiency. Power output selection for efficiency and economy. Safety eye.

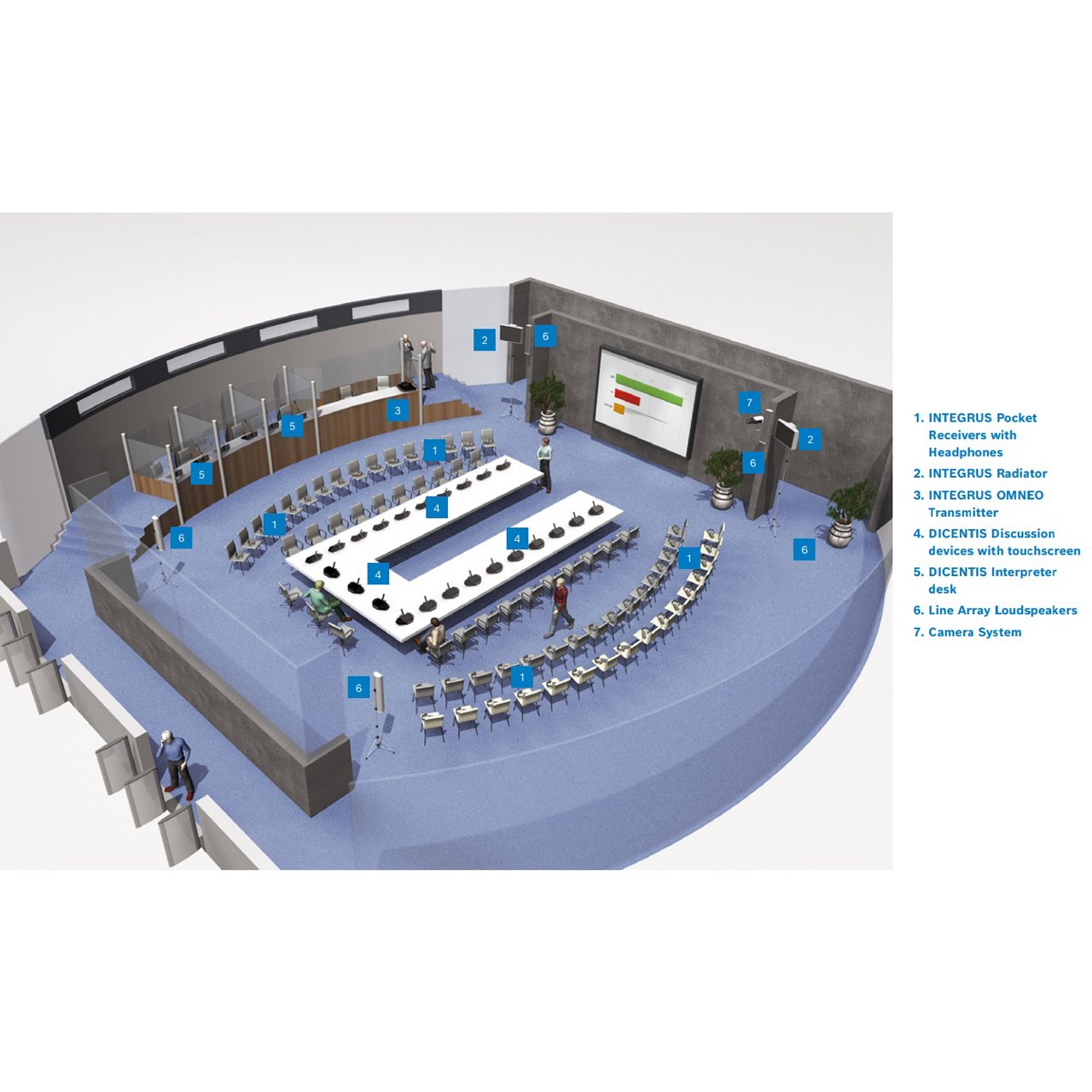

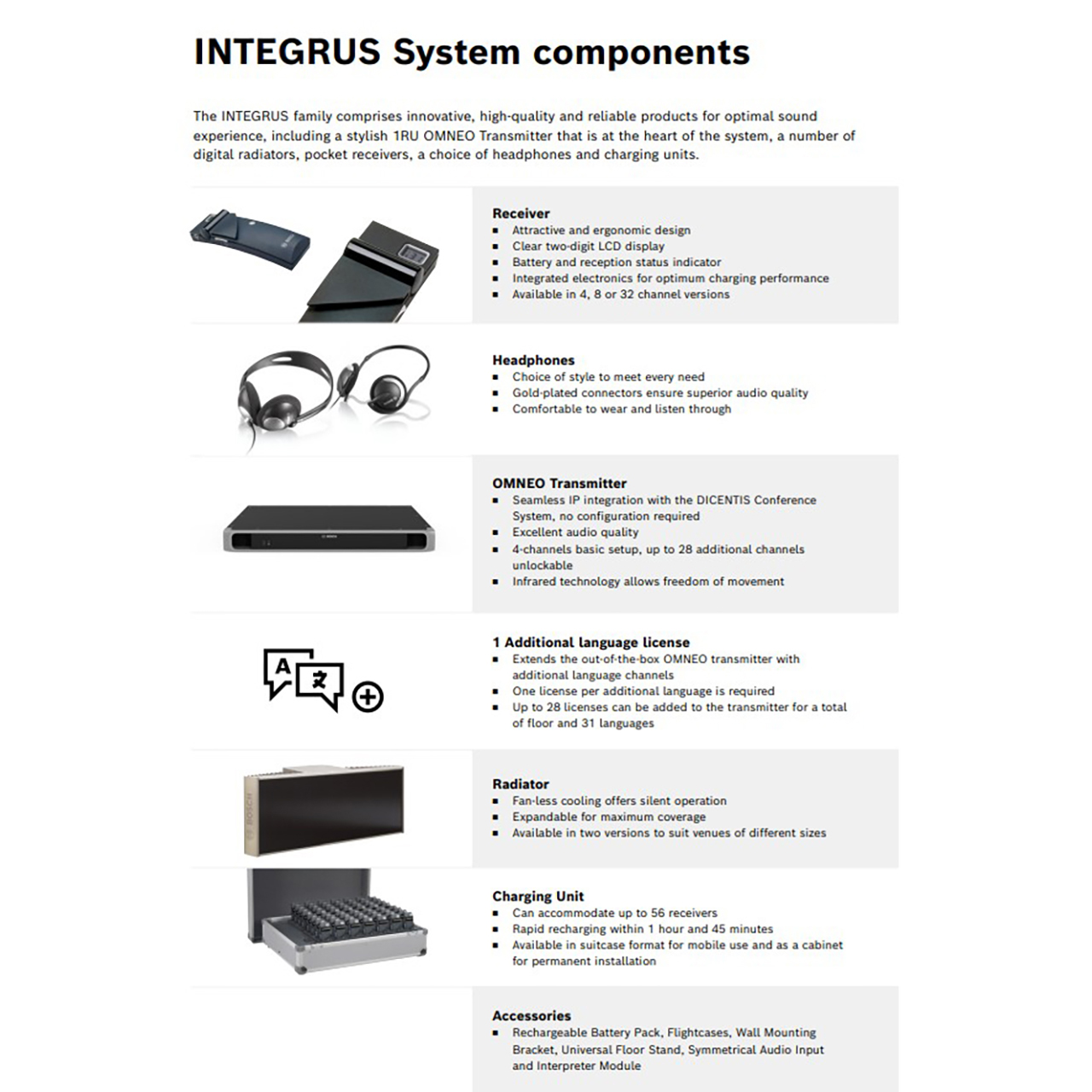

The INTEGRUS Wireless Language Distribution System has been specifically designed for multilingual meetings to enable attendees to understand speeches in their native language. The audio signals of simultaneous interpretations are transmitted to pocket receivers and headphones via radiators utilizing proven, tamper-free infrared technology. Participants can move freely around the location whilst still able to follow proceedings. The system is highly flexible and offers exceptional audio quality, making it ideal for parliaments, conference centers and international organizations, no matter what the size of the event or venue. As a result, it has become the wireless, infrared language distribution system of choice for event organizers.

  • Features:

    • Universal mains power facility allows use worldwide
    • No fan - cooled by convection - resulting in quieter operation and less moving parts to wear out
    • LED indicators for radiator status checking
    • Communication between radiator and transmitter for easy checking by the operator
    • Automatically switches on when transmitter is switched on and vice versa
    • Automatic cable equalization ensures maximum transmission efficiency with different quality of cables
    • Automatic cable termination simplifies installation
    • Temperature protection circuitry automatically switches radiator from full- to half- power if the temperature becomes too high
    • Adjustable radiator angle ensures maximum coverage
    • IREDs protected by a cover plate, making the units easy to maintain and clean
    • Advanced digital technology for a superior listening experience
    • Secure, tamper-free infrared audio signal distribution
    • No interference from Wi-Fi signal jammers or lighting
    • Flexible, license-based expansion of up to 32 channels
    • Attractive, ergonomic receiver design
    • Easy and seamless integration with the IP-based DICENTIS Conference System from Bosch.

  • Specifications:

      Controls and Indicators
    • 2x Yellow LEDs: One on each radiator panel to indicate that this panel is switched on and is receiving carrier waves from the transmitter
    • 2x Red LEDs: One on each radiator panel to indicate that this panel is in standby mode
    • Red and Yellow LEDs simultaneously illuminated to indicate the radiator panel is malfunctioning
    • Red LED flashing and Yellow LEDs to indicate the radiator panel is in temperature protection mode
    • Power reduction switch to reduce the output of the radiator to half-power
    • 2x delay compensation switches to compensate for differences in cable lengths between transmitter and radiators.

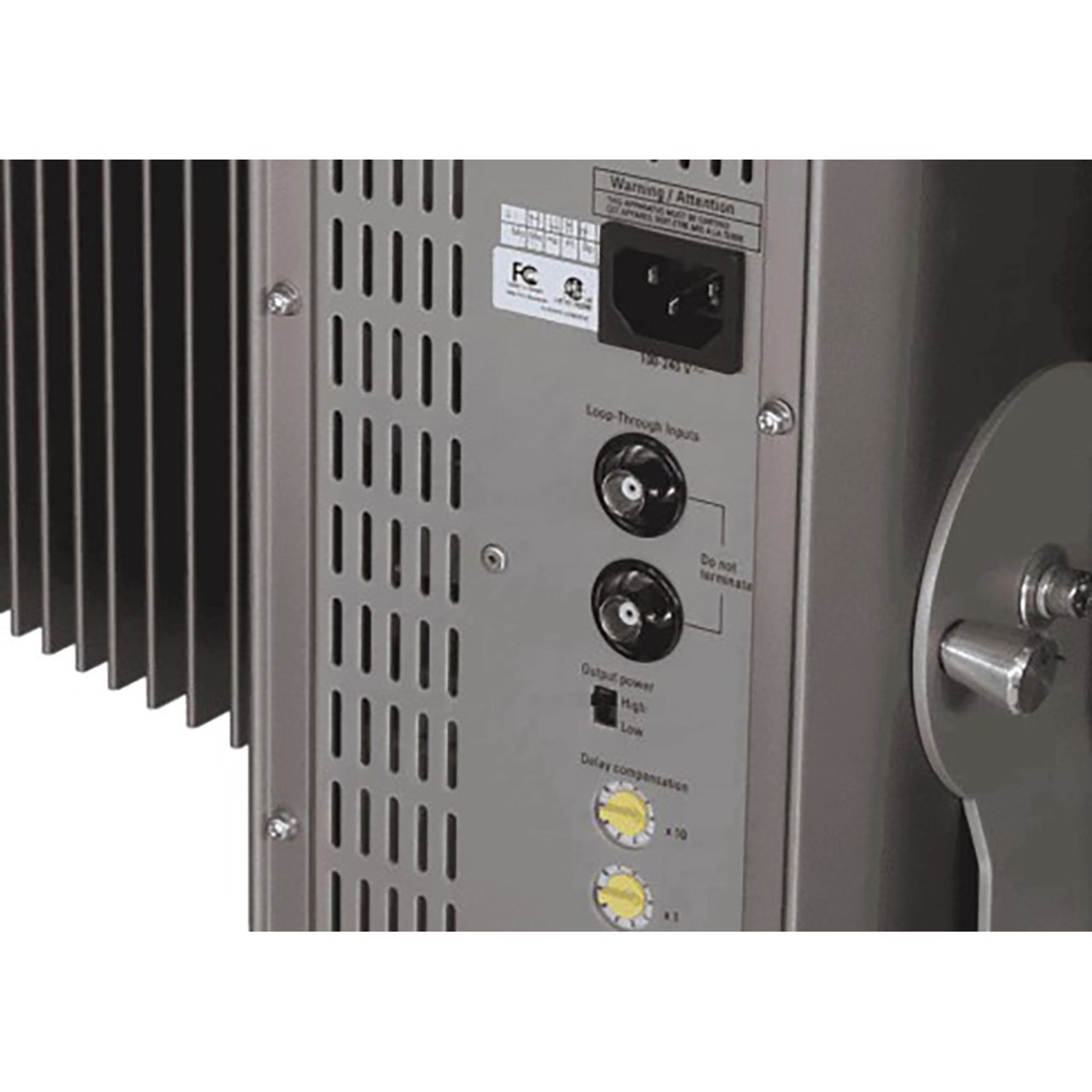

      Interconnection
    • Male Euro socket for mains connection
    • HF input and output connectors (2x BNC) for connection to transmitter and loop-through to other radiators

      Electrical
    • Mains Voltage: 100V - 240VAC, 50 - 60Hz
    • Power Consumption Operating: 100W
    • Power Consumption Standby: 8W
    • Number of IREDs: 260
    • Total Optical Peak Intensity: 12W/sr
    • Angle of Half Intensity: ±22°
    • HF Input: Nominal 1Vpp, minimum 10mVpp

      Mechanical

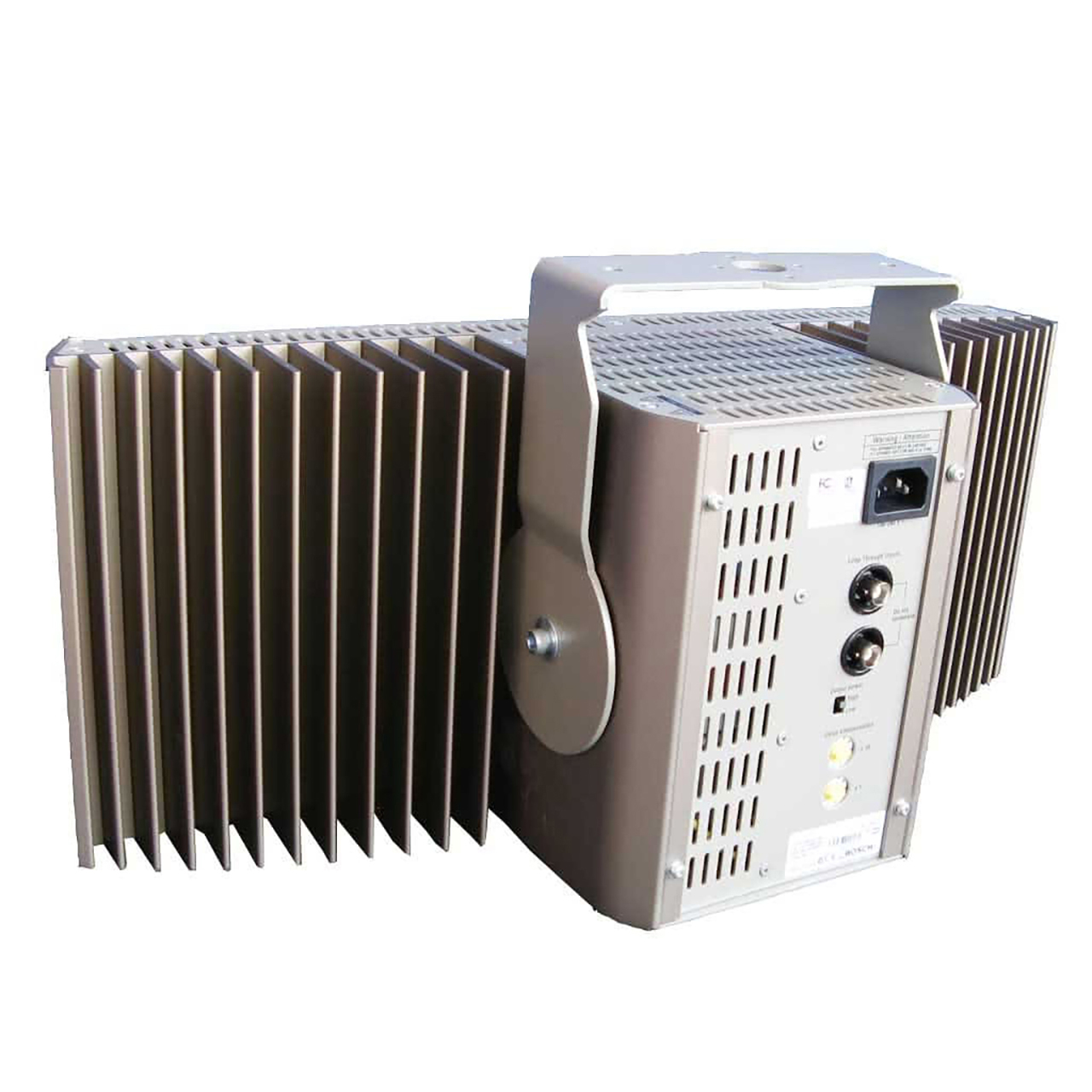

    • Mounting: Suspension bracket for direct ceiling mounting, Mounting plates for floor stands with M10 and ½ Whitworth thread. Optional wall mounting bracket (LBB 3414/00) available, Safety eye
    • Dimensions (HxWxD): 7.9" x 19.7" x 6.9" (200mm x 500mm x 175mm)(without bracket)
    • Radiator Angle - Floorstand Mounting: 0°, 15°, and 30°
    • Radiator Angle - Wall/Ceiling Mounting: 0°, 15°, 30°, 45°, 60°, 75°, and 90°
    • Weight without Bracket: 15lbs (6.8kg)
    • Weight with Bracket: 17lbs (7.6kg)
    • Color: Bronze

  • Item Includes:

    • 1x LBB4511/00-US Radiator for medium size area
    • 1x Mains cable
    • 1x Bracket for mounting unit on ceiling
    • 1x Plates for mounting unit on floor stand
