Listen Technologies LA-122 Universal Antenna Kit (72 and 216 MHz)

ITEM #: LSTN-LA-122 MFG #: LA-122

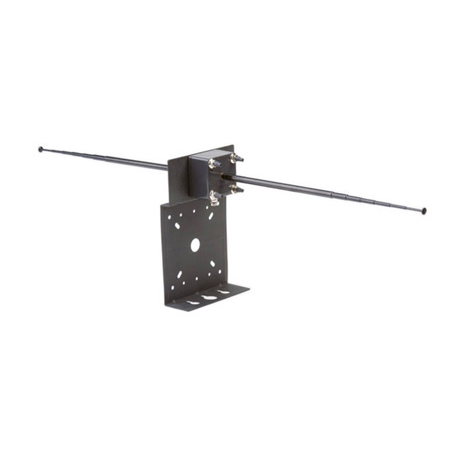

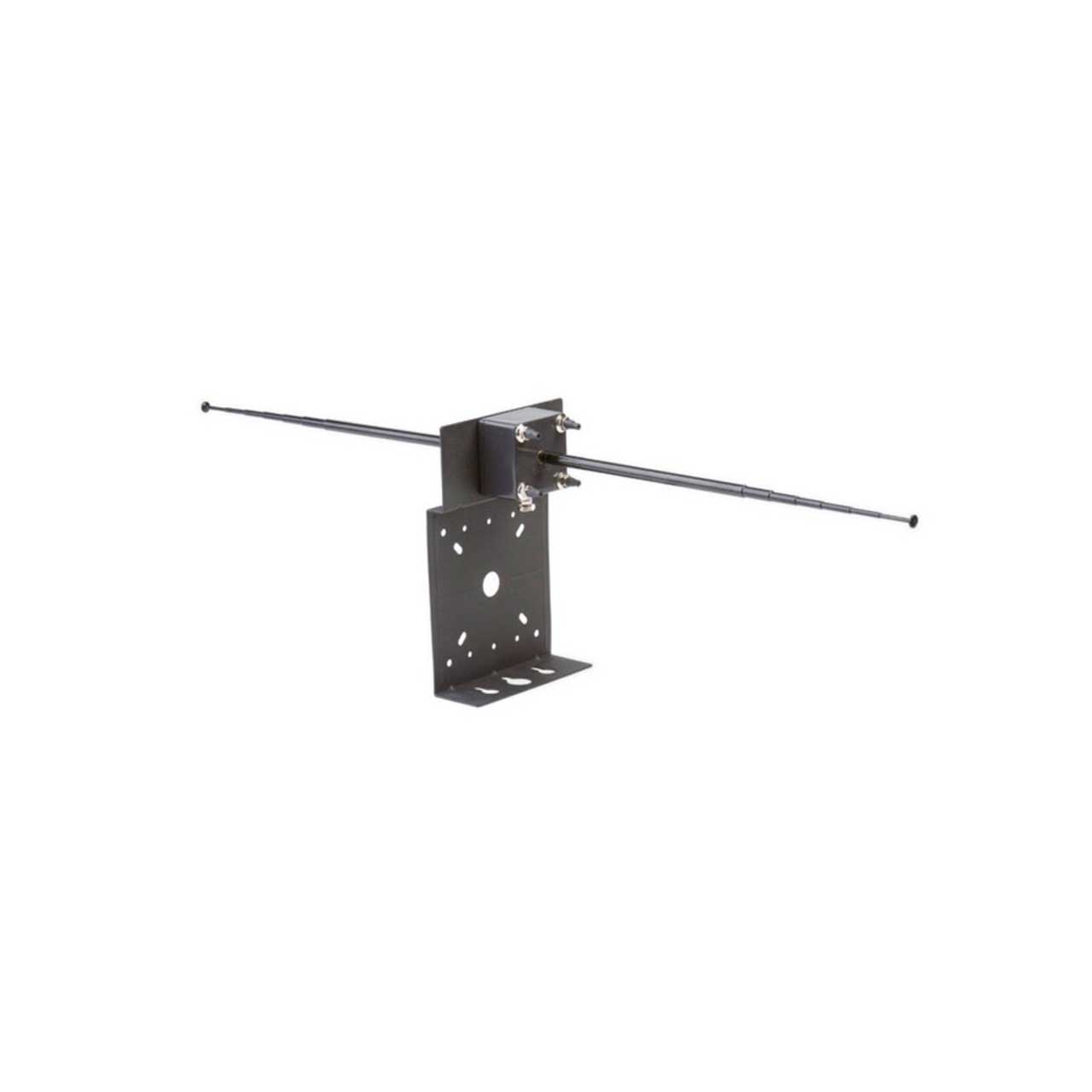

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$158.00

Our Price:

$153.63

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    LA-122 - Overview

    Complete with antennas for both 72 MHz and 216 MHz systems, the LA-122 Universal Antenna Kit gives you a single solution for your venue's remote antenna needs. Included mounting hardware allows the antennas to be attached to walls, mounted on electrical boxes, installed on a horizontal surface, or even inside a wall or ceiling. The LA-122 includes all the necessary components to configure several different versions of the antenna, and a 25-foot coaxial cable is also provided.

    • Features:

      • Includes antennas for both 72 MHz and 216 MHz systems
      • Mounting hardware allows for multiple installation options including walls, electrical boxes, and more
      • Complete kit for configuring different versions of the antenna
      • Comes with 25 feet of coaxial cable

    • Specifications:

      • Connector/s: BNC
      • Frequency Range: 72 MHz - 72.025 MHz - 75.975 MHz216 MHz - 216.0125 MHz - 216.9875 MHz
      • Number of Channels: 72 MHz - 57 (17 wide band, 40 narrow band)216 MHz - 57 (19 wide band, 38 narrow band)
      • Antenna Type: Monopole and Dipole
      • Unity Gain: 0 dB
      • Shipping Weight: 7.0 lbs.
      • Mounting: Wall mount, dual and single electrical box, ceiling electrical box, horizontal surface mount (such as on top of a rack), ceiling/inverse mounting, flexible mounting in-wall or in ceiling and mast or conduit mount. Includes self-tapping sheet metal screws, drywall anchors, and all hardware required to mount to electrical boxes. Does not provide hardware required to mount to a mast (available at most hardware stores).
      • Bracket Dimensions: 4.5 in x 7.0 in x 2.5 in W x D x H
      • Grounding Base Dimensions: 8.0 in x 8.0 in x 2.0 in) W x D x H
      • Mounting Plate Dimensions: 4.48 in x 4.55 in
      • Dipole Vertical Length: 72 MHz - 80 in., 216 MHz - 27 in.
      • Weight: 4.4 lbs.

    • Item Includes:

      • One (1) Grounding Base
      • One (1) Mounting Bracket
      • One (1) Wall/Electrical Box Mounting Plate
      • One (1) Shorting Plate
      • One (1) Antenna Module
      • One (1) 25 ft. (7.6 m) Coaxial Cable (terminated with BNC connectors on both ends)
      • Two (2) Telescoping Antennae (72 MHz)
      • Two (2) Telescoping Antennae (216 MHz)
      • Two (2) Flexible Antenna (72 MHz)
      • Two (2) Flexible Antenna (216 MHz)
      • Two (2) Hex Kep Nuts
      • Two (2) Fiber Washer
      • Four (4) Machine Screw (#8-32x3/4?)
      • Four (4) Tapping Screw (#8-1/2?)
      • Four (4) Dry Anchors
      • One (1) Owner's manual

    • GTIN:

      0819267020146
