Bosch LBB9080/00 Omnidirectional Dynamic Handheld Microphone - Push-to-Talk

ITEM #: BSH-LBB9080-00 MFG #: LBB9080/00

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$90.50

Our Price:

$75.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


LBB9080/00 - Overview

Engineered for reliable 24/7 use in commercial or industrial paging systems!

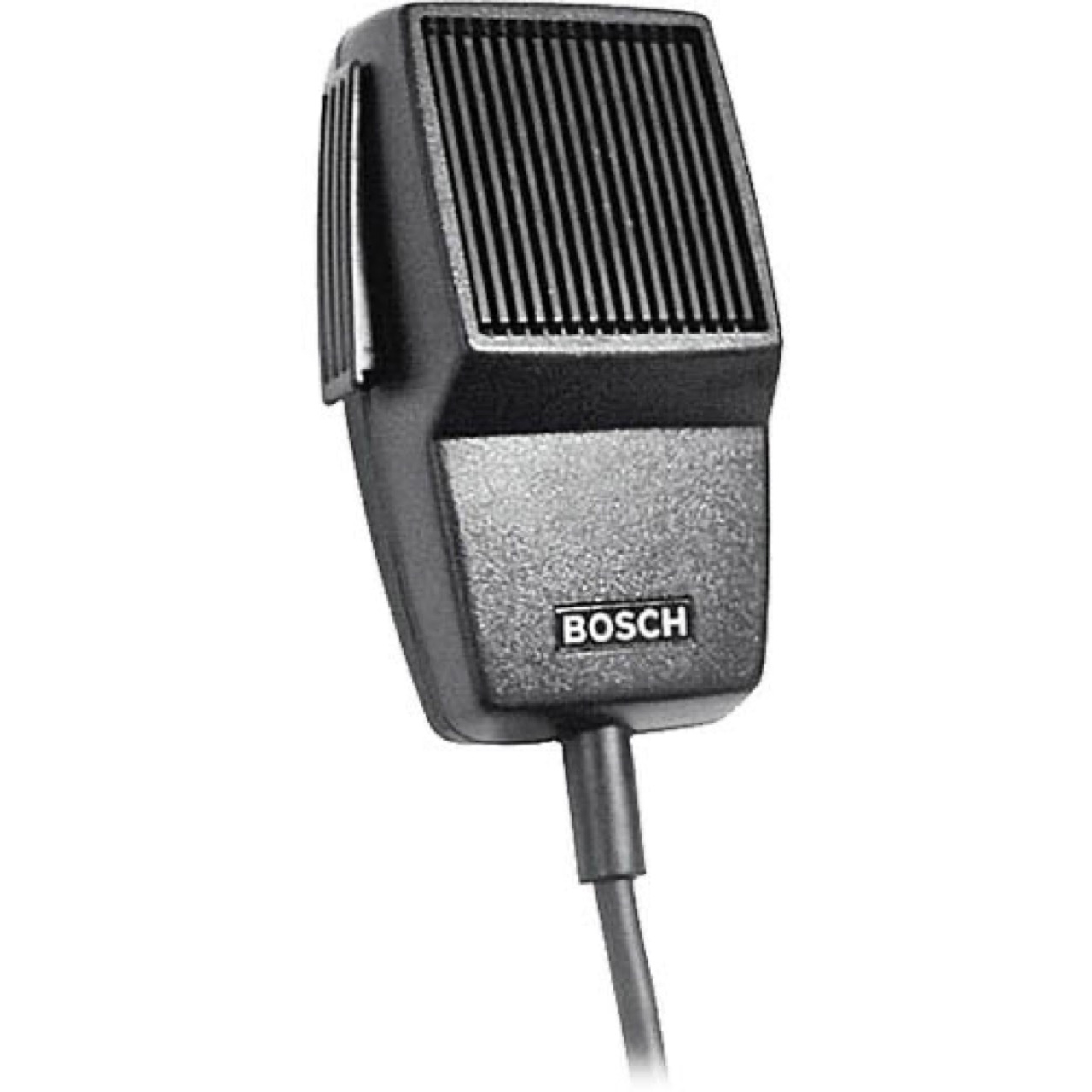

The Bosch LBB 9080/00 is a compact, rugged omnidirectional dynamic handheld and fist microphone built for close-talking applications and short announcements. It features a side push-to-talk (PTT) switch with remote control contacts, a coiled cable, and a lockable 5-pin 180° DIN connector.Push-to-Talk (PTT): Side-mounted button includes integrated contacts for remote switching and control applications. The durable, matte-black, rugged housing is designed for reliable everyday use in commercial or industrial paging systems. Included Accessories: Comes packaged with a wall-mounting bracket

Please Note! The Bosch LBB 9080/00 features a locking 5-pin 180° DIN connector and a push-to-talk (PTT) switch with auxiliary control contacts, which means it is not intended as a general-purpose microphone for mixers or recorders without an adapter. The LBB 9080/00 is commonly used with Plena Easy Line, Plena Mixer Amplifier, Plena Voice Alarm & Legacy Bosch Communications/Paging systems using the DIN microphone interface.

  • Specifications:

    • Polar Pattern: Omnidirectional
    • Frequency Range: 280Hz - 14kHz
    • Sensitivity: 3.1mV/Pa (±4dB)
    • Rated Output Impedance: 500Ω
    • Dimensions: 4.05" x 2.44" x 1.69" (103mm x 62mm x 43mm)
    • Weight (with cable): 6.7oz (190g)

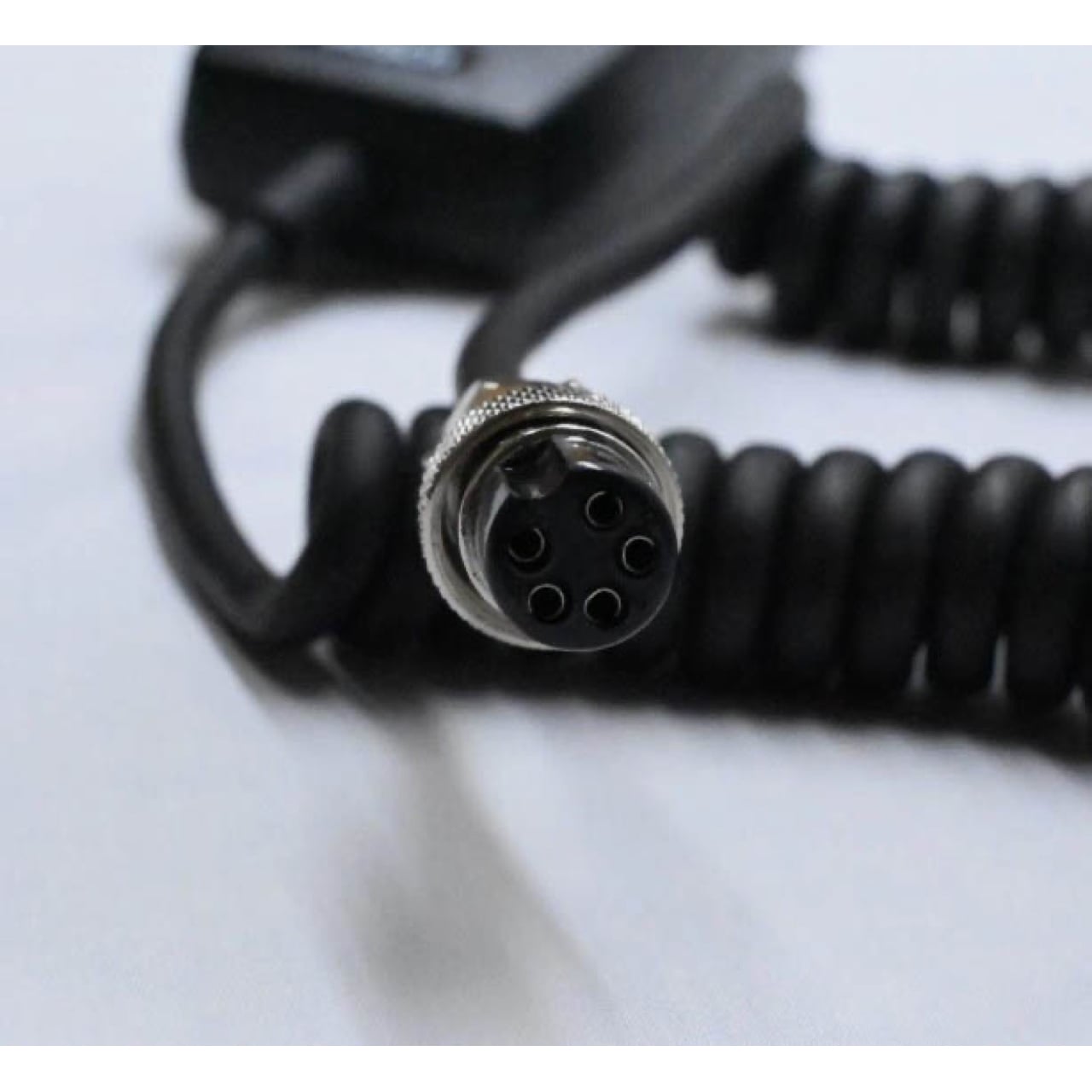

    • Connector Type: Lockable 5-pin 180° DIN
    • Cable: Coiled (0.5m resting/up to 1.2m extended)
    • Operating Temperature: -13°F - 131°F (-25°C - 55°C)

  • Item Includes:

    • 1x Bosch LBB 9080/00 Omnidirectional Dynamic Handheld Microphone
    • 1x Wall Mounting Bracket

  • Warranty:

    • 3-Year limited

  • GTIN:

    0800549167789
