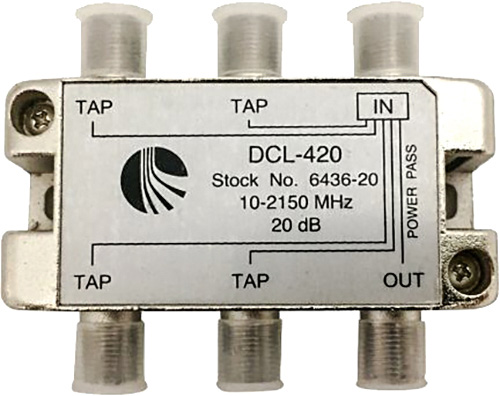

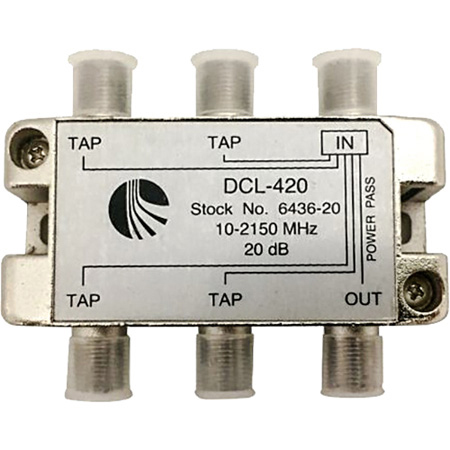

Blonder Tongue DCL-4XX Directional Tap - 4 Output - 10-2150 MHz


    Blonder Tongue DCL-4XX Directional Tap - 4 Output - 10-2150 MHz

    Item #: BT-DCL-4XX   •   MFG #: DCL-4XX



    This item is no longer available.
    Ask a Markertek Expert if you need assistance finding an appropriate substitute.

    800-522-2025Email





    Item unavailable. Please select another option.

    Items similar to the BT-DCL-4XX

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Blonder Tongue's DCL-4XX DCL-4 is a directional coupler with power passing capability on the through lin (in/out ports) with tap port(s) DC blocked. This Directional Tap has 4 Outputs, 10-2150 MHz, and Power Passing Thru.


    • Features

      • Professional trunk grade
      • 10-2150 MHz bandwidth
      • Gold plated F connector siezure pines
      • Zinc die cast hybrid case

    • Specifications

      • 1 port directional couplers tap value: 20
      • Frequency range: 10 - 950; 950 - 1450; 1450 - 2150
      • Insertion loss in-out: 1.3; 1.5; 2.1
      • Isolation in tap: 20; 20; 22
      • Isolation out-tap: 30; 28; 23
      • Isolation port port: 24; 28; 30
      • Return loss in: 12; 12; 14
      • Return loss out: 15; 15; 12
      • Return loss port: 14; 14; 12
