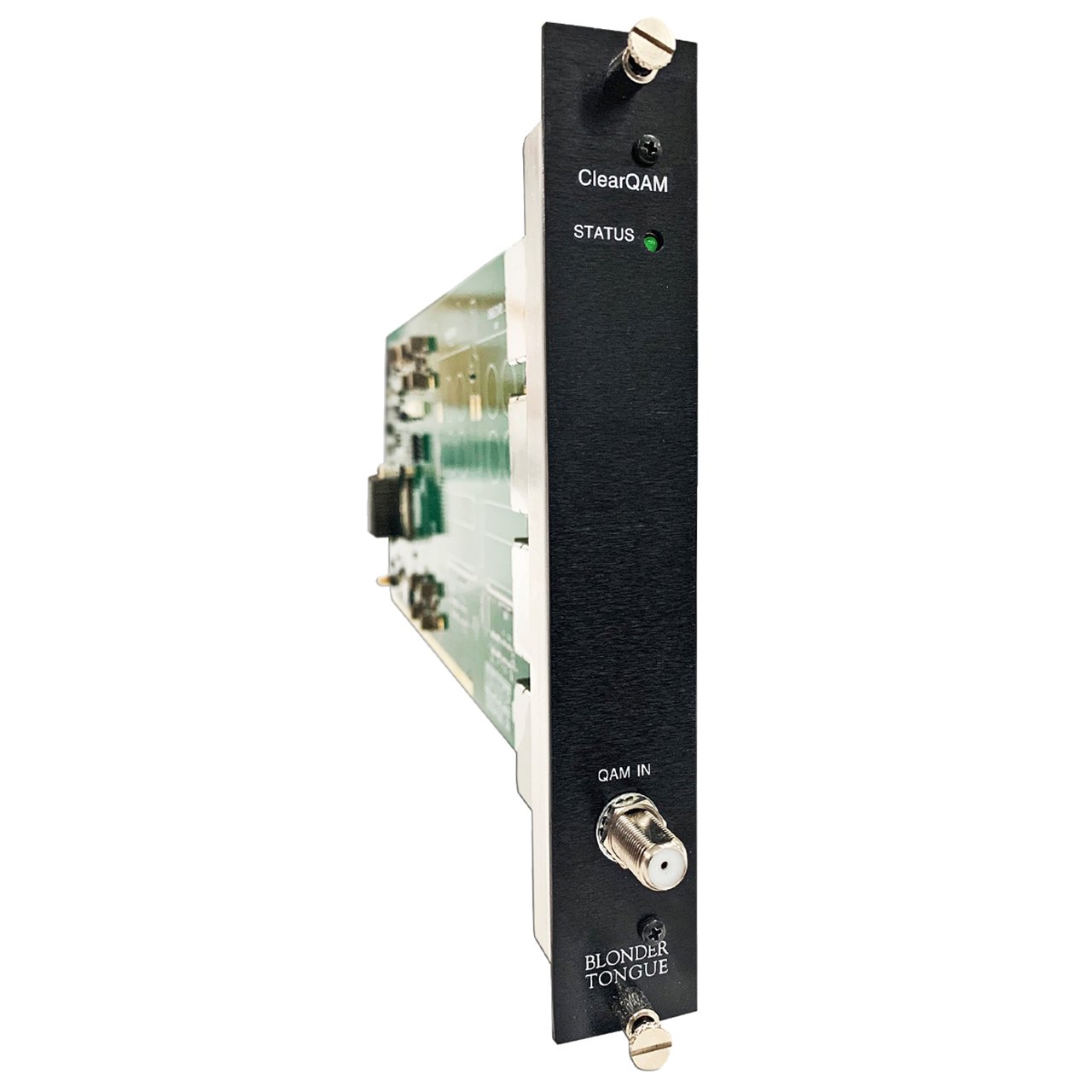

Blonder Tongue NXG-CQAM-32A ClearQAM NXG System Input Module with 32 Clear QAM Input Channels 54 to 1002MHz

ITEM #: BT-NXG-CQAM-32A MFG #: NXG-CQAM-32A

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$4,563.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


NXG-CQAM-32A - Overview

An Essential Tool for Processing HD and SD Programs from a Cable or Telco TV Service Provider

The Blonder Tongue NXG-CQAM-32A ClearQAM input module is equipped with multiple full-band-capture QAM tuners, allowing for the ingest of all programs on up to 32 QAM channels from the incoming cable system. The NXG-CQAM-32A is capable of tuning any 32 "clear QAM input" channels from 54MHz to 1002MHz, making it an ideal choice for a wide array of applications. Once the channels are tuned, all programs within the tuned channels are made available to the NXG backplane for additional processing.

This module ensures that you can get the most out of the content that you are receiving, providing the highest quality possible. With its advanced technology, the NXG-CQAM-32A is sure to provide reliable performance and exceptional results.

  • Features:

    • Supports all programs on 32 QAM channels per module
    • Supports 54MHz to 1002MHz frequency range

  • Specifications:

      Input - QAM
    • Connector: 1x "F" Female
    • Standards: ITU-T J.83 (64 and 256 QAM)
    • Tuning Range: CATV (54MHz - 1002MHz)
    • Symbol Rate:
      - 5.3606 Msymbols/sec (QAM 256)
      - 5.057 Msymbols/sec (QAM 64) - Auto
      - Detect
    • Bandwidth: 6MHz
    • QAM Power Level: -15dBmV - +20dBmV
    • Return Loss: 12dB
    • Impedance: 75Ω

      Alarms & Monitoring
    • Front Panel: 1x Status LED (Bicolor)

      General
    • Dimensions (WxHxD): 1.15" x 7.00" x 15.50" (29mm x 178mm x 394mm)
    • Weight: 2.0lbs (0.9kg)
    • Power: DC via NXG Mainframe Backplane
    • Power Consumption: 16W
    • Operating Temp.: 32°F - 122°F (0°C - 50°C)
    • Storage Temp.: -13°F - 158°F (-25°C - 70°C)
    • Operating Humidity: 0% - 95% RH @ 95°F (35°C) max, non-condensing

  • Item Includes:

    • 1x Blonder Tongue NXG-CQAM-32A ClearQAM Input Module - Tunes up to 32 Clear QAM Input Channels - 54 to 1002 MHz
