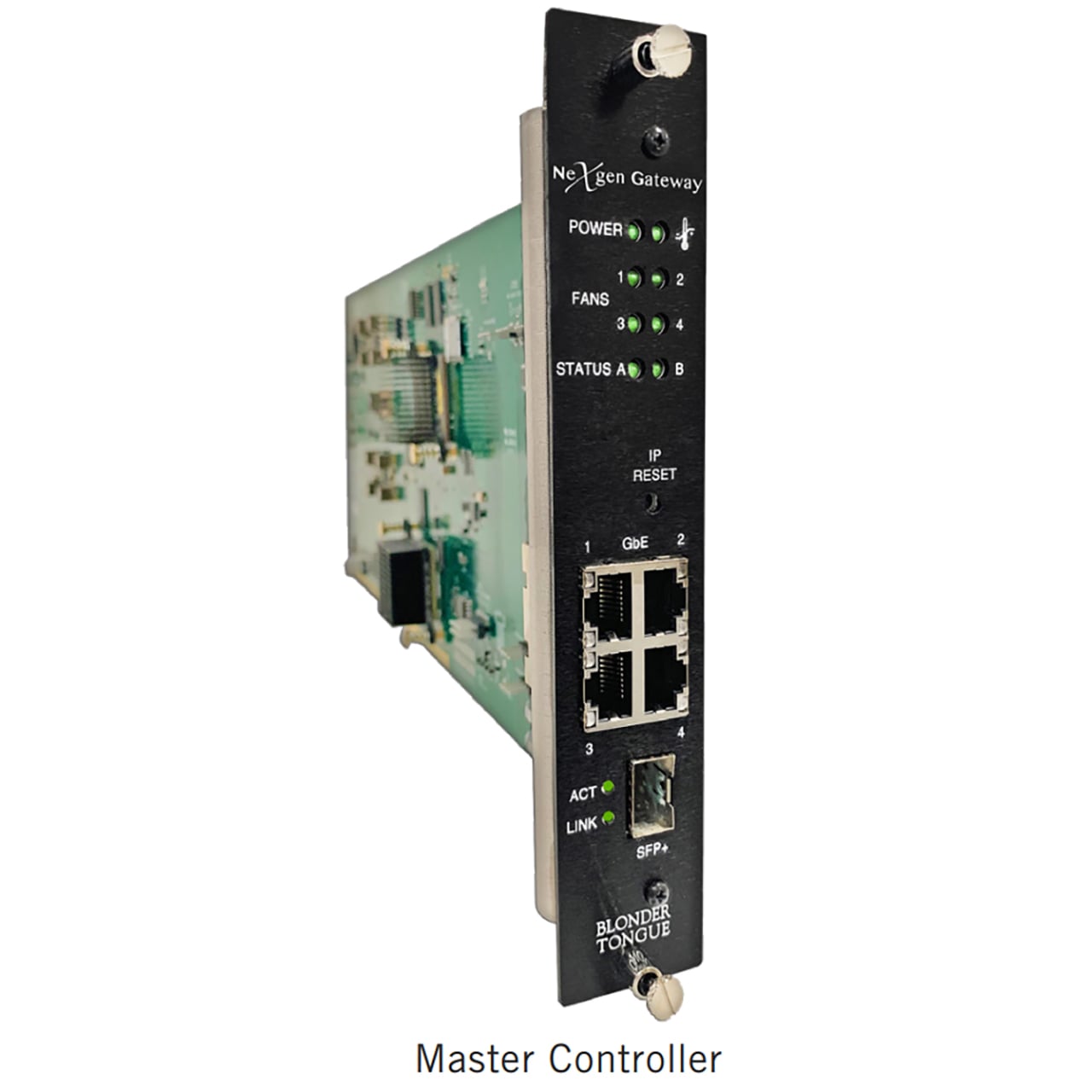

Blonder Tongue 6799 NXG 5RU 12-Slot Module-Based IP Digital Video System Kit with Master Controller & Power Supply

6799 - Overview

A highly customizable, module-based IP digital video processing platform designed for delivering next-generation video services on any generation of coax or ethernet wiring without replacing existing infrastructure.

• Features:

  • IP routing and traffic management
  • System configuration and management via a powerful Linux-based monitoring and control system
  • Module interconnection via 60 Gbps capacity high-speed backplane
  • Hot-Swappable Power Supplies and Fans
  • Distributes DC power to various sections and modules via 2 fully-redundant power supplies
  • Alarm Summary and Event Logs
  • System Status of all Deployed NXG Modules
  • Import, Export, and Edit of Configuration Files
  • Remote Firmware Updates to all Modules
  • Authentication Management via TACACS+ (future)
  • Supports Fully-Redundant Configurations in IP-based Installations
  • Supports Fully-Redundant Configurations in QAM-based Installations with Additional HW
  • SNMP Support


• Specifications:

  • Gigabit Ethernet Ports: 4x RJ45 GigE for IP Input or Output & Control
  • SFP+: 1x 10 GigE SFP+ data port for distribution of IP streams and remote monitoring & control

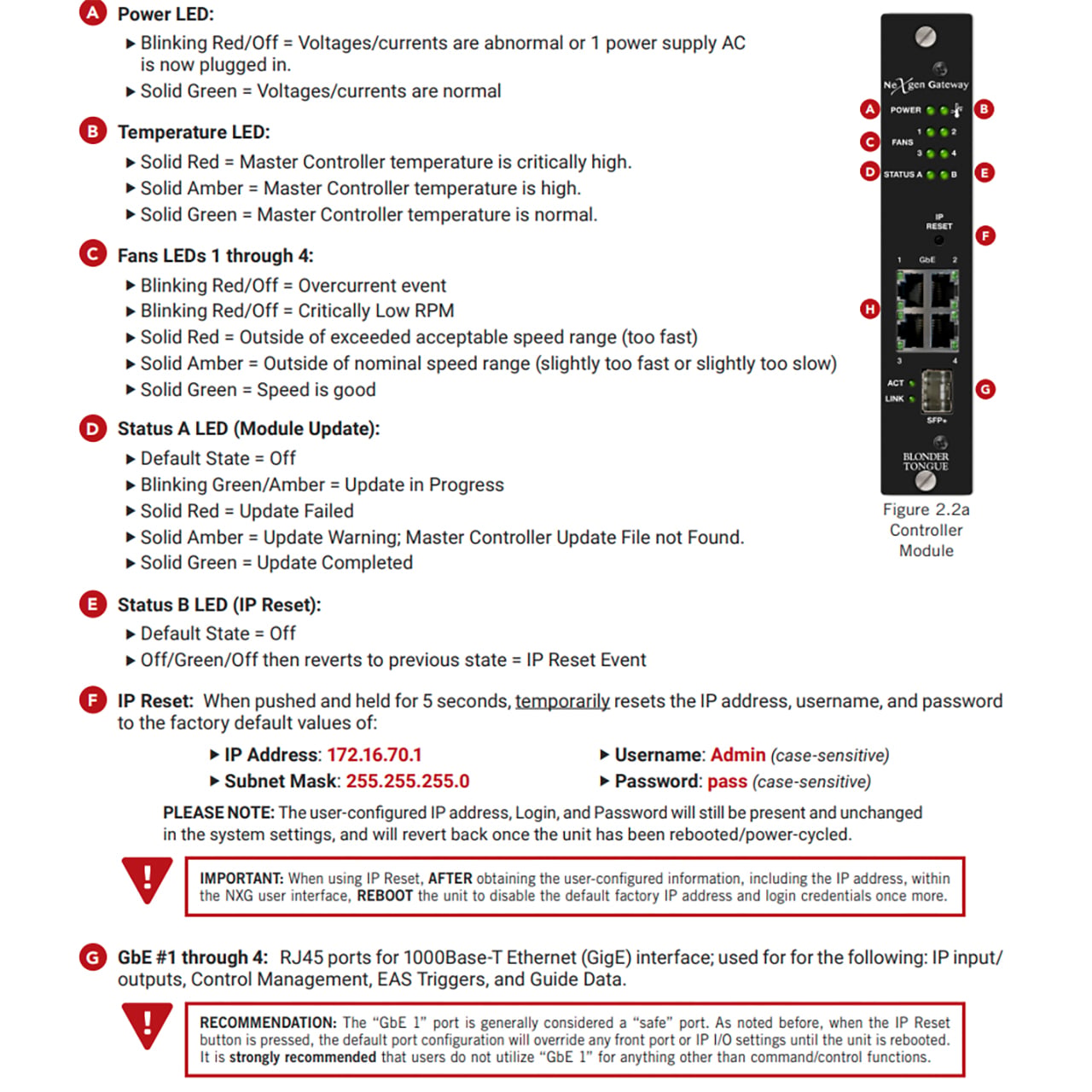

  • Status: LED Indicators for Power, Temperature, Fans, and all network connections
  • Remote Monitoring/Control: GUI-based menu via web browser, automated e-mail system alarms, and SNMP traps for asynchronous alarms

    Mainframe
  • Power:
    - IN: 100-240 VAC; 9A; 50/60Hz
    - OUT: 12VDC; 54.2A; 650W max
  • Power Consumption: 650W (each power supply)
  • Operating Temp: 23°F - 122°F (-5°C - 50°C)
  • Storage Temp: 40°F - 158°F (-40°C - 70°C)
  • Operating/Storage Humidity: 5% - 96% RH @ 45°C max, non-condensing
  • Dimensions (WxHxD): 2.15" x 1.57" x 9" (54.5mm x 40mm x 228mm)
  • Weight: 1.8lbs (0.81kg)
  • Operating Temp: 32°F - 122°F (0°C - 50°C)
  • Storage Temp: -13°F - 158°F (-25°C - 70°C)
  • Operating/Storage Humidity: 0% - 95% RH @ 35°C max, non-condensing
  • Dimensions (WxHxD): 19" x 8.72" x 18.6" (483mm x 221mm x 472mm)
  • Weight: 17lbs (7.7kg)

    Power Supply Unit
  • Power:
    - IN: 100-240 VAC; 9A; 50/60Hz
    - OUT: 12VDC; 54.2A; 650W max
  • Power Consumption: 650W (each power supply)
  • Operating Temp: 23°F - 122°F (-5°C - 50°C)
  • Storage Temp: 40°F - 158°F (-40°C - 70°C)
  • Operating/Storage Humidity: 5% - 96% RH @ 45°C max, non-condensing
  • Dimensions (WxHxD): 2.15" x 1.57" x 9" (54.5mm x 40mm x 228mm)
  • Weight: 1.8lbs (0.81kg)
