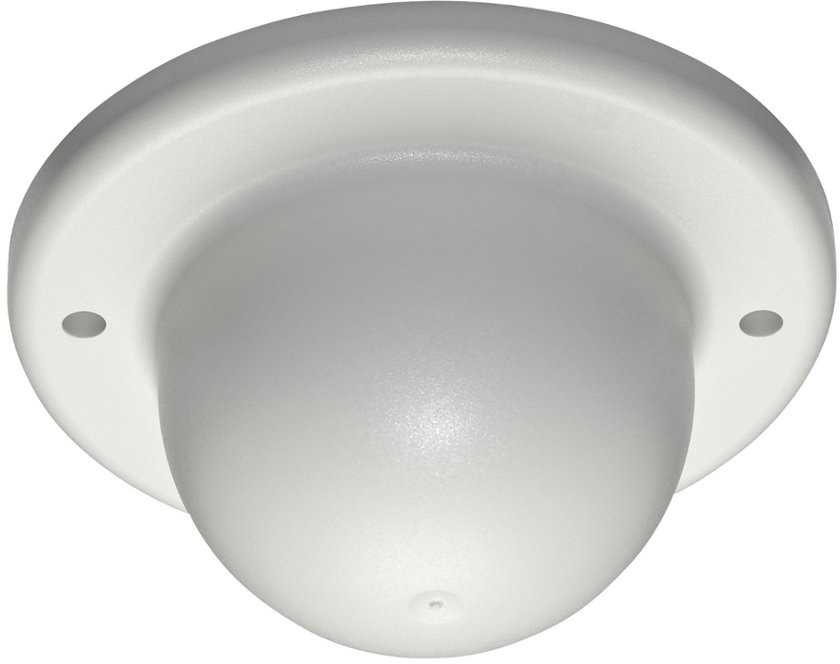

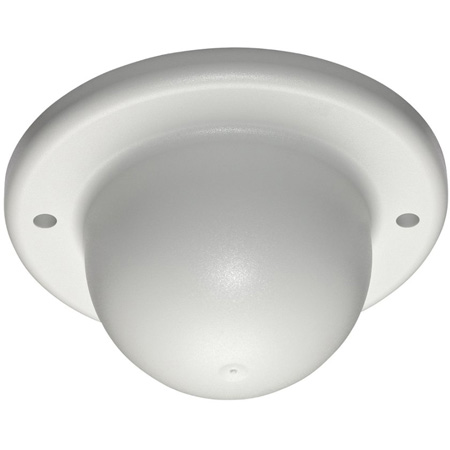

Beyerdynamic Quinta CA-Q-14 Omnidirectional Antenna for Quinta CU & RS Digital Control Units

723894 - Overview

• Features:

  • Omnidirectional polar pattern
  • Triple band 2.4 / 5.2 / 5.8 MHz
  • Suitable for remote ceiling mounting
  • Polarization vertical
  • With N(HF) socket


• Specifications:

  • Electrical Data
  • Frequency: 2400 - 2500MHz
  • VSWR: 1,8
  • Gain: 6dBi
  • Horizontal 3 dB Beamwidth: 360°

    General Data
  • Impedance: 50Ω
  • DC grounded: yes
  • Polarisation: vertical
  • Connector: N jack (female), bottom
  • Max. power: 75 W at 25 °C
  • Ground plane: Note that all VSWR values are guaranteed with and without metallic ground plane.

    Mechanical Data
  • Dimensions (Hxø): 1.69 x 3.38" (43 x 86mm)
  • Weight: 0.66Lbs (0.3kg)
  • Grounding: acc. to UIC 533, DC-grounded antenna element
  • Corrosion: low corrosion acc. to MIL-F-14072(E)

    Environmental Data
  • Environmental conditions: Indoor
  • Operation/Storage/Transport Temperature: -40° to 176°F (-40° to 80°C)
  • IP Rating: IP 67 compliant with RoHS 2002/95/EC
  • Environmental tests acc. to EN 50155: 2004

    Material Data
  • Color: RAL 7044 (grey)
  • Material: PC
  • Back Plate/Base Plate Color: RAL 7044 (grey)
  • Back Plate/Base Plate Material: Aluminum


• Warranty:

  • 2 Years


• GTIN:

  4010118708367
