Beyerdynamic Unite RP Digital Bodypack Receiver with OLED-display - Stereo Mini-jack / USB-C - Li-Ion Battery

ITEM #: BYD-UNITE-RP MFG #: UNITE-RP

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BYD-UNITE-RP

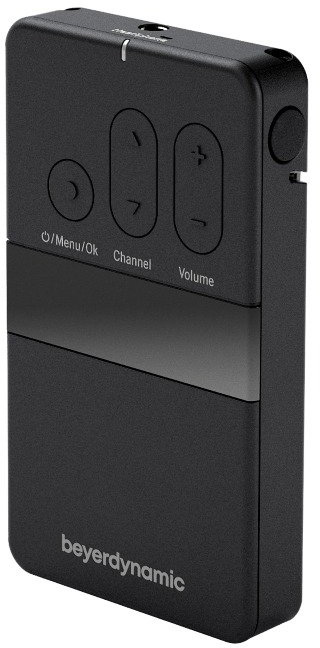

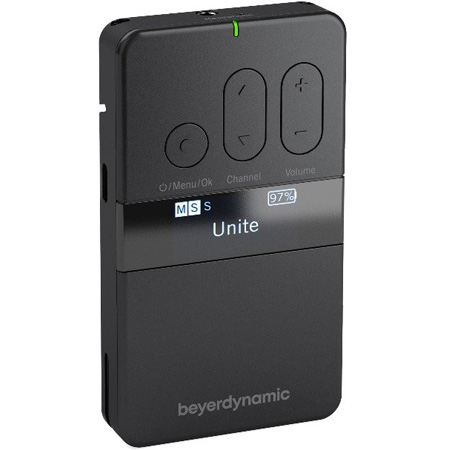

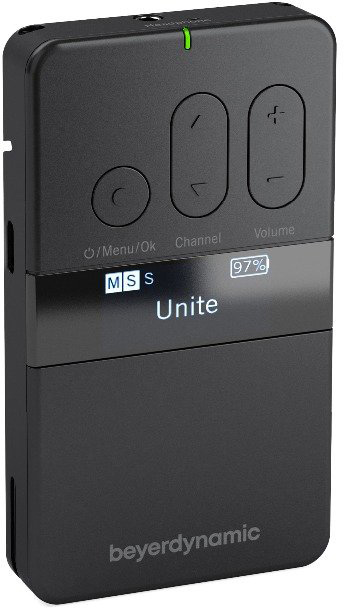

UNITE-RP - Overview

The Beyerdynamic UNITE RP is a digital body-pack receiver with OLED display and a 3.5mm mini headphone jack, USB type C, integrated Li-Ion battery, and comes included with a belt clip and neck strap.

Applications:
The compact Unite RP body-pack receiver is ideal for guided tours. Interpretation applications and assistive listening are also possible. Headphones or an induction loop for people with hearing aids can be connected to the mini jack connection (3.5 mm).

The connection cable of the headphones, headset or the induction loop also serves as an antenna, so that the wearing comfort is not impaired by a separate antenna. Outside the operating range is up to 300 m when the transmitter and receiver are in line of sight. The OLED display provides a brilliant, easy-to-read display of channel, battery status and various menus. The receiver can either be attached to clothing with the belt clip or worn around the neck with a neck strap. The transmitter is powered by an integrated lithium-ion battery pack.

The receiver meets the requirements for accessibility due to raised symbols on the control buttons. All devices are supplied with a predefined group ID and fixed audio encryption allowing quick and easy setup. This allows for quick and easy initial use. The group ID identifies devices that can be placed in a virtual group. For example, all devices within a building, a tour group or a conference room. The transmitter will only transmit the audio signal to a channel with a predefined channel name. If there are several transmitters in a group, the channel for the respective transmitter can be selected on the receiver. You will need to establish a pairing if you require several device groups or secure audio transmission that cannot be intercepted by another group using Unite devices.

PLEASE NOTE: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • Compact design
    • DECT technology for worldwide use without registration and free of charge
    • High security against unauthorized listening due to AES-256 code encryption
    • On-off and menu button
    • Multi-function button
    • Volume button for connected headphones, headset, induction loop
    • Status indicator (LED) for operating and charging status
    • OLED display to indicate the channel name, battery status and different menus
    • Charging via charging contacts or USB connection, type C
    • Unite RP: Connection for headphones / induction loop
    • Operation with integrated lithium ion battery
    • Operation time > 15 hours
    • Belt clip to attach to clothing
    • Removable neck strap for wearing around the neck

  • Specifications:

    • DECT RF Frequency Range: 1880 - 1930MHz, depending on the country
    • DECT Transmission Power: up to 250mW (peak), depending on the country
    • DECT Operating Range: up to 300m outside (line of sight); the actual operating range depends upon the RF output settings, the surroundings, the signal absorption, signal reflection and signal interference
    • Audio bandwidth:
      Low Quality (SD): 50Hz - 7kHz (-3dB)
      High Quality (HD): 50Hz - 14kHz (-3dB)
    • Operating Mode: Broadcast and/or full-duplex on all routes
    • Encryption: AES-256 encryption
    • Connector for Headphone/ Induction Loop/ Headset (Unite RP-T Only): 4-pin mini jack, 3.5mm, CTIA Standard
    • Display: monochrome white OLED display with high contrast
    • Battery: lithium-ion battery pack, replaceable by service staff only
    • Battery Monitoring: Battery status of remaining capacity via OLED display
    • Operating Time Of Battery Pack: > 15 hrs., typ.
    • USB Type C Connector: USB 2.0/3.0 standard, compatible to 5 V power supplies only, power consumption max. 500 mA
    • Strap Anchor Points: available, neck strap removable
    • Dimensions (WxHxD): 2.28 x 4.02 x 0.61" (58 x 102 x 15.5mm)
    • Weight (Includes Battery): 0.23LBs (105g)
    • Temperature Range:
      Charging: 32° to 95°F (0° to 35°C)
      Operation: 14° to 104°F (-10° to 40°C)
      Storage: -4° to 122°F (-20° to 50°C)
    • Relative Humidity: 0 to 90%

  • Item Includes:

    • 1x Unite RP
    • 1x Mounted Belt Clip
    • 1x Quick Start Guide
    • 1x Neck Strap
    • 1x Two Spare Blind Caps

  • GTIN:

    4010118710674
