Beyerdynamic WA-AC25 Aircell 7 BNC Antenna Cable for TG1000 - 82 Foot

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Beyerdynamic WA-AC25 Aircell 7 BNC Antenna Cable for TG1000 - 82 Foot

    Manufacturer: Beyerdynamic

    Item #: BYD-WA-AC25   •   MFG #: WA-AC25



    List Price:$249.99
    Our Price:$199.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov

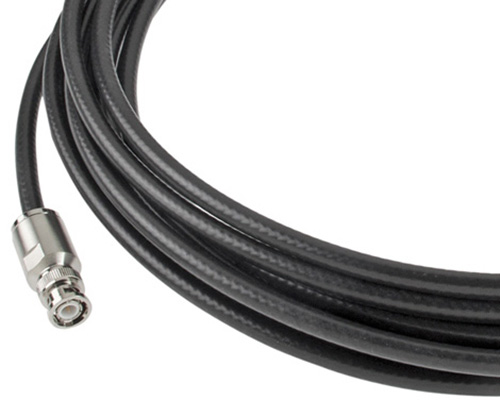

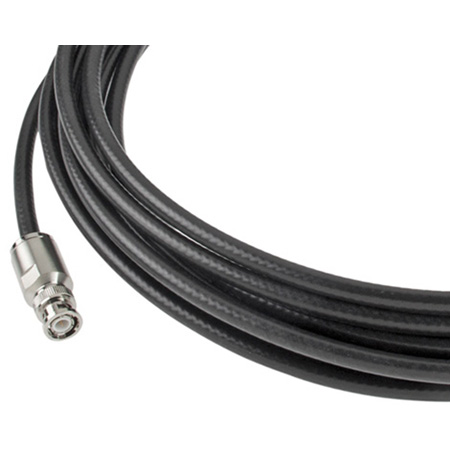

      The Beyerdynamic WA-AC25 antenna cable is a low-loss Aircell 7 coaxial cable with male BNC connectors, which is available with a length of 5, 10 or 25 m. This low-loss cable is suitable for a frequency range of up to 1 GHz. Due to the low attenuation and high flexibility the cable can be used for many applications in radio technology. The low attenuation is achieved by an extremely low-loss PE compound dielectric with an air content of more than 50%. The inner conductor is a copper wire and therefore very flexible. The outer conductor consists of an overlapping copper foil with overlying mesh wire shield. The shielding value is 100%. On the inside the copper foil is coated with PE and therefore protected against tearing when the bending radius is too small. The outer insulation consists of UV-resistant PVC.


      • Features

        • 50 ohm coaxial cable with male BNC connectors
        • Low-loss Aircell 7 cable
        • Length: 5, 10 or 25 m

      • Specifications

        • Cable: Aircell 7
        • Wave impedance: 500Ω
        • Cable diameter: 7.3 mm
        • Connection: Male BNC connectors at both ends
        • Length:
          WA-AC 5: (5m)
          WA-AC 10: (10m)
          WA-AC 25: (25m)
        • Attenuation:
          WA-AC 5: approx. 1.0 dB @ 500 MHz; approx. 1.5 dB @ 1 GHz
          WA-AC 10: approx. 2.0 dB @ 500 MHz; approx. 2.5 dB @ 1 GHz
          WA-AC 25: approx. 4.0 dB @ 500 MHz; approx. 6.0 dB @ 1 GHz

      • Warranty

        • 2 Years

      • GTIN:

        4010118711572
