Lab Gruppen CA2402 - Two Channel 240 Watt Commercial Amplifier w/ Energy Star Certification

ITEM #: CA2402 MFG #: CA2402

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$519.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    CA2402 - Overview

    Lab Gruppen CA2402 2x 240 Watt dual-channel Commercial Amplifier provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. Capable of delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations offering extreme flexibility on every channel. CA2402 is easy to install and operate - even for non-technical personnel. Simply put, the CA2402 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.

    Energy Star Certified
    Not only does CA2402's direct drive constant power technology provide superior audio performance and reliability, it also consumes less mains power than competing models, which has earned it Energy Star certification.

    Easy to Install
    The CA2402 comes equipped with rubber feet, enabling the amps to be placed on a desk, shelf or any clear surface without any additional installation requirements. However, optional rack mounting hardware is also supplied, allowing one or several models to be housed and protected inside an enclosure. This adds extensive flexibility as a single product can be housed in a half 19" rack or full rack enclosure as well as a pair of amplifiers can easily be mounted side-by-side in a single rack space. With the included brackets the unit can also be mounted to a wall or under a table/shelf.

    • Features:

      • 2 x 240 Watt amplifier for commercial and industrial applications
      • Low-Z (4/8 Ohm) and High-Z (70/100 V) operation per output with switchable high-pass filter
      • Energy Star certified design conserves energy and drastically reduces operational cost
      • Direct drive, constant power technology for superior audio performance and reliability

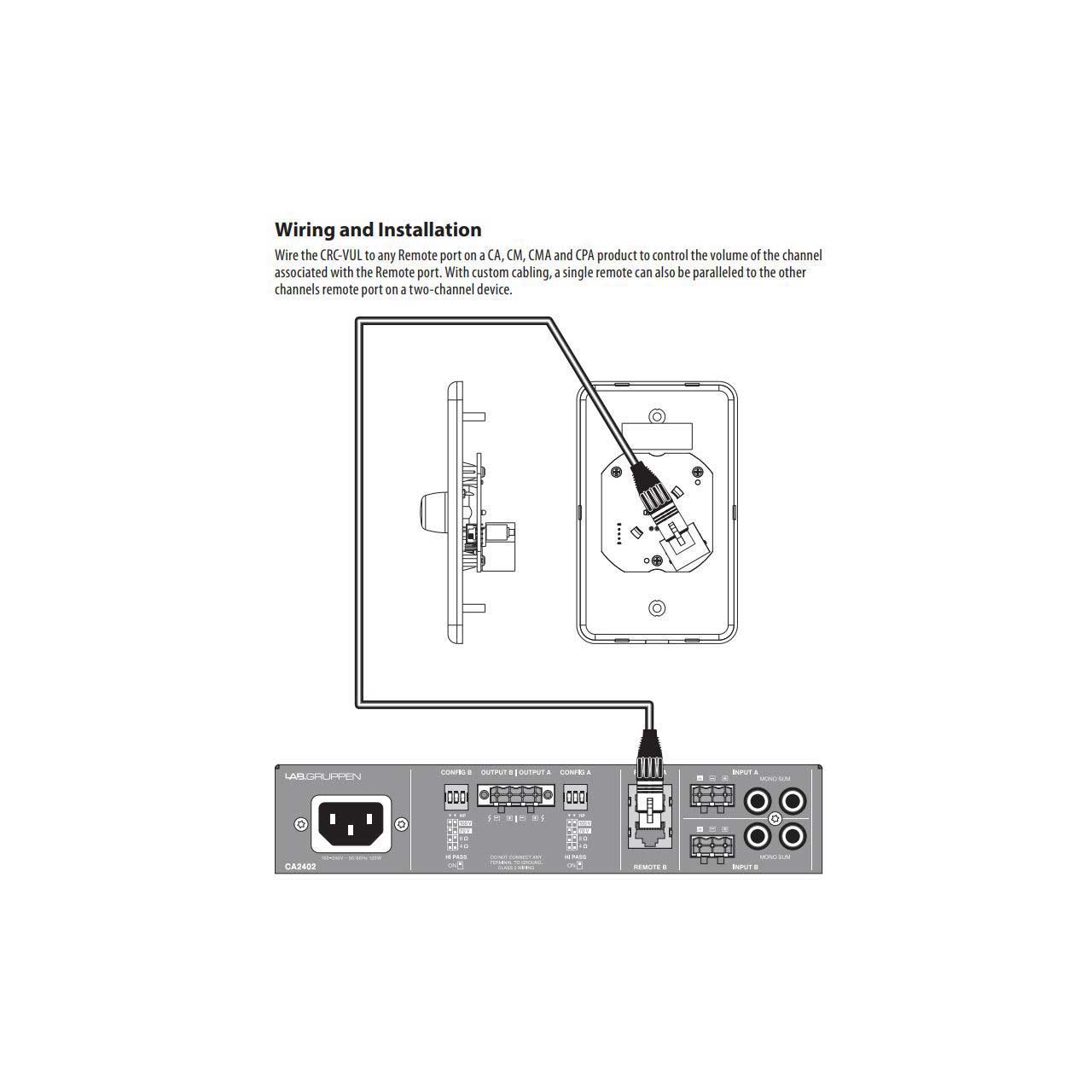

      • GPI remote volume control using standard RJ-45 connector and Ethernet cable

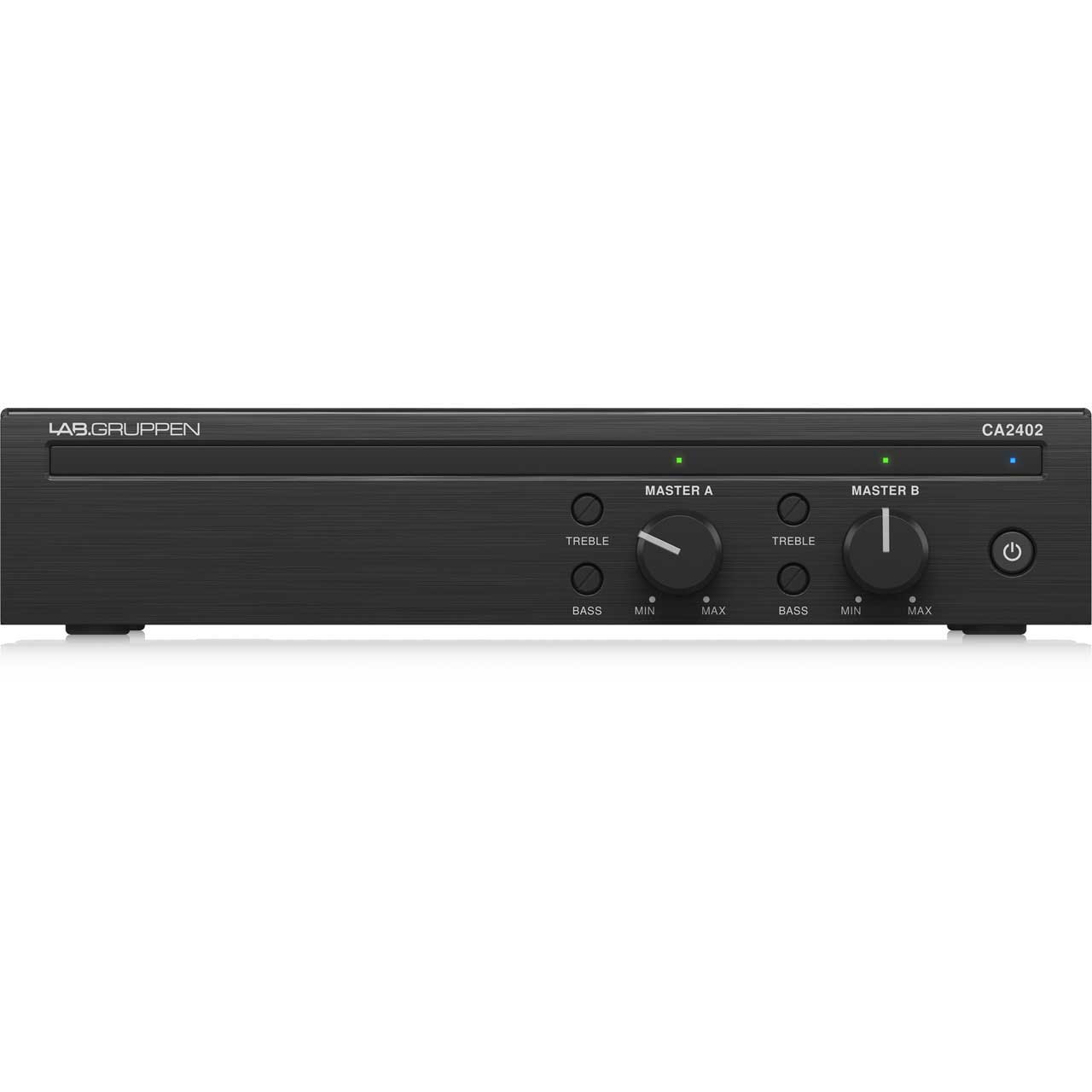

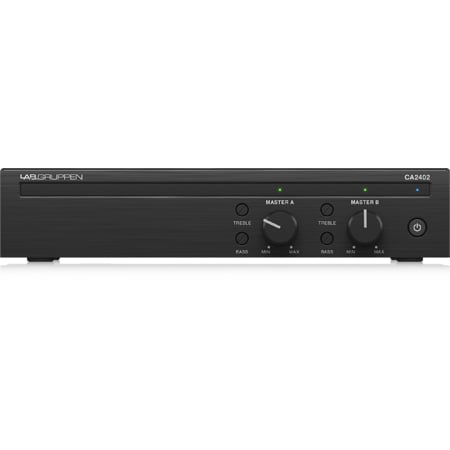

      • Individual front panel master volume and bass/treble controls for each output
      • Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
      • Front panel power control button for direct access

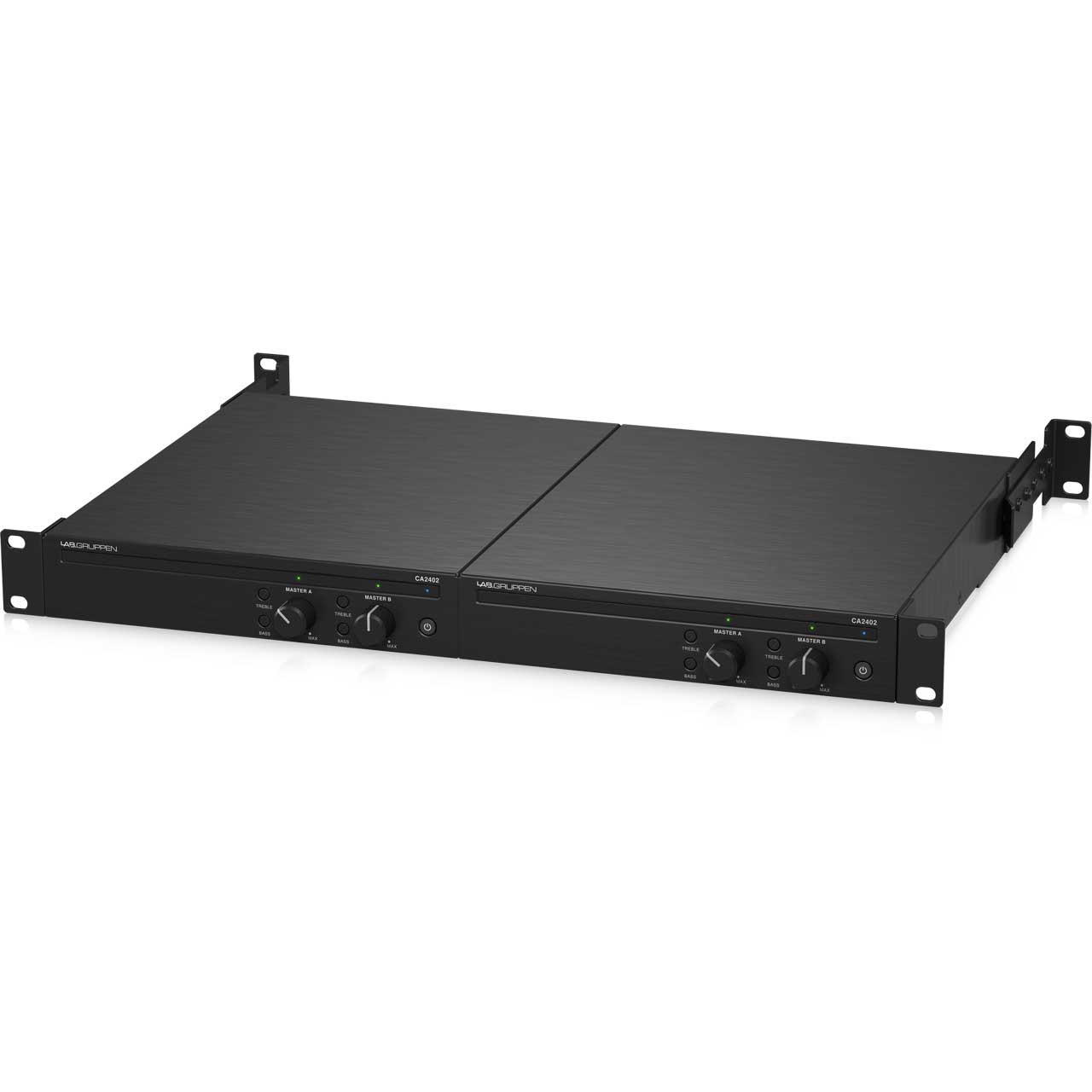

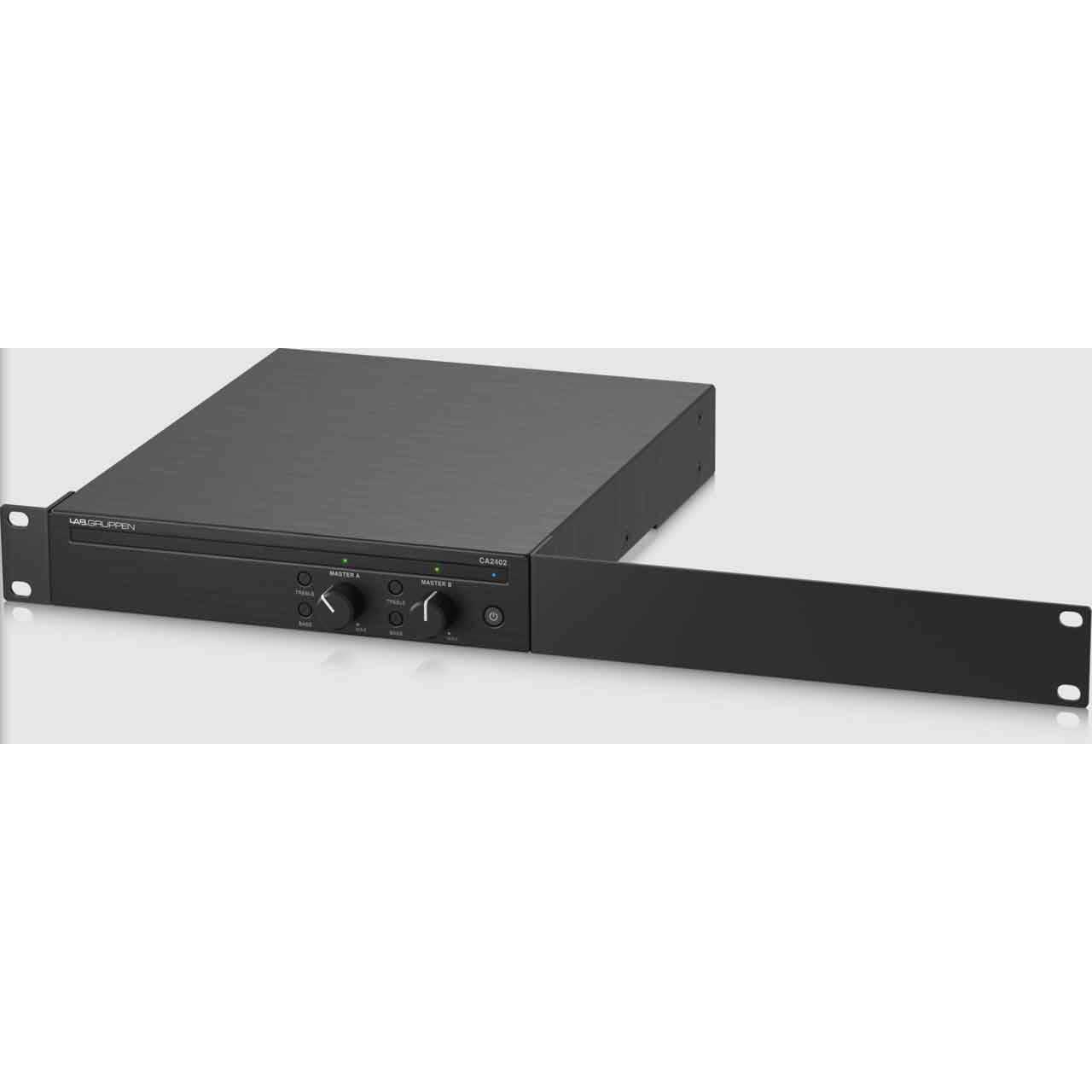

      • Rack-mountable 1U, half-rack width enclosure with joining brackets for rack, table and wall mounting

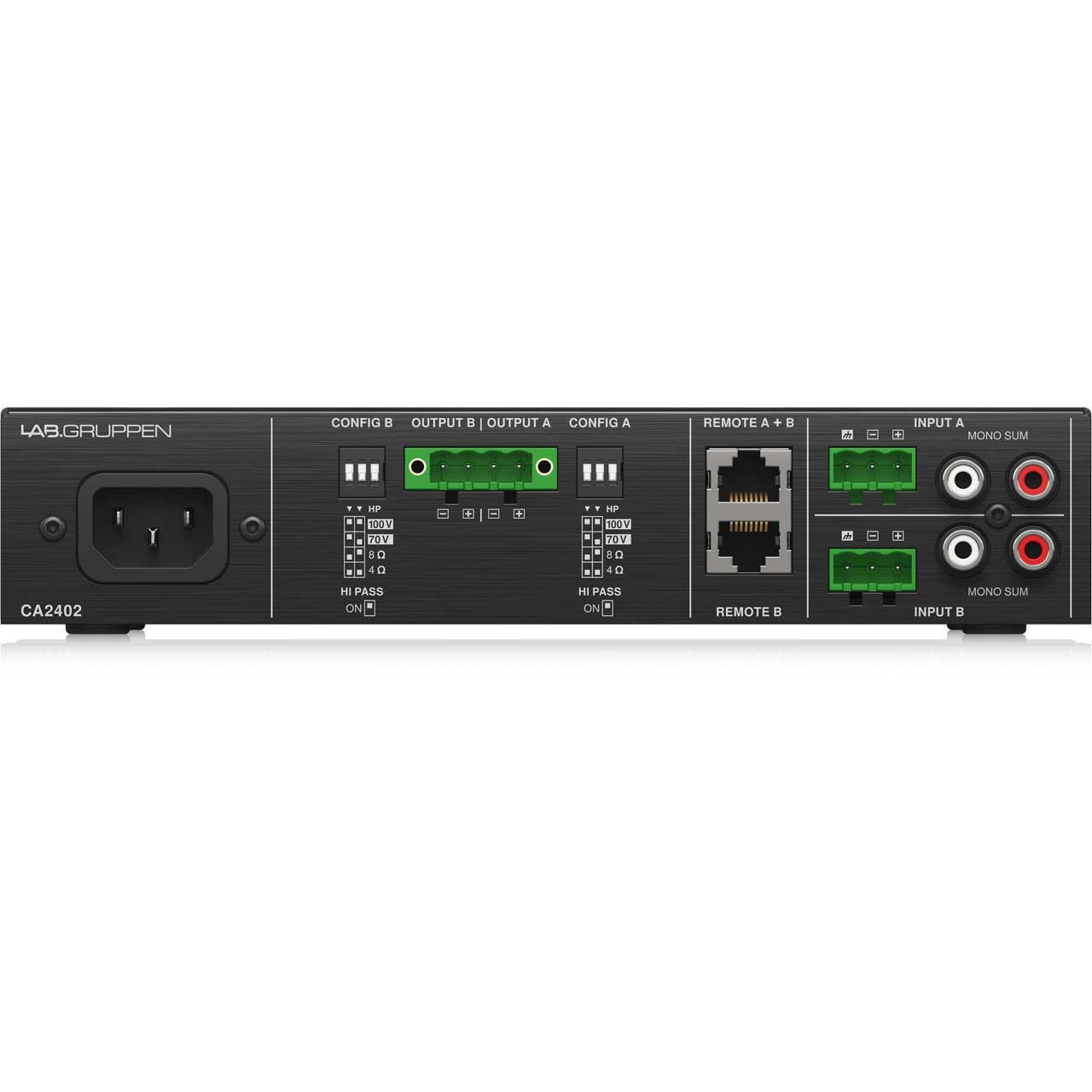

      • Euroblock type amplifier input and output connectors
      • Convection-cooled, fan-less amplifier technology for low noise
      • Designed and engineered in Sweden

    • Specifications:

      • Maximum Output Power
      • 4 or 8Ω per channel 240 W

        Number of Output Channels
      • Number: 2

        Minimun Load Impedance
      • 4Ω Mode: 4Ω
      • 8Ω Mode: 8Ω
      • 70V Output Mode: 20Ω
      • 100V Output Mode: 41Ω

        Controls
      • Front: Power standby button, gain control, tone controls - bass and treble
      • Rear: Load config - (4Ω / 8Ω / 70 V / 100 V), switchable 80 Hz high-pass filter

        Tone Controls
      • Bass: ±10 dB @ 100 Hz
      • Treble: ±10 dB @ 10 kHz

        Indicators
      • Power: On (blue), force standby (red), sleep (yellow)
      • Master:
        Signal (green LED) >12.3 mV (-36 dBu)
        Limit (red LED) Input clip, output limit
        Fault (red LED) Overheat, DC fault, over current, etc

        System
      • Inputs: 2x 3-pin 5.08mm Euroblock connector 2x RCA stereo summed
      • Input Impedance: 10kΩ unbalanced and RCA, 20kΩ balanced
      • Input Sensitivity:
        Balanced: 1.23 V (+4 dBu)
        RCA: 0.62 V (-2 dBu) each for mono sum RCA
      • Maximum Input Level: 9.75 V (+22 dBu)
      • Outputs: 1x 4-pin 5.08mm Euroblock connector
      • Output Circuit Type: Class D
      • Remote Connector: 2x RJ45 connector

        Performance
      • Distortion, 1/8 Rated Power: <0.05%
      • Frequency Response: 20 Hz to 20 kHz, +0.5 / -1 dB
      • Crosstalk (2 Channel Models): >85 dB
      • Signal-to-Noise: >97 dBA
      • High-Pass Filter: 80 Hz HPF

        Circuit Protection
      • Cooling: Convection-cooled, fanless
      • Amplifier Protection: Thermal protection, over current protection, DC protection, high frequency protection
      • Load protection: Controlled start and shutdown behaviour, DC-fault protection

        Power Supply, Voltage (Fuse)
      • Main voltage 100-240 V~, 50/60 Hz with active power factor correction 100-240 V~, 50/60 Hz
      • Fuse: T 6.3 A L 250 V
      • Power Consumption 1/8th rated power @ 4Ω: 120 W
      • Mains Connector: Standard IEC connector

        Physical
      • Dimensions (HxWxD): 1.7 x 8.6 x 11.8" (44 x 218 x 299mm)
      • Weight: 5.8Lbs (2.6kg)
      • Finish: Brushed black anodized aluminum chassis with black painted steel bottom

        Approvals
      • CE, cTUVus, PSE, CCC, RoHS, FCC part 15 Class B and Energy Star 3.0
