    E70 - Overview

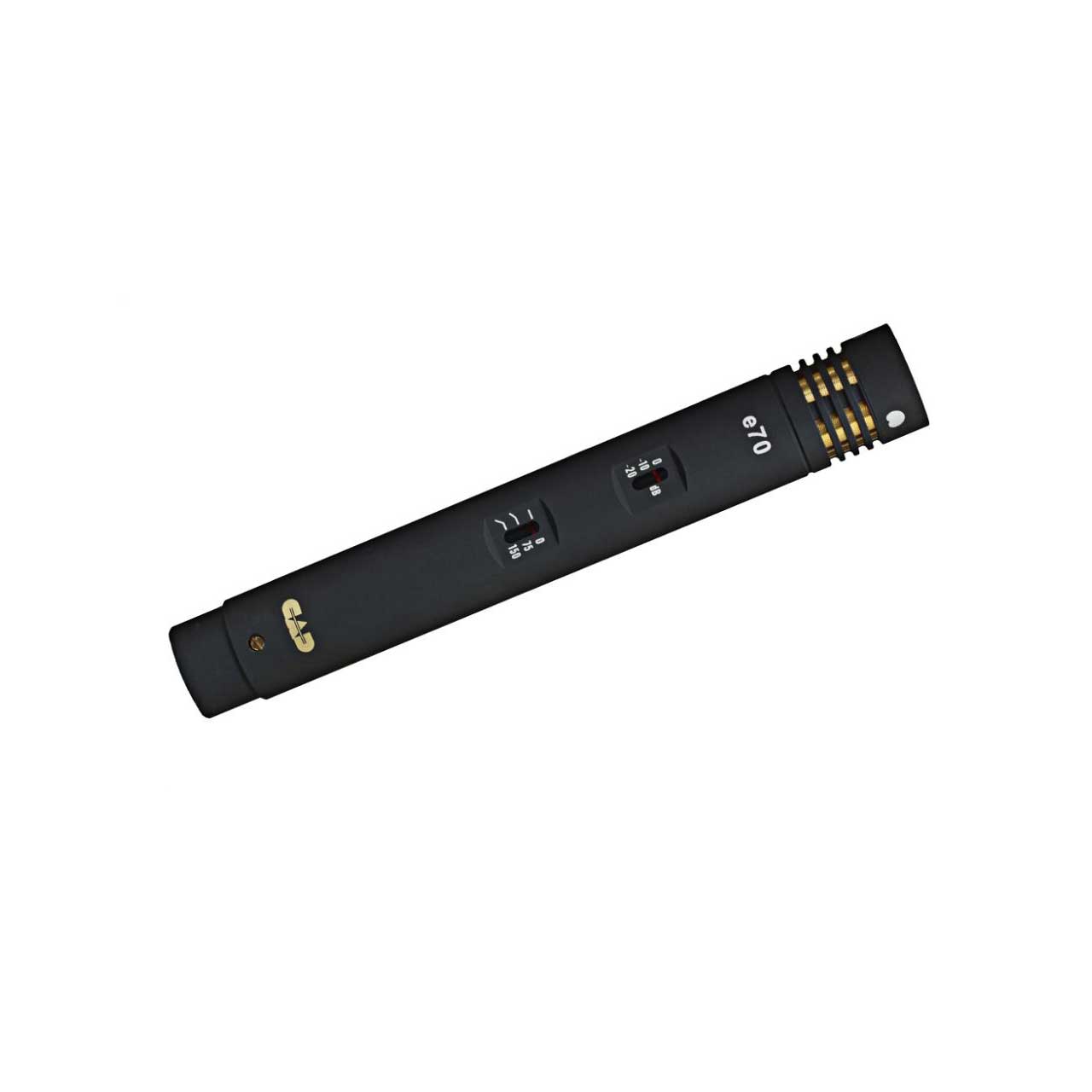

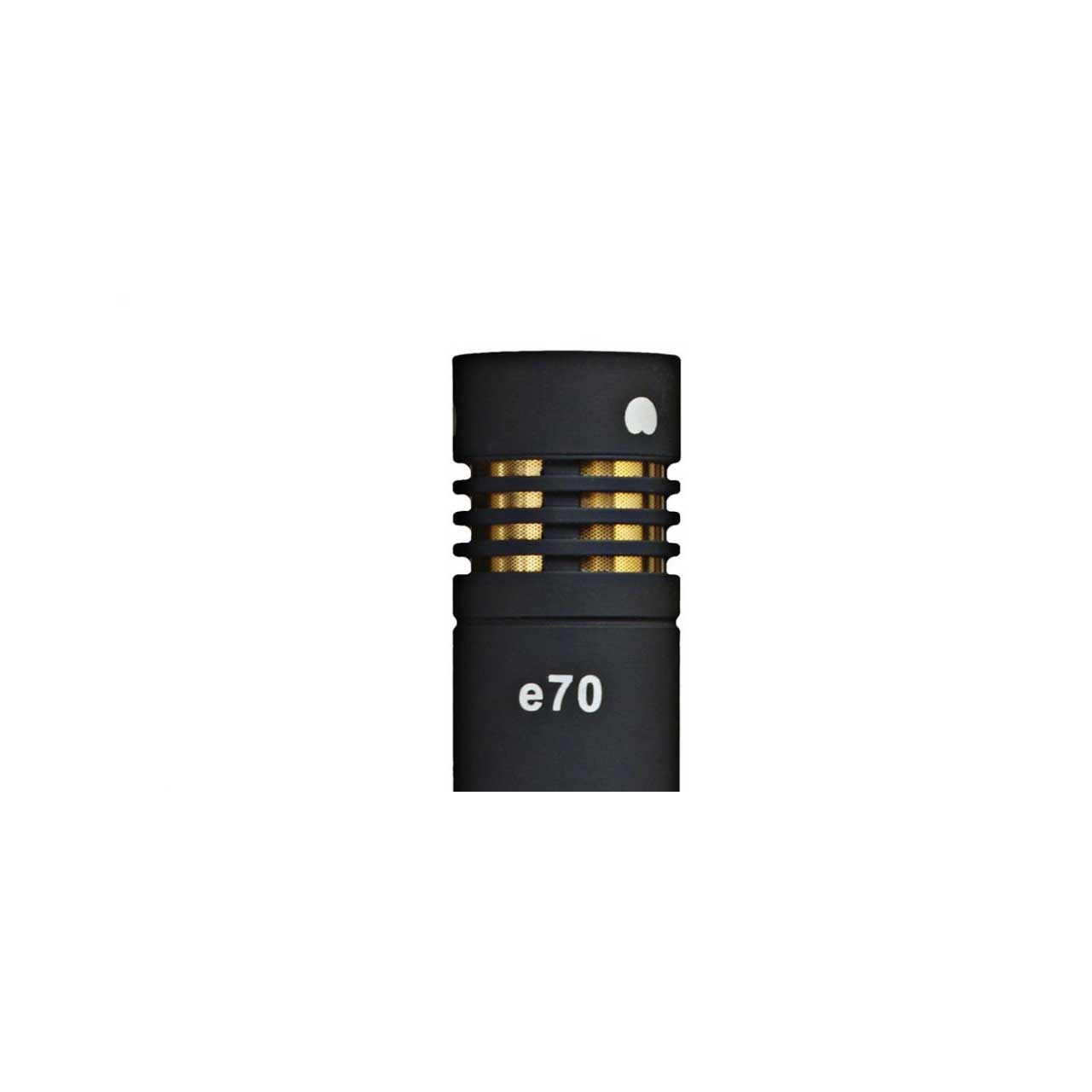

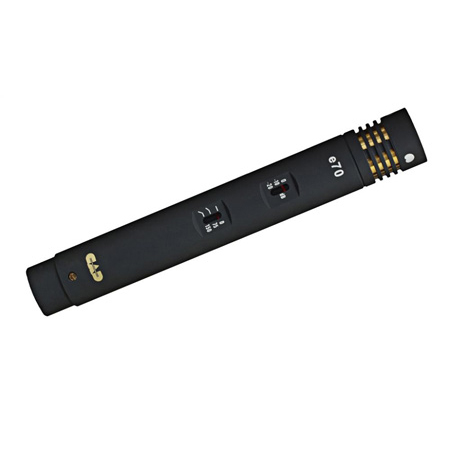

    Packaged in a small, rugged metal housing, the equitek e70 condenser microphone provides transparent, accurate acoustic capture. The low mass 1/2” gold sputtered diaphragm makes the e70 the preferred choice for high frequency sources rich in transients such as cymbal, hi-hat, strings, acoustic guitar, woodwinds and piano. The transformerless design reduces low frequency distortion at high sound pressure levels. The 3 position hi-pass filter and 3 position pad provide the versatility required in demanding live sound and studio applications. The interchangeable capsules provide both cardioid and omnidirectional pickup patterns for greater flexibility. The e70’s accuracy, high SPL capability and size make it a valuable tool in the professional audio environment.

    • Specifications:

      • Externally-Biased Condenser
      • Polar Pattern: Cardioid, Omnidirectional
      • Frequency Response: 20Hz - 20KHz
      • Sensitivity: -39dBV (11 mV) @ 1 Pa
      • Impedance: 85 ohms
      • Max SPL: 145dB (pad engaged)
      • Self Noise 23dBA

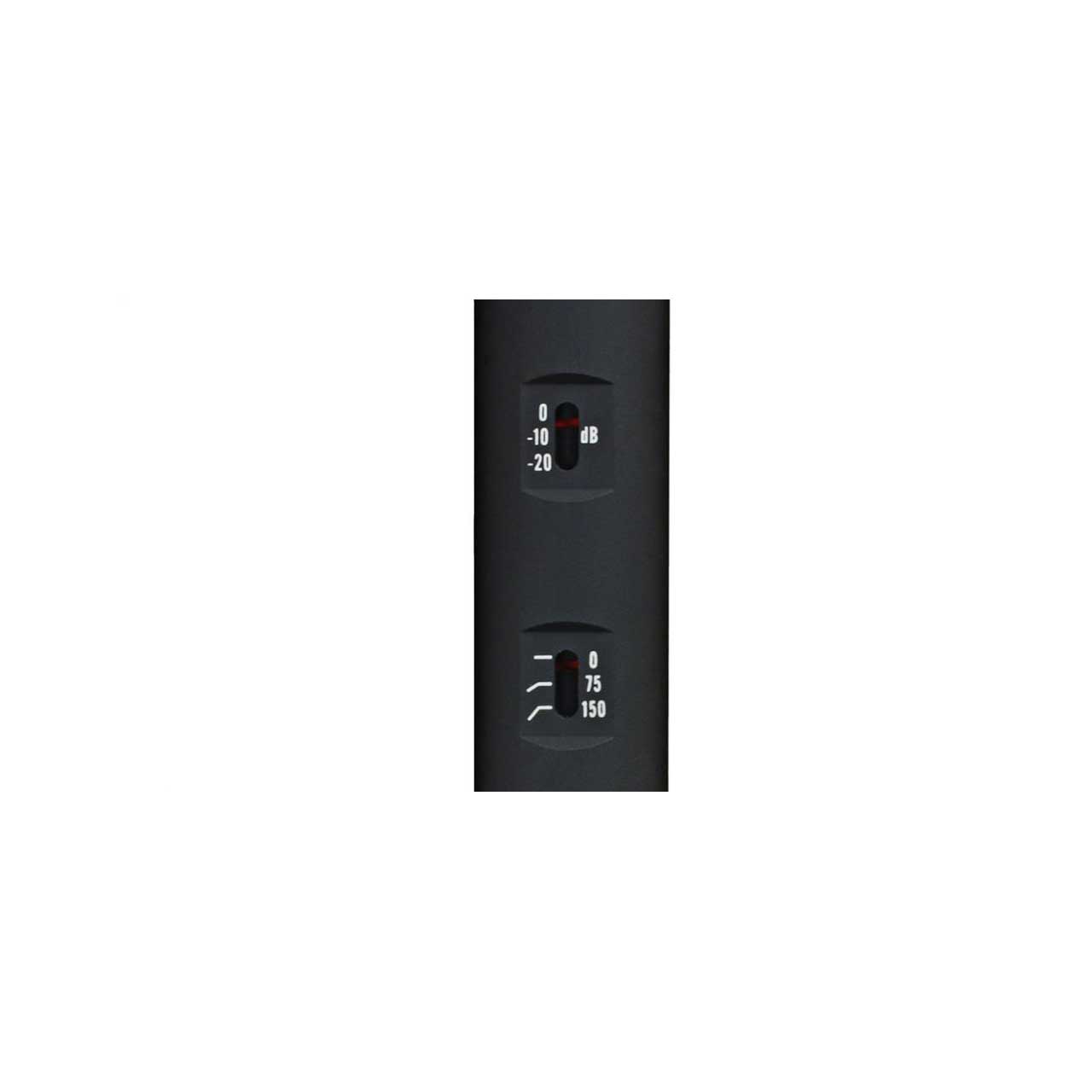

      • Hi-Pass 75Hz & 150Hz, 6dB/oct
      • Attenuator 10dB & 20dB
      • Power Requirements P48, 2 mA
    • Item Includes:

      • Elastic shock mount, stand clamp and windscreen are included.
    • Warranty:

      • 5 Years
