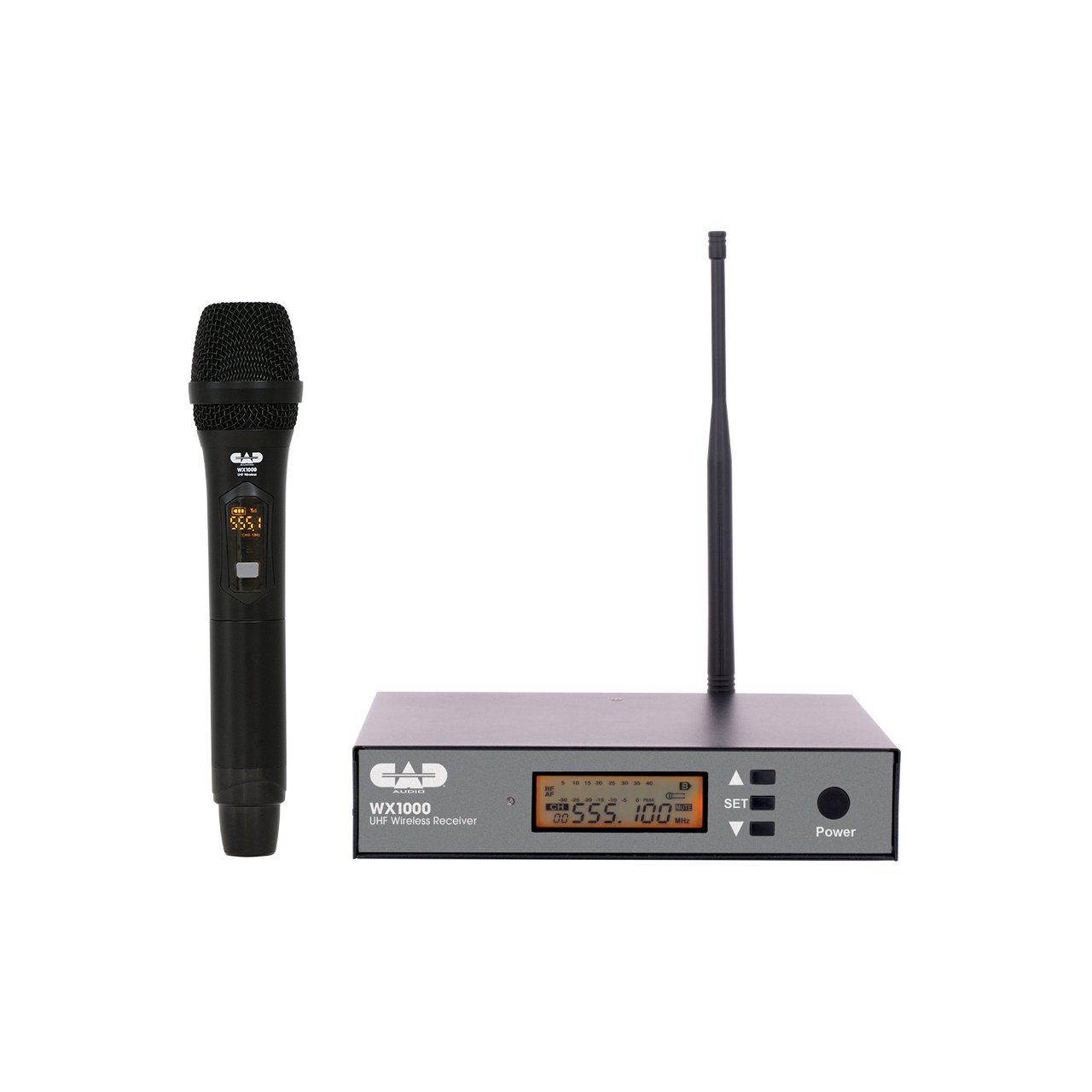

CAD Audio WX1000HH UHF Wireless Handheld Microphone System - 510 MHz to 570 MHz - TX1000 Handheld Mic / RX1000 Receiver

ITEM #: CAD-WX1000HH MFG #: WX1000HH

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$139.99

Our Price:

$99.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    WX1000HH - Overview

    The CAD Audio WX1000HH is a Frequency Agile UHF Wireless Handheld System which operates in the 510-570mHz frequency band and features 100 channels for optimum clarity of signal. Auto-scan and IR sync functions make set up and channel-changing a breeze. Enjoy up to 12 hours of run time using two AA batteries, with a battery level indicator on both the transmitter and receiver, so you'll know when you need to replace them. All metal construction and included rack mounting hardware help ensure your equipment will stand up to even the toughest conditions.

    • Features:

      • Frequency Agile Design (100 switchable frequencies)
      • Use up to 20 systems at the same time
      • Up to 295' (90m) range between transmitter and receiver
      • Rugged, all metal construction
      • Auto scan finds the optimal frequency setting
      • IR sync wirelessly matches transmitter and receiver frequencies
      • Transmitter and receiver feature low battery indicators
      • Transmitter utilizes 2 AA Batteries with >12 Hrs of operation
      • Rack mounting hardware and antennal relocation kit included

    • Specifications:

      • WX1000 Receiver Specifications
      • Frequency Response: 30Hz - 18KHz
      • Frequency Range: 510MHz - 570MHz
      • Frequency Mode: FM
      • Channels: 100
      • Receiver Sensitivity: <108dBm
      • Signal-to-Noise Ratio: >85dB
      • Harmonic Distortion: <0.5%
      • Dynamic Range: >100dB
      • Delay: <3ms
      • Operating Range: 278' (85m) in open area, 196' (60m) indoors

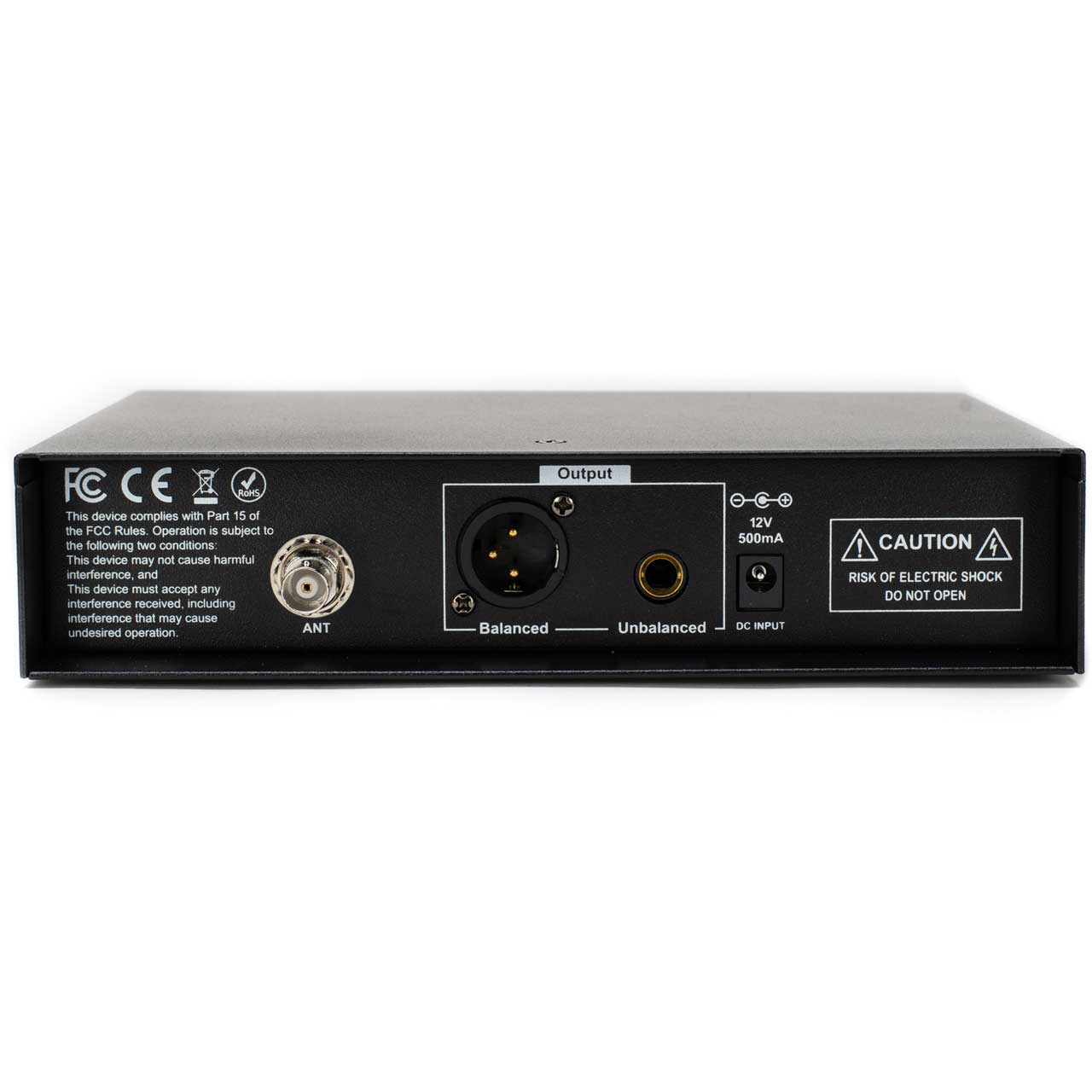

      • Audio Output: 1x XLR balanced output, 1x 1/4" (6.3mm) unbalanced jack
      • Antenna Plug: 1x TNC, 50ohms
      • Power Requirements: DC 12V, 1A
      • Dimensions: 16" x 12.1" x 2.8" (40.5cm x 30.7cm x 7cm)
      • Weight: 3.3lbs (1.5kg)

        TX1000 Transmitter Specifications:
      • Operating Principle: Dynamic
      • Polar Pattern: Cardioid
      • Frequency Response: 30Hz - 18KHz
      • Max SPL: 129dB
      • Dynamic Range: 60Hz - 17KHz
      • RF Output: 10mW
      • Power Requirements: 2x AA batteries 1.5V
      • Battery Life: >12 Hours

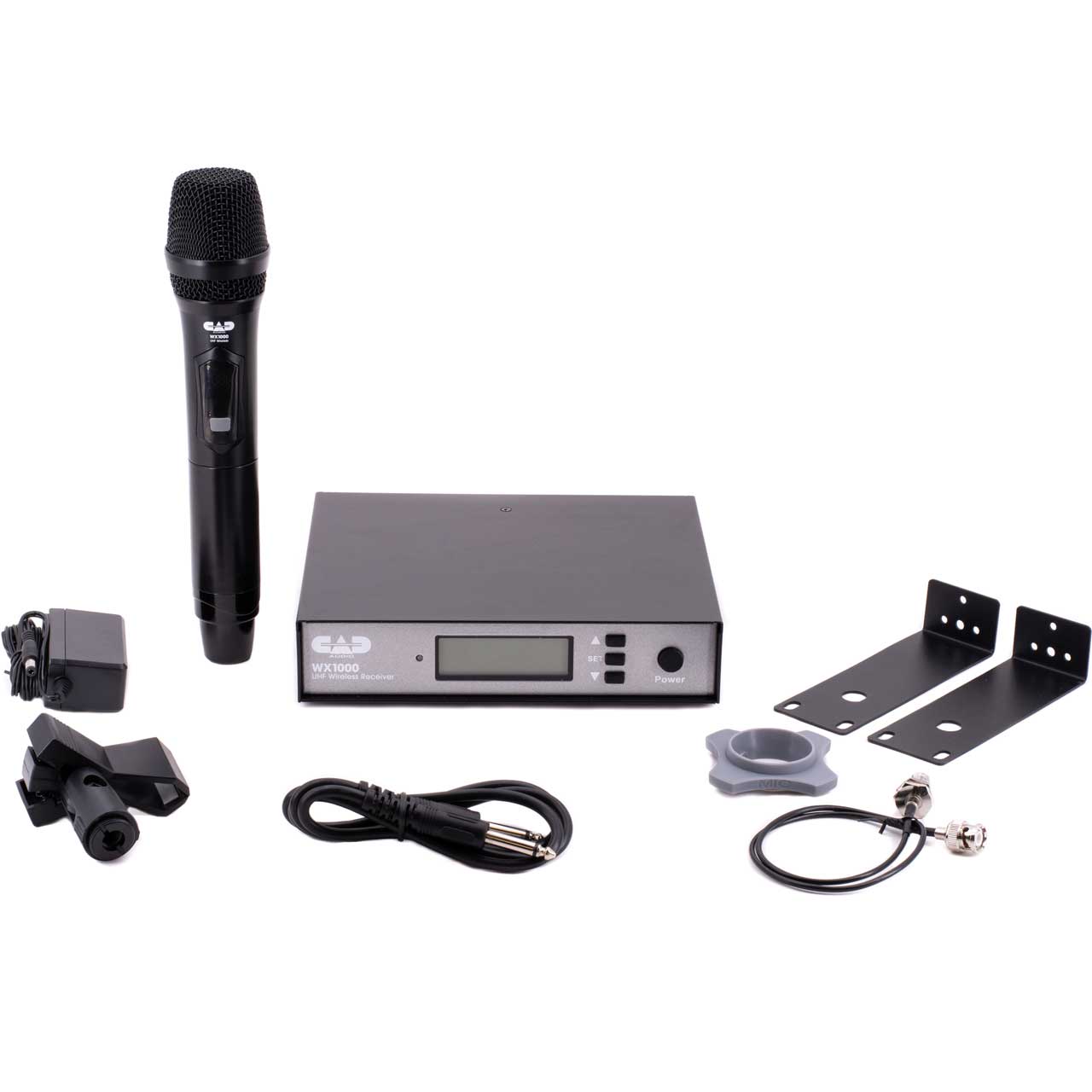

    • Item Includes:

      • 1x TX1000 Handheld Transmitter
      • 1x WX1000 Receiver
      • 1x Mounting Hardware
      • 1x Antennal Relocation Kit

    • Warranty:

      • 2-Year Warranty
