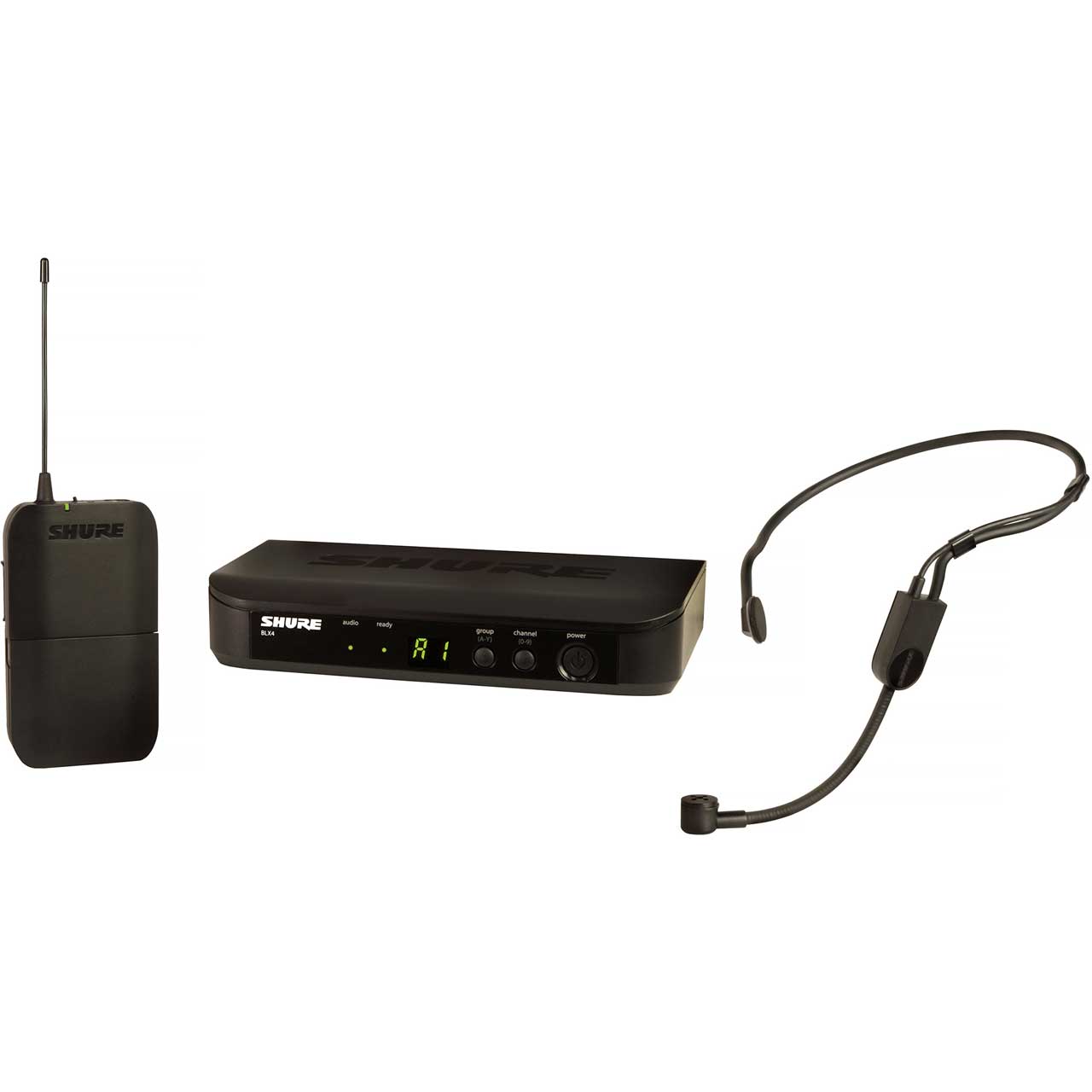

Shure BLX14/P31-H10 BLX14 Headset System with PGA31

BLX14/P31-H10 - Overview

• Specifications:

  • System
  • Working Range: 91 m (300 ft) Line of Sight
  • Audio Frequency Response: 50 to 15,000 Hz
  • Total Harmonic Distortion: Ref. ±33 kHz deviation with 1 kHz tone, 0.5%, typical
  • Dynamic Range: 100 dB, A-weighted, typical
  • Operating Temperature: -18°C (0°F) to 57°C (135°F)
  • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

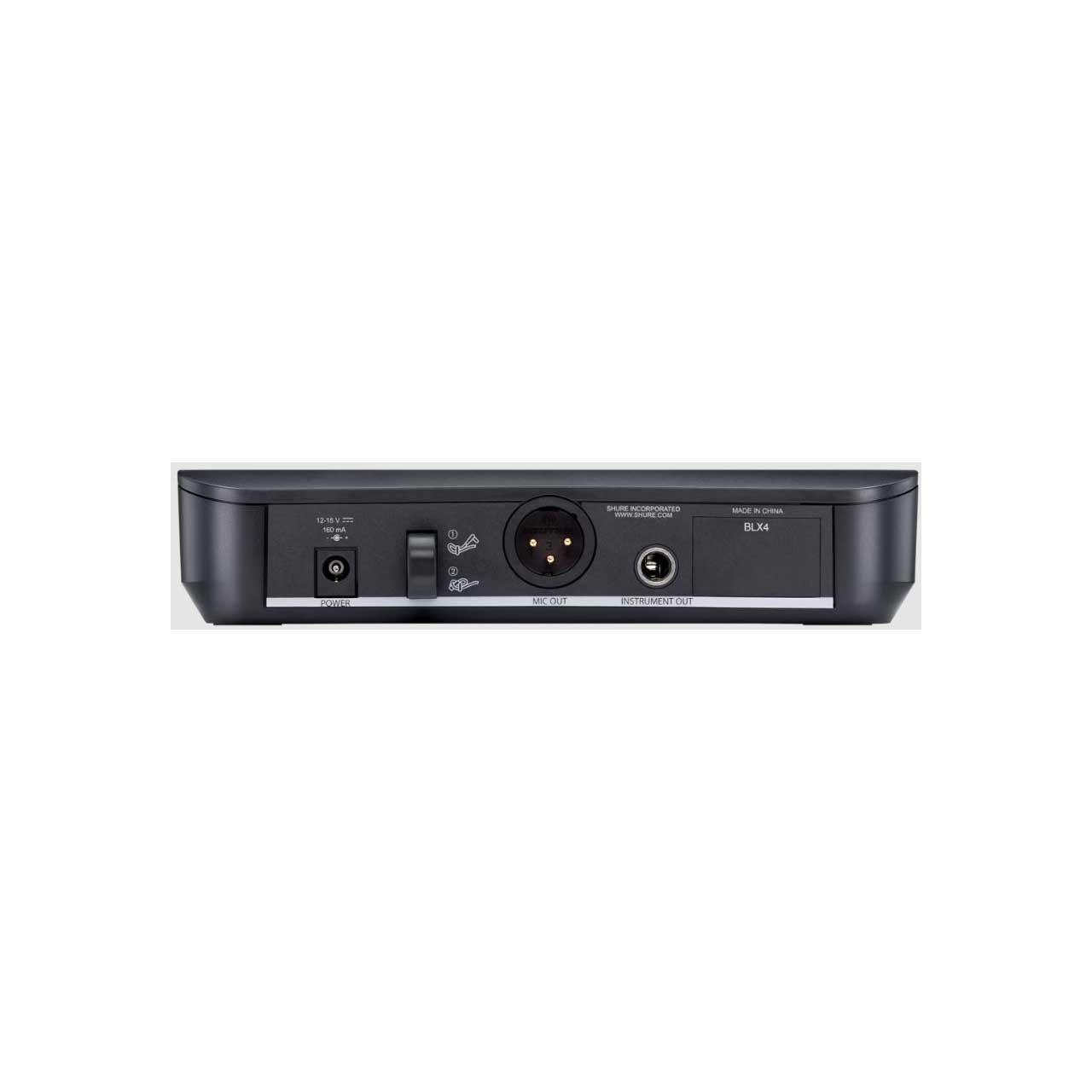

    Wireless Receiver
  • Output Impedance: XLR connector: 200 Ω; 6.35 mm (1/4") connector: 50 Ω
  • Audio Output Level: XLR connector: -27 dBV (into 100 kΩ load); 6.35 mm (1/4") connector: -13 dBV (into 100 kΩ load)
  • RF Sensitivity: -105 dBm for 12 dB SINAD, typical
  • Image Rejection: >50 dB, typical
  • Dimensions (H x W x D): 1.57" x 7.4" x 4.05" (40 mm X 188 mm X 103 mm)
  • Weight: 241 g (8.5 oz.)
  • Housing: Molded ABS
  • Power Requirements: 12-15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive)


• GTIN:

  0042406470322
