Clark CN424C5S-6 - Riser Rated Shielded Cat5E 350MHz STP Cable Blue - per foot

ITEM #: CAT5-SH-6 MFG #: CN424C5S-6

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CAT5-SH-6

CN424C5S-6 - Overview

The CN424C5S is an enhanced riser rated Category 5E with an overall shield for networking and data applications. Constructed from four precision twisted pairs, the CN424C5 is tested to meet or exceed TIA-568-C.2 and ISO/IEC 11801 specifications. UL rated Type CMR and CSA FT-4, the CN424C5 is suitable for installation in most non-plenum installation environments.

  • Features:

    • Enhanced 350 MHz Bandwidth - provides addtional bandwidth for high data rate applications
    • ETL Verified to TIA-568-C.2 - verified to meet or exceed TIA standards for Cat5E cable
    • ETL Verified to ISO/IEC 11801 - verified to meet or exceed ISO/IEC standards for Cat5E cable
    • Overall Foil Shield - provides additional RF/EMI protection from external interference
    • 1000 Mbps Gigabit Ethernet - delivers precision electrical performance for 10Gbs data transmission
    • UL Rated Riser CMR - UL and CSA rated for installation in most non-plenum environments


  • Specifications:

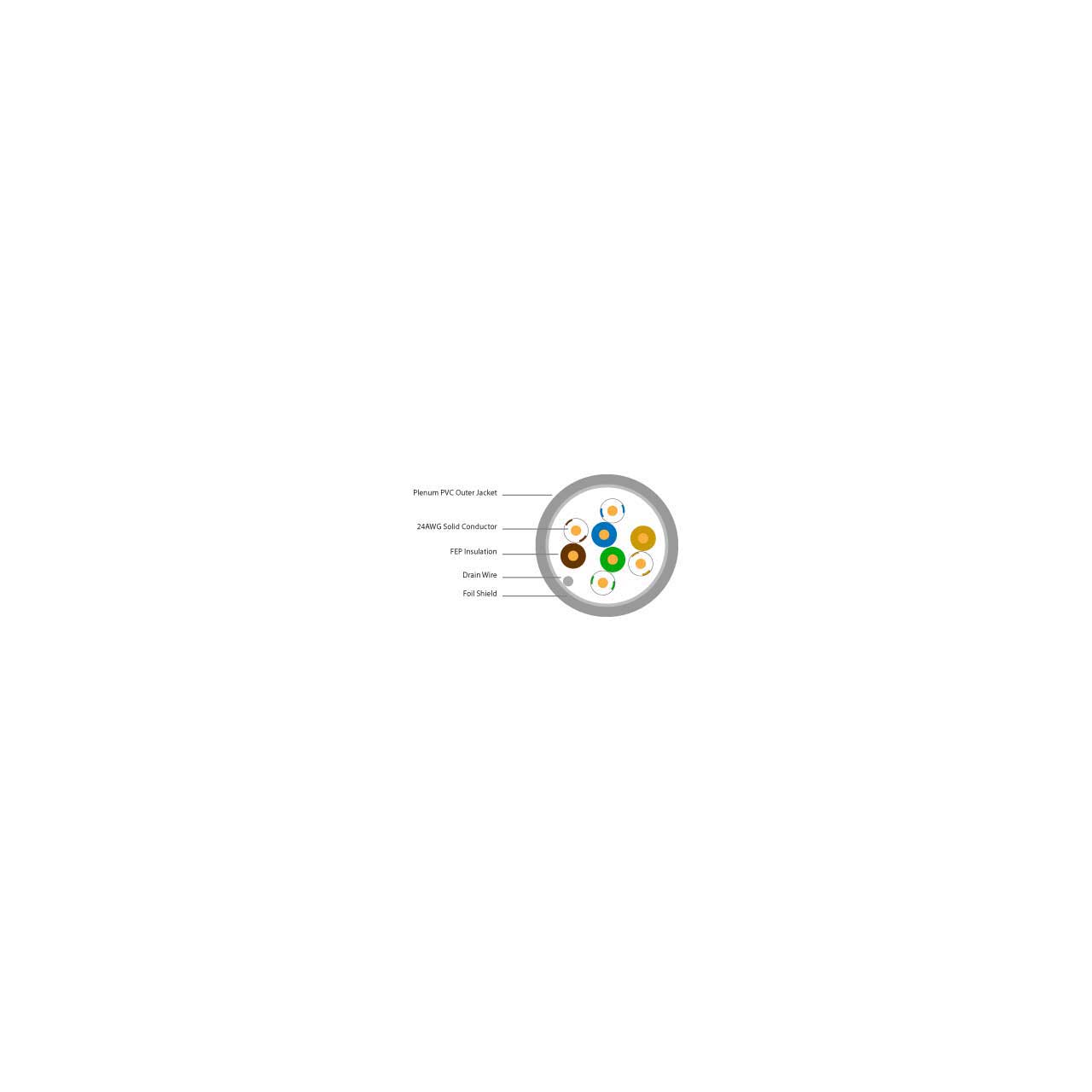

    • Conductors: (8) 24AWG Solid BC (configured as four pairs)
    • Insulation: Polyethylene, .008" wall
    • Insulation Color Code: Pair 1: Blue & White w/ Blue Stripe
    • Pair 2: Orange & White w/ Orange Stripe
    • Pair 3: Green & White w/ Green Stripe
    • Pair 4: Brown & White w/ Brown Stripe
    • Shield: 100% Foil w/ 26AWG Solid TC Drain Wire
    • Jacket PVC
    • Overall Diameter: .242"
