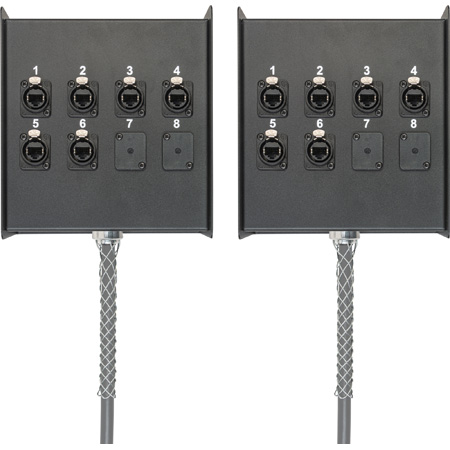

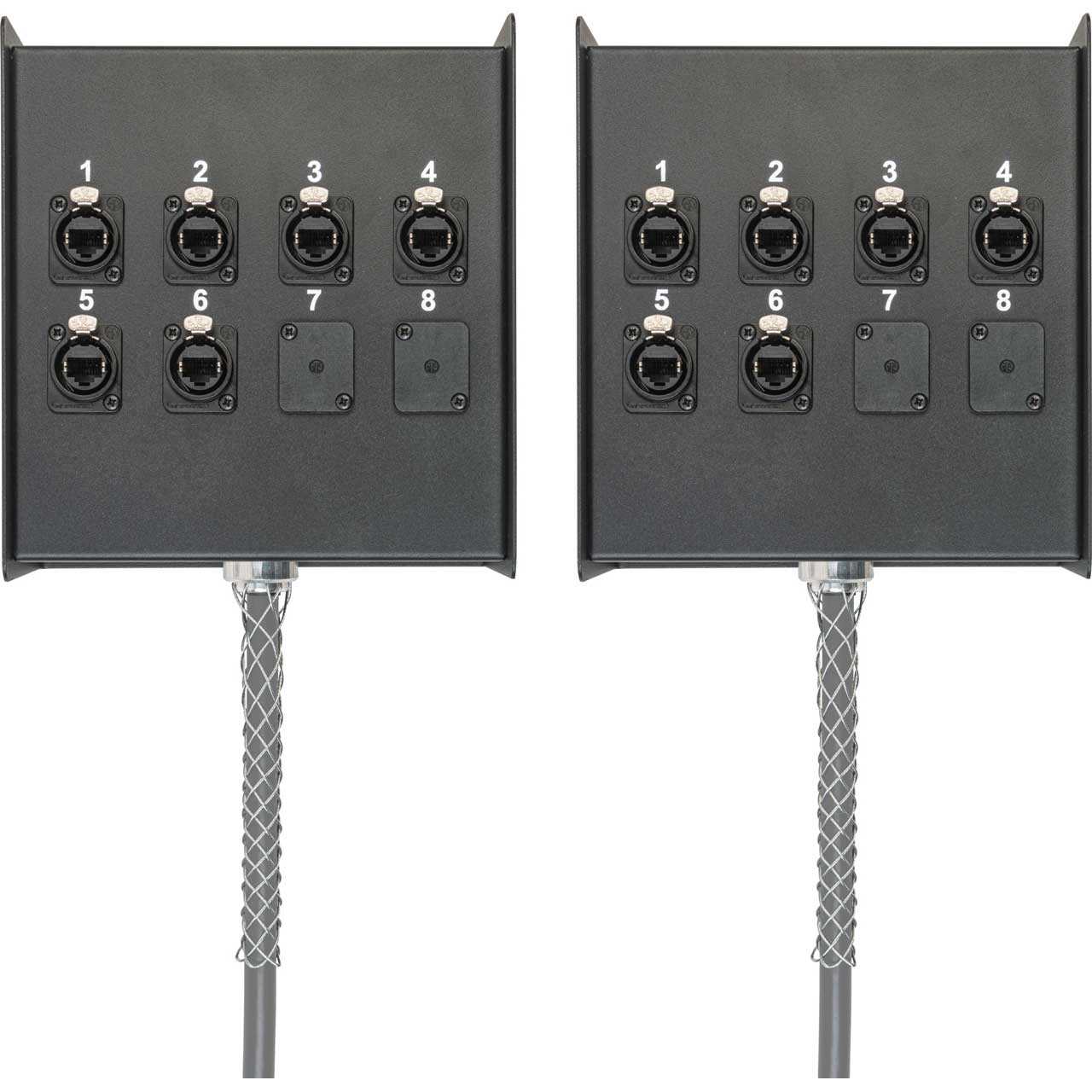

Laird 6-Channel Cat5e 6-Channel Fan Box to Fan Box - 250 Foot

CAT5E-FBFB-250 - Overview

• Features:

  • Ideal for long runs in industrial environments. Meets TIA/EIA-568-B.2 CAT5e specifications. Low attenuation and near-end crosstalk provide excellent transmission. Guaranteed for life!


• Specifications:

  • Attenuation (100 m/dB Min.) - 100 MHz: 22.0; 200 MHz: 32.4; 300 MHz: 36.0; 350 MHz: 44.9 ACR (100 m/dB Min.) - 100 MHz: 13.3 PS-ACR (100 m/dB Min.) - 100 MHz: 10.3 ELFEXT (dB Min.) - 100 MHz: 23.8; 200 MHz: 17.7; 300 MHz: 14.2; 350 MHz: 12.9 PS-ELFEXT (dB Min.) - 100 MHz: 20.8; 200 MHz: 14.7; 300 MHz: 11.2; 350 MHz: 9.9 NEXT (dB Min.) - 100 MHz: 35.3; 200 MHz: 30.8; 300 MHz: 28.2; 350 MHz: 27.1 PS-NEXT (dB Min.) - 100 MHz: 32.3; 200 MHz: 27.8; 300 MHz: 25.2; 350 MHz: 24.1


• Warranty:

  • 1 Year
