Cobalt 9243 openGear Analog Audio Balanced Distribution Amplifier with Remote Gain Control

Name: Cobalt 9243 openGear Analog Audio Balanced Distribution Amplifier with Remote Gain Control
Brand: Cobalt Digital
SKU: CB-9243
Price: 579.00 USD
Availability: PreSale

ITEM #: CB-9243 MFG #: 9243

Cobalt Digital

List Price:

$595.00

Our Price:

$579.00

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Required Accessories

Recommended Accessories

Reviews

Required Accessories

Recommended Accessories

9243 - Overview

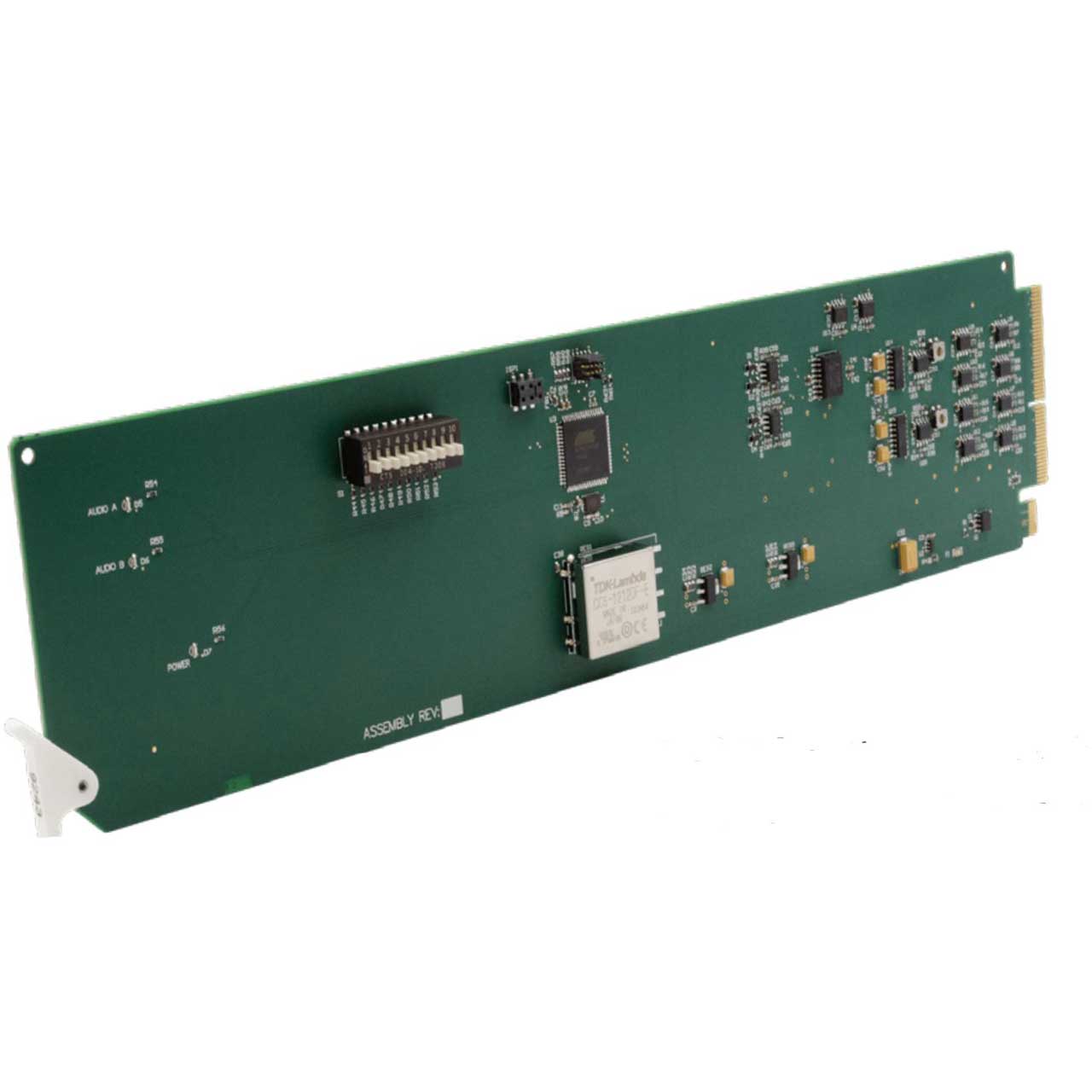

The Cobalt Digital 9243 Analog Audio Distribution Amplifier with Remote Gain Control is a broadcast-quality balanced analog audio DA with stereo 2x4, mono 1x8, and stereo sum L+R x 8 selectable output modes.

Unlike most analog audio DAs, the 9243 electronic attenuators allow overall gain (stereo ganged) and per-channel trim (offset) via DashBoard™ remote control.

The space-saving design and very low power consumption of the 9243 provides for high density, allowing two cards to be collocated in adjacent slots and served by a single, standard - width "split" rear module.

Features:
- Full remote control of operating mode and gain control.
- Multiple modes - stereo 2x4, mono 1x8, and stereo sum L+R x 8 outputs.
- Full broadcast-grade balanced signal capability with 27dBu maximum input level support. Low-impedance outputs.
- Selectable card switch control or DashBoard remote control (usable with DashBoard and Cobalt OGCP-9000 remote control panels).
- Remote control via Ethernet using free DashBoard software. Full remote control of operating mode and gain control or use the optional OGCP-9000 remote control panel.
- Hot swappable openGear card.
- Five-year warranty.
Specifications:
- Number of Inputs: (2) balanced.
- Impedance: > 20 kΩ, balanced.
- Maximum Input Level: +27 dBu.
- Connector Type: Phoenix removable modular.
- Number of Outputs: (8) balanced; available as stereo 2x4, mono 1x8, and stereo sum L+R x 8 outputs.
- Impedance: 60 Ω, balanced.
- Output Isolation: > 60 dBFF.
- Max Level: +26 dBu.
- Connector Type: Phoenix removable modular.
- Gain: -15 dB to +15 dB Frequency Response: 20 - 20 kHz ±0.1 dB. Noise: < -85 dBu, 10 - 22 kHz at unity gain Harmonic Distortion: < 0.01%.
