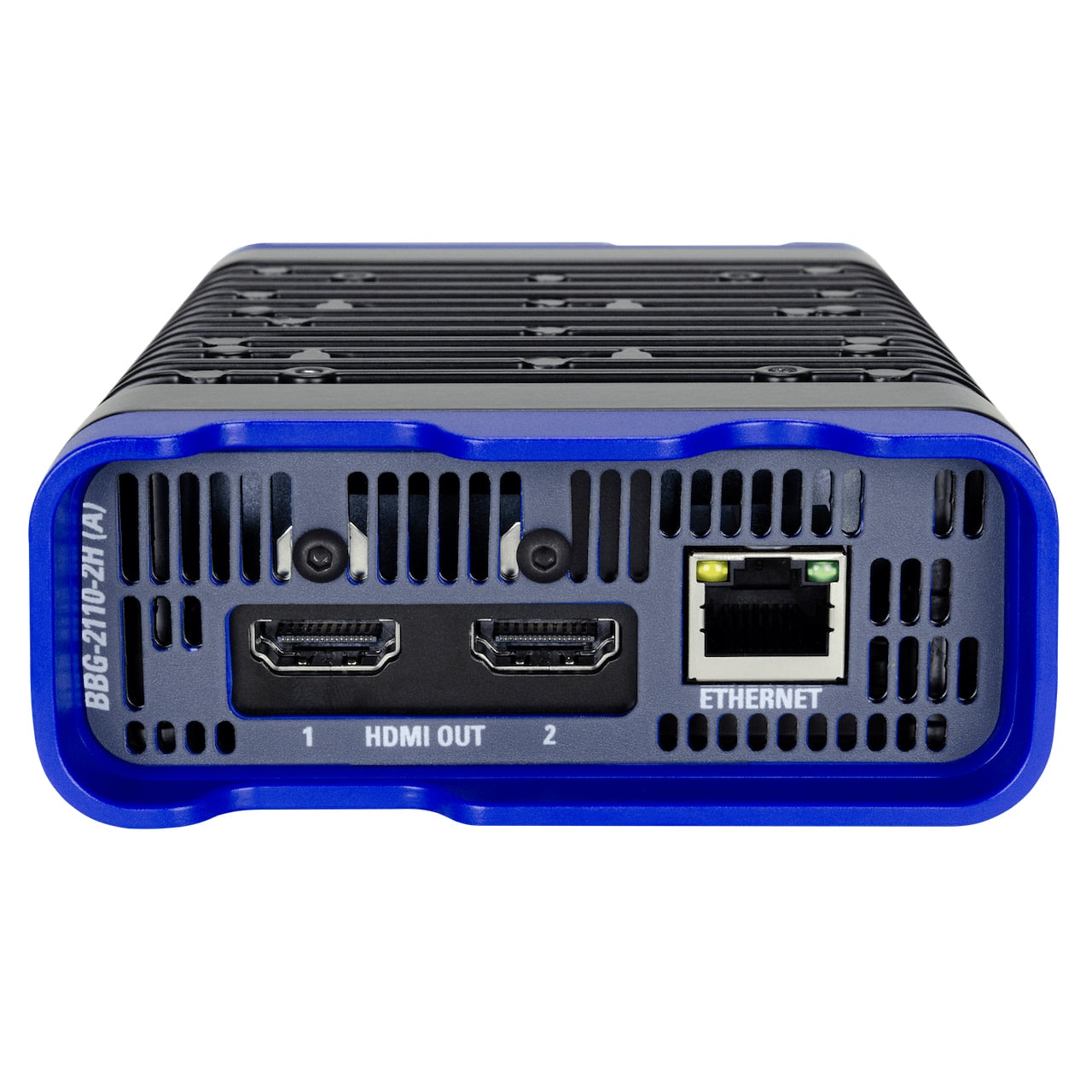

COBALT ST 2110 Mini-Converter with HDMI Outputs with Active Cooling Option

SAPPHIRE BBG-2110-2H (A) - Overview

• Features:

  • Converts ST 2110-20 or -22 JPEG-XS (license required) streams with associated -30 audio and -40 ancillary data essences to HDMI.
  • SAPPHIRE BBG units are capable of fully asynchronous operation and are IPMX compliant.
  • Supports 4K-UHDX
  • Supports NMOS IS-04/IS-05 control, both in-band and out-of-band.
  • Supports all popular formats: 720p, 1080i, 1080p, and 2160p (2160p is available on the first path only).
  • Supports SMPTE ST 2022-7 Seamless Redundancy up to Class C for WAN operation.
  • Active cooling fan
  • Can be mounted behind the monitor with optional brackets.
  • Web interface and DashBoardT control.
  • Two 12V DC inputs (for redundant power supply)


• Specifications:

  Outputs
  • 2x HDMI outputs


  Stream Interfaces
  • 2x 10G/25G SFP 28 cages


  Management Port
  • 100/1000 Mbps Ethernet with Auto-MDIX


  Standards Support
  • Uncompressed ST 2110-20 Video
  • JPEG-XS ST 2110-22 (Option license)
  • VSF TR-08 Support for ST 2110-30 audio
  • ST 2110-40 ancillary data essences
  • SAPPHIRE BBG units are capable of fully asynchronous operation and are IPMX-compliant.


  Dimensions
  • Dimensions: 3.92" x 5.52" x 1.58"
  • Weight: 1.3 lb, 2.3 lb with power supply and power cord


  Power
  • 12 VDC, 20 W
  • 2x DC Power Connectors (for redundant power supply)


• Warranty:

  • 5 Year Limited Warranty
