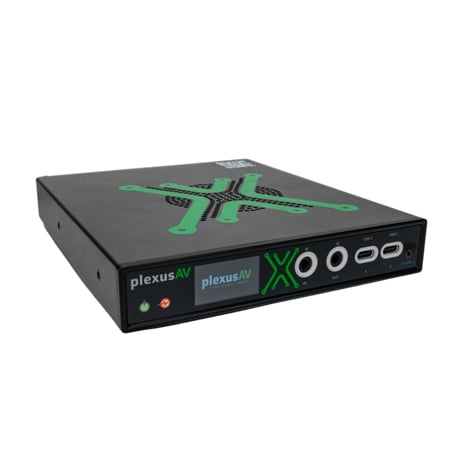

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Plexus
Free Shipping with $49 Minimum Order

Our Price:

$1,490.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

P-AVN-2 - Overview

Combination Encoder and Decoder in a Compact Design!

The PlexusAV P-AVN-2 IPMX Transceiver is a compact, efficient AV-over-IP device built for bandwidth-conscious environments. Supporting both encoding and decoding, it leverages open standards like IPMX alongside H.264 and H.265 compression to deliver low-latency, high-quality video and audio over 1Gbps networks. With advanced audio integration, multiple network interfaces, and a streamlined form factor, the P-AVN-2 offers seamless deployment across a wide range of AV applications-from campus-wide digital signage to live production and broadcast environments.

The P-AVN-2 is designed to meet the needs of modern AV deployments-from digital signage networks to complex multi-building AV systems. With support for open standards and advanced compression, it provides an cost-effective and scalable solution for bandwidth-sensitive environments across education, corporate, production, and public venues.

Applications:
- Educational and Corporate AV
- Digital Signage
- Live Production
- Visual Matrix Switching
- Broadcast and Production

  • Features:

    • IPMX-Based Open Standards: Built on IPMX protocols for future-proof AV-over-IP deployment.
    • Flexible Video Support: Up to 4K60 with H.264 and H.265 codec support for ultra-low latency, high-quality video.
    • Multiple Network Ports: Three gigabit network ports, including an SFP option, allow for installation into fiber, ethernet and PoE network environments.
    • Advanced Audio Integration: AES67, and Linear PCM ensures professional-grade audio quality.
    • Compact Form Factor: Small and easy to install, fits into any AV environment without compromise.
    • Easy to use interface and advanced API: The P-AVN-2 user interface has been designed for quick deployment and ease-of-use. With its advanced API, the P-AVN-2 can be controlled and managed by the PlexusAV Visual Array or integrate into existing network manage
    • Flexible Network Connectivity
    • Versatile Input/Output Options
    • MPEG-4 (H.264) and HEVC (H.265) Codec Support
    • Compact Design


  • Specifications:

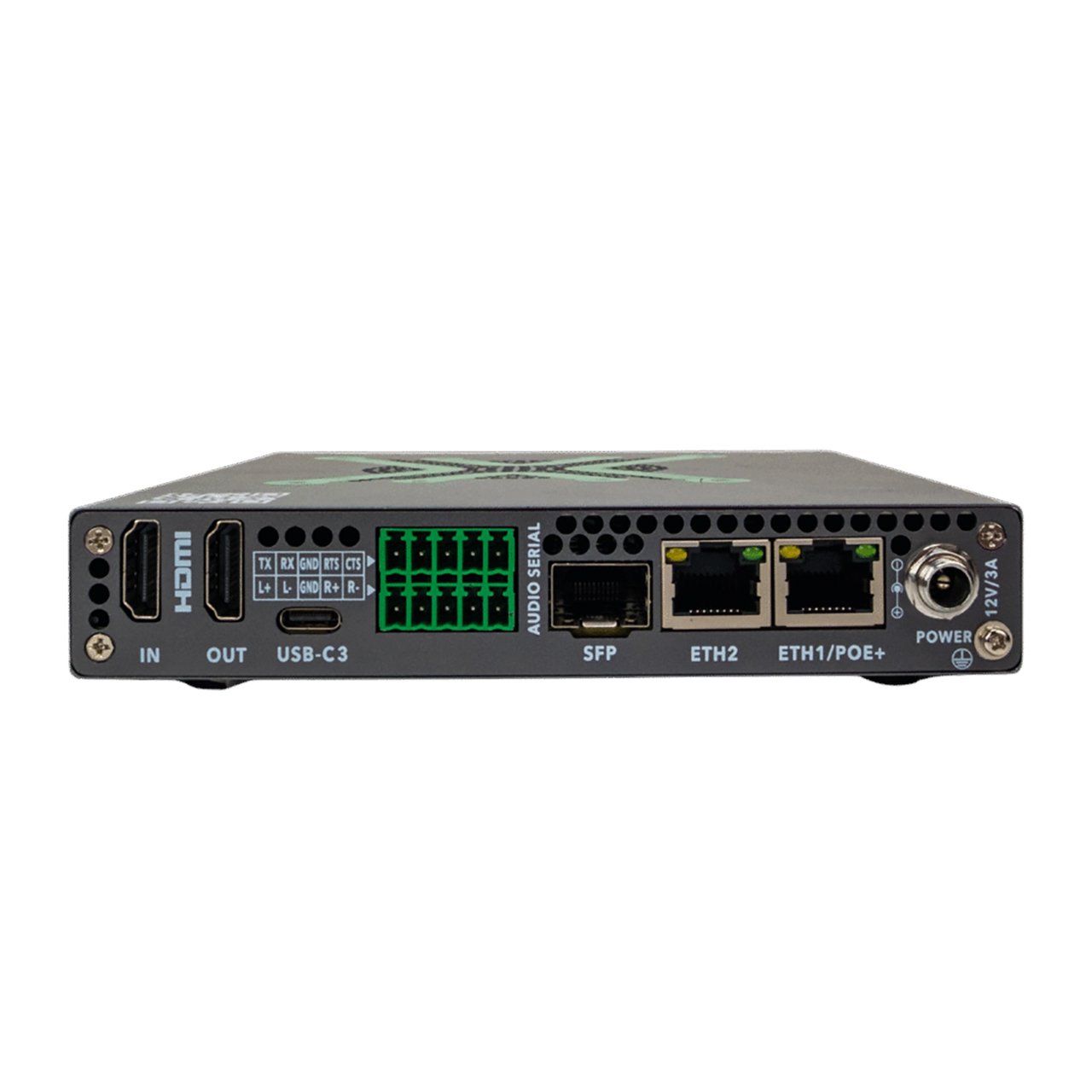

      Encoder Mode Interface Specifications
    • HDMI Input (1):
      - Type-A Female, HDMI 2.1/1.4b
      - Content Protection - up to HDCP 2.3
      - Consumer Electronics Control (CEC)
      - EDID Control - Auto, Presets or Manual
    • HDMI Loop Out (1):
      - Type-A Female, HDMI 2.1, 1.4b
      - Content Protection - up to HDCP 2.3

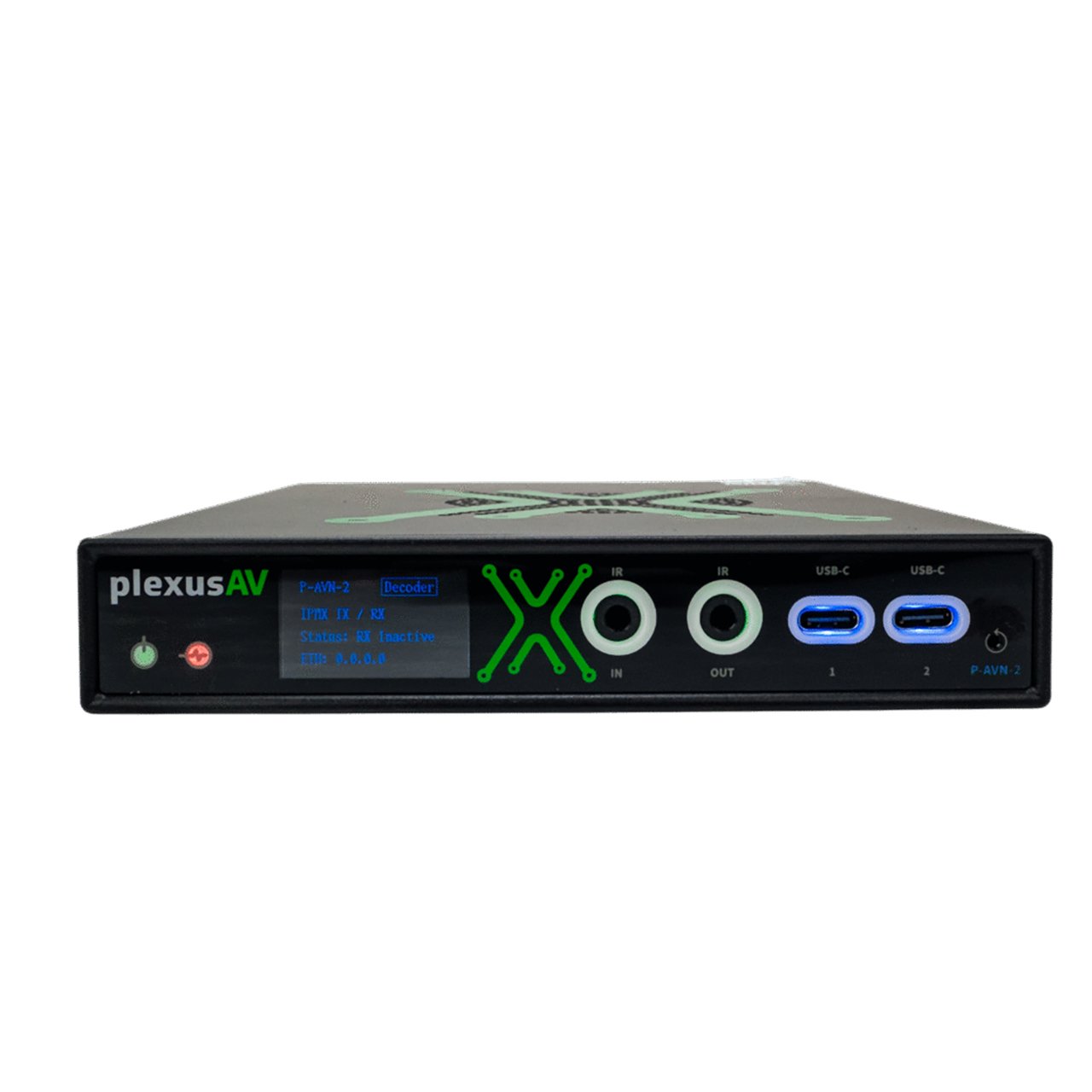

    • USB-C (3):
      - Two USB 2.0 (Data, Front)
      - One USB 3.0 (Video, DisplayPort Alt Mode, Rear)

      Decoder Mode Interface Specifications
    • HDMI Input (1):
      - Type-A Female, HDMI 2.1/1.4b
      - Content Protection - up to HDCP 2.3
    • HDMI Output (1):
      - Type-A Female, HDMI 2.1, 1.4b
      - Content Protection - up to HDCP 2.3
      - Consumer Electronics Control (CEC)
      - EDID Control - Save EDID to file or EDID download
    • USB-C (3): Two USB 2.0 (Data, Front)
    • Ethernet 1: RJ-45/PoE+ (100/1000 Auto-Negotiating)
    • Ethernet 2: RJ-45 (100/1000 Auto-Negotiating)
    • Ethernet 3: SFP 1GB (100/1000 Auto-Negotiating)
    • IPMX Support:
      - TR-10-1 - System Timing and Definitions
      - TR-10-3 - PCM Digital Audio
      - TR-10-5 - HDCP Key Exchange Protocol
      - TR-10-7 - Compressed Video
      - TR-10-8 - NMOS Requirements
      - TR-10-11 - Constant Bit-Rate Compressed Video

      Video And Audio Specifications
    • Codecs: H.264 (MPEG-4), H.265 (HEVC)
    • Video Support (HDMI/USB-C Input):
      - 3840x2160P @ 60, 50, 30, 25fps
      - 2560x1600P @ 60
      - 2560x1440P @ 60
      - 2560x1080P @ 60
      - 1920x1200P @ 60
      - 1920x1080P @ 60, 50, 30, 25
      - 1680 x 1050P @ 60
      - 1600 x 1200P @ 60
      - 1440 x 900P @ 60
      - 1280 x 1024P @ 60
      - 1024 x 768P @ 60
      - 1280x720P @ 60, 50
      - 800 x 600P @ 60
      - 640 x 480P @ 60
    • Video Support (IPMX stream output):
      - 3840x2160P @ 60, 50, 30, 25fps
      - 1920x1080P @ 60, 50, 30, 25
      - 1280x720P @ 60, 50
    • Bitrates: 5-25 Mbps, user configurable
    • Dynamic Range: HDR10 Pass-through, SDR (Standard Dynamic Range)
    • Color Formats (IPMX stream output): 8/10 bit, YUV 4:2:0/4:2:2
    • Color Formats (HDMI/USB-C output): 8/10/12 bit, RGB 4:2:0/4:4:4
    • Color Gamut: BT.2020, BT.709, BT.601
    • Video Scaling:
      - Support on Encoder and Decoder mode.
      - Supports resolution upscaling, downscaling,frame rate conversion, color mode conversion, and aspect ratio adjustment.
    • Video Scaler Processing: Videowall Processing: Up to 3x3
    • Audio Support: Linear PCM, AES67, AAC-Main, and Pass-through
    • AAC Bitrate Range (Kbps): 96/112/128/160/192/224/256
    • Sampling Rate: 44.1, 48KHz
    • Volume Control: +/- adjustment
    • Analog Audio Connector: 5-Pin Phoenix
    • Analog Audio Channels: Stereo Pair, Balanced or Unbalanced

      Management And Control
    • Web Interface (Web UI): Built-in web interface for easy configuration and control.
    • HTTPS API: Supports GraphQL for advanced integration.
    • NMOS Support: IS-04, IS-05, and BCP-003.
    • RS232 Control: 5-pin Phoenix connector for integration with existing control systems.
    • LED Indicators: Power, error, Unit-ID, and dark mode to disable RGB ring lights indicators.

      Dimensions and Power
    • Size: 6.37" x 5.63" x 1.02" (162 mm x 143 mm x 26 mm)
    • Weight: 1.3 lbs (0.6 kg)
    • PoE+: IEEE 802.3at Type 2 Class 4 compliant
    • Power Consumption (Operational Mode): 22W Typical
    • Power Consumption (Eco Mode) FW 1.4: 14.3W

      Environmental Conditions
    • Operating Temperature: -13° to 113° F (-25° to 45° C)
    • Storage Temperature: -40° to 113° F (-40° to 45° C)
    • Operating Humidity: Less than 95% (non-condensing)
    • Acoustic Noise: 33 dBA typical


  • Warranty:

    • 3 Year Limited Warranty
