Cobalt RM20-9241-B 20-slot OpenGear Frame Rear I/O Module (Standard Width)

ITEM #: CB-RM20-9241-B MFG #: RM20-9241-B

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CB-RM20-9241-B

RM20-9241-B - Overview

Cobalt Digital RM20-9241-B. 20-Slot Frame Rear I/O Module (Standard Width) 2 Differential Analog Audio In, 8 Differential Analog Audio Outs.

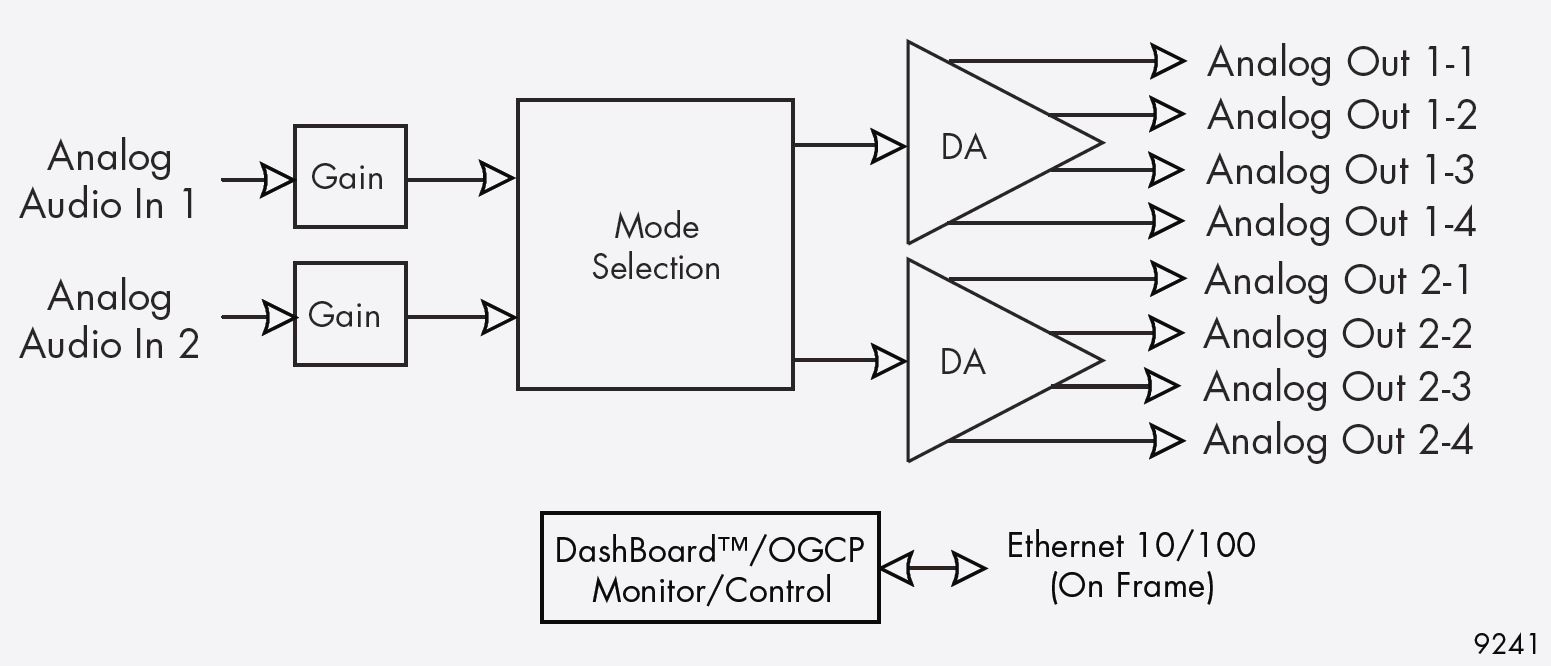

The 9241 is an analog audio distribution amplifier with up to eight low-impedance outputs designed for broadcast use. It can be used as either a mono or two-channel (stereo) audio DA.
The 9241 can provide eight copies of a single (mono) input signal or four copies each of a two (stereo) inputs.
The 9241 can also sum two channels for creating a mono mix. It can also detect dead-air silence and set an alarm when no audio is present.

Features:

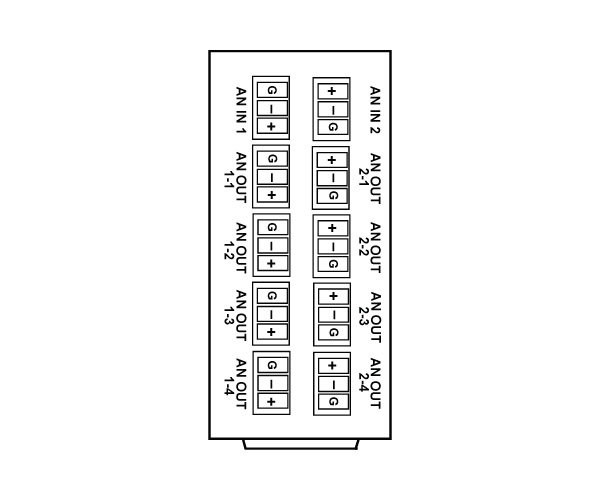

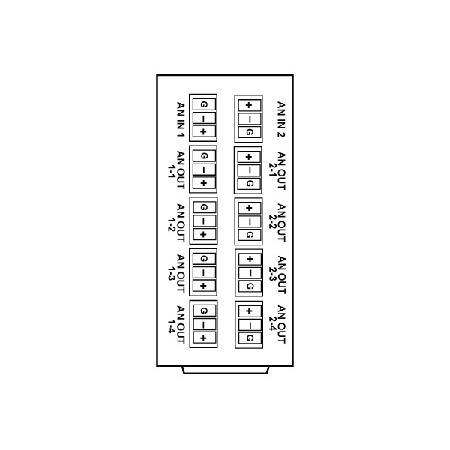

(2) Balanced Analog Audio In (IN 1 and IN 2)
(8) Balanced Analog Audio Out (1-1 thru 1-4 OUT; 2-1 thru 2-4 OUT)
(Can be used as 1x8 DA)

  • Features:

    • Handles mono or stereo signals
    • Has summing capability.
    • Silence detection.
    • Remote control/monitoring via DashBoard software or OGCP-9000 remote control panel.
    • Five year warranty.

  • Specifications:

    • Analog Audio Input:
    • (2) Balanced Analog Audio In (IN 1 and IN 2)
    • (8) Balanced Analog Audio Out (1-1 thru 1-4 OUT; 2-1 thru 2-4 OUT)(Can be used as 1x8 DA)

      Analog Audio Output:
    • Number of Outputs: 8
    • Impedance: 60 U balanced
    • Max Level: +26 dBu

      Electrical:
    • Power: 3 watts

      Performance:
    • Freq. Response: >0.1 dB at 20 Hz to 20 kHz
    • Gain: -14 dB to +18 dB cont. variable
    • Harmonic Dist: <0.01%
    • SNR: > 95 dBu
