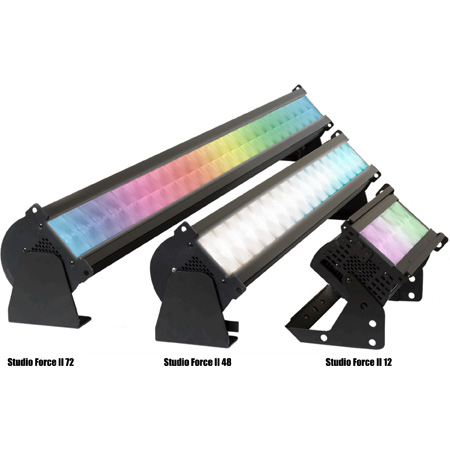

Chroma-Q CHSF2V48 Studio Force II 48 Studio Light with Trunnion - 3 Foot TRUE1 to Male Edison Tail

ITEM #: CHRQ-CHSF2V48 MFG #: CHSF2V48

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CHRQ-CHSF2V48

CHSF2V48 - Overview

Chroma-Q CHSF2V48 Studio Force II™ is a high intensity tuneable white wash light using a homogenised LED source capable of delivering variable colour temperature, plus/minus green shift control and the ability to produce deep saturated colours when needed.

Specifically designed for TV, film, touring, exhibitions, corporate events and theatre lighting applications, the Studio Force II™ uses the same ColorSure™ technologies found in other innovative Chroma-Q® fixtures to deliver consistent colour across fixtures.

Plus / Minus Green Shift
Tuneable white LED fixtures produce light typically ranging from cool white (~6,500K CCT) through to warm white (~2,800K CCT) by following the black body locus. Chroma-Q's plus / minus green shift control allows designers to vary hue by moving along the green-magenta axis orthogonal to the colour temperature axis in accurately defined increments. This gives exceptional ability to control atmosphere and ambience on screen.

Chroma-Qr ColorSure™
The inherent variation between individual LED emitters means colour can vary from fixture to fixture. Chroma-Q's ColorSure is a proprietary system to ensure fixtures within the same product range provide consistent output regardless of when they are manufactured.

A complex range of processes for selecting (binning) individual LED emitters; calibrating LED light engines in-house to a uniform standard and sophisticated firmware and software ensures exceptional fixture to fixture consistency.

  • Features:

    • Full spectrum variable white light engine
    • High intensity homogenised output
    • Extremely smooth uniform wash
    • Variable plus / minus green shift
    • Ideal for TV, film, touring, exhibitions, corporate events and theatre
    • PowerCON TRUE1 input and output for easy daisy chaining of fixtures

  • Specifications:

    • CCT: Adjustable 2,800K - 6,500K
    • CRI: Up to 94
    • Mired shift (+/-GREEN): +2 / -2 Green shift (KHi mode)
    • Hot lumen output (MAX.): 24,000 lm
    • Dimming: Ultra Smooth Dimming
    • Control protocol DMX: IP RATING IP20
    • Net dimensions(L x H x D): 46.5" x 7.5" x 6.5" (1181mm x 191mm x 165mm)
    • Weight: 18.0kg / 40lbs
    • Power consumption(MAX.): 550W
    • Connections: Power Neutrik powerCON TRUE 1; Data Neutrik XLR 5 - pin
    • LED life: L70 at 50,000 hours

  • Item Includes:

    • Fixture
    • Power cord
    • Mounting bracket
    • Safety chain
    • Quick Start Guide


CHSF2V48 - Required Accessories
