Bathe a stage, wall, or dance floor, with a wide, even spread of light!

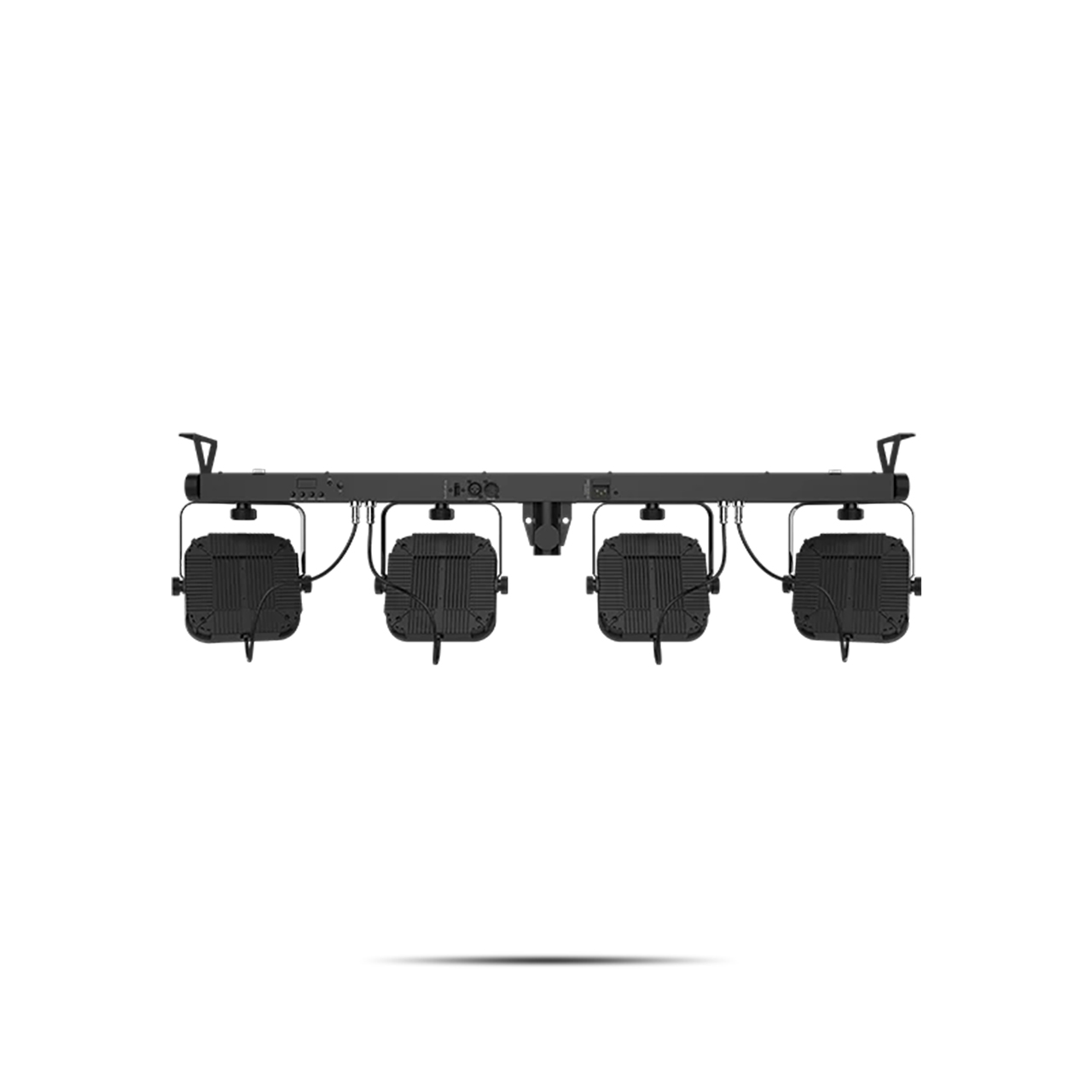

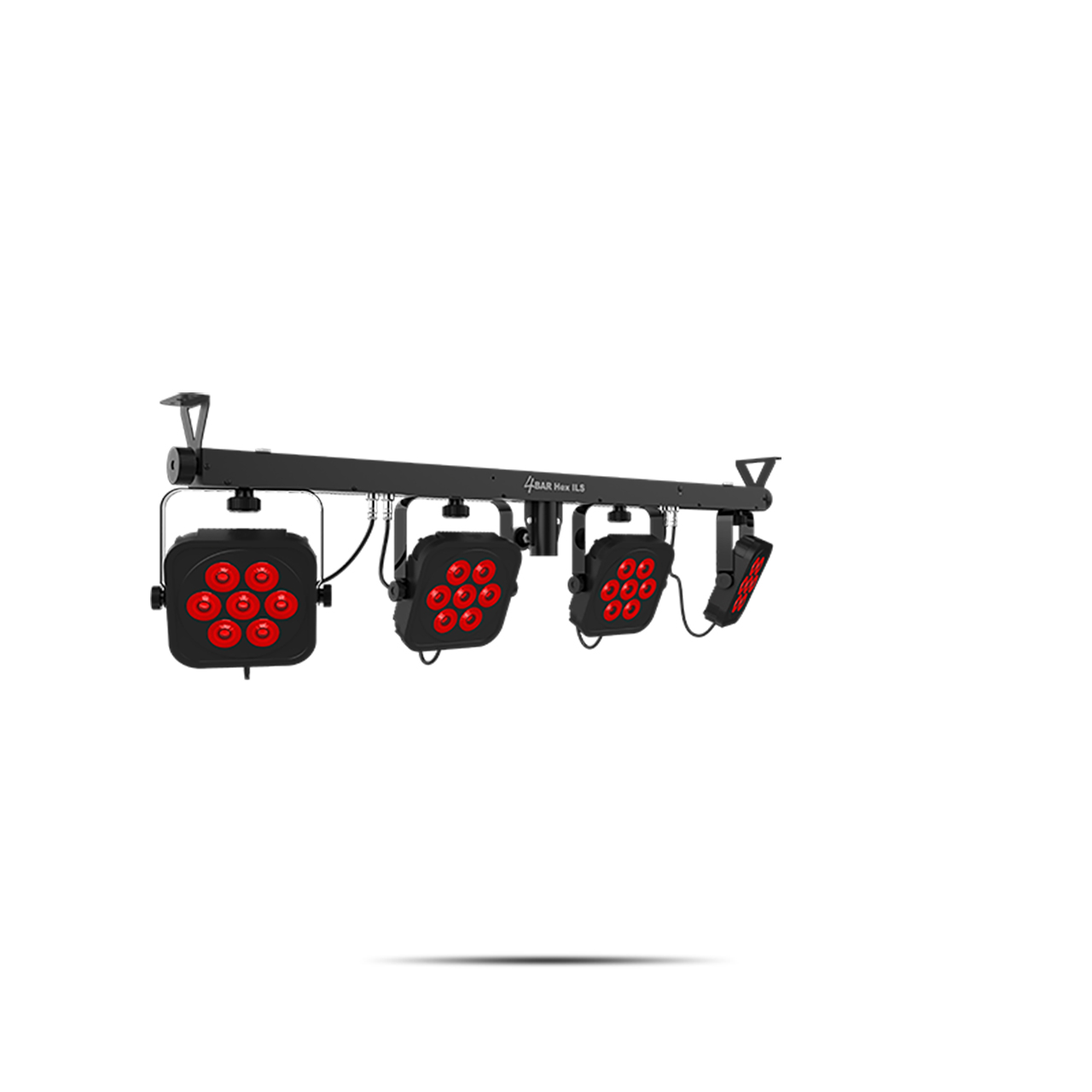

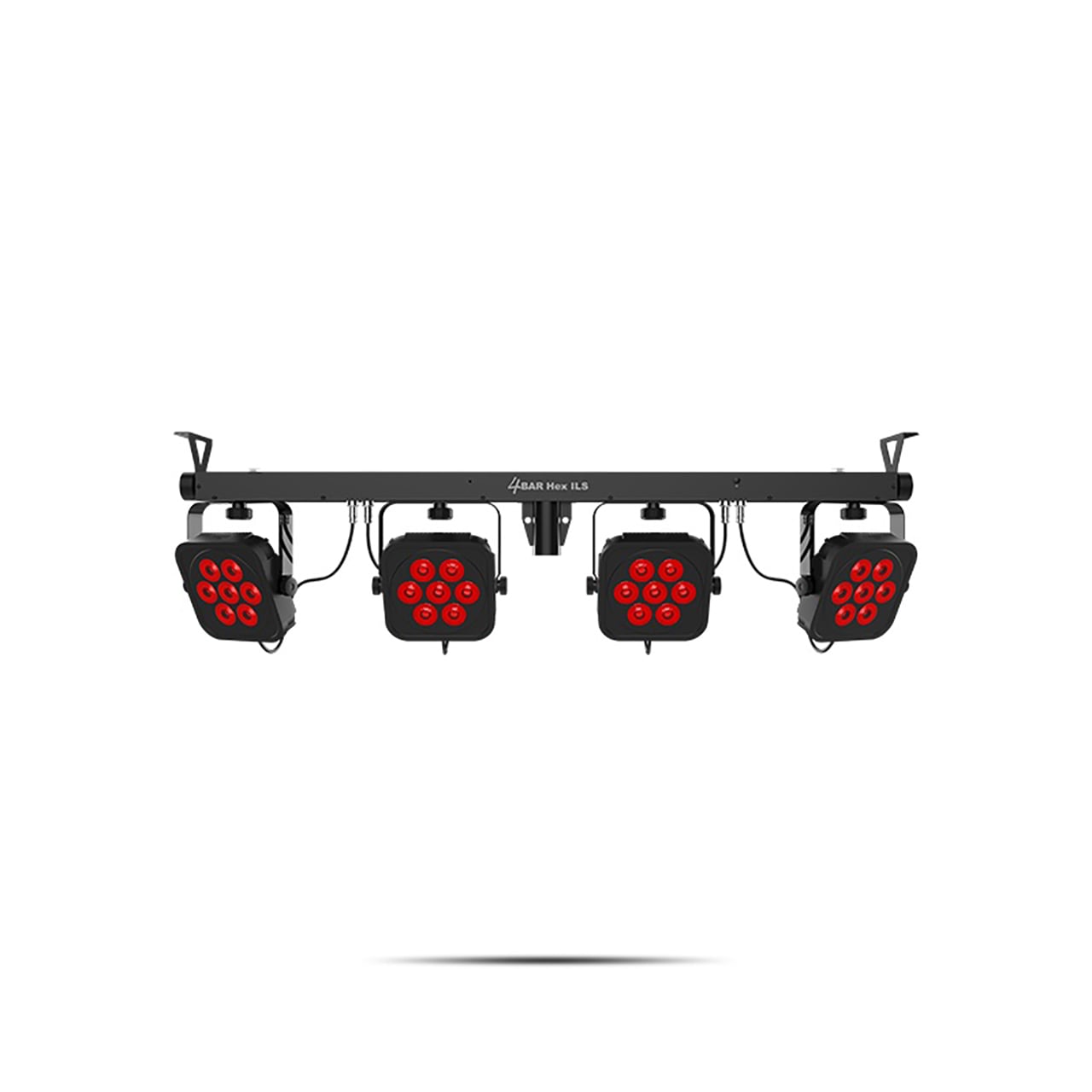

Chauvet DJ's 4BAR Hex ILS is a complete wash lighting solution fitted with high-intensity hex-color (RGBAW+UV) LEDs that can be controlled wirelessly right out of the box using the included footswitch or optional IRC-6 remote. ILS compatibility offers ultimate control flexibility and makes creating coordinated light shows with this unit and different fixture types easy. Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology. A tripod and carry bag are included for effortless setup and quick tear down.
-
- Complete wash lighting solution fitted with high-intensity, hex-color (RGBAW+UV) LEDs
- ILS compatibility for use in the ILS ecosystem
- D-Fi USB compatibility for wireless Master/Slave or DMX control (D-Fi USB sold separately)
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology
- Update the unit's software from the built-in USB port
- Out of the box wireless control with included footswitch or optional IRC-6 controller

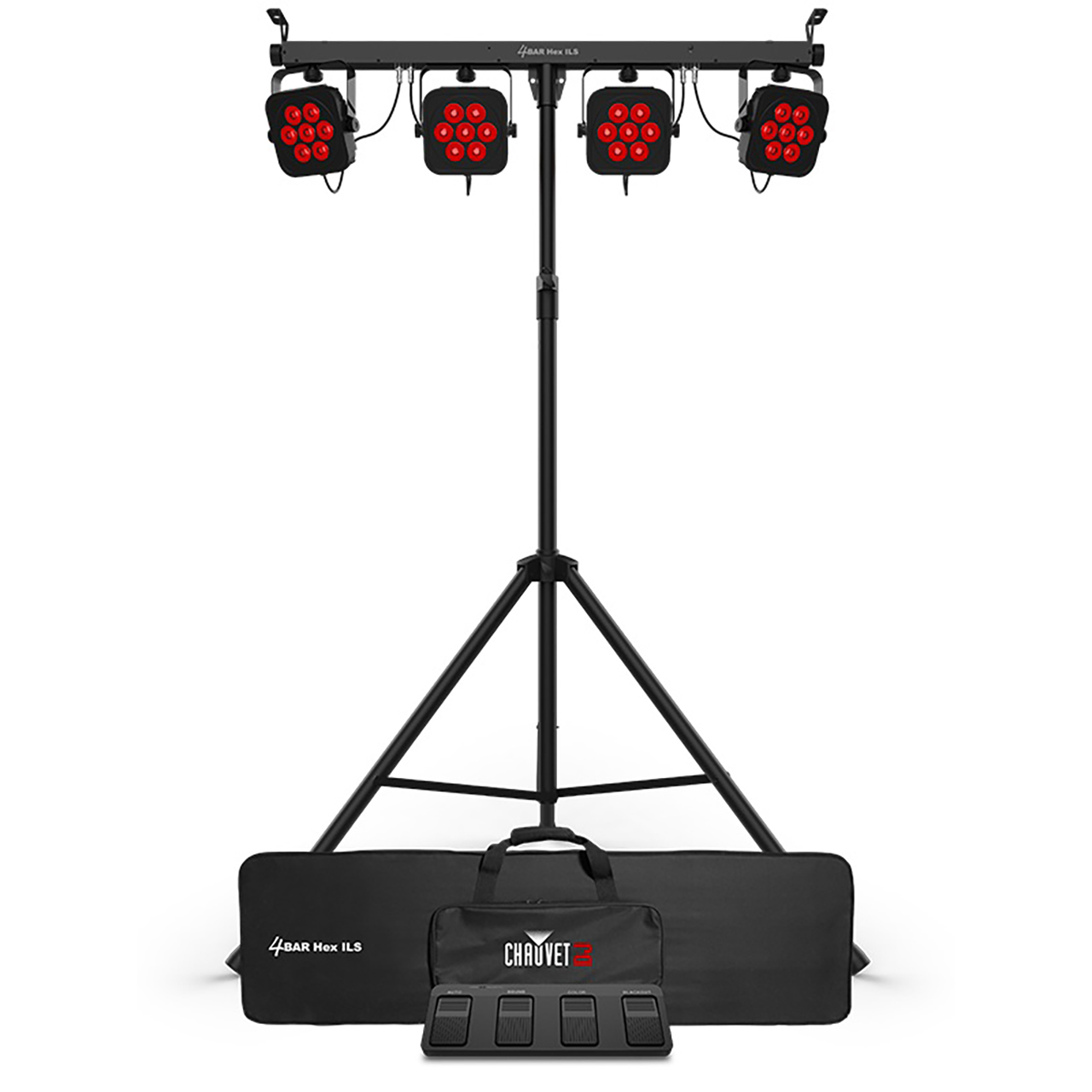

- Easily set up and tear down in minutes with the included tripod stand and carrying bags
- Achieve total room or stage coverage with 4 individually adjustable heads
- Increase mounting options by safely mounting to truss using built-in bolts
-
- DMX Channels: 6, 8, or 27
- DMX Connectors: 3-pin XLR
- Max Unobstructed Distance (foot switch): 100ft (30.5m)
- Light Source: 42 LEDs (hex color RGBAW+UV) 5.1W, (2A), 50,000 hours life expectancy
- Strobe Rate: 0Hz - 20Hz
- Beam Angle: 16°
- Field Angle: 25°
- Illuminance: 1570 lux @ 2m (per pod)
- Input Voltage: 100V - 240VAC, 50/60Hz (auto-ranging)
- Power and Current:
- 97W, 1.3A @ 120V, 60Hz
- 94W, 0.7A @ 230V, 50Hz - Approvals: CE, RoHS, UKCA
- Footswitch Battery: 9V
- Operating Frequency (D-Fi): 2.412GHz - 2.484GHz
- Operating Frequency (foot switch): 433MHz
- Stand Height: 7'4" (2.2m)
- Fits Tripod Sizes: 1.5" (36.80mm)
- Bracket Mounting Hole: M10 (1.5mm pitch)
- Weight: 12.2lbs (5.5kg)
- Size: 46" x 6" x 12" (1186mm x 50.8mm x 305mm)
- Weight (Controller): 1.2lbs (0.6kg)
- Size (Controller): 16.5" x 5.2" x 1.5" (419mm x 132mm x 38mm)
- Optional Controllers: IRC-6, ILS Command
-
- 1x 4BAR Hex ILS
- 1x Power cord
- 1x Carrying bag
- 1x Tripod
- 1x Tripod Carry bag
- 1x Wireless Footswitch
-
