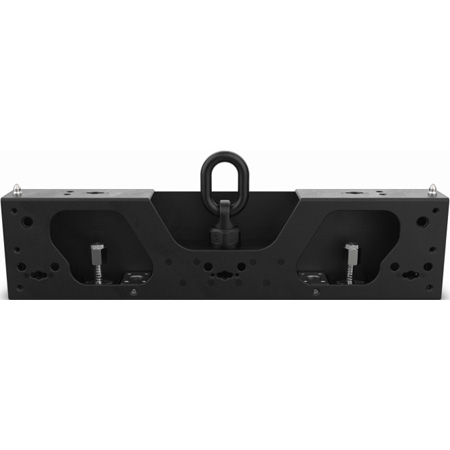

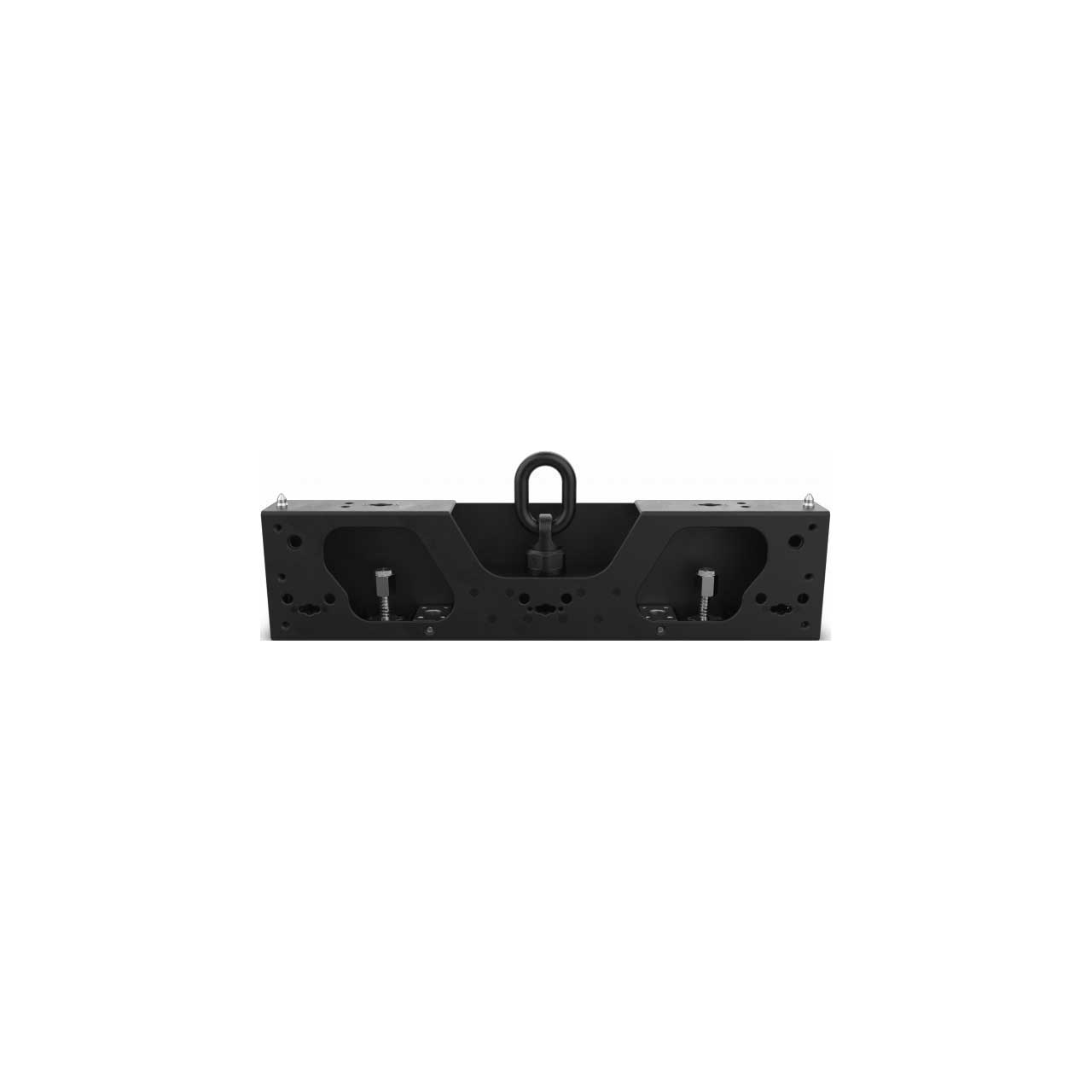

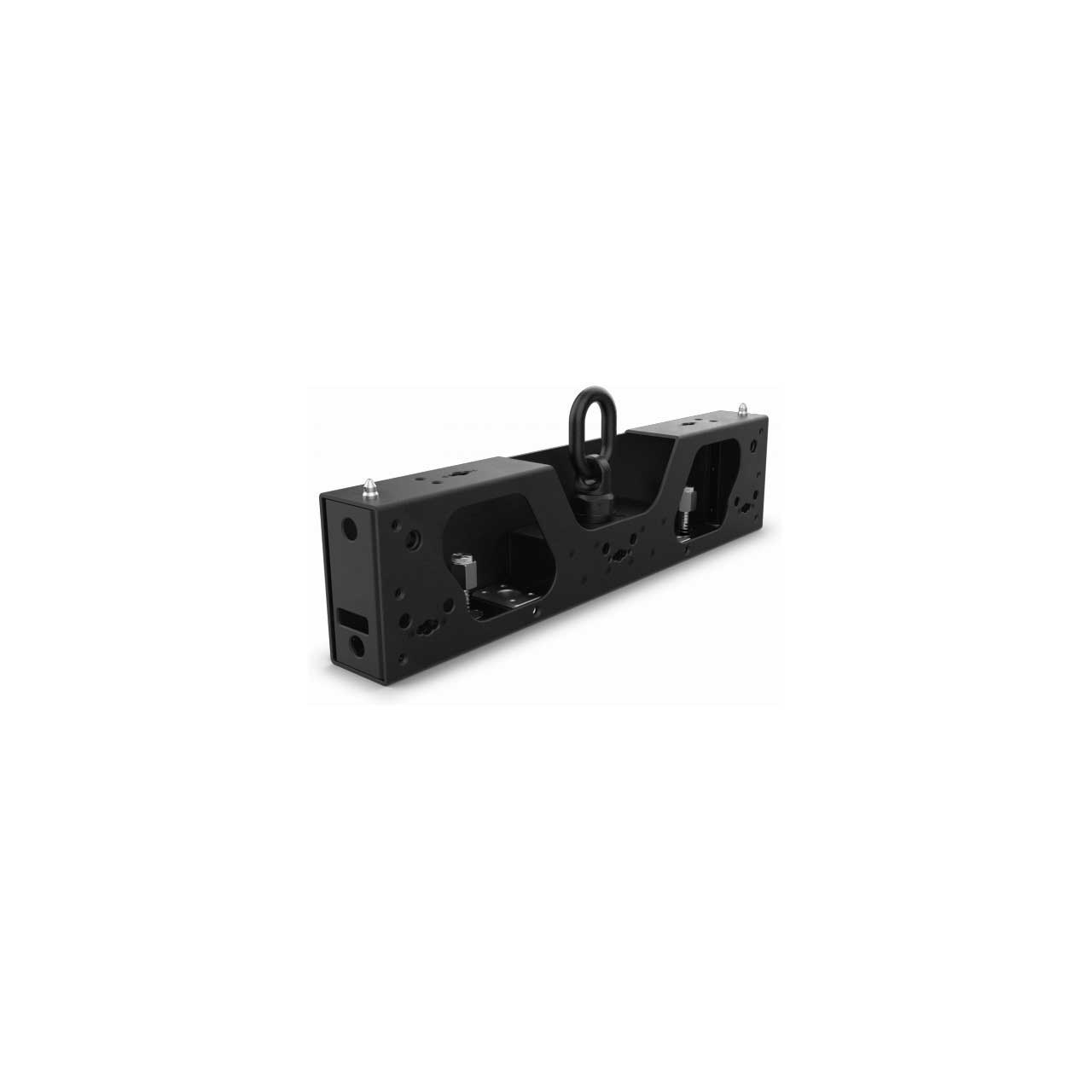

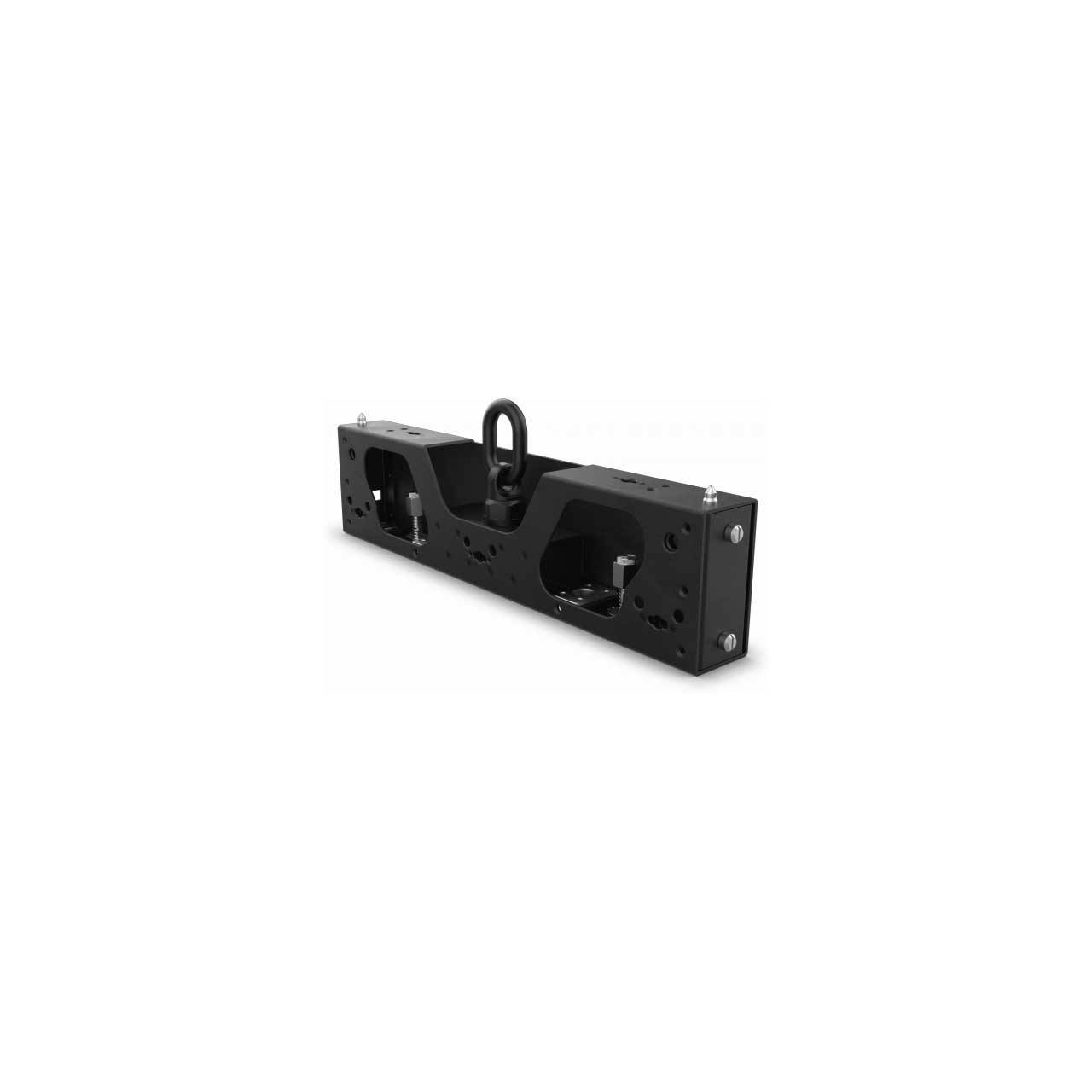

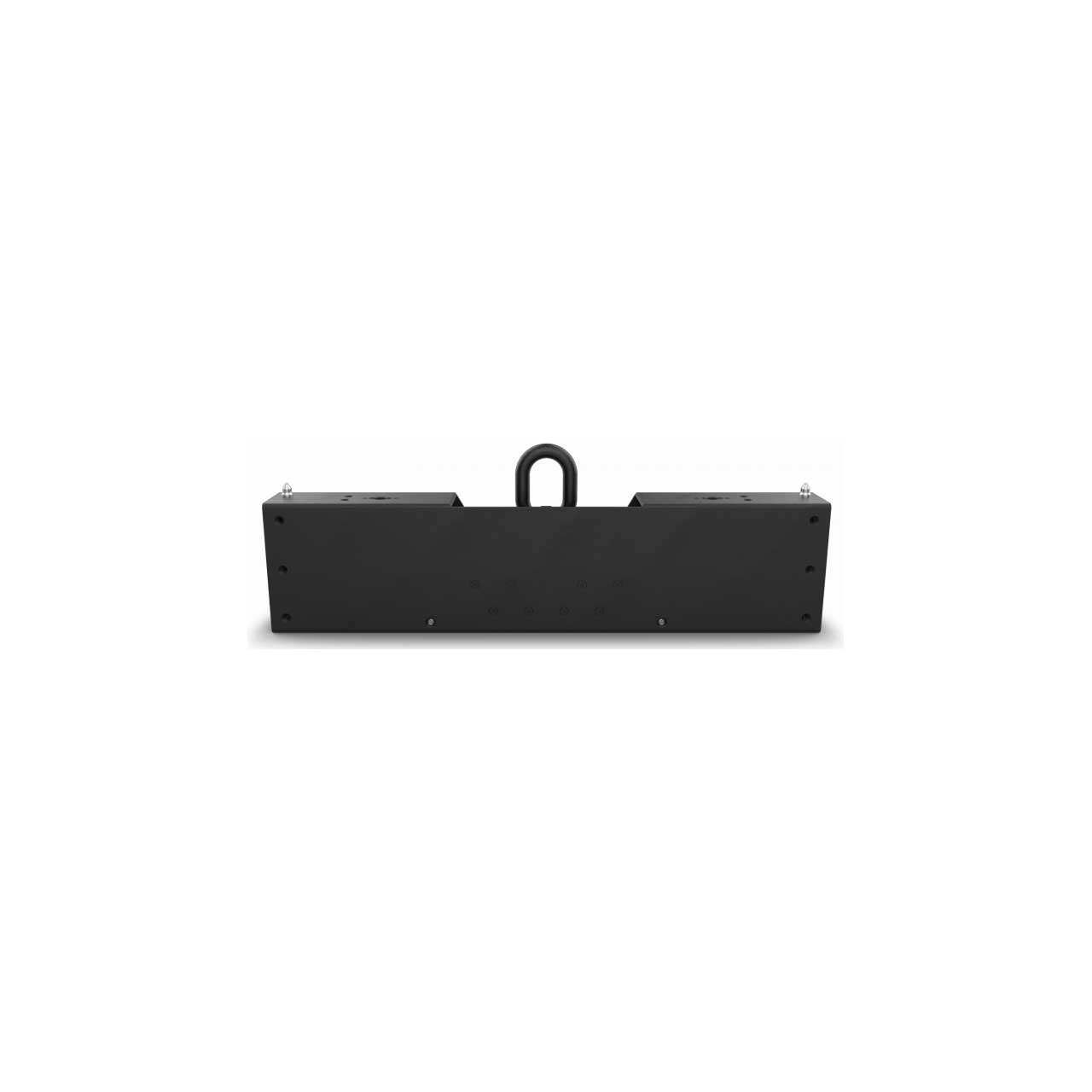

Chauvet DRB-F50CM Rig Bars for hanging F-Series Video Wall Panels / Ground Stacking - 50 CM

DRB-F50CM - Overview

• Features:

  • F-series Dual Function Rig Bar, used to hang video panels vertically or horizontally
  • Works for overhead hanging, as well as ground support/stacking applications
  • Works with CHAUVET F-series video panels (F4, F3, F2, F5IP, F4IP, VIVID4)
  • Hoist Rings fit standard rigging hardware for overhead hanging (1/2" and 5/8" shackles)
  • Magnetic alignment hardware between other dual function F-Series Rig Bars ensures correct alignment of screen structure


• Specifications:

  • Construction/Physical
  • Load Capacity (Hanging): 800 lb (363 kg)
  • Load Capacity (Stacking): 1,950 lb (885 kg)
  • Recommended Shackle Sizes: 1/2", 5/8"
  • Weight: 12 lb (5.5 kg)
  • Dimensions: 19.67 x 2.36 x 4.72 in (499.8 x 60 x 120 mm)


• Item Includes:

  • 1x F-series Dual Function Rig Bar-50 cm (DRB-F50CM)


• GTIN:

  0781462219505
