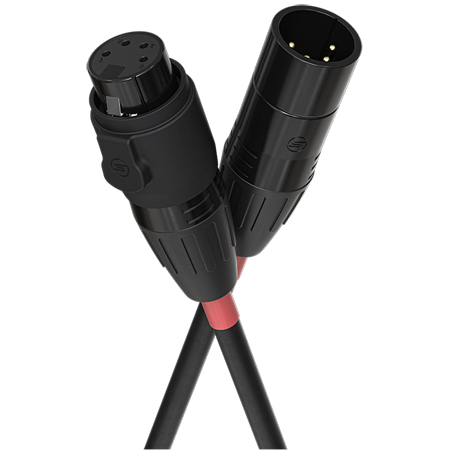

Chauvet RIGLINKXLR415FT Riglink 4-Pin Combined Power and Data IP65 Rated DMX Cable with XLR Connectors - 1.5 Foot

RIGLINKXLR415FT - Overview

• Features:

  • Outer jacket made of highly elastic PVC, providing a soft, durable, and flexible cable body
  • Ideal for both installations and touring
  • Seetronic professional production grade connectors
  • Designed for use with EPIX, Strike Array 1, and other 4 pin powered products
  • Different-sized Riglink DMX cables feature color-coded connectors to eliminate cable length guesswork
  • IP65 rated for outdoor use


• Specifications:

  Physical
  • Conductor Specification:
    - 2x 0.75mm² (18AWG)
    - 2x 2.5mm² (13AWG)
  • Conductor Structure: OFC 24/0. 2BC & OFC 50/0.25BC
  • Insulation Material: PVC
  • Insulation OD: 2.4mm & 3.5mm
  • Outer Jacket Material: PVC (Black)
  • Outer Diameter: 9.5mm ±0.2mm
  • IP65

    Connections
  • 1x XLR 4-Pin Male
  • 1x XLR 4-Pin Female

    Electrical
  • Withstand Voltage: 1.5kV
  • Conductor Resistance: 25.98Ω/km & 7.98Ω/km


• Item Includes:

  • 1x Riglink 4-Pin Combined Power and Data DMX IP Cable - 1.5 Foot


• Warranty:

  • 1 Year Limited Warranty


• GTIN:

  0781462228262
