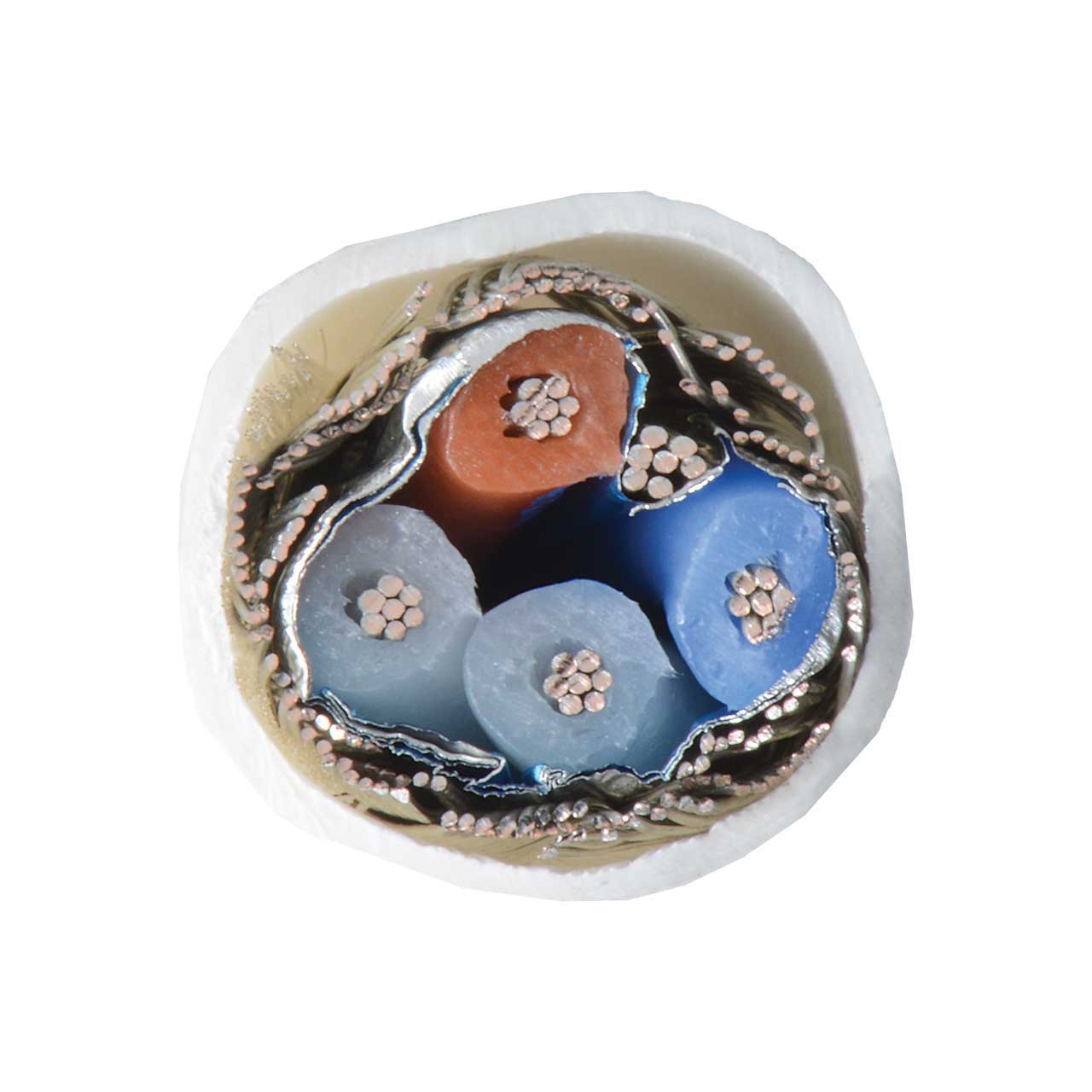

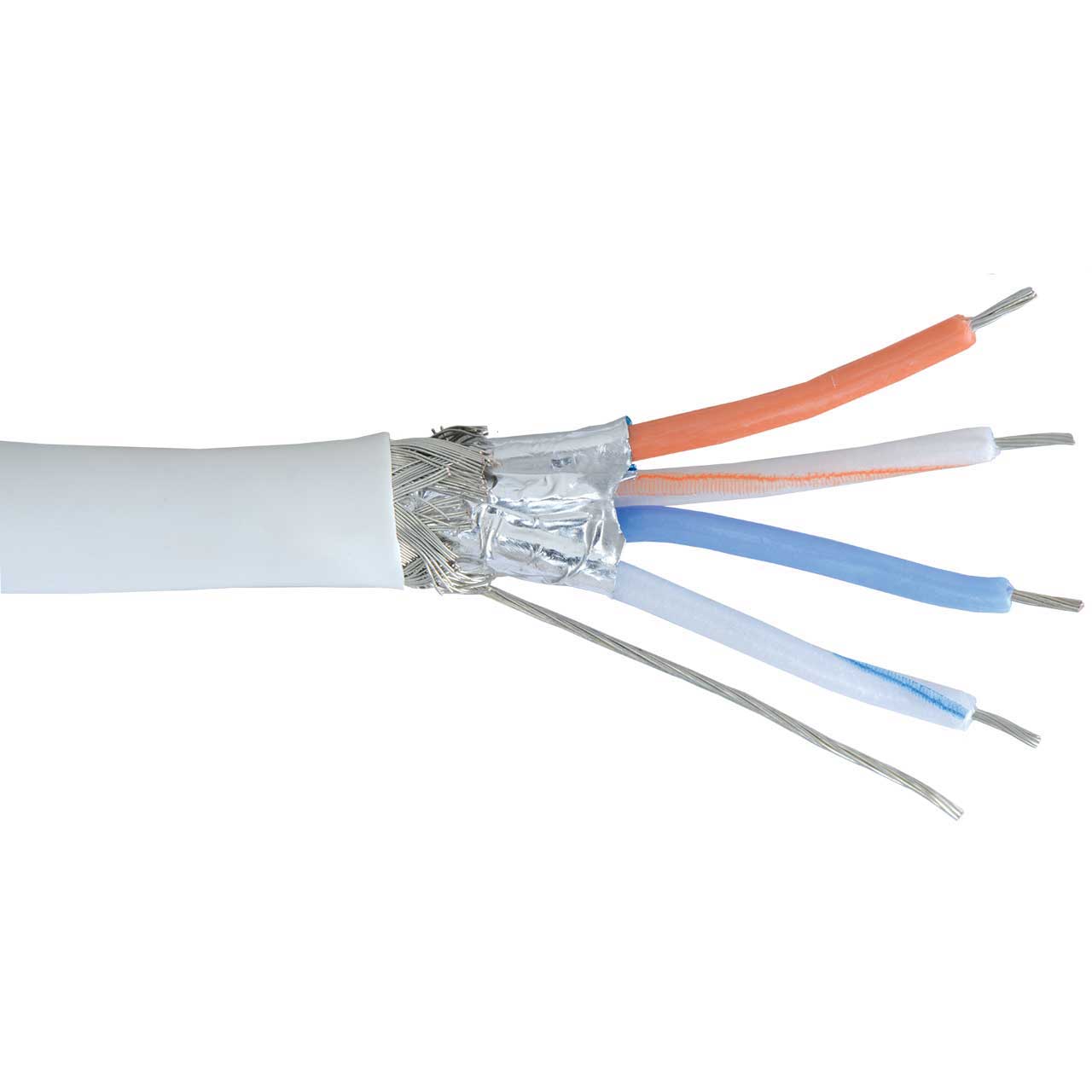

Plenum Rated Lighting DMX-512 Control and Data 24 AWG 2-Pair Cable - Per Foot

24-2P-P485-WHT - Overview

• Features:

  • 24 AWG 7-strand tinned copper conductors
  • Foamed polyethylene dielectric insulation
  • Two pairs twisted and cabled together
  • Dual shielded with foil and tinned copper braid shields
  • Plenum rated PVC alloy jacket with ripcord
  • Precise 11.2 pF/FT low capacitance, 120 Ohm impedance
  • NEC CMP, CEC CMP FT6, RoHS compliant


• Specifications:

  • Conductor
  • 24 AWG
  • 7-strand tinned annealed bare copper conductors
  • Diameter: 0.024"

    Electrical
  • DC resistance: 25.67 Ω / 1000' / 84.20 Ω/KM
  • Shield DCR: 2.4 Ω / 1000' / 7.87 Ω/KM
  • Mutual capacitance: 10.5 pF/FT / 34.44 pF/M
  • Shield capacitance: 18.4 pF/FT / 62.32 pF/M
  • Impedance: 120 Ω
  • Velocity of Propagation: 79%
  • Voltage rating: 300V
  • Maximum current: 1.6A@25°C

    Insulation
  • Foam fluorinated ethylene propylene
  • Wall thickness: 0.022"
  • Diameter: 0.068"
  • Regulatory NEC: CMP 60°C
  • CEC: CMP FT6 60°C
  • EU RoHS-2 2011/65/EU Compliant
  • Color Code Pair 1: Blue, White/Blue
  • Pair 2: Orange, White/Orange

    Packages
  • Reel: 1000'
  • Weight: 46Lbs per 1000'

    Assembly
  • Pair lay length: 1.0"
  • 12.0 twists per foot/80 twists per meter
  • 2 pairs cabled on a common axis

    Installation
  • Pull Tension: 52Lbs/231 N
  • Bend radius: 2.77" unloaded
  • Bend radius: 5.54" loaded
  • Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F / 0°C ambient temperature

    Construct
  • Ripcord under jacket

    Applications
  • Plenumfull duplex RS-485 and DMX-512
  • Plenum low voltage control, RS-422, RS-232C signaling

    Shield
  • Shield 1: 100% aluminum/polyester tape foil out
  • Shield 2: 90% 16/10/36 AWG tinned copper braid
  • 24 AWG 7-strand tinned copper drain

    Performance
  • DMX-512 Standard is 4,000 feet
  • Recommended maximum is 1,200 feet

    Jacket
  • Plenum rated polyvinyl chloride
  • Colors: Natural White
  • Wall thickness: 0.015"
  • Diameter: 0.277"
  • Final Outside Diameter: 0.277"
