Chauvet Stage Designer 50 Theater-Style DMX Controller

ITEM #: CHVT-STGDES-50 MFG #: STAGE DESIGNER 50

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$346.65

Our Price:

$259.99

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


STAGE DESIGNER 50 - Overview

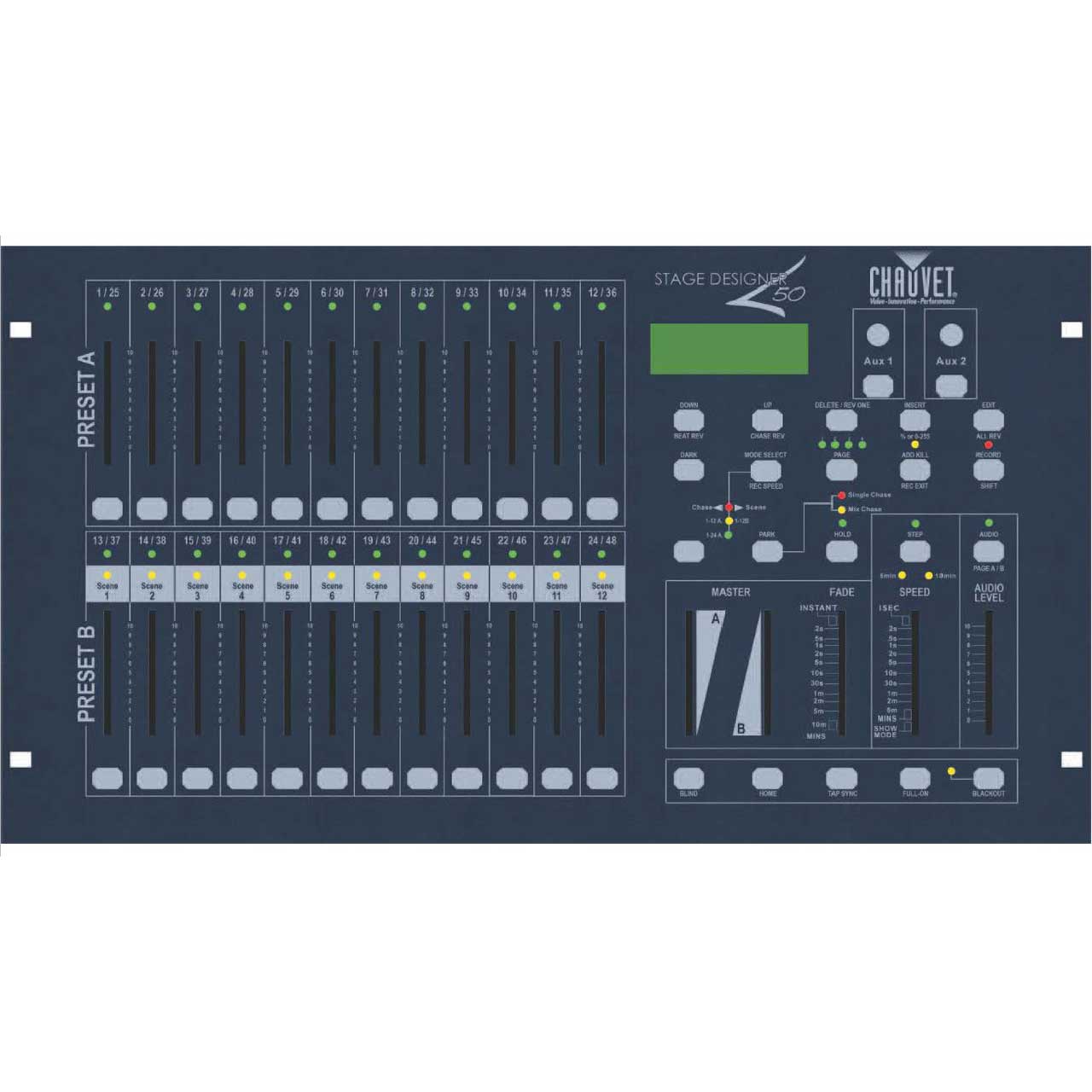

The Chauvet Stage Designer 50 takes the size of a 24-channel dimming console and the functionality of a 48- channel console and combines the two into one powerful dimming unit. The Stage DesignerT 50 has up to 8 pages with 12 scenes each and 96,000 programmable steps. The console allows the user to re-assign channels as needed and allows for MIDI input.

  • Features:

    • Theater-style, DMX controller designed to control LED Par fixtures as well as relay and dimmer packs
    • Saves desk space by squeezing 48 channels into a 24-channel console
    • Achieve smooth transitioning between live stage looks with built-in, two-scene cross faders
    • Increase programming and playback versatility with two programmable auxiliaries
    • Simplify programming by using DMX channel patching to reassign channels
    • Increase flexibility with built-in MIDI support for remote dimming and scene triggering
    • Coordinate your light shows to music using the direct audio input connector or built-in microphone
    • Ability to stack scenes for simultaneous or sequential playback

  • Specifications:

    • DMX Channels: 48
    • DMX Connectors: 3- and 5-pin
    • Rackmount: 6U
    • Input Voltage: 12VDC 500mA (external power supply: 100 - 240VAC 50/60Hz)
    • Weight: 9.9lbs (4.5kg)
    • Size: 19 x 10.5 x 3.5in (483 x 267 x 89mm)
    • Approvals: CE

  • Item Includes:

    • Power cord
    • User manual
    • Warranty card
    • External power supply

  • GTIN:

    0781462202637
