Cleerline DOM2SCSC01M SC/UPC-SC/UPC-1.6mm Riser-OM2-1m Fiber Cable
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

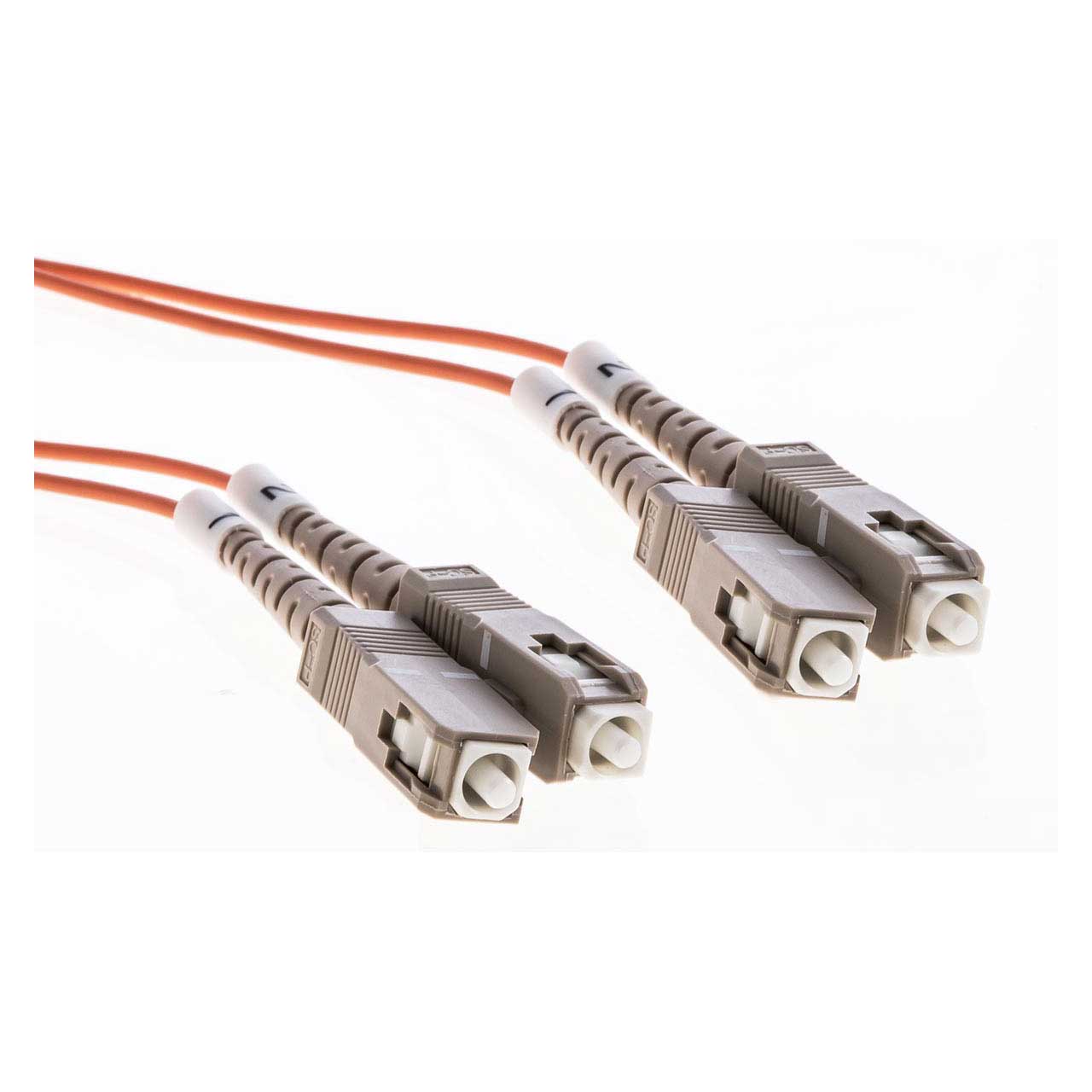

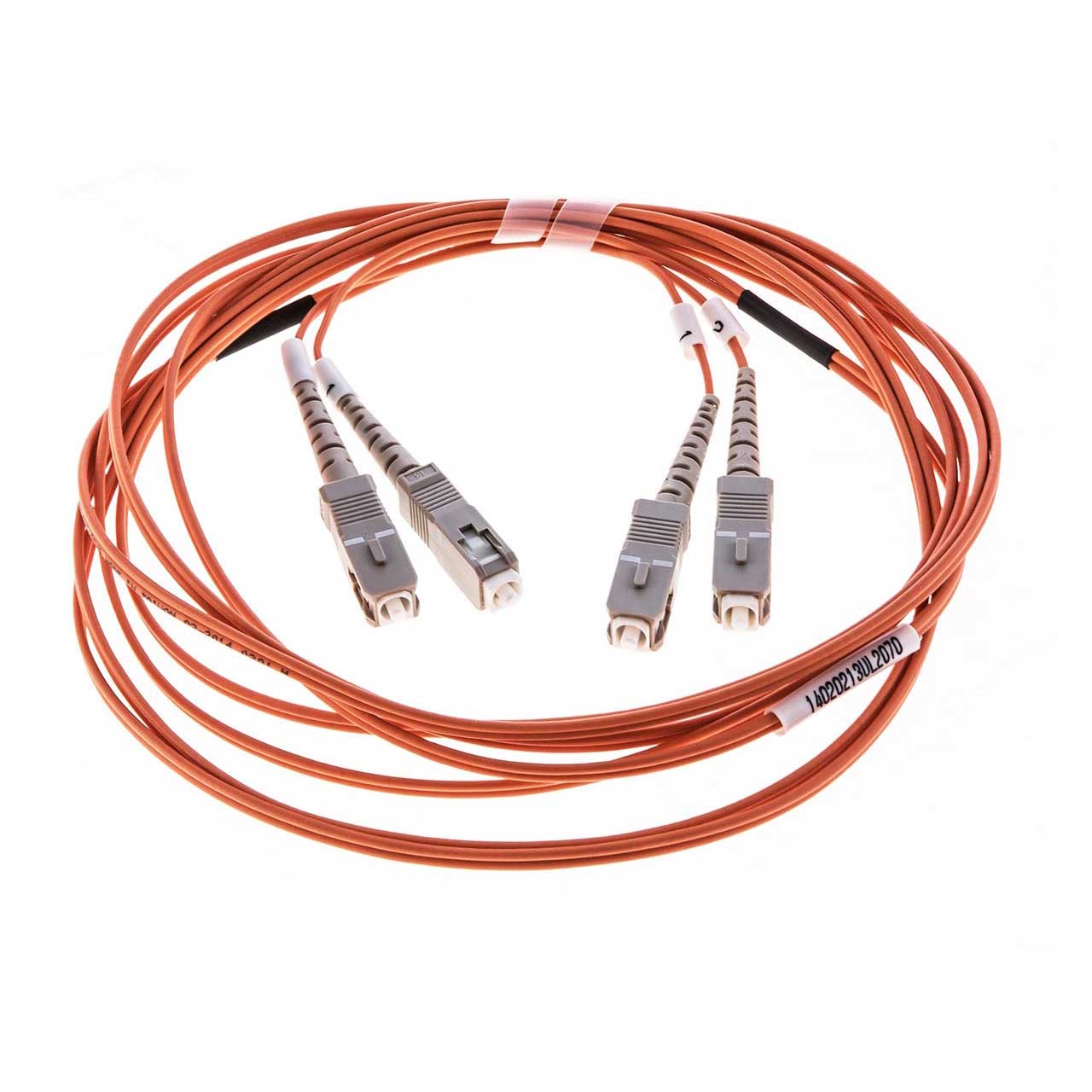

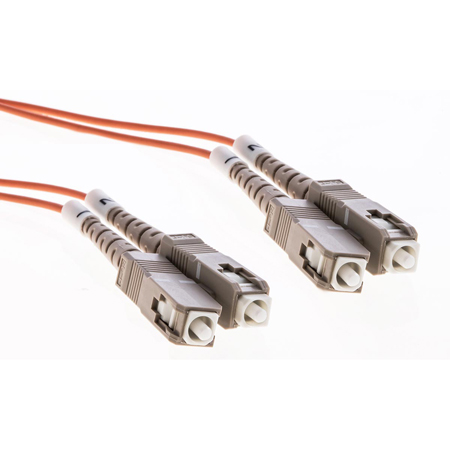

    Cleerline DOM2SCSC01M SC/UPC-SC/UPC-1.6mm Riser-OM2-1m Fiber Cable

    Item #: CLT-DOM2SCSC01M   •   MFG #: DOM2SCSC01M


    Our Price:$41.20

    free ship
    More on the way, usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

      California Residents:
      Cancer and Reproductive Harm -


      Cleerline XD fiber optic patch cords deliver extreme performance and reliability for all system connections. XD series patch cords incorporate Cleerline's exclusive SSF™ integral polymer as part of the fiber optic glass technology. SSF fibers provide up to 10,000x increased bend and up to 200x increased pull strength compared to standard glass fibers. SSF fibers are extremely durable and are able to endure even repeated tight bending with insensitivity to optical loss at all wavelengths even at very low radii. High quality connectors ensure insertion loss and back reflections that exceed all industry standards.

      • Features

        • Singlemode patch cords available in OS2 A2
        • Multimode patch cods available in OM2, OM3, OM4 versions
        • Duplex assemblies available with clips (SC and LC)
        • SC and LC connector varieties / terminations
        • Conforms to IEC, EIA-MTIA and Telecordia performance requirements
        • Available in Duplex Configurations with clips
        • Standard LC and SC connector types
        • Bend Insensitive OM2, OM3, OM4, and OS2 type fibers
        • TIA color coded connectors
        • 600um tight buffer
        • Riser Rated (OFNR) jacket type
        • RoHS compliant
      • Specifications

        • Core Diameter 50.0 ± 2.5 (&mirco;m)
        • Core Non- circularity ≤ 5 (%)
        • Core / Hybrid Cladding Concentricity Error ≤ 3.0 (&mirco;m)
        • Hybrid Cladding Diameter 125 ± 1 (&mirco;m)
        • Hybrid Cladding Non-Circularity ≤ 3.0 (%)
        • Protective Coating Concentricity Error ≤ 3.0 (&mirco;m)
        • Soft-Peel Jacket Identifier 245 ± 5
        • Coating Strip Force (typicial) ≤ 100 (g)
        • Color Coating Diameter 250 ± 10 (&mirco;m)
        • Fiber Curl ≥ 2 (m)
        • Proof Test 100 (Kps)
        • Bend Induced Attenuation at 1300 nm ≤ 1.0 (dB)
      • Warranty

        • Lifetime
