Custom 18 Inch x 24 Inch Hinged Rack Panel Loaded with SpeakON Connectors - Black Anodized Panel 7

Name: Custom 18 Inch x 24 Inch Hinged Rack Panel Loaded with SpeakON Connectors - Black Anodized Panel 7
Brand: Markertek In-House Custom Shop
SKU: CMP-M3917801-07
Price: 551.99 USD
Availability: Backorder

ITEM #: CMP-M3917801-07 MFG #: CMP-M3917801-07

Markertek In-House Custom Shop

This item is custom made. Ordering this product requires written authorization. Please contact a sales engineer at 1-800-522-2025 for details.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

CMP-M3917801-07 - Overview

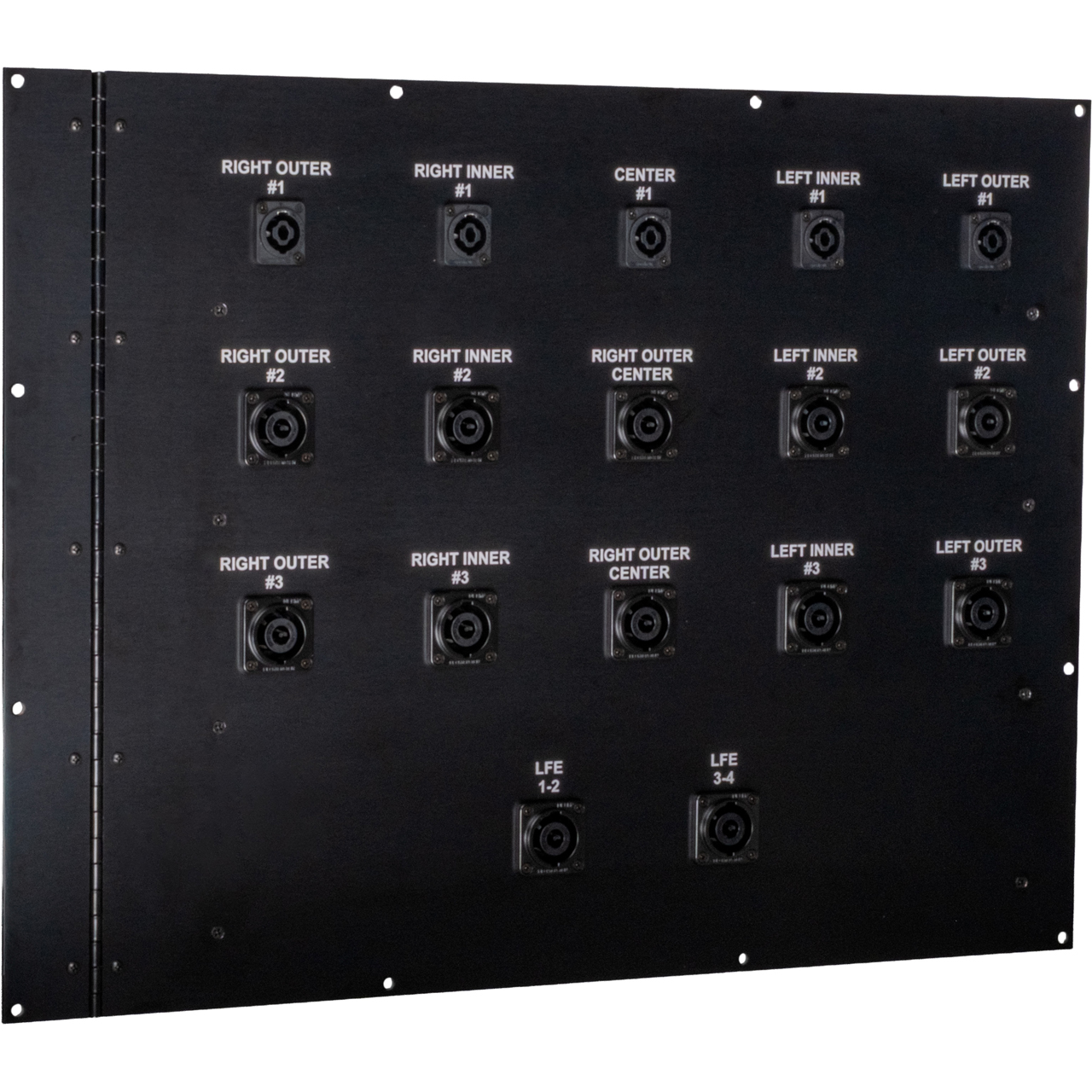

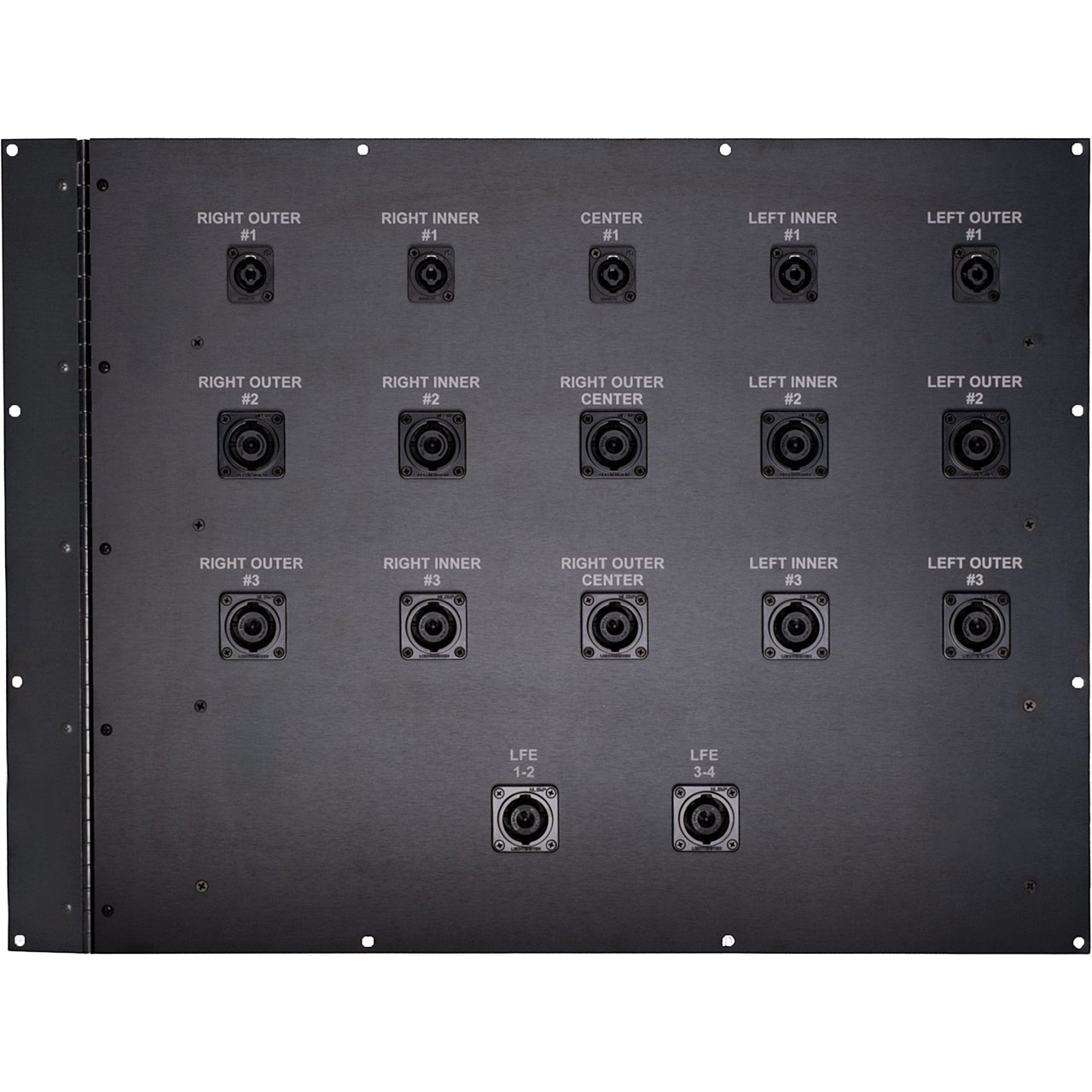

This custom 18" x 24" hinged rack panel features 17x speakON connectors. The connectors are accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984. The speakON panel mount connectors are the standard chassis connectors for loudspeaker/amplifier interconnections and feature a unique metal locking system, making contact only once fully locked. The receptacles are robust, versatile and easy to terminate.

Attention: SpeakON is NOT to be used as an mains or power supply connector (AC/DC)!

Features:
- IEC 61984 certified > IEC 62368-1 compliant
- Glass reinforced V-0 materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design - optimized for speaker applications
Specifications:
- Gender: Male
- Contact resistance: ≤ 2 mΩ
- Dielectric strength: 2.8 kVac
- Insulation resistance: >0.1 GΩ (after dampheat)
- Rated current per contact: 25 A rms continuous (audio rating significantly higher, depending on signal)
- Rated voltage: 250 V ac
- Attention: speakON is NOT to be used as an AC mains or power supply connector!
- Lifetime: > 5000 mating cycles
- Termination: 3/16" flat tabs (e.g. NLFASTON)
- Locking device: Quick Lock
- Chassis shape: D
- Layout: standard hole position, thru holes
- Contact plating: Ag
- Locking element: Stainless Steel
- Shell: Polyamide (PA 6.6)
- Contacts: Copper Alloy
- Flammability: UL94 V-0

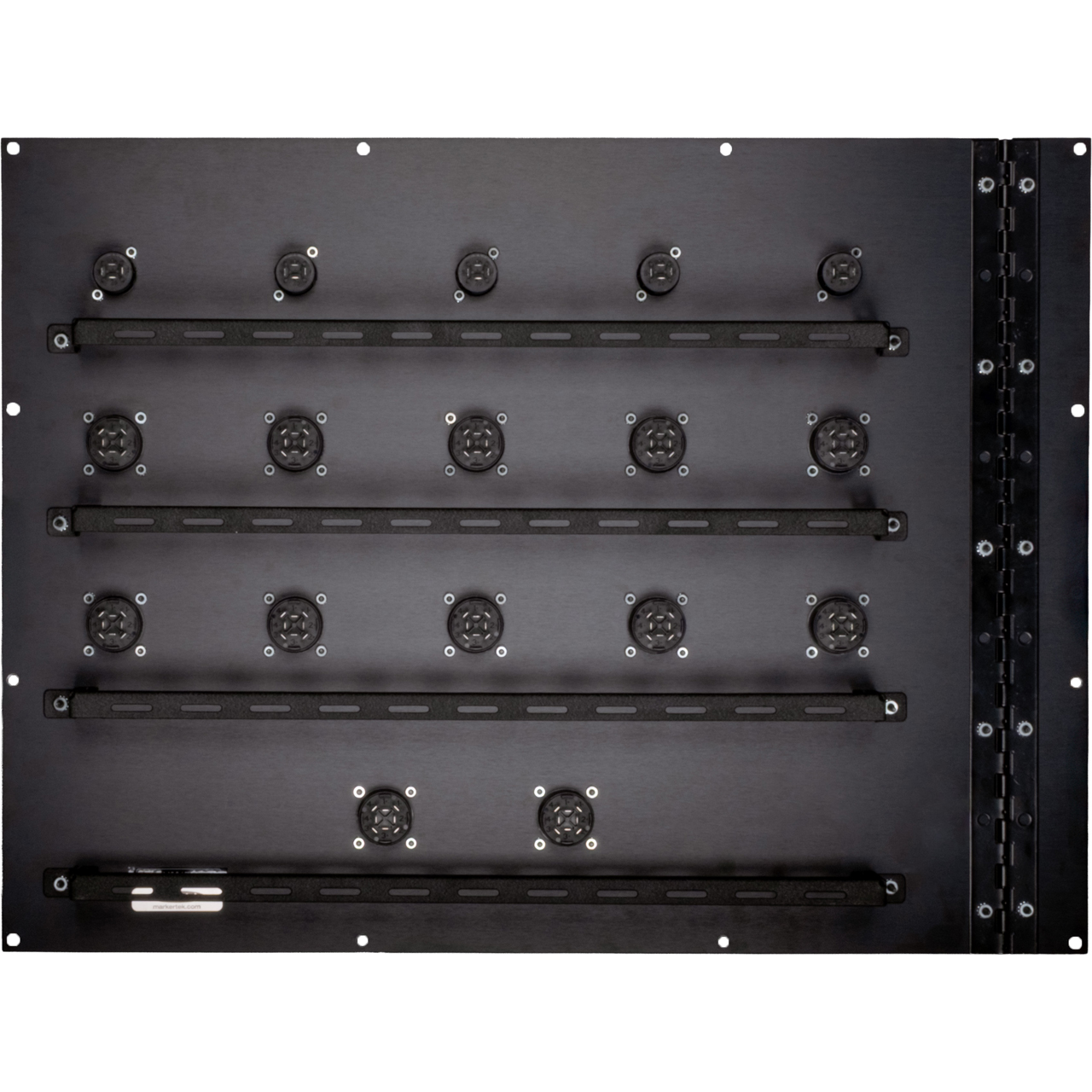

  Lacer Bar
- Depth: 2" (5.08cm)
- Height: 0.7" (1.78cm)
- Primary Package Weight: 2.94lbs (1.33kg)
- Width: 19" (48.26cm)
Item Includes:
- 1x Custom 18 Inch x 24 Inch Hinged Rack Panel
