CMP-M3929579 - Overview

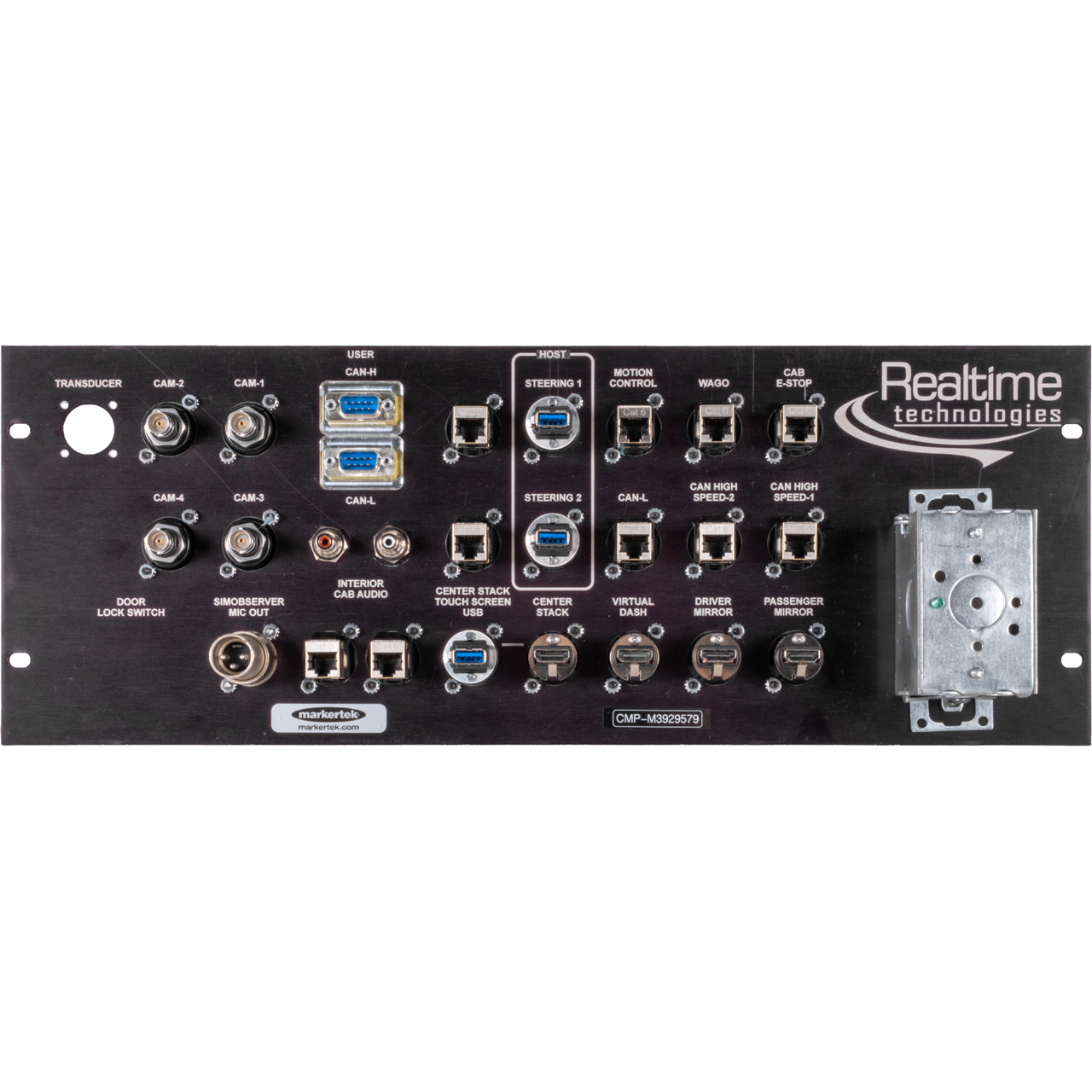

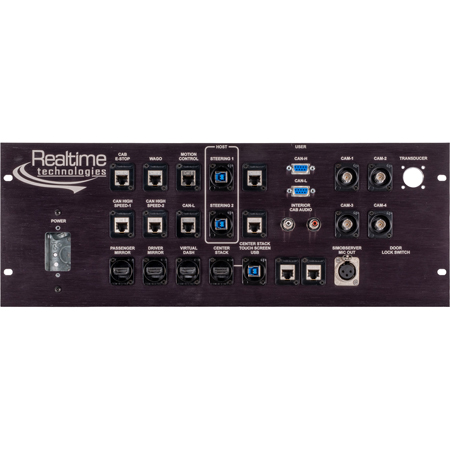

This 4RU custom panel features many different connections such as RJ45, USB, XLR, BNC, and HDMI.

The BNC chassis connector offers a true 75Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).

The 3-pin XLR female to XLR male feedthrough adapter is great for setting up simple patch points or for use on wall plates in studios where saving time not having to solder is a bonus!

The USB connector is a reversible USB 3.0 feed through adapter. The standardized D-shape housing of the adapter fits into conventional patch panels and offers an additional protection for the connector.

Features:
- USB 3.0 gender changer type A-B or B-A
- Reversible insert offering type A or B on front or rear end
- Standard D-shape housing
- Removable screen for chassis grounding
- Closed contact design
- Gold plated cage type clip
Specifications:
- TIA/EIA Rating: CAT5e/CAT6
- Frequency Bandwidth: CAT5e (1-100 MHz)
- Frequency Bandwidth: CAT6 (1-250 MHz)
- Number of Contacts: 8
- Rated Current: 1.5 Amps
- Insulation Resistance: 500m Ohm
- Dielectric Strength: 1 kVac
- Contact Resistance: < 20m Ohm

  XLR Connector
- Capacitance Between Contacts: = 4 pF
- Contact Resistance: = 5 mO
- Dielectric Strength: 1,5 kVdc
- Insulation Resistance: > 2 GO (initial)
- Insulation Resistance: > 1 GO (after damp heat test)
- Rated Current Per Contact: 1 A
- Rated Voltage 50 V
- Insertion Force: = 20 N
- Withdrawal Force: = 20 N
- Lifetime: > 1000 mating cycles
- Wire Size: Max. 2.5mm
- Wire Size: Max. 14 AWG
- Wiring: Solder Contacts
- Locking Device: Latch lock
- Mounting Direction - Female front & Male rear
- Chassis Shape: D
- Contacts:
  - Female: Bronze (CuSn6)
  - Male: Brass (CuZn35Pb2)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking Element: Steel Ck67
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell Plating: Nickel
- Flammability: UL 94 HB
- Standard Compliance: IEC 61076-2-103
- Protection Class: IP 40

  USB Connector
- Gender: Female
- Reading/Writing Speed: > 200 MB/s
- Mounting Direction: Front
- Chassis Shape: D
- Contact Plating: Au
- Contacts Brass: (CuZn39Pb3)
- Shell Plating: Nickel
- Flammability: UL 94 V-0

  BNC Connector
- Signal Type: HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
- Contact Resistance: = 3 mΩ (inner)
- Contact Resistance: = 2 mΩ (outer)
- Dielectric Strength: 1,5 kVdc
- Impedance: 75 Ω
- Insulation Resistance: > 5 GΩ
- Rated Voltage: < 50 V
- VSWR: =1.03/>37 dB up to 1 GHz, =1.05/>32 dB up to 2 GHz, =1.08/>28 dB up to 3 Ghz
- Insertion Force: < 25 N
- Lifetime: > 1000 mating cycles
- Locking Device: Bayonett
- Mounting Direction: Front mounting
- Chassis Shape: D
- Contacts: Brass (CuZn39Pb3), 0.2 æm AuCo (Center contact)
- Insert: PTFE
- Shell: Polyacetal (POM) (Insulation Sheell)
- Shell Plating: Optalloy
- D-Shape Housing: Zinc diecast (ZnAl4Cu1) gal black chrome plating
Item Includes:
- 1x Custom 4RU Black Anodized Panel
