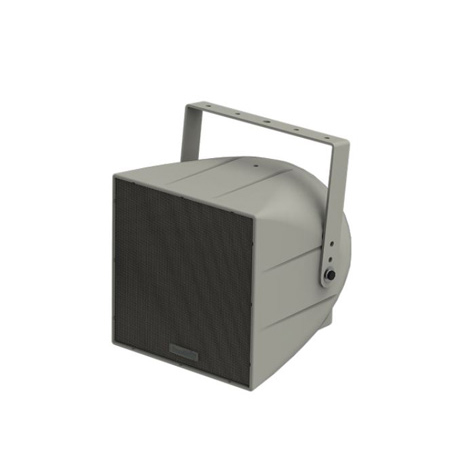

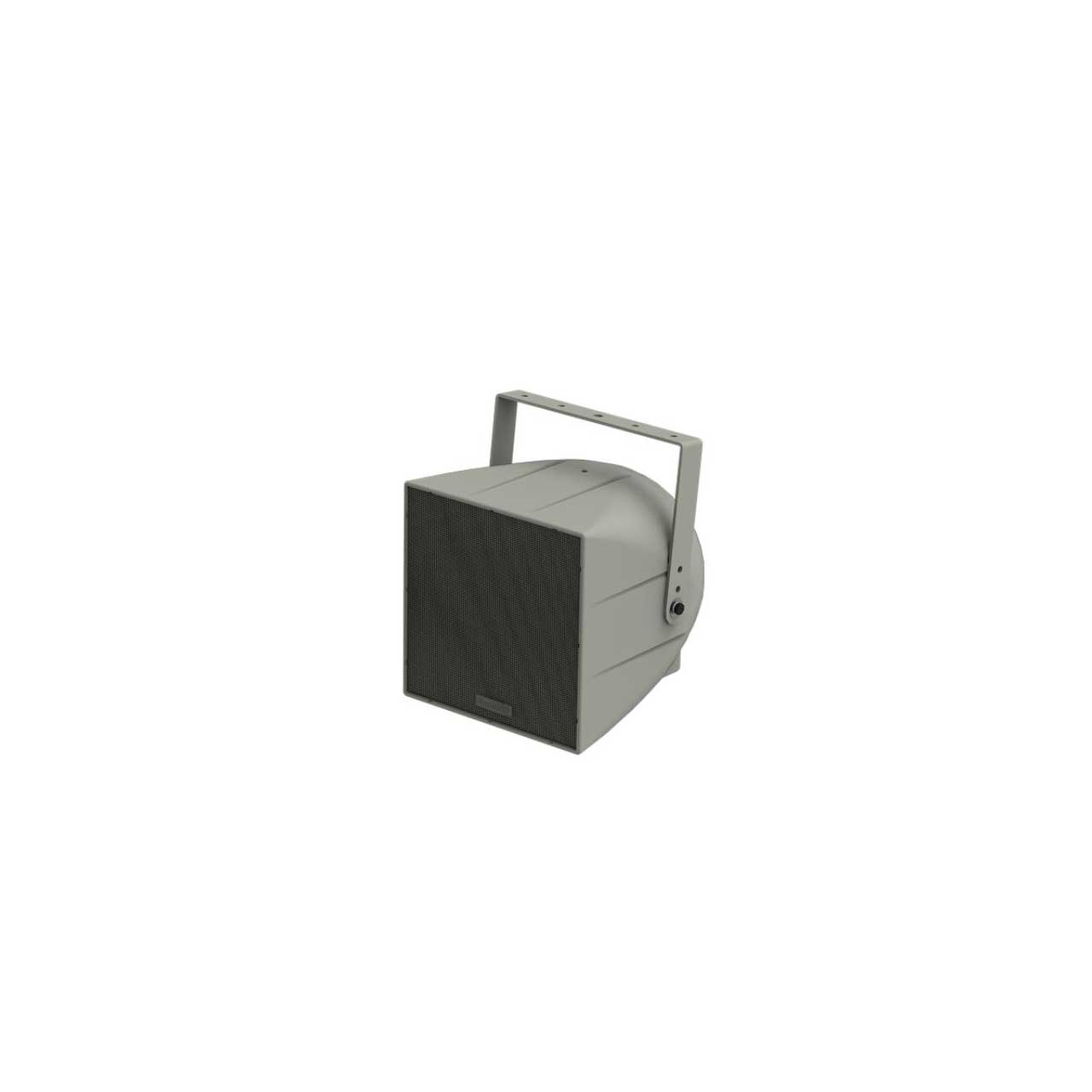

Community R.25-94TZ Full-Range Loundspeaker - 2-Way 8-Inch 90x40 70V/100V - Grey

ITEM #: CMTY-R25-94TZ MFG #: R.25-94TZ

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$958.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    R.25-94TZ - Overview

    The Community Pro R.25-94Z is a 2-way, full-range loudspeaker system designed to provide high quality voice and music reproduction in applications requiring extreme weather resistance. It is designed to withstand longterm exposure to tough, environmental conditions and to provide performance normally associated only with indoor loudspeakers. Both the R.25-94Z and R.25-94TZ have an 8-inch (203mm) cone LF driver and a 3/4-inch (20 mm) exit HF compression driver with weather resistant diaphragms. The HF driver is coupled to a nominal 90° x 40° horn. The HF assembly is coaxially mounted with the LF driver. The R.25-94TZ has a built-in multi-tap 200W autoformer for 70V /100V operation and a rotary switch for tap selection.

    The R.25-94Z's high efficiency, modest power requirements and 8 Ohm impedance makes it easy to deploy large numbers of loudspeakers using only one amplifier, keeping the overall system costs to a minimum. The large 200W autoformer in the R.25-94TZ allows the loudspeaker to maintain its full high output capability even when running on 70V/100V systems. Both models carry a 5 year product warranty and a 15 year enclosure warranty.

    Applications:
    Convention centers
    Fill speaker for stadia, athletic fields, arenas and race tracks
    Outdoor background music / paging systems
    Theme and amusement parks
    Fairgrounds and rodeos
    Malls, cruise ships, skating rinks
    Swimming pools

    • Features:

      • Weather-resistant, rotomolded UV enclosure.
      • Weather-treated drivers and crossovers.
      • Corrosion-resistant zinc-rich epoxy dual-layer powder coated
      • steel grille and yoke.
      • High fidelity, all horn loaded.
      • Multi-tap 200W autoformer for 70V and 100V inputs.

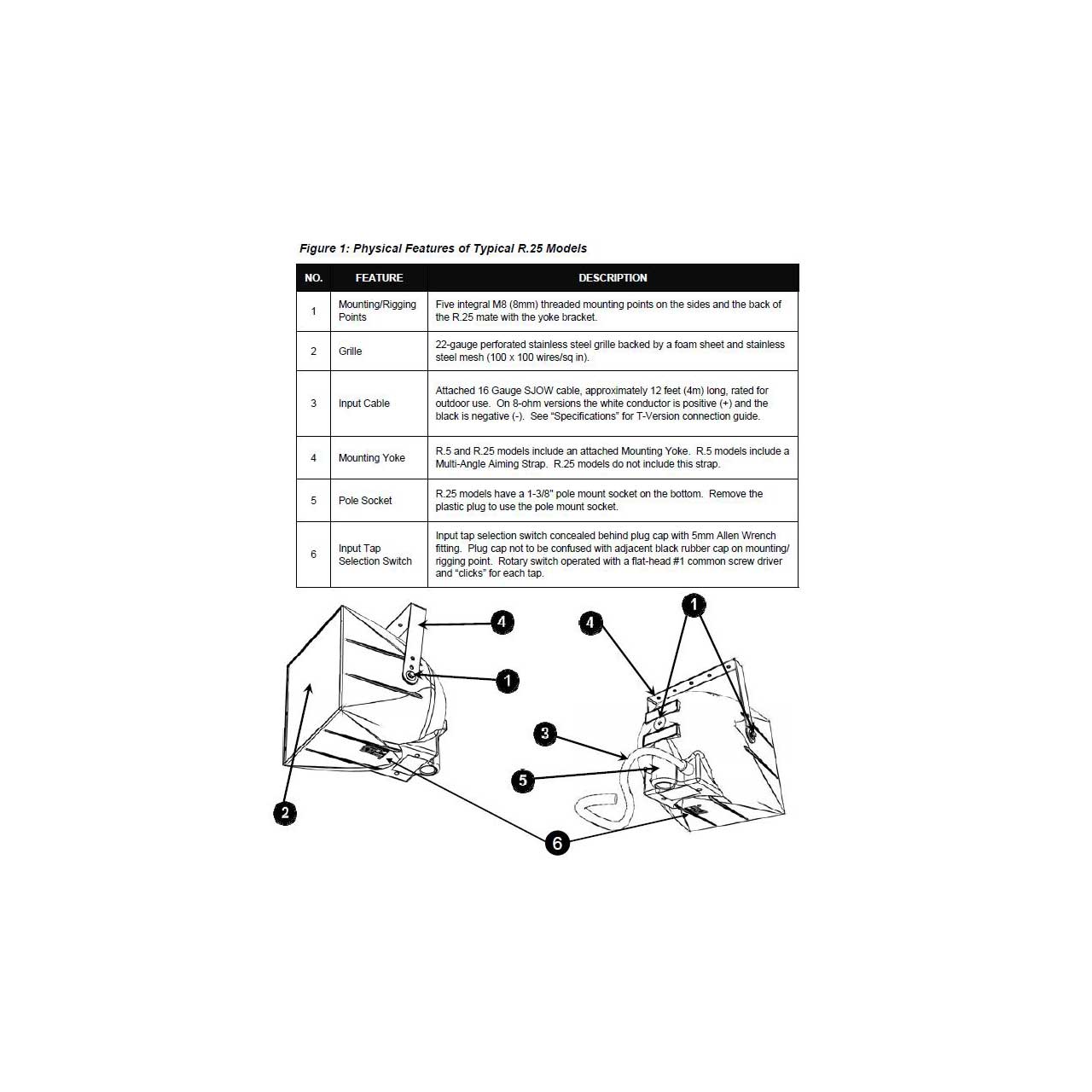

      • Integral mounting points.
      • Optional black and white versions (model R.25-94BTZ and
      • R.25-94WTZ).
      • High power passive crossover.
      • Five-year product warranty / Fifteen-year enclosure warranty.

    • Specifications:

      • Loudspeaker Type: 2-way, horn loaded, coaxial, weather-resistant.
      • Operating Range: 100 Hz to 16 kHz, 160 Hz to 13 kHz (±3 dB).
      • Max Input Ratings: 200W, 70V/100V.
      • Recommended Power Amplifier: 25W to 200W @ 70V, 50W to 200W @ 100V.
      • Sensitivity (1W/1m): 96 dB SPL (160 Hz to 10 kHz 1/3 octave bands), 96 dB SPL (250 Hz to 4 kHz speech range).
      • Maximum Output on 200W Tap: 119 dB SPL.
      • 200W Nominal Impedance: 25 ohms.
      • 200W Minimum Impedance: 16.2 ohms @ 9 kHz.
      • Nominal -6dB Beamwidth: 90°H (+7° / -13°, 2 kHz to 10 kHz), 40°V (+35° / -10°, 2 kHz to 10 kHz). Axial Q / DI: 13.5 / 11.3, 2 kHz to 10 kHz.
      • Crossover Frequency: 2 kHz.
      • Recommended Signal Processing: 100 Hz high pass filter
      • Drivers: LF (1) 8" cast frame, Cool-Coil, HF (1) 3/4" exit, titanium free, Ferrofluid-cooled.
      • Driver Protection: DYNA-TECH protection circuitry.
      • Input Connection: 16-2 SJOW (12 ft /4 m).
      • Controls: 4 position autoformer TAP select switch, 70V switchable taps @ 200W, 100W, 50W, 25W, 100V switchable taps @ 200W, 100W, 50W.
      • Enclosure: Rotomolded LLDPE, light grey.
      • Mounting/Rigging Provisions: (5) rigging points (M8 hardware), 1-3/8" pole mount socket.
      • Grille: 3-layer WeatherStop, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh).
      • Environmental Performance: IEC529 IP55W rating with a minimum 5-degree downward aiming angle.
      • Required Accessories: 24 dB/Oct high pass filter.
      • Supplied Accessories: (1) Yoke bracket, (Light Grey).
      • Optional Accessories: PMB Series pole mount brackets.
      • Dimensions: Height: 11.3 inches / 287 mm, Width: 11.3 inches / 287 mm, Depth: 13.3 inches / 338 mm.
      • Weight: 23 lbs / 10.4 kg
      • Shipping Weight: 29.1 lbs / 13.2 kg.

    • GTIN:

      0617174010812
