Creamsource K-CSU-2-B-GAF-A Micro Bender High CRI Gaffer Kit with Gold Mount Battery Plate and Power/Optic Accessories

ITEM #: CRM-K-U-2-B-G-A MFG #: K-CSU-2-B-GAF-A

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$2,599.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


K-CSU-2-B-GAF-A - Overview

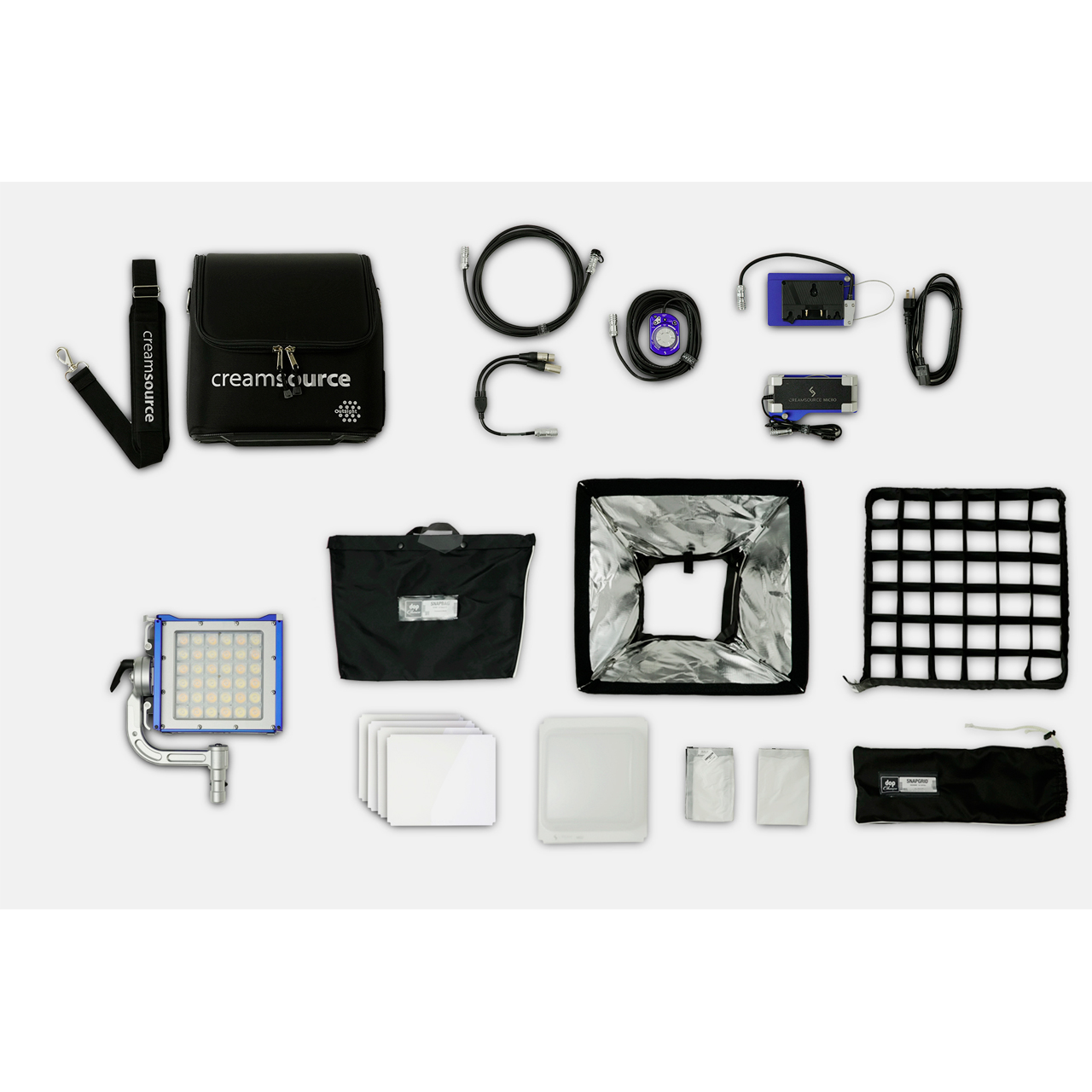

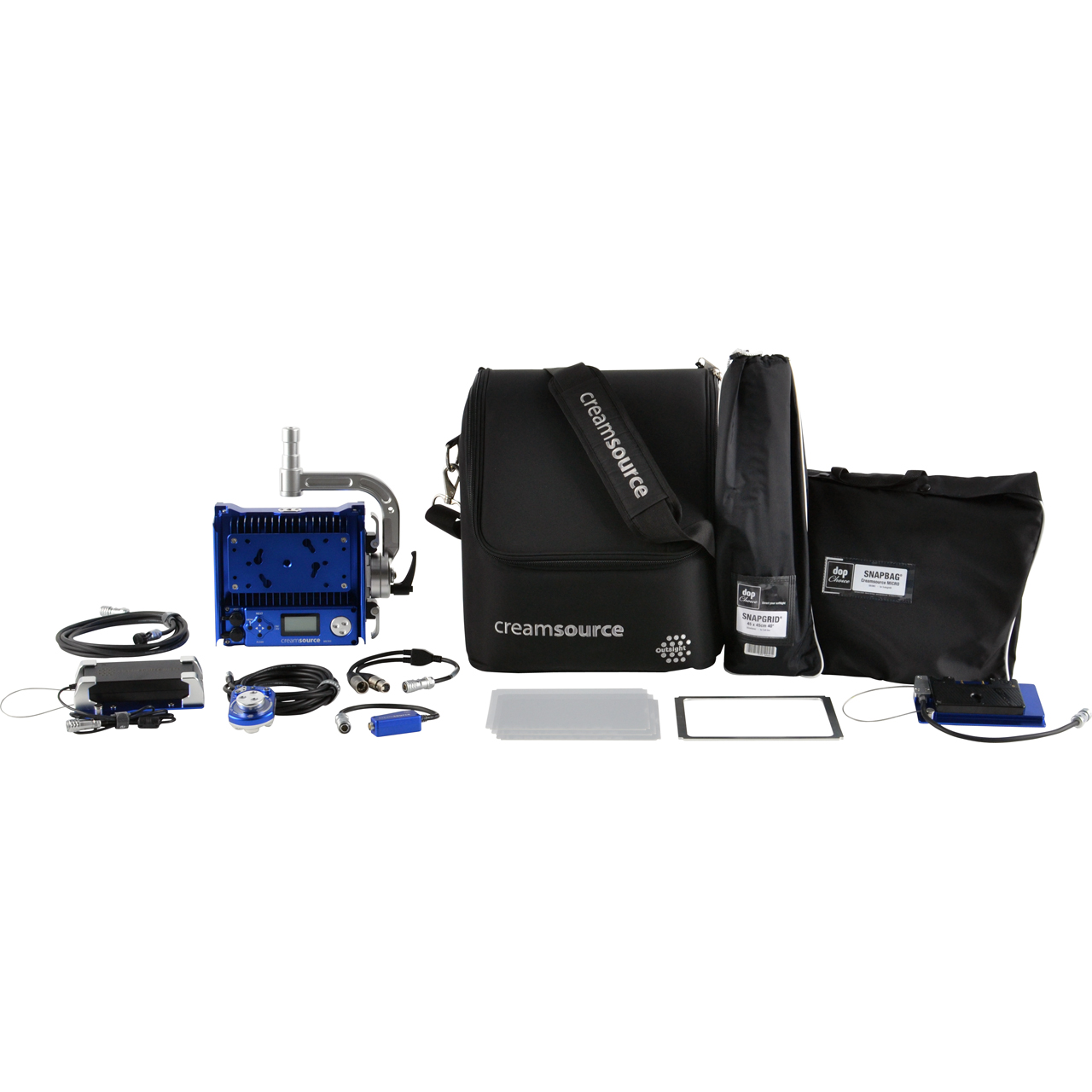

The Creamsource Micro K-CSU-2-B-GAF-A is packed with numerous accessories for the Micro LED light, leaving you to wonder if there are any extras left to offer. The kit is built around the bi-color, waterproof, high-CRI Micro LED fixture, with a yoke, ⅝" receiver, multi-voltage power supply and mount, and a 9.8ft extension cable. To modify the light's tight 13° beam angle, 20°, 60°, and 100° holographic lenses are included, as are a Snapbag softbox to soften the bright LEDs and a 40° Snapgrid to direct the beam spread. A converter for non-waterproof accessories is furnished, as well as a DMX adapter for remote control of the fixture. A wired remote control is also included. Besides AC, the Micro can also run on batteries, so a V-mount battery plate is also supplied, as is a padded case for the light.

Creamsource Gel-Frame for Creamsource Micro
The empty Gel Frame is designed to fit the Creamsource Micro, weighs 8.8oz, and has a 9.3" x 8.1" x 0.8" form factor.

Creamsource Softbag Padded Case with Rigid Internal Shell
The Softbag Padded Case from Creamsource can store and protect your products. It features a rigid internal shell, weighs 8.8lbs, and has a 15.7" x 16.9" x 14.2" form factor.

Creamsource DoPchoice Micro SnapBag for SCU-Series Fixtures
The DoPchoice SnapBag Softbox from Creamsource instantly pops out of its storage bag for immediate use. The SnapBag works with Creamsource SCU-series fixtures and weighs approximately 1lb.

Creamsource DoPchoice 40° SNAPGRID for Micro
The DoPchoice 40° SNAPGRID for Micro from Creamsource snaps on a SNAPBAG in seconds and tunnels the light forward, tightening the beam pattern and controlling spill light. The SNAPGRID weighs 1.1lbs and measures 12.2" x 5.9" x 5.9".

Creamsource Micro DMX Adapter Y-Cable
The Outsight Creamsource Micro DMX Adapter Y Cable enables DMX connection to your Creamsource Micro using standard 5-pin XLR connectors. It plugs into the 7-pin accessory socket of the Micro, providing in and out 5-pin DMX connections.

Creamsource 20° Medium-Spot Holographic Lens for Creamsource Micro
Made from laser-etched lens material, the 20° Medium-Spot Holographic Lens for Creamsource Micro from Outsight drops into the filter rail on the front of the fixture and expands the Micro's 13° spread to a medium-spot, 20° beam angle. Unlike diffusion material, the lens softens the light quality while transmitting 90% of the fixture's output.

Creamsource 100° Extra-Wide Angle Holographic Lens for Creamsource Micro
Made from laser-etched lens material, the 100° Extra-Wide Angle Holographic Lens for Creamsource Micro from Outsight drops into the filter rail on the front of the fixture and expands the Micro's 13° spread to a wide, 100° beam angle. Unlike diffusion material, the lens softens the light quality while transmitting 90% of the fixture's output.

  • Features:

    • 80W LED power equivalent to a 200W HMI luminaire
    • Bi-color LED with continuous color temperature adjustment from 2700K to 6500K
    • CRI/TLCI rating of 95 for superb color accuracy and excellent light quality
    • 13° beam angle for focused, intense lighting with high punch
    • IP65 waterproof rating for reliability in all weather conditions
    • 10V - 32V operating voltage for flexible power options, including a 90Wh battery or car power
    • Intuitive user interface with high-precision digital rotary encoder, 4-button keypad, and graphic LCD display
    • Flicker-free operation up to 1000fps in high-speed mode for smooth cinematic results
    • 0% - 100% dimming with high-resolution control for precise light adjustments
    • Quick-release yoke, Kino Flo-style twist-on mount, and ⅜" threaded insert for flexible rigging
    • Includes 20°, 60°, 100°, and 120° interchangeable lenses for different beam angles
    • Includes gel frame for additional light shaping and diffusion options
    • Anton Bauer battery mount for seamless power integration
    • Soft bag for convenient storage and transport of the entire kit
    • Snapbag softbox for additional light diffusion and softer effects

  • Specifications:

      Physical
    • Dimensions:
      - Excluding Yoke: 8.7" x 8.1" x 4.1" (221mm x 205.74mm x 104.14mm)
      - Including Yoke: 11.1" x 13" x 4.1" (282mm x 330mm x 104.14)
    • Weight:
      - Excluding Yoke: 7lbs (3.2kg)
      - Including Yoke: 8.8lbs (4kg)
    • Tilt Angle:
      - 170° (Up)
      - 80° (Down)
    • Mounting: ⅜" Threaded Insert. Kino Flo Twist-On Style Mount Plate
    • Yoke: Removable quick release yoke
    • Filter Rails: 2 Filter Rails for Secondary Lenses and Diffusers
    • Protection Class: IP65 (Fixture), IP20 (Power Supply)

      Optical
    • LED Wattage: 80W
    • Color Temperature: 2700K - 6500K
    • CRI: 95
    • TLCI: 95
    • Beam Angle: 13° (Half Peak Angle)
    • Photometrics:
      - 3200K @ 3.3ft: 51,800 lux/4,820 fc
      - 3200K @ 6.6ft: 16,700 lux/1,560 fc
      - 3200K @ 9.8ft: 7,650 lux/720 fc
      - 3200K @ 13.1ft: 4,390 lux/410 fc
      - 5600K @ 3.3ft: 55,100 lux/5,120 fc
      - 5600K @ 6.6ft: 18,200 lux/1,700 fc
      - 5600K @ 9.8ft: 8,360 lux/780 fc
      - 5600K @ 13.1ft: 4,720 lux/440 fc
    • Estimated LED Lifespan: 50,000 hours (L70)

      Electrical
    • Input (Fixture): 10V - 32VDC, Max 8A (80W)
    • Input (Power Supply): 100V - 240VAC, 50/60Hz, Max 1.3A

  • Item Includes:

    • 1x Micro Bender
    • 1x Yoke
    • 1x 9.84ft Power Supply Lead
    • 1x Power Supply Mounting Plate
    • 1x 90W Power Supply
    • 1x 20° Narrow Lens
    • 1x 60° Medium Lens
    • 1x 100° Wide Lens
    • 1x 120° Extra Wide Lens
    • 1x Gel Frame
    • 1x Dome Diffuser
    • 1x Softbag
    • 1x Snapbag Softbox
    • 1x Creamtwist Wired Remote
    • 1x Anton Bauer Style Battery Mount

  • Warranty:

    • 5 Year Limited Warranty
