Creamsource K-CSU-C-GAF-A Micro Color Gaffer Kit with Gold Mount Battery Plate and Power/Optic Accessories

ITEM #: CRM-K-U-C-G-A MFG #: K-CSU-C-GAF-A

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$2,599.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


K-CSU-C-GAF-A - Overview

The Creamsource Micro K-CSU-C-GAF-A is an advanced, versatile lighting solution designed for professional use in the film and TV industry. This powerful kit features an 80W RRGBBW LED lamp head with a Anton Bauer battery plate, offering excellent portability and flexibility on set. The Micro Color is equipped with a broad color temperature range from 2200K to 15000K, along with green/magenta adjustment, providing users with full creative control over their lighting setup. Its IP65 rating ensures reliable water resistance, making it suitable for all weather conditions, while the fan-free cooling system ensures silent operation, making it ideal for quiet environments.

With calibrated red, green, blue, and white LEDs, the Micro Color provides exceptional color rendering, boasting a CRI and TLCI of 95, ensuring that every shot features accurate and vibrant colors. The native 20° beam angle delivers impressive punch and high output, rivaling larger 200W HMI luminaires. This makes the Micro Color perfect for high-impact lighting applications in both studio and on-location environments. The included softbox, gel frame, and a variety of lenses provide ultimate flexibility for shaping and diffusing the light to suit any situation, while the intuitive user interface ensures quick and easy control on set.

Designed for both portability and durability, the Micro Color VM Gaffer Kit includes everything you need for a fully functional lighting setup. The kit comes with a variety of lenses, including 20°, 60°, 100°, and 120° options, as well as a snapbag softbox for diffusing light. With DMX control and gang control via Y-cables, the Micro Color allows for seamless integration into complex lighting setups without the need for additional dimmer boards. The kit is lightweight yet robust, and its compact design allows it to fit into tight spaces on set, making it an invaluable tool for lighting professionals.

  • Features:

    • 80W RRGBBW LED engine for full color control from 2200K to 15000K
    • Excellent color rendering with CRI and TLCI values of 95
    • 20° beam angle for powerful and focused light output
    • Water-resistant design (IP65) suitable for all-weather use
    • Fan-free cooling system for silent operation
    • Full range of accessories including 20°, 60°, 100°, and 120° lenses, snapbag softbox, and gel frame
    • Anton Bauer battery plate
    • Flicker-free dimming to over 5000fps in high-speed mode for smooth operation
    • Supports DMX control and gang control with Y cables
    • Comes with a removable power supply via optional PSU mount
    • Compact and lightweight design, weighing just 9.3lbs with yoke
    • Includes Creamtwist wired remote for added control

  • Specifications:

      Physical
    • Dimensions:
      - Excluding Yoke: 8.7" x 8.1" x 4.3" (221mm x 205.74mm x 105mm)
      - Including Yoke: 11.1" x 13" x 4.3" (282mm x 330mm x 105mm)
    • Weight:
      - Excluding Yoke: 7lbs (3.2kg)
      - Including Yoke: 9.3lbs (4.2kg)
    • Tilt Angle:
      - 170° (Up)
      - 80° (Down)
    • Mounting: ⅜" Threaded Insert. Kino Flo Twist-On Style Mount Plate
    • Yoke: Removable quick release yoke
    • Filter Rails: 2 Filter Rails for Secondary Lenses and Diffusers
    • Protection Class: IP65 (Fixture), IP20 (Power Supply)

      Optical
    • LED Wattage: 80W
    • Color Temperature: 2200K - 15000K CCT, Plus/Minus Green, Hue/Saturation, Direct RGBW, Effects
    • CRI: 95
    • TLCI: 95
    • Beam Angle: 20° (Half Peak Angle)
    • Photometrics:
      - 3200K @ 3.3ft: 12,900 lux/1,200 fc
      - 3200K @ 6.6ft: 3,150 lux/290 fc
      - 3200K @ 9.8ft: 1,400 lux/130 fc
      - 3200K @ 13.1ft: 790 lux/70 fc
      - 5600K @ 3.3ft: 12,340 lux/1,150 fc
      - 5600K @ 6.6ft: 3,010 lux/280 fc
      - 5600K @ 9.8ft: 1,340 lux/120 fc
      - 5600K @ 13.1ft: 750 lux/70 fc
    • Estimated LED Lifespan: 50,000 hours (L70)
    • Dimming: 0% - 100% with High Resolution, Super-Smooth Low End Mode

      Electrical
    • Input (Fixture): 10V - 32VDC, Max 8A (80W)
    • Input (Power Supply): 100V - 240VAC, 50/60Hz, Max 1.3A

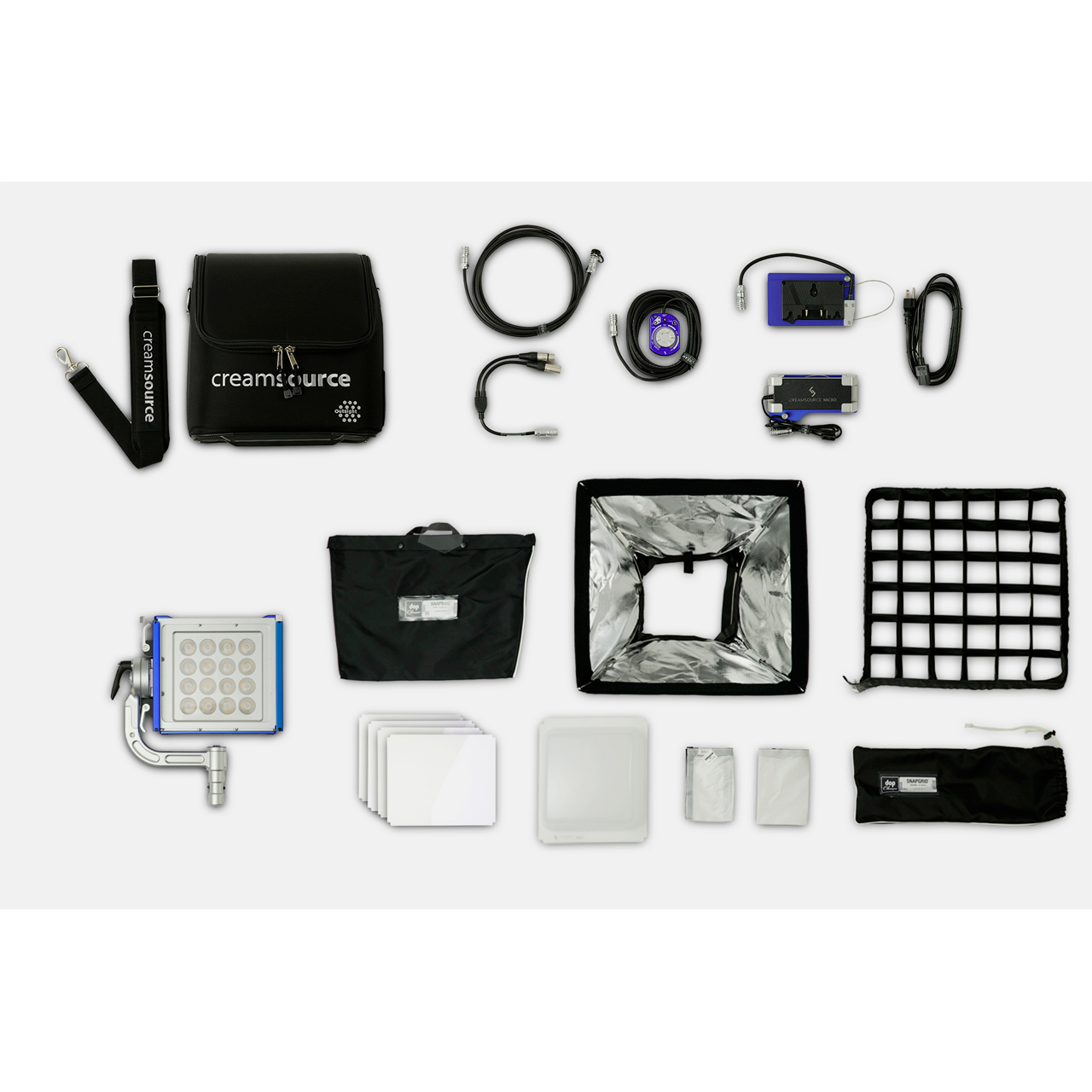

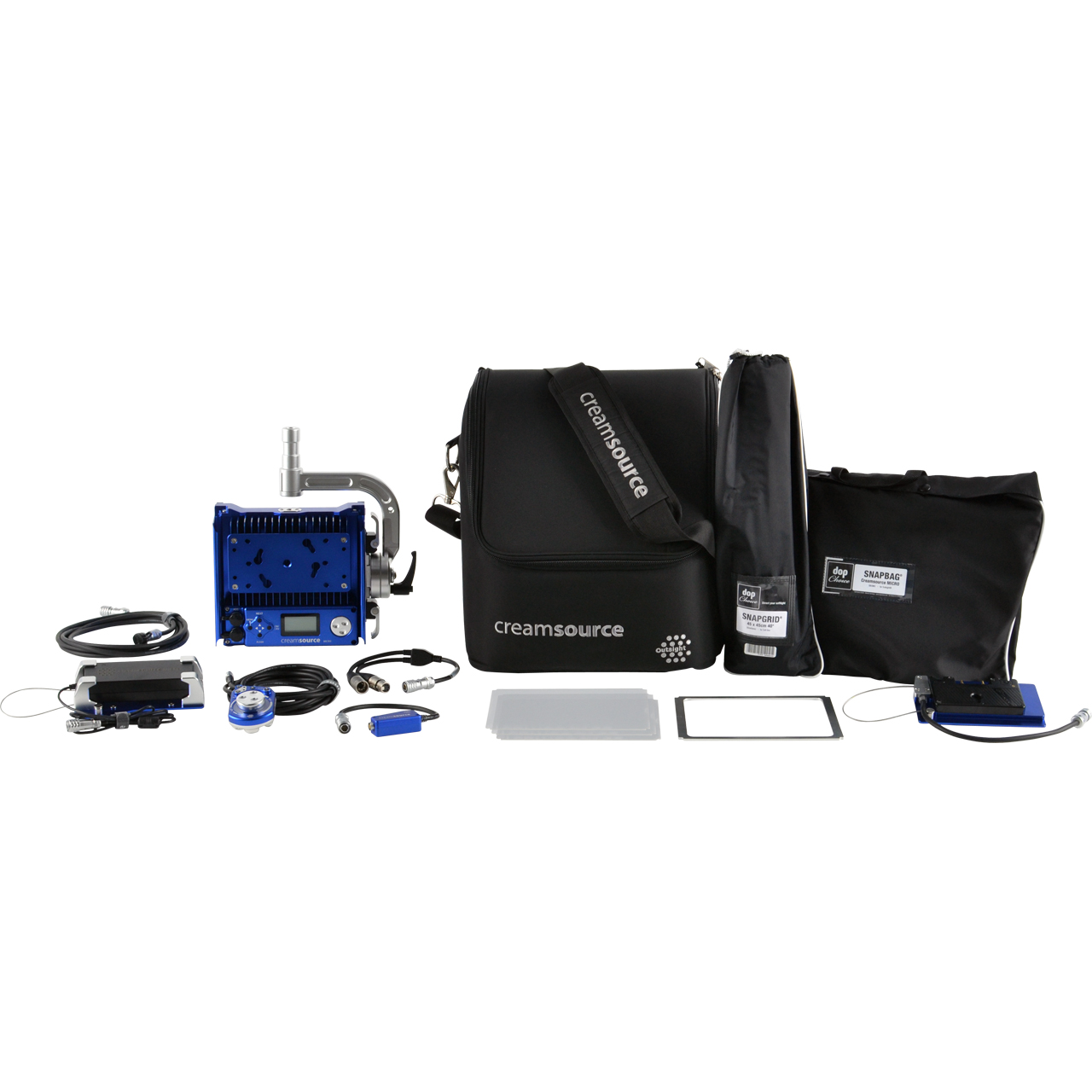

  • Item Includes:

    • 1x Micro Color
    • 1x Yoke
    • 1x 9.84ft Power Supply Lead
    • 1x Power Supply Mounting Plate
    • 1x 90W Power Supply
    • 1x 20° Narrow Lens
    • 1x 60° Medium Lens
    • 1x 100° Wide Lens
    • 1x 120° Extra Wide Lens
    • 1x Gel Frame
    • 1x Dome Diffuser
    • 1x Softbag
    • 1x Snapbag Softbox
    • 1x Creamtwist Wired Remote
    • 1x Anton Bauer Battery Mount

  • Warranty:

    • 5 Year Limited Warranty
