Creamsource K-CSU-C-PRO-V Micro Color Pro Kit with V-Mount Battery Plate and Power/Optic Accessories

ITEM #: CRM-K-U-C-P-V MFG #: K-CSU-C-PRO-V

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$1,499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


K-CSU-C-PRO-V - Overview

The Creamsource Micro K-CSU-C-PRO-V is a premium, high-performance lighting solution designed for professionals in the film and TV industry. This kit includes an 80W RRGBBW LED lamp head with a V-mount battery plate, power and optic accessories, and a durable carrying case, making it the ideal companion for on-the-go lighting setups. The Micro Colour is capable of producing a wide color temperature range from 2200K to 15000K, with green/magenta adjustment and full RGBW control, offering unparalleled flexibility for creative lighting needs. Its IP65 rating ensures water resistance, allowing the fixture to perform reliably in any weather conditions, while its fan-free cooling system ensures silent operation during shoots.

The Micro Color VM Pro Kit delivers exceptional color rendition, with a typical CRI and TLCI of 95, ensuring stunningly accurate and vibrant colors. Its narrow 20° beam angle provides powerful and focused light output, rivaling the performance of much larger 200W HMI luminaires. Whether you're working in the studio or on location, the Micro Colour provides a compact and rugged form factor that is easy to rig and transport. The kit includes a variety of lenses and accessories, allowing you to customize your light source for different applications, from softening the light to shaping and controlling it precisely.

With the inclusion of the V-mount battery plate, the Micro Color VM Pro Kit is fully portable, offering flexible powering options for remote shoots or locations without direct access to power. The kit also supports DMX control, enabling easy integration into complex lighting setups. With over 5000fps flicker-free dimming in high-speed mode, this fixture is perfect for high-speed filming. Designed for versatility and ease of use, the Micro Color VM Pro Kit ensures that your lighting needs are met with precision and reliability, making it a top choice for industry professionals.

  • Features:

    • 80W RRGBBW LED engine for full color control from 2200K to 15000K
    • Excellent color rendering with CRI and TLCI values of 95
    • 20° beam angle for powerful and focused light output
    • Water-resistant design (IP65), ideal for all-weather conditions
    • Fan-free cooling system for silent operation
    • Full range of accessories including 20°, 60°, 100°, and 120° lenses
    • Portable with V-lock battery plate
    • Over 5000fps flicker-free dimming for high-speed filming
    • Supports DMX control and gang control with Y cables
    • Comes with a removable power supply via optional PSU mount
    • Compact and lightweight design, weighing just 9.3lbs with yoke
    • Includes barn door, filter rails, and hard carrying case for easy transport

  • Specifications:

    • Physical
    • Dimensions:
      - Excluding Yoke: 8.7" x 8.1" x 4.3" (221mm x 205.74mm x 105mm)
      - Including Yoke: 11.1" x 13" x 4.3" (282mm x 330mm x 105mm)
    • Weight:
      - Excluding Yoke: 7lbs (3.2kg)
      - Including Yoke: 9.3lbs (4.2kg)
    • Tilt Angle:
      - 170° (Up)
      - 80° (Down)
    • Mounting: 3/8-inch Threaded Insert. Kino Flo Twist-On Style Mount Plate
    • Yoke: Removable quick-release yoke
    • Filter Rails: 2 Filter Rails for Secondary Lenses and Diffusers
    • Protection Class: IP65 (Fixture), IP20 (Power Supply)

      Optical
    • LED Wattage: 80W
    • Color Temperature: 2200K-15000K CCT, Plus/Minus Green, Hue/Saturation, Direct RGBW, Effects
    • CRI: 95
    • TLCI: 95
    • Beam Angle: 20° (Half Peak Angle)
    • Photometrics:
      - 3200K @ 3.3FT: 12,900 lux / 1,200 fc
      - 3200K @ 6.6FT: 3,150 lux / 290 fc
      - 3200K @ 9.8FT: 1,400 lux / 130 fc
      - 3200K @ 13.1FT: 790 lux / 70 fc
      - 5600K @ 3.3FT: 12,340 lux / 1,150 fc
      - 5600K @ 6.6FT: 3,010 lux / 280 fc
      - 5600K @ 9.8FT: 1,340 lux / 120 fc
      - 5600K @ 13.1FT: 750 lux / 70 fc
    • Estimated LED Lifespan: 50,000 hours (L70)
    • Dimming: 0-100% with High Resolution, Super-Smooth Low End Mode

      Electrical
    • Input (Fixture): 10-32VDC, Max 8A (80W)
    • Input (Power Supply): 100-240VAC, 50/60Hz, Max 1.3A

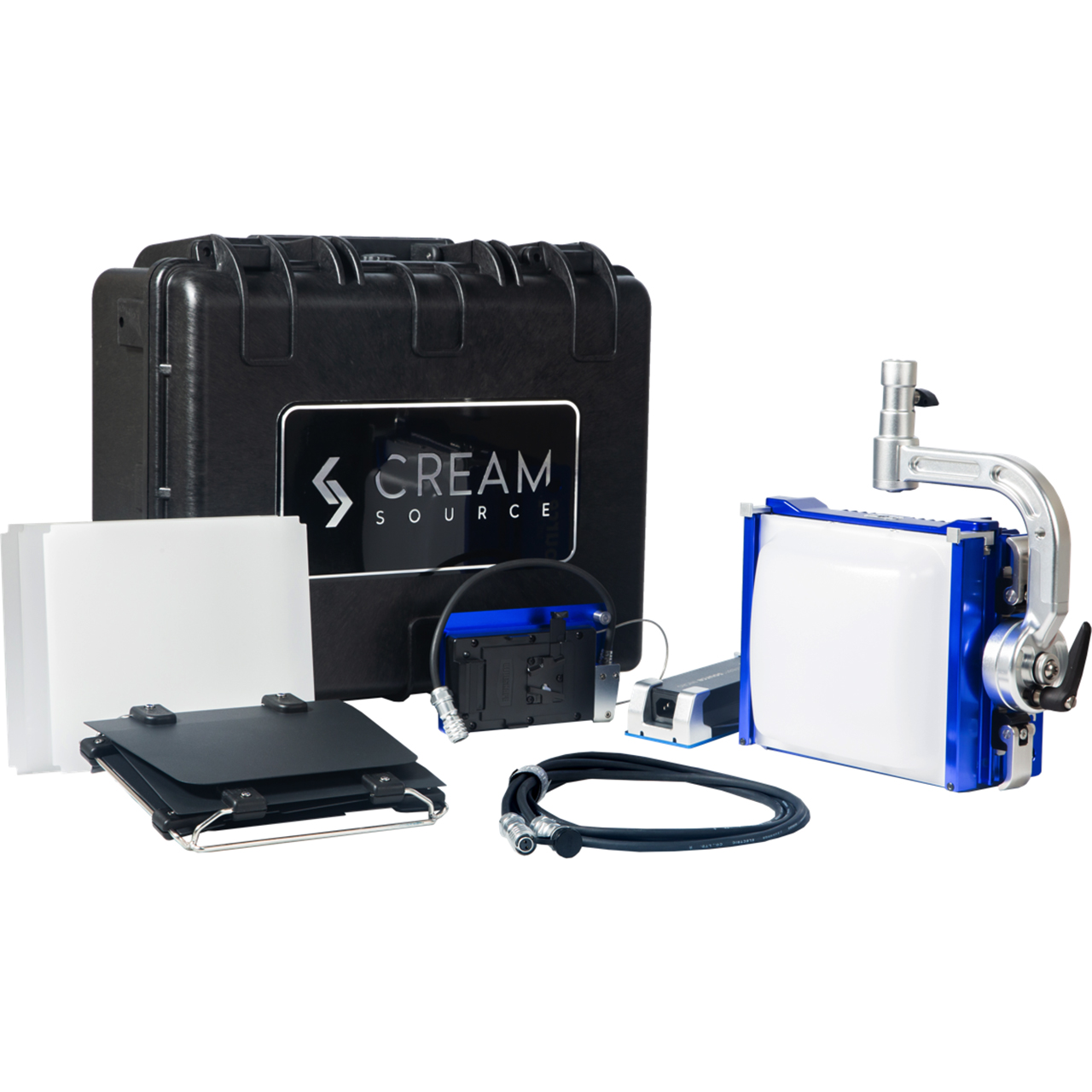

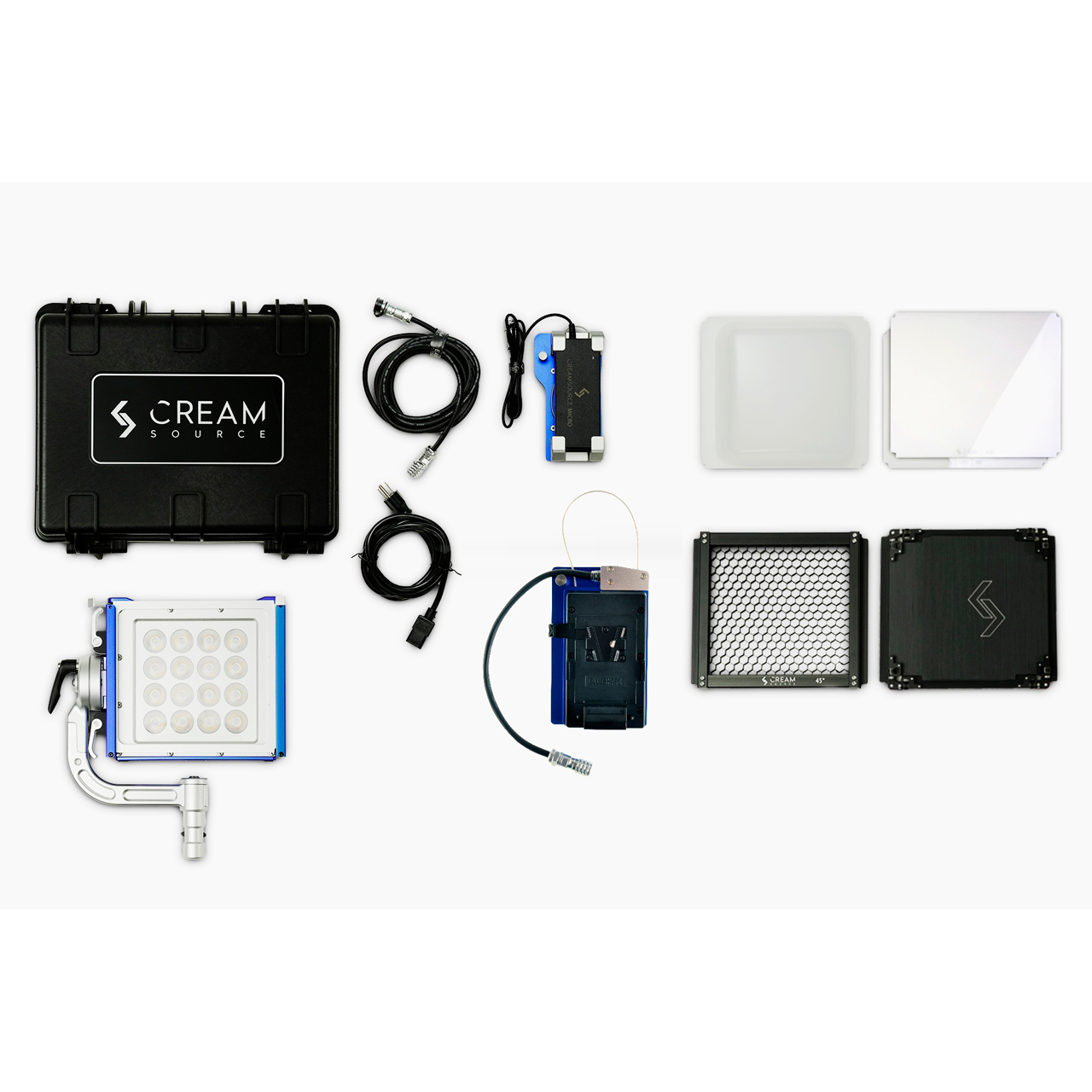

  • Item Includes:

    • 1x Micro Color
    • 1x Yoke
    • 1x 9.84FT Power Supply Lead
    • 1x Power Supply Mounting Plate
    • 1x 90W Power Supply
    • 1x 20-Degree Narrow Lens
    • 1x 60-Degree Medium Lens
    • 1x 100-Degree Wide Lens
    • 1x 120-Degree Extra Wide Lens
    • 1x Barn Door
    • 1x Dome Diffuser
    • 1x Hard Case
    • 1x V-Lock Style Battery Mount

  • Warranty:

    • 5-Year Limited Warranty
