Horita CSG-50B Color Bar Sync Generator
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

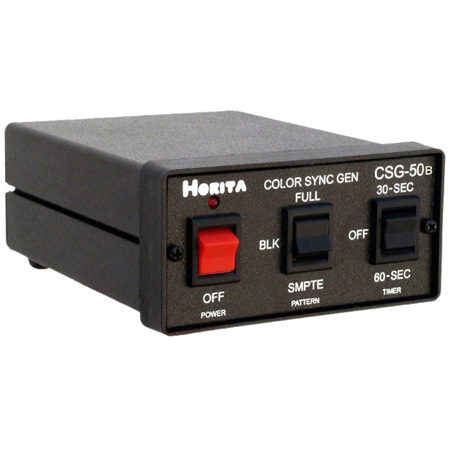

    Horita CSG-50B Color Bar Sync Generator

    Manufacturer: Horita Co

    Item #: CSG-50B   •   MFG #: CSG-50B








    • Features

      • Generates color bars, blackburst, and composite sync signals, as well as a 15 Hz reference frame timing signal.
      • Front panel selection of full-field or SMPTE (with "pluge") color bar patterns or blackburst video output.
      • Precision digitally synthesized video signals are fully RS-170A SC/H phased and always correct. No SC/H adjustment ever required.
      • Built-in timer can automatically switch video output from color bars to black and audio tone to silence after 30 or 60 seconds. Easy and convenient for producing tape leaders and striping tapes with color bars and tone followed by black and silence.
      • Video signals generated by the CSG-50 are in accordance with the industry standard EIA RS-170A video timing specification.
      • SMPTE color bars meet SMPTE specifications EG-1-1990.
      • Full-field color bars meet EIA RS-189A specifications for video levels and color bars.
      • Includes crystal-controlled, 1KHz, 0dB audio tone output.

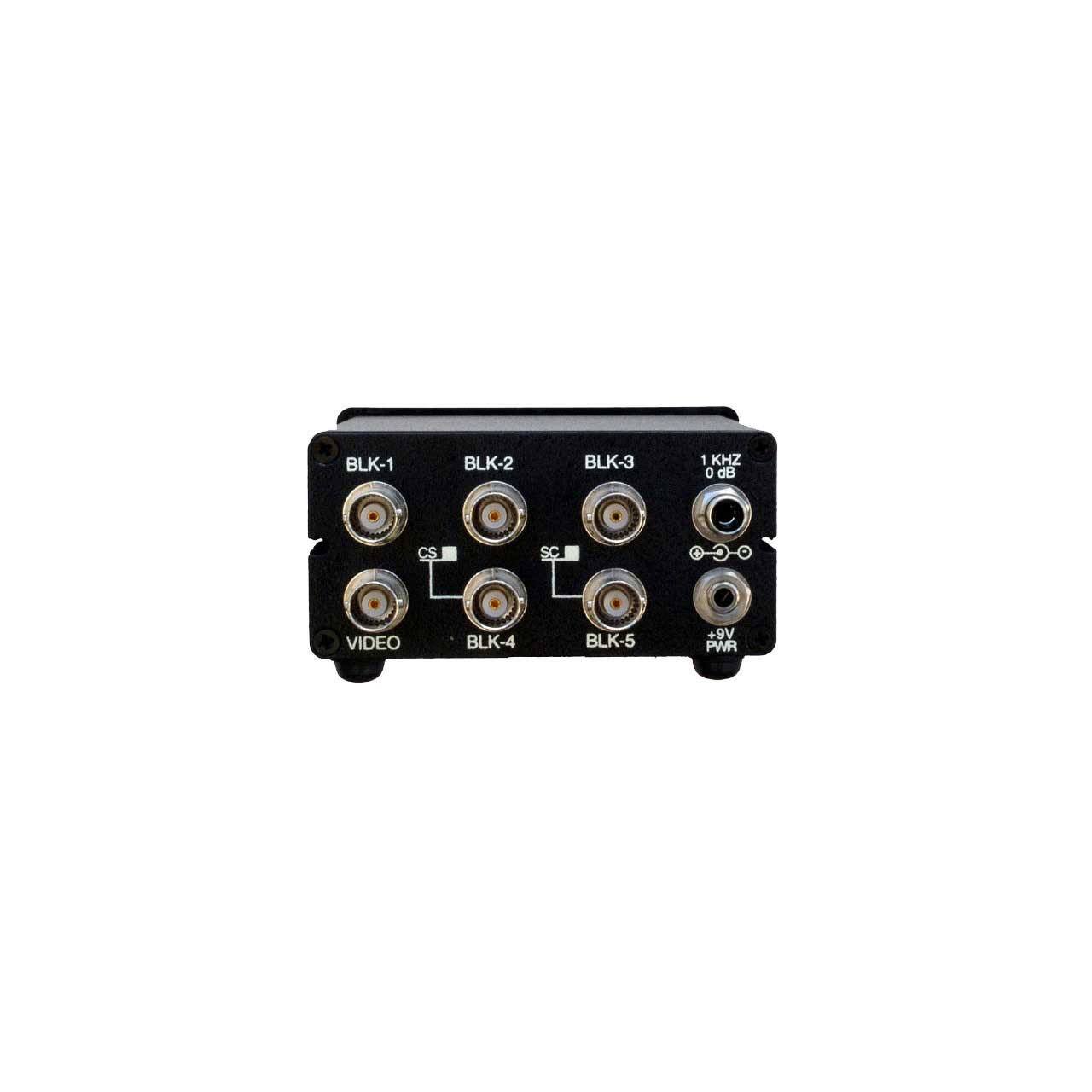

      • Outputs: video, composite sync, 15 Hz ref frame, 1KHz, 0dB audio tone (unbalanced).
      • Also available in 24-frame format.
        Plus Multiple Black/SC Outputs
      • All features of CSG-50 PLUS
      • 5 additional outputs which may be configured for all blackburst or in various combinations with sync and subcarrier
      • Up to 7 black/subcarrier outputs provided on Rackmount and Short Rack models.
