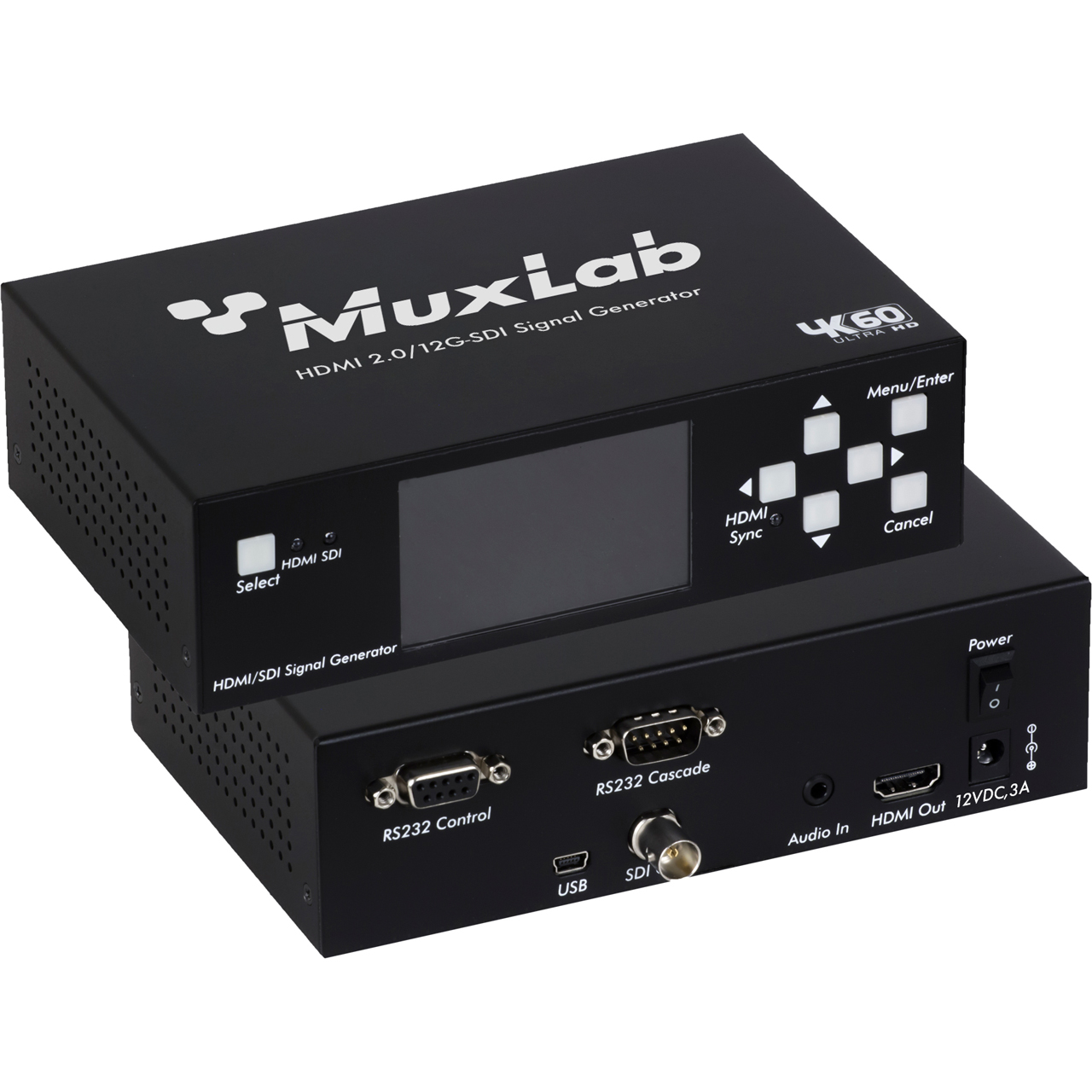

MuxLab 500830-V2 4K60 HDMI 2.0/12G-SDI Test Signal Generator

ITEM #: MUX-500830-V2 MFG #: 500830-V2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,495.00

Our Price:

$1,996.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    500830-V2 - Overview

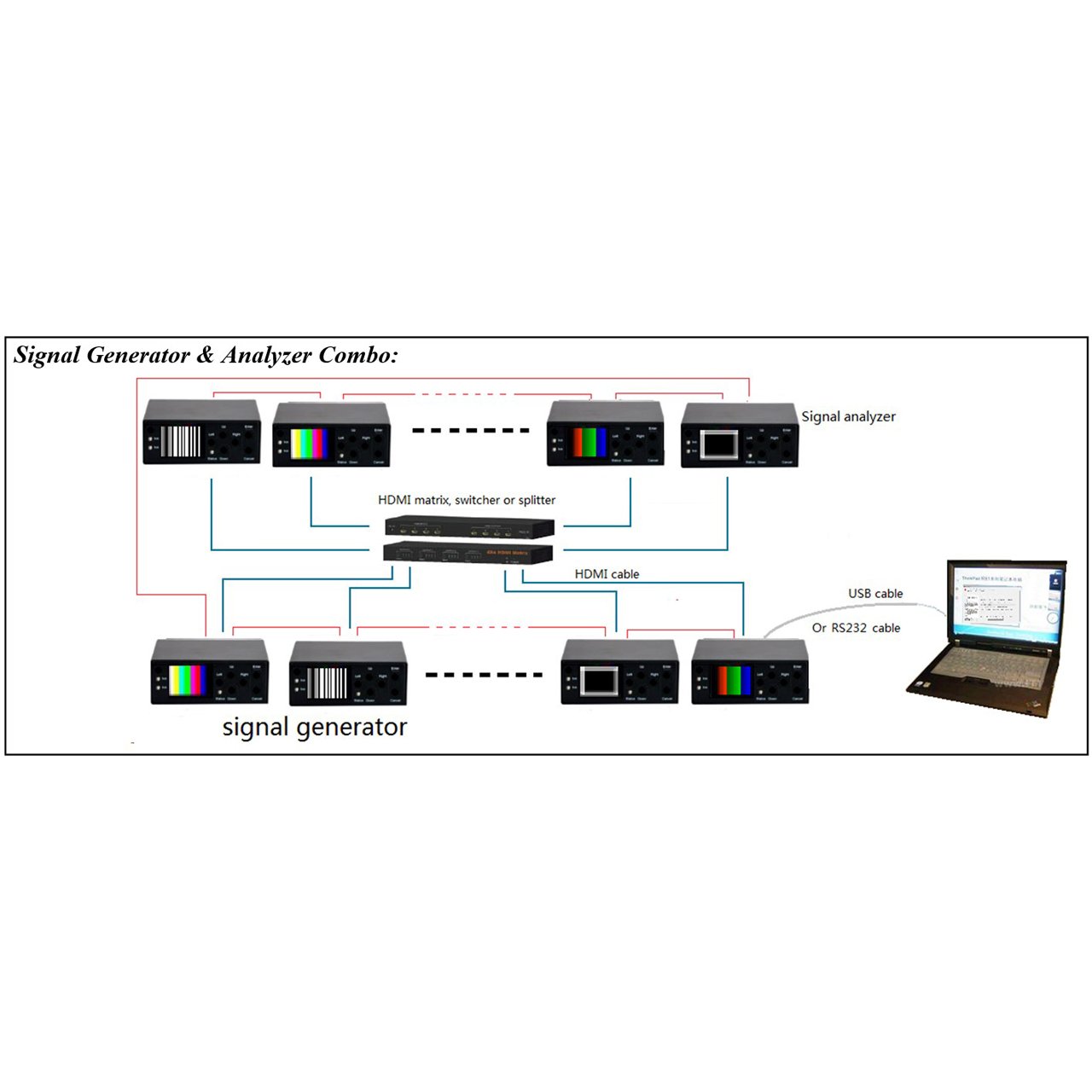

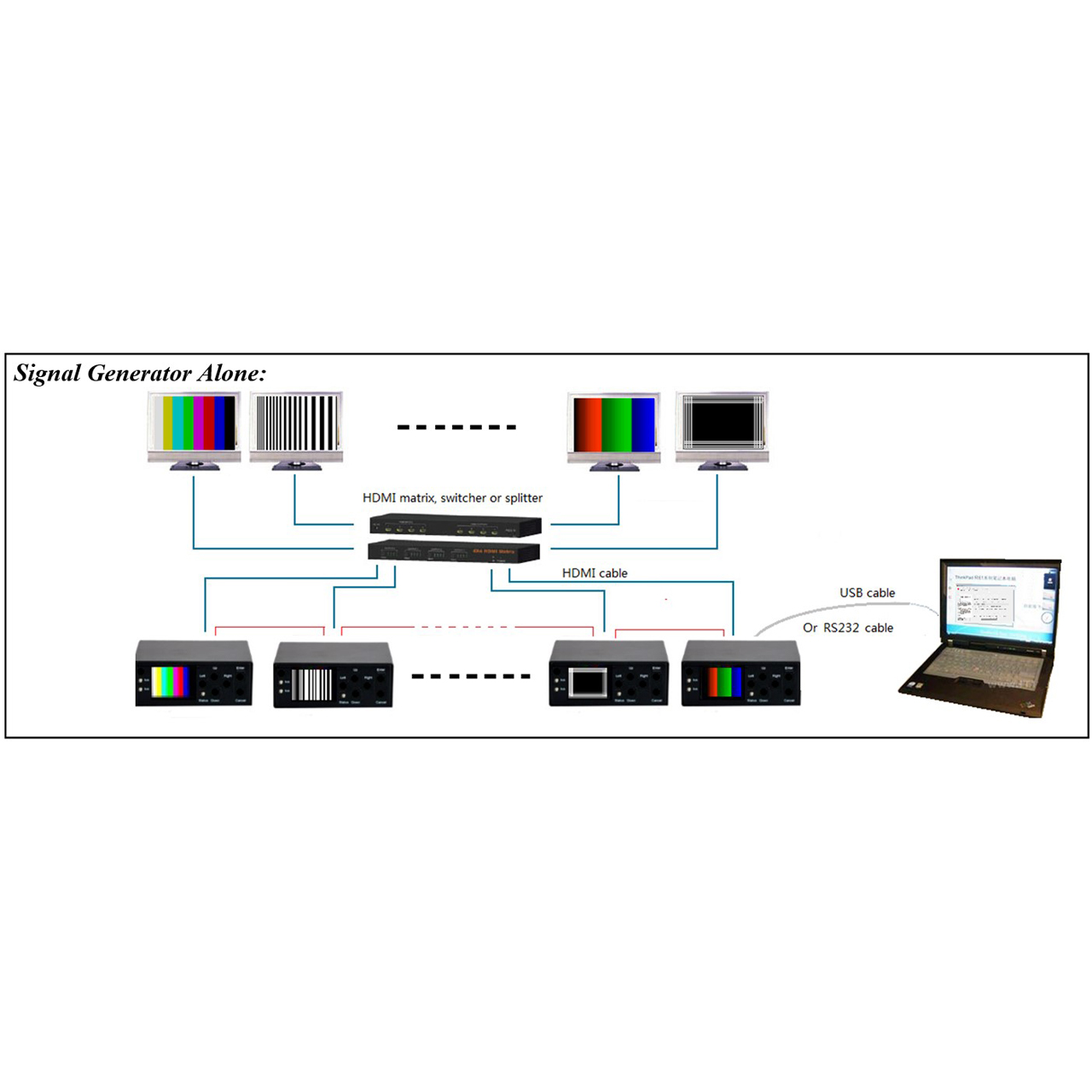

    The MuxLab 500830-V2 HDMI 2.0/12G-SDI Signal Generator (model: 500830-V2) is a portable test tool that can generate HD/3G/12G SDI and HDMI 2.0 test patterns in a full range of resolutions up to 4K@ 60Hz (4:4:4). The unit assists users in validating the capabilities and proper operation of their sink devices. The user may select from various test pattern, resolutions, refresh rates, color spaces and other related parameters. When used with the 500831 Signal Analyzer, a useful set of cable connectivity/quality tests, and device compatibility tests can be performed to help identify problems. The device is an exceptional tool at an attractive price for any AV engineer/developer, Integrator and installer.

    The Signal Generator is a portable device which can be used anytime you need it and anywhere, making it an invaluable tool. The unit supports an internal rechargeable Lithium-ion battery, allowing the device to be operated autonomously for up to 5 hours per charge.

    Applications:
    - Broadcast studios
    - Television studios
    - IT departments
    - Data centers
    - AV testing environments

    • Features:

      • Supports HDMI up to 4K/60 & 3D, and 12G-SDI
      • Supports RGB4:4:4, YUV4:4:4, YUV4:2:2, YUV4:2:0 & Deep Color
      • Supports 37 preset patterns & 43 preset resolutions

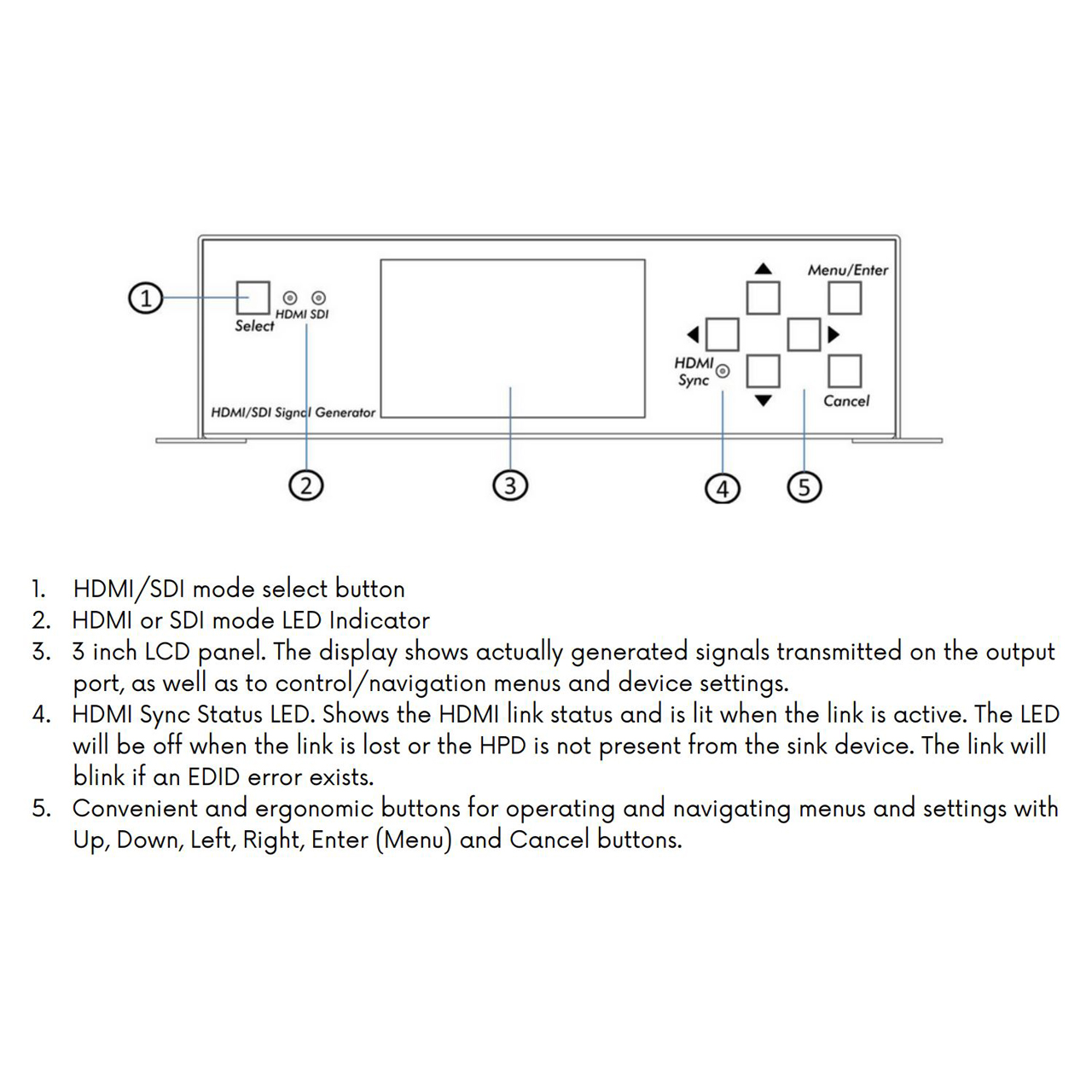

      • 3" LCD panel for pattern preview & menu settings
      • Supports up to 7 audio channels
      • Supports HDCP on/off, for testing HDCP 1.4 & 2.3
      • Supports EDID management
      • Locally or remotely managed via RS232 or USB
      • Free Windows management software

    • Specifications:

      • Environment: HDMI 2.0 and 12G-SDI
      • Devices: Testing projectors, monitors, and TV displays. Plus cable infrastructure when paired with 500831
      • HDMI Signal Support: Up to HDMI 2.0/DVI
      • SDI Signal Support: HD-SDI, 3G-SDI and 12G-SDI
      • HDCP Support & Control: Supports HDCP 1.4 and 2.3, with Enable/Disable control
      • Video Bandwidth: Up to 18.0GHz (6.0GHz per channel)
      • Color Depth: 24bits, 30bits, 36bits and 48bits
      • Color Space: RGB444, YUV444, YUV422, YUV420 (HDMI 2.0 only)
      • Resolution/Refresh Rate Presets: 43 preset resolutions: VESA, 480p, 720p, 1080i, 1080p, 2160p, 4K, 720P-3D, 1080P-3D, Auto modes: one auto mode
      • User Defined Resolutions/Refresh Rates: 10 configurable presets
      • Supported Patterns: 37 preset patterns (36 2D pattern and one 3D pattern)
      • Audio Bit Depth: 16bit, 20bit and 24bit
      • Audio Sample Rate: 32KHz, 44KHz, 48KHz, 88KHz, 96KHz, 176KHz and 192KHz
      • Vertical Frequency Range: = 60Hz

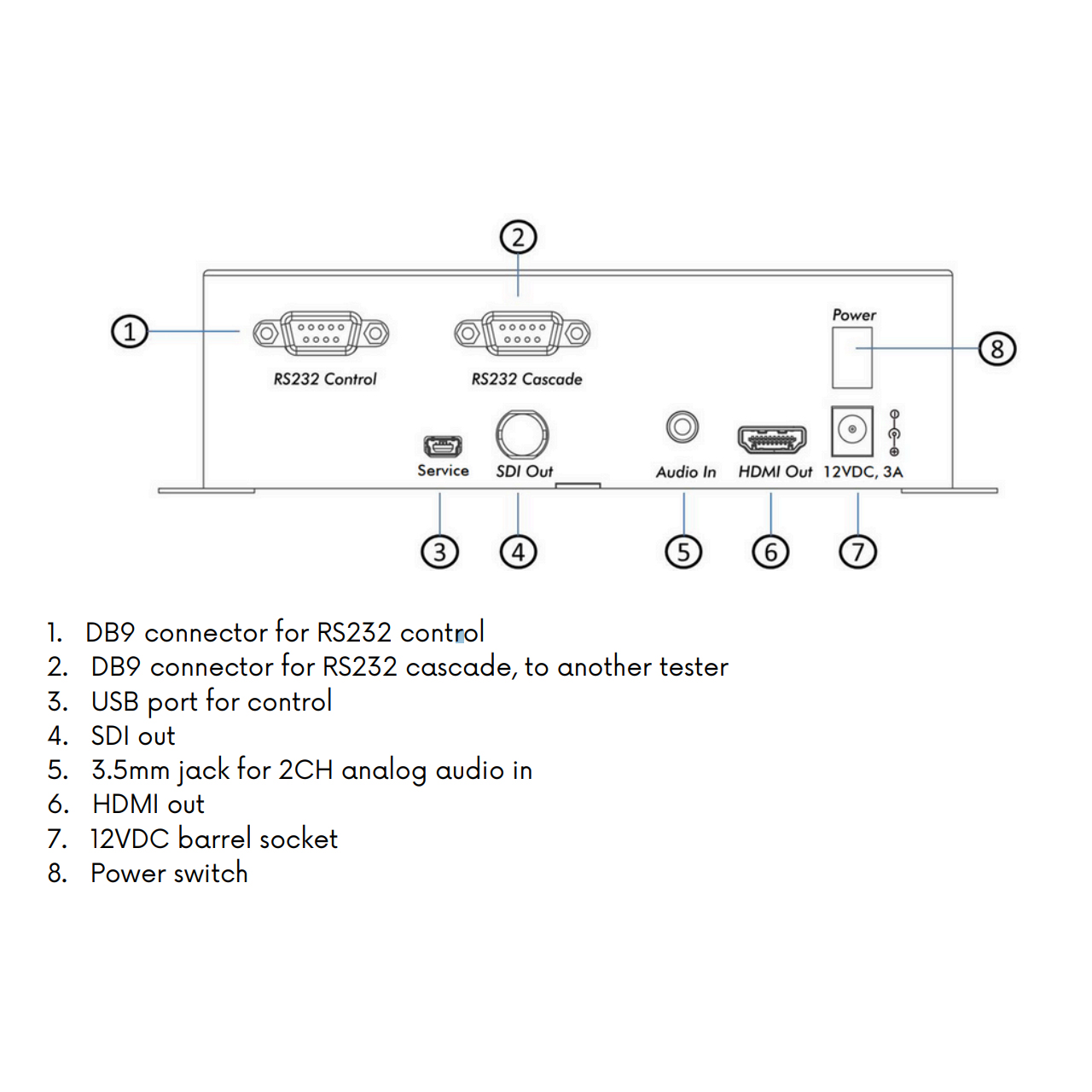

      • Connectors:
        - 1x HDMI connector for HDMI video-out
        - 1x SDI (BNC) connector for SDI video-out
        - 1x 3.5mm connector for analog audio-in
        - 1x RS232 DB9 connector for management
        - 1x RS232 DB9 Connector for cascading management port
        - 1x USB connector for management
        - 1x 2.1mm barrel jack power connector
      • Power Source:
        - 110/240VAC to 12VDC @ 3A power supply with interchangeable blades for US, UK and EU.
        - Built-in (non-serviceable) rechargeable Lithium-ion battery supporting up to 5 hours of usage per charge
        - Unit supports a power switch on rear. Battery charge duration may vary
      • Power Consumption: 11W
      • Operating Temperature: 32°F - 104°F (0°C - 40°C)
      • Storage Temperature: -4°F - 185°F (-20°C - 85°C)
      • Humidity: Up to 95% non-condensing
      • Enclosure: Metal
      • Dimensions: 6.69" x 1.97" x 4.29" (170mm x 50mm x 109mm), not including connectors
      • Weight: 2.80lbs (1.27kg)
      • Compliance: FCC, CE, RoHS

    • Item Includes:

      • 1x HDMI 2.0/12G-SDI Signal Generator
      • 1x 12VDC/3A Power Supply
      • 2x Wall-mounting bracket
      • 1x USB Cable 1.2m
      • 1x User manual (available via download)

    • Warranty:

      • 2 years

    • GTIN:

      0627699018309
