Core SWX CXA-FX9 3-Stud Battery Bracket with a 4-pin XLR Input Option and Two p-tap Outputs - LED Battery Indication

ITEM #: CSW-CXA-FX9 MFG #: CXA-FX9

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$499.00

Our Price:

$474.05

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    CXA-FX9 - Overview

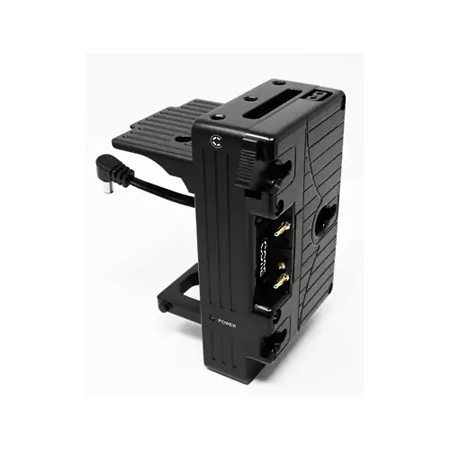

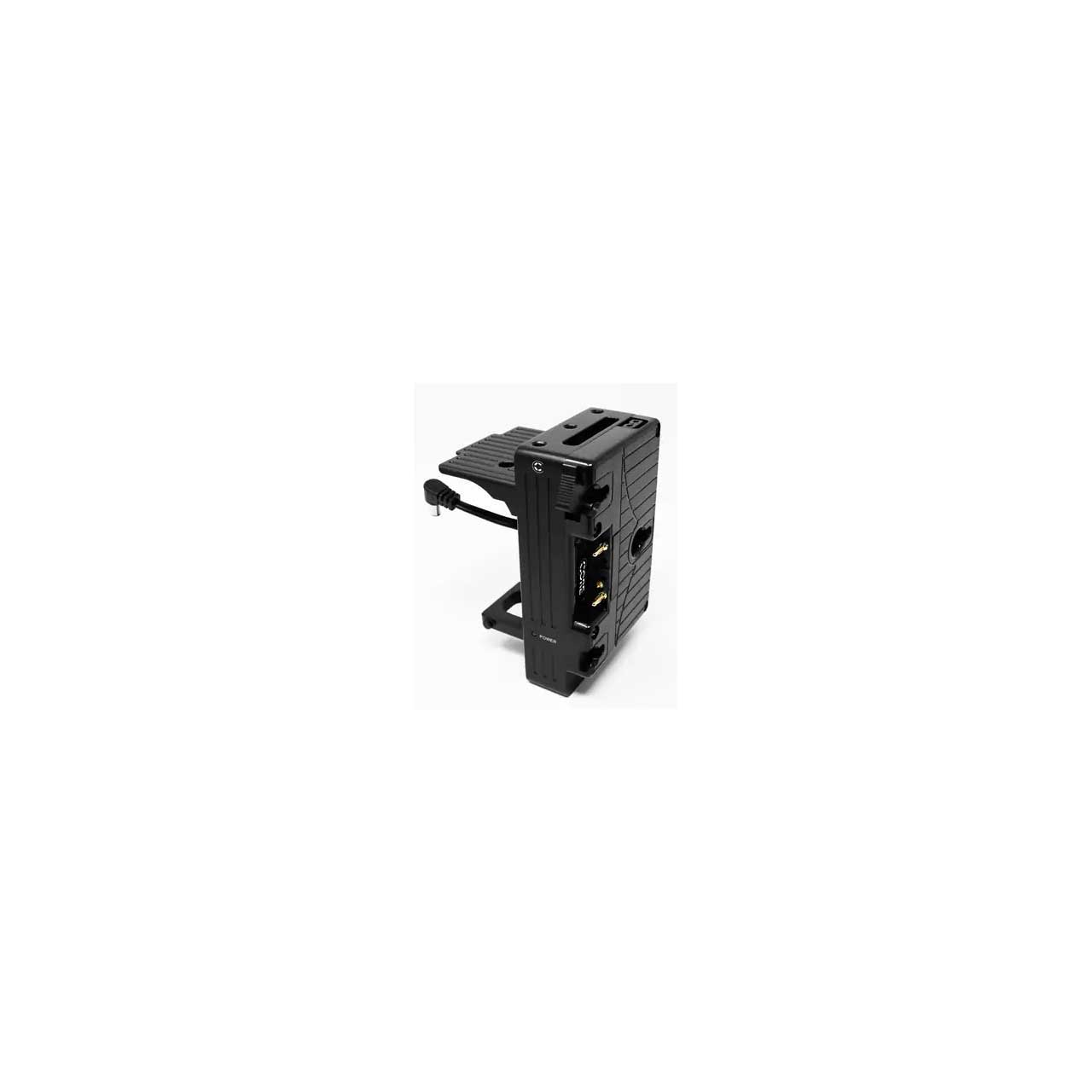

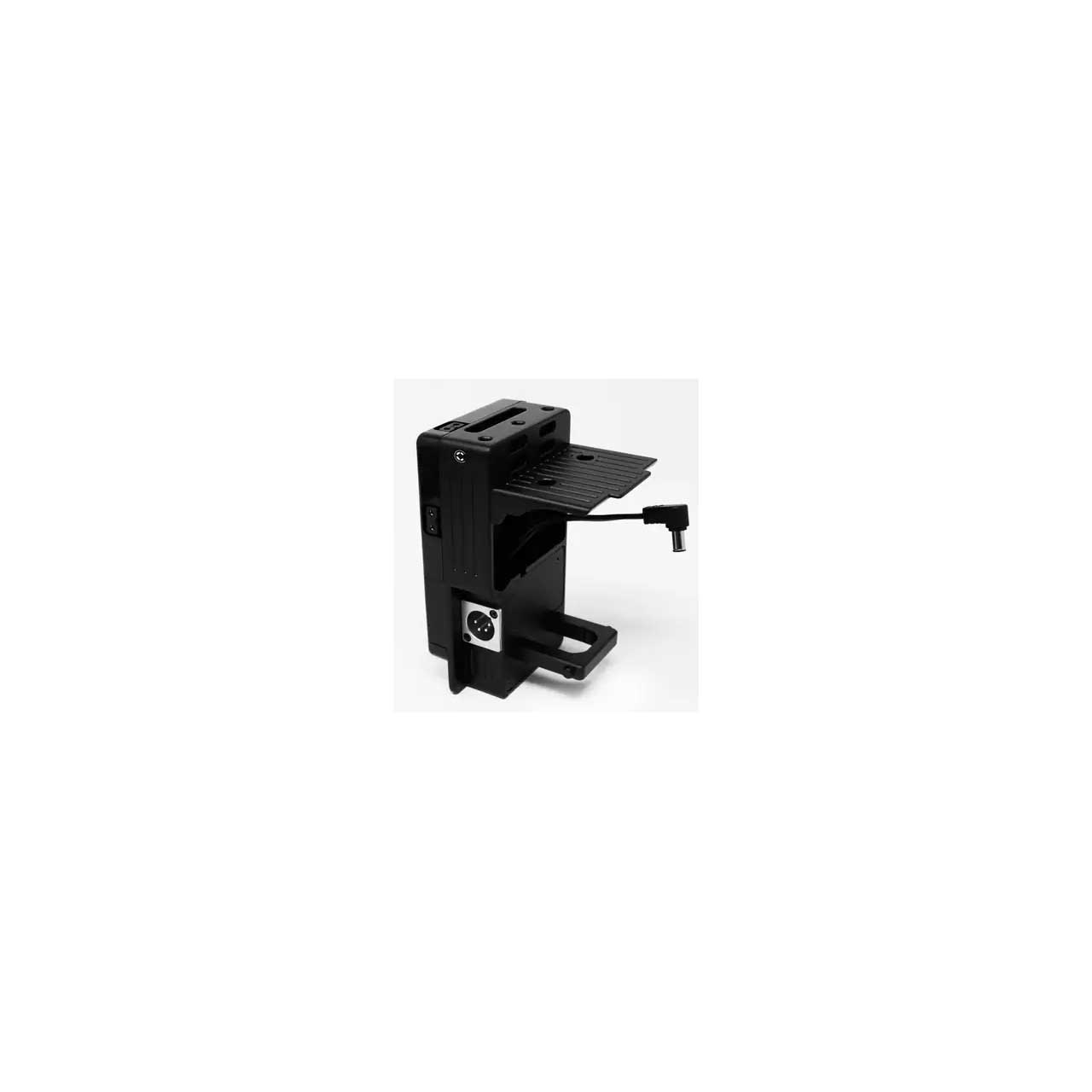

    The Core SWX CXA-FX9 mounts directly to the back of the Sony PXW-FX9, as an alternative power option to the Sony XDCA-FX9. The milled aluminum product inserts into the battery slot of the camera and also attaches into the top of the camera (with included screw hardware) to provide a secure platform for mounting gold mount batteries directly onto the FX9 camera. It has a 19.5v DC output with a visual low battery warning LED and a 4-pin XLR DC input for hotswapping between external and on-board power. In addition, it’s equipped with two powertaps to power additional accessories and three 1/4-20 threads on the top to attach accessories. A USB firmware update port on the rear ensures future compatibility with camera firmware updates.

    A BP-U30 or BP-U35 battery pack fits inside of the battery cavity on the camera, allowing the user to hotswap batteries. Once the 3-stud on-board pack dies, it will automatically pull power from the BP-U30 and you will see the battery indication on the viewfinder change. To make it easier to take the CXA-FX9 plate on-and-off, M4-8mm thumbscrews can be purchased separately.

    • Specifications:

      • Input: 11.9vdc-16.8vdc(on-board and 4p XLR DC-in). Inputs are hot swappable.
      • Output for camera: DC 19.5v
      • Powertaps: DC 11.9-17v, Unregulated
      • Size: 5.4 x 3.35 3.7"
      • Weight: 1.2 lbs
      • Firmware port: USB Micro
      • LED Power Indication: Bi-color(red/green)

    • GTIN:

      0184323005192
